IslandPath Analysis: Shigella dysenteriae Sd197

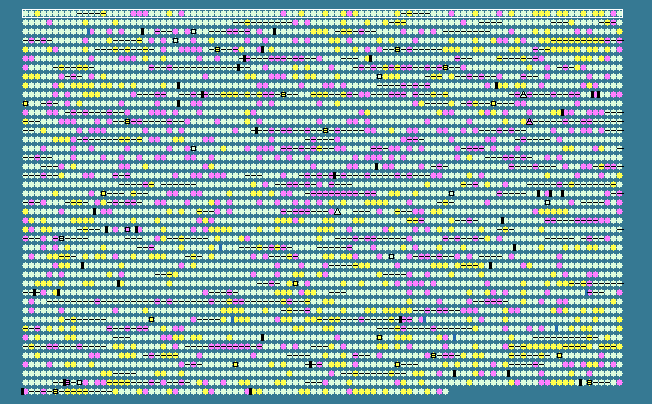

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 51.49   STD DEV: 3.86
Shigella dysenteriae Sd197, complete genome - 1..4369232
4271 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 51.52	0	190..255	+	21	82775383	thrL	SDY_0001	-	thr operon leader peptide
2	 52.70	0	336..2798	+	820	82775384	thrA	SDY_0002	-	bifunctional aspartokinase I/homeserine dehydrogenase I
3	 56.38	+1	2800..3732	+	310	82775385	thrB	SDY_0003	-	homoserine kinase
4	 52.91	0	3733..5019	+	428	82775386	thrC	SDY_0004	-	threonine synthase
5	 53.54	0	5233..5529	+	98	82775387	-	SDY_0005	-	hypothetical protein
6	 48.52	0	5682..6458	-	258	82775388	yaaA	SDY_0006	-	hypothetical protein
7	 53.20	0	6749..7951	-	400	82775389	yaaJ	SDY_0007	-	inner membrane transport protein
8	 51.78	0	8230..9183	+	317	82775390	talB	SDY_0008	-	transaldolase B
9	 54.08	0	9298..9885	+	195	82775391	mogA	SDY_0009	-	molybdenum cofactor biosynthesis protein
10	 52.56	0	9920..10486	-	188	82775392	yaaH	SDY_0010	-	hypothetical protein
11	 50.28	0	10635..11348	-	237	82775393	-	SDY_0011	-	hypothetical protein
12	 48.33	0	11374..11733	-	119	82775394	yaaI	SDY_0012	-	hypothetical protein
13	 51.23	0	12155..14071	+	638	82775395	dnaK	SDY_0013	-	molecular chaperone DnaK
14	 55.08	0	14160..15290	+	376	82775396	dnaJ	SDY_0014	-	chaperone protein DnaJ
15	 50.95	0	15394..15603	-	69	82775397	gef	SDY_0015	-	Gef
16	 49.54	0	15865..16080	-	71	82775398	-	SDY_0016	-	iso-IS1 ORF2
17	 53.55	0	16077..16259	-	60	82775399	-	SDY_0017	-	iso-IS1 ORF2
18	 51.50	0	16905..18071	+	388	82775400	nhaA	SDY_0018	-	pH-dependent sodium/proton antiporter
19	 47.57	-1	18131..19036	+	301	82775401	nhaR	SDY_0019	-	transcriptional activator NhaR
20	 36.93	-2	19074..19601	-	175	82775402	-	SDY_0020	-	hypothetical protein
21	 47.11	-1	19592..19816	-	74	82775403	-	SDY_0021	-	hypothetical protein
22	 51.77	0	20011..20406	+	131	82775404	-	SDY_0022	-	iso-IS1 ORF2
23	 54.23	0	20512..20889	-	125	82775405	insB	SDY_0023	-	IS1 ORF2
24	 51.81	0	20934..21209	-	91	82775406	insA	SDY_0024	-	IS1 ORF1
25	 55.77	+1	21788..24385	+	865	82775407	acnB	SDY_0025	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
26	 51.79	0	24560..24922	+	120	161950172	yacL	SDY_0026	-	hypothetical protein
27	 46.16	-1	24960..25754	-	264	82775409	speD	SDY_0027	-	S-adenosylmethionine decarboxylase
28	 51.21	0	25770..26636	-	288	82775410	speE	SDY_0028	-	spermidine synthase
29	 49.04	0	26742..27212	-	156	82775411	yacC	SDY_0029	-	hypothetical protein
30	 53.97	0	27255..28805	+	516	82775412	yacK	SDY_0030	-	multicopper oxidase
31	 51.81	0	29799..30074	+	91	82779654	insA	SDY_0031	-	IS1 ORF1
32	 54.23	0	30119..30496	+	125	82775413	insB	SDY_0032	-	IS1 ORF2
33	 50.28	0	32224..32760	+	178	161950171	hpt	SDY_0034	-	hypoxanthine phosphoribosyltransferase
34	 50.38	0	32801..33463	-	220	82775415	yadF	SDY_0035	-	carbonic anhydrase
35	 49.41	0	33572..34498	+	308	82775416	yadG	SDY_0036	-	putative ATP-binding component of a transport system
36	 51.23	0	34495..35265	+	256	82775417	yadH	SDY_0037	-	hypothetical protein
37	 49.43	0	35370..35810	+	146	82775418	yadI	SDY_0038	-	putative PTS enzyme II B component
38	 50.48	0	35874..36287	+	137	82775419	-	SDY_0039	-	hypothetical protein
39	 49.29	0	36265..37104	+	279	82775420	yadE	SDY_0040	-	hypothetical protein
40	 52.49	0	37108..37488	-	126	82775421	panD	SDY_0041	-	aspartate alpha-decarboxylase
41	 49.31	0	37762..38562	+	266	82775422	yadD	SDY_0042	-	hypothetical protein
42	 51.81	0	38591..38866	+	91	82775423	insA	SDY_0043	-	IS1 ORF1
43	 53.97	0	38911..39288	+	125	82775424	insB	SDY_0044	-	IS1 ORF2
44	 46.59	-1	39604..39867	-	87	82775425	rpsT	SDY_0045	-	30S ribosomal protein S20
45	 48.40	0	39970..40188	+	72	82775426	-	SDY_0046	-	hypothetical protein
46	 52.87	0	40196..41137	+	313	82775427	ribF	SDY_0047	-	bifunctional riboflavin kinase/FMN adenylyltransferase
47	 55.52	+1	41180..43996	+	938	82775428	ileS	SDY_0048	-	isoleucyl-tRNA synthetase
48	 52.93	0	43996..44490	+	164	82775429	lspA	SDY_0049	-	lipoprotein signal peptidase
49	 54.22	0	44578..45027	+	149	82775430	slpA	SDY_0050	-	FKBX-type 16KD peptidyl-prolyl cis-trans isomerase
50	 54.89	0	45029..45979	+	316	82775431	ispH	SDY_0051	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
51	 55.30	0	46045..46959	+	304	82775432	yaaF	SDY_0052	-	ribonucleoside hydrolase RihC
52	 53.04	0	47126..47947	+	273	82775433	dapB	SDY_0053	-	dihydrodipicolinate reductase
53	 52.83	0	48405..49553	+	382	82775434	carA	SDY_0054	-	carbamoyl phosphate synthase small subunit
54	 55.93	+1	49571..52792	+	1073	82775435	carB	SDY_0055	-	carbamoyl phosphate synthase large subunit
55	 45.94	-1	53053..53409	+	118	161950170	caiF	SDY_0056	-	DNA-binding transcriptional activator CaiF
56	 55.07	0	53534..54145	-	203	82775437	caiE	SDY_0057	-	carnitine operon protein CaiE
57	 52.68	0	54130..55023	-	297	82775438	caiD	SDY_0058	-	carnitinyl-CoA dehydratase
58	 50.61	0	55024..56592	-	522	82775439	caiC	SDY_0059	-	putative crotonobetaine/carnitine-CoA ligase
59	 52.22	0	56651..57868	-	405	82775440	caiB	SDY_0060	-	crotonobetainyl-CoA:carnitine CoA-transferase
60	 53.89	0	57997..59139	-	380	82775441	caiA	SDY_0061	-	crotonobetainyl-CoA dehydrogenase
61	 52.08	0	59170..60684	-	504	82775442	caiT	SDY_0062	-	L-carnitine/gamma-butyrobetaine antiporter
62	 52.01	0	61156..61926	+	256	161950169	fixA	SDY_0063	-	putative electron transfer flavoprotein FixA
63	 55.41	+1	61941..62882	+	313	82775444	fixB	SDY_0064	-	putative electron transfer flavoprotein FixB
64	 54.29	0	63169..64218	+	349	82775445	fixC	SDY_0065	-	hypothetical protein
65	 57.29	+1	64215..64502	+	95	82775446	fixX	SDY_0066	-	putative ferredoxin
66	 53.20	0	64560..65480	+	306	82775447	yaaU	SDY_0067	-	putative transport protein
67	 53.85	0	65490..65723	+	77	82775448	-	SDY_0068	-	hypothetical protein
68	 54.80	0	66002..66532	+	176	82775449	yabF	SDY_0069	-	glutathione-regulated potassium-efflux system ancillary protein KefF
69	 54.80	0	66525..68192	+	555	82775450	kefC	SDY_0070	-	K+ efflux antiporter, glutathione-regulated
70	 52.71	0	68384..68863	+	159	82775451	folA	SDY_0071	-	dihydrofolate reductase
71	 49.15	0	68949..69182	+	77	82775452	-	SDY_0072	-	putative antitoxin of gyrase inhibiting toxin-antitoxin system
72	 45.71	-1	69185..69499	+	104	82775453	-	SDY_0073	-	putative toxin of gyrase inhibiting toxin-antitoxin system
73	 54.89	0	69496..70344	-	282	82775454	apaH	SDY_0074	-	diadenosine tetraphosphatase
74	 51.59	0	70351..70728	-	125	82775455	apaG	SDY_0075	-	ApaG
75	 52.92	0	70731..71552	-	273	82775456	ksgA	SDY_0076	-	dimethyladenosine transferase
76	 56.36	+1	71549..72538	-	329	82775457	pdxA	SDY_0077	-	4-hydroxythreonine-4-phosphate dehydrogenase
77	 53.92	0	72538..73824	-	428	82775458	surA	SDY_0078	-	peptidyl-prolyl cis-trans isomerase SurA
78	 51.38	0	73877..76231	-	784	82775459	imp	SDY_0079	-	organic solvent tolerance protein
79	 52.57	0	76486..77301	+	271	82775460	djlA	SDY_0080	-	DNA-J like membrane chaperone protein
80	 39.47	-2	77596..78312	+	238	82775461	yabP	SDY_0081	-	hypothetical protein
81	 54.09	0	78719..79378	-	219	82775462	yabO	SDY_0082	-	23S rRNA/tRNA pseudouridine synthase A
82	 55.07	0	79390..82296	-	968	82775463	hepA	SDY_0083	-	ATP-dependent helicase HepA
83	 51.77	0	83937..84332	-	131	82775464	-	SDY_0084	-	iso-IS1 ORF2
84	 51.81	0	85070..85345	+	91	82775465	insA	SDY_0085	-	IS1 ORF1
85	 54.23	0	85390..85767	+	125	82775466	insB	SDY_0086	-	IS1 ORF2
86	 55.32	0	86437..87132	-	231	82775467	araD	SDY_0088	-	L-ribulose-5-phosphate 4-epimerase
87	 55.49	+1	87300..88802	-	500	82775468	araA	SDY_0089	-	L-arabinose isomerase
88	 57.91	+1	88813..90513	-	566	82775469	araB	SDY_0090	-	ribulokinase
89	 54.90	0	91820..92584	+	254	82775470	yabI	SDY_0092	-	hypothetical protein
90	 56.94	+1	92698..93396	-	232	82775471	thiQ	SDY_0093	-	thiamine transporter ATP-binding subunit
91	 58.47	+1	93380..94990	-	536	82775472	thiP	SDY_0094	-	thiamine transporter membrane protein
92	 53.25	0	94966..95949	-	327	82775473	tbpA	SDY_0095	-	thiamine transporter substrate binding subunit
93	 52.17	0	96649..96924	-	91	82775474	insA	SDY_0096	-	IS1 ORF1
94	 55.46	+1	97447..99105	-	552	82775475	yabN	SDY_0097	-	transcriptional regulator SgrR
95	 52.31	0	99433..100038	-	201	82775476	leuD	SDY_0098	-	isopropylmalate isomerase small subunit
96	 56.03	+1	100049..101449	-	466	82775477	leuC	SDY_0099	-	isopropylmalate isomerase large subunit
97	 55.31	0	101452..102543	-	363	161950168	leuB	SDY_0100	-	3-isopropylmalate dehydrogenase
98	 53.05	0	102543..104114	-	523	82775479	leuA	SDY_0101	-	2-isopropylmalate synthase
99	 47.62	-1	104207..104290	-	27	82775480	leuL	SDY_0102	-	leu operon leader peptide
100	 49.54	0	104941..105156	+	71	82775481	-	SDY_0103	-	iso-IS1 ORF2
51.49	MEAN

3.86	STD DEV
