IslandPath Analysis: Shewanella baltica OS185

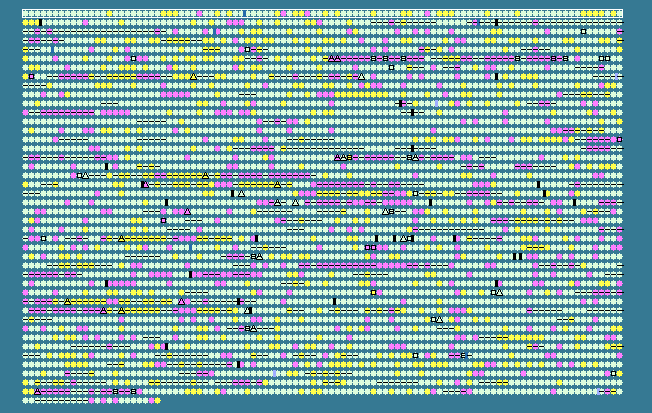

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 46.95   STD DEV: 3.86
Shewanella baltica OS185, complete genome - 1..5229686
4323 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 44.35	0	382..1770	+	462	152998556	-	Shew185_0001	-	chromosomal replication initiation protein
2	 44.87	0	1790..2890	+	366	152998557	-	Shew185_0002	-	DNA polymerase III, beta subunit
3	 44.97	0	3092..4174	+	360	152998558	-	Shew185_0003	-	DNA replication and repair protein RecF
4	 46.57	0	4191..6608	+	805	152998559	-	Shew185_0004	-	DNA gyrase, B subunit
5	 48.72	0	6694..7356	-	220	152998560	-	Shew185_0005	-	glutathione S-transferase domain-containing protein
6	 49.19	0	7461..8381	-	306	152998561	-	Shew185_0006	-	urea amidolyase related protein
7	 45.44	0	8715..9755	+	346	152998562	-	Shew185_0007	-	putative signal transduction protein
8	 46.57	0	9843..11912	-	689	152998563	-	Shew185_0008	-	glycyl-tRNA synthetase subunit beta
9	 49.45	0	11923..12828	-	301	152998564	-	Shew185_0009	-	glycyl-tRNA synthetase subunit alpha
10	 44.94	0	12946..13548	+	200	152998565	-	Shew185_0010	-	DNA-3-methyladenine glycosylase I
11	 46.57	0	13745..16933	-	1062	152998566	-	Shew185_0011	-	amidohydrolase
12	 47.65	0	17197..17643	-	148	152998567	-	Shew185_0012	-	hypothetical protein
13	 47.15	0	17691..17936	-	81	152998568	-	Shew185_0013	-	SirA family protein
14	 44.59	0	18106..19269	-	387	152998569	-	Shew185_0014	-	diguanylate cyclase
15	 50.86	+1	19512..20675	-	387	152998570	-	Shew185_0015	-	3-ketoacyl-CoA thiolase
16	 47.84	0	20698..22848	-	716	152998571	-	Shew185_0016	-	multifunctional fatty acid oxidation complex subunit alpha
17	 47.17	0	23339..24661	+	440	152998572	-	Shew185_0017	-	proline dipeptidase
18	 49.27	0	24689..25303	+	204	152998573	-	Shew185_0018	-	hypothetical protein
19	 47.60	0	25381..26838	+	485	152998574	-	Shew185_0019	-	TrkH family potassium uptake protein
20	 44.95	0	26841..27365	+	174	152998575	-	Shew185_0020	-	protoporphyrinogen oxidase
21	 44.66	0	27429..27737	-	102	152998576	-	Shew185_0021	-	regulatory protein ArsR
22	 47.28	0	27938..28489	+	183	152998577	-	Shew185_0022	-	protoporphyrinogen oxidase
23	 49.83	0	28560..30002	-	480	152998578	-	Shew185_0023	-	TrkH family potassium uptake protein
24	 50.71	0	30023..31432	-	469	152998579	-	Shew185_0024	-	potassium transporter peripheral membrane component
25	 50.97	+1	31448..32734	-	428	152998580	-	Shew185_0025	-	sun protein
26	 51.20	+1	32736..33692	-	318	152998581	-	Shew185_0026	-	methionyl-tRNA formyltransferase
27	 44.44	0	33701..34213	-	170	152998582	-	Shew185_0027	-	peptide deformylase
28	 47.13	0	34339..35469	+	376	152998583	-	Shew185_0028	-	peptidoglycan-binding LysM
29	 47.89	0	35553..36569	+	338	152998584	-	Shew185_0029	-	DNA protecting protein DprA
30	 39.87	-1	36572..37045	+	157	152998585	-	Shew185_0030	-	hypothetical protein
31	 46.49	0	37159..37728	+	189	152998586	-	Shew185_0031	-	DNA topoisomerase type IA Zn finger domain-containing protein
32	 47.27	0	37855..38421	+	188	152998587	-	Shew185_0032	-	Sua5/YciO/YrdC/YwlC family protein
33	 50.83	+1	38447..39355	+	302	152998588	-	Shew185_0033	-	coproporphyrinogen III oxidase
34	 44.37	0	39390..39824	-	144	152998589	-	Shew185_0034	-	globin
35	 52.06	+1	39977..40825	+	282	152998590	-	Shew185_0035	-	shikimate 5-dehydrogenase
36	 47.46	0	40831..41106	+	91	152998591	-	Shew185_0036	-	hypothetical protein
37	 46.63	0	41241..41789	-	182	152998592	-	Shew185_0037	-	carbonic anhydrase
38	 48.63	0	47947..48201	+	84	152998593	-	Shew185_0038	-	hypothetical protein
39	 43.64	0	48224..48679	+	151	152998594	-	Shew185_0039	-	BadM/Rrf2 family transcriptional regulator
40	 45.37	0	48654..49409	-	251	152998595	-	Shew185_0040	-	protein of unknown function DUF610 YibQ
41	 47.26	0	49422..50627	-	401	152998596	-	Shew185_0041	-	carboxyl-terminal protease
42	 47.47	0	50660..51748	-	362	152998597	-	Shew185_0042	-	peptidase M23B
43	 50.81	0	51804..53348	-	514	152998598	-	Shew185_0043	-	phosphoglyceromutase
44	 40.89	-1	53601..54050	+	149	152998599	-	Shew185_0044	-	rhodanese domain-containing protein
45	 47.12	0	54346..54831	+	161	152998600	-	Shew185_0045	-	preprotein translocase subunit SecB
46	 51.13	+1	54836..55852	+	338	152998601	-	Shew185_0046	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
47	 52.49	+1	56038..57222	+	394	152998602	-	Shew185_0047	-	hypothetical protein
48	 42.26	-1	57335..59305	-	656	152998603	-	Shew185_0048	-	putative transcriptional regulator
49	 48.75	0	59927..61288	-	453	152998604	-	Shew185_0049	-	TrkH family potassium uptake protein
50	 47.07	0	61290..61988	-	232	152998605	-	Shew185_0050	-	TrkA domain-containing protein
51	 53.19	+1	62033..62722	-	229	152998606	-	Shew185_0051	-	two component transcriptional regulator
52	 47.95	0	62723..63769	-	348	152998607	-	Shew185_0052	-	integral membrane sensor signal transduction histidine kinase
53	 53.25	+1	64040..64963	-	307	152998608	-	Shew185_0053	-	pirin domain-containing protein
54	 49.40	0	65350..67023	+	557	152998609	-	Shew185_0054	-	signal transduction histidine kinase, LytS
55	 47.13	0	67017..67748	+	243	152998610	-	Shew185_0055	-	LytTR family two component transcriptional regulator
56	 49.16	0	67855..69099	+	414	152998611	-	Shew185_0056	-	major facilitator transporter
57	 47.02	0	69234..69971	+	245	152998612	-	Shew185_0057	-	hypothetical protein
58	 48.69	0	70078..70572	+	164	152998613	-	Shew185_0058	-	NLP/P60 protein
59	 52.73	+1	70631..72094	+	487	152998614	-	Shew185_0059	-	major facilitator transporter
60	 48.45	0	72187..73218	+	343	152998615	-	Shew185_0060	-	periplasmic binding protein/LacI transcriptional regulator
61	 50.03	0	73333..74811	-	492	152998616	-	Shew185_0061	-	sucrose phosphorylase
62	 48.81	0	75073..76293	+	406	152998617	-	Shew185_0062	-	major facilitator transporter
63	 48.44	0	76572..78968	+	798	152998618	-	Shew185_0063	-	TonB-dependent receptor
64	 53.33	+1	79088..80047	+	319	152998619	-	Shew185_0064	-	ribokinase-like domain-containing protein
65	 52.06	+1	80302..80835	+	177	152998620	-	Shew185_0065	-	molybdenum cofactor biosynthesis protein
66	 49.28	0	81044..86662	+	1872	152998621	-	Shew185_0066	-	alpha-2-macroglobulin domain-containing protein
67	 50.15	0	86659..88947	+	762	152998622	-	Shew185_0067	-	penicillin-binding protein 1C
68	 42.86	-1	88966..89217	-	83	152998623	-	Shew185_0068	-	hypothetical protein
69	 48.42	0	89325..90464	-	379	152998624	-	Shew185_0069	-	transport protein, putative
70	 51.02	+1	90559..91293	-	244	152998625	-	Shew185_0070	-	ABC transporter related
71	 52.57	+1	91297..92913	-	538	152998626	-	Shew185_0071	-	TAP domain-containing protein
72	 51.88	+1	93007..93378	+	123	152998627	-	Shew185_0072	-	regulatory protein GntR HTH
73	 49.19	0	93432..94295	+	287	152998628	-	Shew185_0073	-	ABC transporter related
74	 49.58	0	94292..95602	+	436	152998629	-	Shew185_0074	-	hypothetical protein
75	 49.39	0	95731..97536	+	601	152998630	-	Shew185_0075	-	AMP-dependent synthetase and ligase
76	 46.55	0	97680..100130	+	816	152998631	-	Shew185_0076	-	MORN repeat-containing protein
77	 47.93	0	100259..100669	+	136	152998632	-	Shew185_0077	-	thioesterase superfamily protein
78	 51.37	+1	100793..101341	+	182	152998633	-	Shew185_0078	-	HPP family protein?
79	 44.32	0	101362..101625	-	87	152998634	-	Shew185_0079	-	hypothetical protein
80	 46.80	0	101688..102140	-	150	152998635	-	Shew185_0080	-	thioesterase superfamily protein
81	 48.99	0	102273..102668	+	131	152998636	-	Shew185_0081	-	glutathione-dependent formaldehyde-activating GFA
82	 49.58	0	102672..103028	+	118	152998637	-	Shew185_0082	-	MerR family transcriptional regulator
83	 51.16	+1	103222..103608	+	128	152998638	-	Shew185_0083	-	carboxymuconolactone decarboxylase
84	 47.46	0	103915..104997	+	360	152998639	-	Shew185_0084	-	hypothetical protein
85	 45.37	0	105093..105773	-	226	152998640	-	Shew185_0085	-	2,3-diketo-5-methylthio-1-phosphopentane phosphatase
86	 44.07	0	105935..107173	+	412	152998641	-	Shew185_0086	-	hypothetical protein
87	 45.06	0	107377..107811	+	144	152998642	-	Shew185_0087	-	hypothetical protein
88	 44.77	0	107908..108921	+	337	152998643	-	Shew185_0088	-	hypothetical protein
89	 48.74	0	109437..111260	-	607	152998644	-	Shew185_0090	-	glycerophosphoryl diester phosphodiesterase
90	 47.41	0	111479..112096	-	205	152998645	-	Shew185_0091	-	FMN-binding negative transcriptional regulator
91	 44.85	0	112586..113332	+	248	152998646	-	Shew185_0092	-	hypothetical protein
92	 49.38	0	113890..114450	+	186	152998647	-	Shew185_0093	-	MarR family transcriptional regulator
93	 47.28	0	114443..115195	+	250	152998648	-	Shew185_0094	-	siderophore-interacting protein
94	 51.02	+1	115313..116539	-	408	152998649	-	Shew185_0095	-	imidazolonepropionase
95	 51.55	+1	116773..117480	+	235	152998650	-	Shew185_0096	-	GntR family transcriptional regulator
96	 54.32	+1	117636..119303	+	555	152998651	-	Shew185_0097	-	urocanate hydratase
97	 52.20	+1	119356..120897	+	513	152998652	-	Shew185_0098	-	histidine ammonia-lyase
98	 49.92	0	121578..124592	+	1004	152998653	-	Shew185_0099	-	molybdopterin oxidoreductase Fe4S4 region
99	 53.07	+1	124595..125506	+	303	152998654	-	Shew185_0101	-	formate dehydrogenase, beta subunit
100	 48.75	0	125503..126144	+	213	152998655	-	Shew185_0102	-	formate dehydrogenase, gamma subunit
46.95	MEAN

3.86	STD DEV
