IslandPath Analysis: Salinispora tropica CNB-440

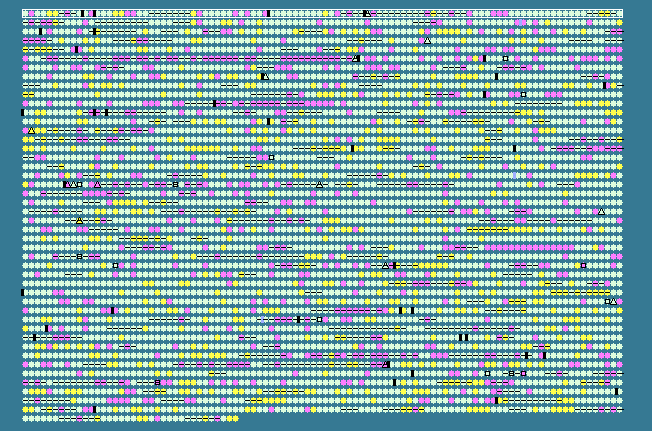

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 69.44   STD DEV: 3.32
Salinispora tropica CNB-440, complete genome - 1..5183331
4536 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 68.93	0	625..2388	+	587	145592567	-	Strop_0001	-	chromosomal replication initiator protein DnaA
2	 64.12	-1	2372..2842	-	156	145592568	-	Strop_0002	-	hypothetical protein
3	 69.84	0	3151..4284	+	377	145592569	-	Strop_0003	-	DNA polymerase III, beta subunit
4	 68.61	0	4325..5197	+	290	145592570	-	Strop_0004	-	6-phosphogluconate dehydrogenase-like protein
5	 73.10	+1	5214..6347	+	377	145592571	recF	Strop_0005	-	recombination protein F
6	 76.55	+2	6337..6933	+	198	145592572	-	Strop_0006	-	hypothetical protein
7	 69.76	0	6924..7505	-	193	145592573	-	Strop_0007	-	hypothetical protein
8	 65.37	-1	7788..9947	+	719	145592574	-	Strop_0008	-	DNA gyrase, B subunit
9	 66.51	0	10079..12598	+	839	145592575	-	Strop_0009	-	DNA gyrase subunit A
10	 72.17	0	12603..13529	+	308	145592576	-	Strop_0010	-	hypothetical protein
11	 66.12	-1	13951..14319	+	122	145592577	-	Strop_0011	-	glyoxalase/bleomycin resistance protein/dioxygenase
12	 63.57	-1	14462..14590	+	42	145592578	-	Strop_0012	-	hypothetical protein
13	 68.24	0	14928..15371	+	147	145592579	-	Strop_0013	-	hypothetical protein
14	 71.97	0	15519..16367	+	282	145592580	-	Strop_0014	-	phenazine biosynthesis PhzC/PhzF protein
15	 68.95	0	16502..19084	-	860	145592581	valS	Strop_0015	-	valyl-tRNA synthetase
16	 73.15	+1	19204..20175	+	323	145592582	-	Strop_0016	-	Sua5/YciO/YrdC/YwlC family protein
17	 74.12	+1	20241..24707	-	1488	145592583	-	Strop_0017	-	ATPase, P-type (transporting), HAD superfamily, subfamily IC
18	 65.02	-1	24882..25184	+	100	145592584	-	Strop_0018	-	hypothetical protein
19	 65.64	-1	25315..25509	+	64	145592585	-	Strop_0019	-	hypothetical protein
20	 71.23	0	25585..26220	-	211	145592586	-	Strop_0020	-	DSBA oxidoreductase
21	 69.93	0	26241..26669	-	142	145592587	-	Strop_0021	-	Fe-S metabolism associated SufE
22	 67.61	0	26826..27251	-	141	145592588	-	Strop_0022	-	signal-transduction protein
23	 68.85	0	27489..28268	+	259	145592589	-	Strop_0023	-	GDSL family lipase
24	 71.31	0	28458..29039	+	193	145592590	-	Strop_0024	-	TetR family transcriptional regulator
25	 69.51	0	29166..30503	+	445	145592591	-	Strop_0025	-	carbamoyl-phosphate synthase L chain, ATP-binding
26	 70.07	0	30748..31659	+	303	145592592	-	Strop_0026	-	pyruvate carboxyltransferase
27	 68.04	0	31857..33389	+	510	145592593	-	Strop_0027	-	propionyl-CoA carboxylase
28	 67.36	0	33452..34606	+	384	145592594	-	Strop_0028	-	acyl-CoA dehydrogenase domain-containing protein
29	 73.33	+1	34731..37298	+	855	145592595	-	Strop_0029	-	helix-turn-helix domain-containing protein
30	 65.95	-1	37565..38266	-	233	145592596	-	Strop_0030	-	MarR family transcriptional regulator
31	 67.48	0	38287..39765	+	492	145592597	-	Strop_0031	-	hypothetical protein
32	 72.43	0	39799..41100	-	433	145592598	-	Strop_0032	-	hypothetical protein
33	 72.11	0	41282..42034	+	250	145592599	-	Strop_0033	-	PASTA domain-containing protein
34	 67.28	0	42091..42414	-	107	145592600	-	Strop_0034	-	hypothetical protein
35	 67.81	0	42518..43129	-	203	145592601	-	Strop_0035	-	hypothetical protein
36	 63.15	-1	43227..44108	+	293	145592602	-	Strop_0036	-	helix-turn-helix domain-containing protein
37	 68.47	0	44078..44299	+	73	145592603	-	Strop_0037	-	hypothetical protein
38	 65.71	-1	44651..44965	+	104	145592604	-	Strop_0038	-	hypothetical protein
39	 67.76	0	45230..46789	+	519	145592605	-	Strop_0039	-	peptidase S8 and S53, subtilisin, kexin, sedolisin
40	 70.26	0	46860..47666	-	268	145592606	-	Strop_0040	-	WecB/TagA/CpsF family glycosyl transferase
41	 64.90	-1	47663..48736	-	357	145592607	-	Strop_0041	-	NAD-dependent epimerase/dehydratase
42	 69.84	0	49150..49938	+	262	145592608	-	Strop_0042	-	FHA domain-containing protein
43	 67.90	0	49945..50430	+	161	145592609	-	Strop_0043	-	FHA domain-containing protein
44	 70.12	0	50427..51875	+	482	145592610	-	Strop_0044	-	protein phosphatase 2C domain-containing protein
45	 68.28	0	51904..53394	+	496	145592611	-	Strop_0045	-	cell cycle protein
46	 68.86	0	53391..54896	+	501	145592612	-	Strop_0046	-	peptidoglycan glycosyltransferase
47	 71.27	0	54898..56286	+	462	145592613	-	Strop_0047	-	protein kinase
48	 69.78	0	56283..58112	+	609	145592614	-	Strop_0048	-	protein kinase
49	 68.97	0	58209..58859	-	216	145592615	-	Strop_0049	-	para-aminobenzoate synthase component II
50	 68.38	0	58865..59155	-	96	145592616	-	Strop_0050	-	hypothetical protein
51	 73.37	+1	59160..60725	-	521	145592617	-	Strop_0051	-	sortase family protein
52	 68.39	0	60722..61651	-	309	145592618	-	Strop_0052	-	hypothetical protein
53	 65.69	-1	61674..61979	+	101	145592619	-	Strop_0053	-	hypothetical protein
54	 67.21	0	62287..64485	+	732	145592620	-	Strop_0054	-	hypothetical protein
55	 65.78	-1	64800..65813	+	337	145592621	-	Strop_0055	-	NLP/P60 protein
56	 67.18	0	65961..66539	-	192	145592622	dcd	Strop_0056	-	deoxycytidine triphosphate deaminase
57	 70.60	0	66617..67150	+	177	145592623	-	Strop_0057	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
58	 67.09	0	67688..68875	-	395	145592624	-	Strop_0058	-	phage integrase family protein
59	 65.50	-1	68878..69135	-	85	145592625	-	Strop_0059	-	DNA binding domain-containing protein
60	 69.11	0	69373..70479	-	368	145592626	-	Strop_0060	-	hypothetical protein
61	 68.50	0	70484..71194	-	236	145592627	-	Strop_0061	-	C-5 cytosine-specific DNA methylase
62	 72.62	0	71191..72366	-	391	145592628	-	Strop_0062	-	hypothetical protein
63	 70.43	0	72707..74860	-	717	145592629	-	Strop_0063	-	hypothetical protein
64	 72.33	0	74857..76410	-	517	145592630	-	Strop_0064	-	hypothetical protein
65	 67.66	0	76407..76607	-	66	145592631	-	Strop_0065	-	hypothetical protein
66	 71.23	0	76609..77112	-	167	145592632	-	Strop_0066	-	hypothetical protein
67	 69.96	0	77206..78267	-	353	145592633	-	Strop_0067	-	hypothetical protein
68	 64.74	-1	78264..78575	-	103	145592634	-	Strop_0068	-	hypothetical protein
69	 73.27	+1	78664..79329	-	221	145592635	-	Strop_0069	-	NUDIX hydrolase
70	 70.37	0	79326..79703	-	125	145592636	-	Strop_0070	-	hypothetical protein
71	 69.05	0	79700..79951	-	83	145592637	-	Strop_0071	-	hypothetical protein
72	 65.28	-1	80381..81247	+	288	145592638	-	Strop_0072	-	regulatory protein GntR, HTH
73	 71.49	0	81244..81948	+	234	145592639	-	Strop_0073	-	HAD family hydrolase
74	 69.21	0	82600..82953	-	117	145592640	-	Strop_0074	-	hypothetical protein
75	 63.23	-1	83109..83399	-	96	145592641	-	Strop_0075	-	hypothetical protein
76	 70.39	0	83609..84655	-	348	145592642	-	Strop_0076	-	hypothetical protein
77	 67.47	0	84655..85152	-	165	145592643	-	Strop_0077	-	ECF subfamily RNA polymerase sigma-24 factor
78	 68.35	0	85513..86937	-	474	145592644	-	Strop_0078	-	aldehyde dehydrogenase
79	 62.73	-2	87100..87633	-	177	145592645	-	Strop_0079	-	hypothetical protein
80	 62.68	-2	87657..88007	-	116	145592646	-	Strop_0080	-	hypothetical protein
81	 62.39	-2	88254..89795	+	513	145592647	-	Strop_0081	-	amidohydrolase
82	 68.74	0	90293..90871	-	192	145592648	-	Strop_0082	-	GCN5-related N-acetyltransferase
83	 66.67	0	91285..92154	-	289	145592649	-	Strop_0083	-	alpha/beta hydrolase fold
84	 66.46	0	92818..93297	+	159	145592650	-	Strop_0084	-	GCN5-related N-acetyltransferase
85	 71.04	0	93366..94256	+	296	145592651	-	Strop_0085	-	luciferase family protein
86	 72.55	0	94348..94908	-	186	145592652	-	Strop_0086	-	phosphoribosyltransferase
87	 69.42	0	95005..95730	+	241	145592653	-	Strop_0087	-	rare lipoprotein A
88	 70.74	0	95829..96956	+	375	145592654	-	Strop_0088	-	stage II sporulation E family protein
89	 67.75	0	97039..98892	+	617	145592655	-	Strop_0089	-	acyl-CoA dehydrogenase domain-containing protein
90	 68.15	0	99117..99386	+	89	145592656	-	Strop_0090	-	hypothetical protein
91	 72.44	0	99421..99957	-	178	145592657	-	Strop_0091	-	putative phosphohistidine phosphatase, SixA
92	 67.20	0	100075..101013	-	312	145592658	-	Strop_0092	-	AraC family transcriptional regulator
93	 70.00	0	101108..101827	+	239	145592659	-	Strop_0093	-	ThiJ/PfpI domain-containing protein
94	 66.88	0	101824..102300	+	158	145592660	-	Strop_0094	-	hypothetical protein
95	 68.09	0	102297..102578	+	93	145592661	-	Strop_0095	-	hypothetical protein
96	 69.17	0	102658..103335	-	225	145592662	-	Strop_0096	-	hemolysin III family channel protein
97	 74.90	+1	103387..104163	+	258	145592663	-	Strop_0097	-	allophanate hydrolase subunit 1
98	 74.23	+1	104160..105098	+	312	145592664	-	Strop_0098	-	urea amidolyase related protein
99	 72.27	0	105082..105849	+	255	145592665	-	Strop_0099	-	LamB/YcsF family protein
100	 72.05	0	105874..107712	-	612	145592666	-	Strop_0100	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
69.44	MEAN

3.32	STD DEV
