IslandPath Analysis: Salmonella enterica subsp. enterica serovar Dublin str. CT_02021853

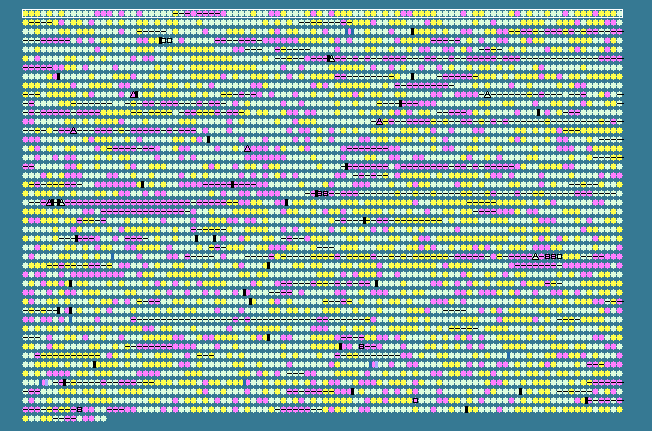

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.79 STD DEV: 6.18
Salmonella enterica subsp. enterica serovar Dublin str. CT_02021853, complete genome - 1..4842908
4514 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 56.15	0	337..2799	+	820	198244353	thrA	SeD_A0002	-	aspartokinase/homoserine dehydrogenase I
2	 57.74	0	2801..3730	+	309	198244850	thrB	SeD_A0003	-	homoserine kinase
3	 56.49	0	3734..5020	+	428	198242395	thrC	SeD_A0004	-	threonine synthase
4	 50.13	0	5114..5887	-	257	198242886	-	SeD_A0005	-	protein YaaA
5	 55.90	0	5966..7423	-	485	198245613	-	SeD_A0006	-	amino-acid carrier protein AlsT
6	 54.40	0	7665..8618	+	317	198241895	tal2	SeD_A0007	-	transaldolase
7	 56.01	0	8729..9319	+	196	198244752	mog	SeD_A0008	-	molybdopterin biosynthesis protein Mog
8	 54.32	0	9376..9942	-	188	198245990	-	SeD_A0009	-	membrane protein, GPR1/FUN34/yaaH family
9	 54.20	0	10092..10805	-	237	198243756	-	SeD_A0010	-	positive regulator for sigma H
10	 50.00	0	10841..11236	-	131	198244504	-	SeD_A0011	-	protein YaaI
11	 52.48	0	11594..13510	+	638	198242776	dnaK	SeD_A0012	-	chaperone protein DnaK
12	 54.04	0	13596..14735	+	379	198243023	dnaJ	SeD_A0013	-	chaperone protein DnaJ
13	 27.19	-2	14847..14960	+	37	198245221	-	SeD_A0014	-	hypothetical protein
14	 40.40	-1	15016..15963	+	315	198245711	-	SeD_A0015	-	putative transcriptional regulator, LysR family
15	 39.93	-1	16132..16434	+	100	198244921	-	SeD_A0016	-	putative bacteriophage protein
16	 51.12	0	16495..17028	-	177	198243700	-	SeD_A0017	-	hypothetical protein
17	 38.51	-2	17045..17488	-	147	198241808	-	SeD_A0018	-	hypothetical protein
18	 51.19	0	17869..19968	+	699	198242422	-	SeD_A0019	-	exochitinase
19	 54.92	0	20060..23056	+	998	198242908	-	SeD_A0020	-	putative hydroxymethyltransferase
20	 46.81	0	23337..24041	+	234	198243657	-	SeD_A0021	-	putative cytoplasmic protein
21	 51.75	0	24471..25013	+	180	198242187	-	SeD_A0022	-	fimbrial subunit
22	 50.97	0	24973..25800	+	275	198242340	-	SeD_A0023	-	chaperone protein FimC
23	 54.46	0	25805..28426	+	873	198245430	-	SeD_A0024	-	outer membrane usher protein FimD
24	 50.00	0	28427..29434	+	335	198246163	-	SeD_A0025	-	mannose binding protein FimH
25	 49.51	0	29474..29980	+	168	198245849	-	SeD_A0026	-	fimbrial subunit
26	 55.88	0	29996..30514	+	172	198245050	-	SeD_A0027	-	fimbrial subunit
27	 54.87	0	30576..31211	+	211	198243542	-	SeD_A0028	-	fimbrial chaparone
28	 37.11	-2	32546..32995	-	149	198245062	-	SeD_A0031	-	hypothetical protein
29	 38.31	-2	33365..34369	+	334	198244833	-	SeD_A0032	-	putative transcriptional regulator
30	 36.51	-2	34377..34817	-	146	198244219	-	SeD_A0033	-	putative transcriptional regulator
31	 29.93	-2	34829..34975	+	48	198245122	-	SeD_A0034	-	hypothetical protein
32	 46.36	0	35340..37058	+	572	198242535	-	SeD_A0035	-	arylsulfotransferase
33	 46.95	0	37104..38675	-	523	198242289	-	SeD_A0036	-	5'-Nucleotidase domain protein
34	 44.36	-1	38774..39535	-	253	198242182	-	SeD_A0037	-	putative outer membrane/exported protein
35	 52.61	0	40129..41622	+	497	198243820	-	SeD_A0038	-	sulfatase
36	 49.54	0	41721..42911	+	396	198243215	-	SeD_A0039	-	chondroitin sulfate/heparin utilization regulation protein
37	 50.16	0	42936..44183	+	415	198244819	-	SeD_A0040	-	putative cytoplasmic protein
38	 49.88	0	44310..46025	+	571	198244177	-	SeD_A0041	-	arylsulfotransferase
39	 56.30	0	46188..47354	+	388	198245761	nhaA	SeD_A0042	-	Na+/H+ antiporter NhaA
40	 50.44	0	47416..48315	+	299	198242822	-	SeD_A0043	-	transcriptional activator protein NhaR
41	 54.41	0	48370..50409	-	679	198242197	-	SeD_A0044	-	glycoside hydrolase, family 31
42	 46.59	0	52278..52541	-	87	198242992	rpsT	SeD_A0047	-	ribosomal protein S20
43	 44.90	-1	52716..52862	+	48	198244672	-	SeD_A0048	-	hypothetical protein
44	 56.55	0	52870..53808	+	312	198244244	ribF	SeD_A0049	-	riboflavin biosynthesis protein RibF
45	 54.55	0	53817..56687	+	956	198245825	ileS	SeD_A0050	-	isoleucyl-tRNA synthetase
46	 53.09	0	56687..57187	+	166	198246069	lspA	SeD_A0051	-	signal peptidase II
47	 54.22	0	57342..57791	+	149	198245423	fkpB	SeD_A0052	-	FKBP-type 16 kDa peptidyl-prolyl cis-trans isomerase
48	 57.31	0	57794..58744	+	316	198242816	ispH	SeD_A0053	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
49	 44.65	-1	58856..59014	-	52	198242213	-	SeD_A0054	-	hypothetical protein
50	 56.57	0	60162..61082	+	306	198242945	-	SeD_A0056	-	Non-specific ribonucleoside hydrolase RihC
51	 48.62	0	61104..61790	-	228	198245736	-	SeD_A0057	-	transcriptional regulatory protein CitB
52	 47.50	0	61792..63450	-	552	198243185	-	SeD_A0058	-	sensor kinase DpiB
53	 63.67	+1	63546..64847	-	433	198242548	-	SeD_A0059	-	oxaloacetate decarboxylase beta chain
54	 64.07	+1	64860..66632	-	590	198242442	oadA	SeD_A0060	-	oxaloacetate decarboxylase alpha subunit
55	 56.25	0	66648..66887	-	79	198241866	-	SeD_A0061	-	hypothetical protein
56	 49.29	0	67046..68386	-	446	198243689	-	SeD_A0062	-	citrate-sodium symporter
57	 53.49	0	68643..69674	+	343	198243054	citC	SeD_A0063	-	[citrate (pro-3S)-lyase] ligase
58	 56.46	0	69704..69997	+	97	198244910	citD	SeD_A0064	-	citrate lyase acyl carrier protein
59	 55.29	0	69994..70863	+	289	198244342	citE	SeD_A0065	-	citrate (pro-3S)-lyase, beta subunit
60	 54.57	0	70874..72394	+	506	198246254	citF	SeD_A0066	-	citrate lyase, alpha subunit
61	 55.99	0	72412..72945	+	177	198245785	citX	SeD_A0067	-	holo-ACP synthase CitX
62	 54.90	0	72923..73831	+	302	198242726	citG	SeD_A0068	-	triphosphoribosyl-dephospho-CoA synthase CitG
63	 56.69	0	74011..74832	+	273	198242536	dapB	SeD_A0069	-	dihydrodipicolinate reductase
64	 47.97	0	74935..75057	-	40	198242571	-	SeD_A0070	-	hypothetical protein
65	 35.90	-2	75483..75638	-	51	198245158	-	SeD_A0071	-	hypothetical protein
66	 55.27	0	75696..76844	+	382	198242031	carA	SeD_A0072	-	carbamoyl-phosphate synthase, small subunit
67	 58.71	+1	76863..80090	+	1075	198241932	carB	SeD_A0073	-	carbamoyl-phosphate synthase, large subunit
68	 56.28	0	80836..81432	-	198	198243994	-	SeD_A0075	-	carnitine operon protein CaiE
69	 56.36	0	81542..82327	-	261	198244072	-	SeD_A0076	-	carnitinyl-CoA dehydratase
70	 50.71	0	82381..83934	-	517	198244202	-	SeD_A0077	-	probable crotonobetaine/carnitine-CoA ligase
71	 53.22	0	83997..85268	-	423	198246082	-	SeD_A0078	-	crotonobetainyl-CoA:carnitine CoA-transferase
72	 52.49	0	85326..86468	-	380	198243212	caiA	SeD_A0079	-	crotonobetainyl-CoA dehydrogenase
73	 53.62	0	86503..88020	-	505	198245005	caiT	SeD_A0080	-	L-carnitine/gamma-butyrobetaine antiporter
74	 29.03	-2	88248..88433	+	61	198242160	-	SeD_A0081	-	hypothetical protein
75	 51.88	0	88501..89271	+	256	198242964	fixA	SeD_A0082	-	protein FixA
76	 58.92	+1	89287..90228	+	313	198242315	fixB	SeD_A0083	-	electron transfer flavoprotein, alpha subunit
77	 55.56	0	90278..91564	+	428	198241975	fixC	SeD_A0084	-	protein FixC
78	 55.21	0	91561..91848	+	95	198246083	-	SeD_A0085	-	4Fe-4S ferredoxin, iron-sulfur binding domain protein
79	 54.09	0	91929..93335	+	468	198245456	-	SeD_A0086	-	putative metabolite transport protein YaaU
80	 48.48	0	93424..93654	+	76	198245237	-	SeD_A0087	-	hypothetical protein
81	 52.54	0	93754..94284	+	176	198244841	kefF	SeD_A0088	-	glutathione-regulated potassium-efflux system ancillary protein kefF
82	 58.02	+1	94277..96139	+	620	198246065	-	SeD_A0089	-	glutathione-regulated potassium-efflux system protein KefC
83	 40.48	-1	96136..96261	-	41	198245170	-	SeD_A0090	-	hypothetical protein
84	 53.54	0	96338..96817	+	159	198242069	folA	SeD_A0091	-	dihydrofolate reductase
85	 55.95	0	96923..97771	-	282	198242812	-	SeD_A0092	-	bis(5'-nucleosyl)-tetraphosphatase
86	 54.50	0	97782..98159	-	125	198243323	apaG	SeD_A0093	-	protein ApaG
87	 52.43	0	98162..98983	-	273	198244097	ksgA	SeD_A0094	-	dimethyladenosine transferase
88	 58.89	+1	98980..99969	-	329	198244575	pdxA	SeD_A0095	-	4-hydroxythreonine-4-phosphate dehydrogenase
89	 54.31	0	99969..101255	-	428	198244102	surA	SeD_A0096	-	chaperone/peptidyl-prolyl cis-trans isomerase SurA
90	 52.65	0	101309..103669	-	786	198242523	imp	SeD_A0097	-	LPS-assembly protein
91	 47.53	0	103679..103840	-	53	198243047	-	SeD_A0098	-	hypothetical protein
92	 54.00	0	103923..104735	+	270	198243576	-	SeD_A0099	-	DnaJ domain protein
93	 57.42	0	104830..105489	-	219	198244685	-	SeD_A0100	-	pseudouridine synthase, RluA family
94	 57.00	0	105501..108407	-	968	198245326	rapA	SeD_A0101	-	RNA polymerase associated protein RapA
95	 56.76	0	108581..110932	-	783	198245956	-	SeD_A0102	-	DNA polymerase II
96	 47.90	0	110976..111689	-	237	198242615	-	SeD_A0103	-	putative secreted protein
97	 55.32	0	112539..113234	-	231	198242714	araD	SeD_A0105	-	L-ribulose-5-phosphate 4-epimerase
98	 56.22	0	113375..114877	-	500	198243370	araA	SeD_A0106	-	L-arabinose isomerase
99	 60.47	+1	114888..116597	-	569	198243987	araB	SeD_A0107	-	L-ribulokinase
100	 54.02	0	116937..117782	+	281	198244573	-	SeD_A0108	-	arabinose operon regulatory protein
51.79	MEAN

6.18	STD DEV
