IslandPath Analysis: Salmonella enterica subsp. enterica serovar Typhi str. Ty2

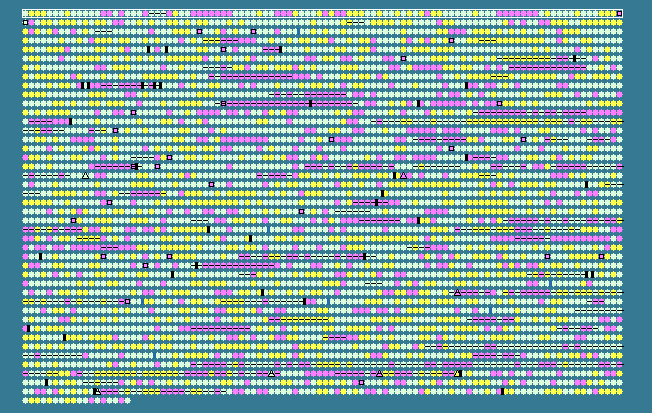

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 52.24   STD DEV: 5.57
Salmonella enterica subsp. enterica serovar Typhi Ty2, complete genome - 1..4791961
4318 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 54.55	0	190..255	+	21	29140544	thrL	t0001	-	thr operon leader peptide
2	 56.15	0	337..2799	+	820	29140545	thrA	t0002	-	bifunctional aspartokinase I/homeserine dehydrogenase I
3	 57.85	+1	2801..3730	+	309	29140546	thrB	t0003	-	homoserine kinase
4	 55.94	0	3734..5020	+	428	29140547	thrC	t0004	-	threonine synthase
5	 50.39	0	5114..5887	-	257	29140548	yaaA	t0005	-	hypothetical protein
6	 55.70	0	5966..7396	-	476	29140549	yaaJ	t0006	-	putative amino-acid transport protein
7	 53.77	0	7665..8618	+	317	29140550	talB	t0007	-	transaldolase B
8	 56.01	0	8729..9319	+	196	29140551	mogA	t0008	-	molybdenum cofactor biosynthesis protein
9	 53.79	0	9376..9942	-	188	29140552	yaaH	t0009	-	hypothetical protein
10	 53.92	0	10092..10805	-	237	29140553	-	t0010	-	hypothetical protein
11	 49.38	0	10841..11245	-	134	29140554	yaaI	t0011	-	hypothetical protein
12	 52.74	0	11594..13510	+	638	29140555	dnaK	t0012	-	molecular chaperone DnaK
13	 54.12	0	13596..14735	+	379	29140556	dnaJ	t0013	-	chaperone protein DnaJ
14	 41.03	-2	15020..15967	+	315	29140557	-	t0014	-	putative regulatory protein
15	 40.00	-2	16094..16438	+	114	29140558	-	t0015	-	hypothetical protein
16	 50.94	0	16499..17032	-	177	29140559	-	t0016	-	hypothetical protein
17	 38.29	-2	17049..17492	-	147	29140560	-	t0017	-	hypothetical protein
18	 51.62	0	17873..19972	+	699	29140561	-	t0018	-	putative chitinase
19	 55.30	0	20004..21155	+	383	29140562	-	t0019	-	hypothetical protein
20	 54.05	0	21198..23060	+	620	29140563	-	t0020	-	hypothetical protein
21	 46.38	-1	23341..24045	+	234	29140564	-	t0021	-	hypothetical protein
22	 52.12	0	24473..25015	+	180	29140565	bcfA	t0022	-	fimbrial subunit
23	 51.24	0	25116..25802	+	228	29140566	bcfB	t0023	-	fimbrial chaperone
24	 50.40	0	28429..29436	+	335	29140567	bcfD	t0025	-	fimbrial subunit
25	 47.62	0	29437..29982	+	181	29140568	bcfE	t0026	-	fimbrial subunit
26	 55.88	0	29998..30516	+	172	29140569	bcfF	t0027	-	fimbrial subunit
27	 54.18	0	30509..31213	+	234	29140570	bcfG	t0028	-	fimbrial chaperone
28	 54.49	0	31278..32123	+	281	29140571	-	t0029	-	hypothetical protein
29	 41.32	-1	32162..32449	+	95	29140572	-	t0030	-	hypothetical protein
30	 36.89	-2	32549..32998	-	149	29140573	-	t0031	-	hypothetical protein
31	 38.45	-2	33368..34363	+	331	29140574	-	t0032	-	LysR family transcriptional regulator
32	 38.24	-2	34511..34816	-	101	29140575	-	t0033	-	putative transcriptional regulator
33	 45.90	-1	35339..37057	+	572	29140576	-	t0034	-	sulfatase
34	 46.69	0	37103..38674	-	523	29140577	-	t0035	-	putative secreted 5'-nucleotidase
35	 43.96	-1	38773..39534	-	253	29140578	-	t0036	-	hypothetical protein
36	 52.54	0	40128..41621	+	497	29140579	-	t0037	-	putative secreted sulfatase
37	 49.54	0	41720..42910	+	396	29140580	-	t0038	-	sulfatase regulatory protein
38	 50.00	0	43198..44181	+	327	29140581	-	t0039	-	hypothetical protein
39	 50.23	0	44308..46023	+	571	29140582	-	t0040	-	sulfatase
40	 56.38	0	46186..47352	+	388	29140583	nhaA	t0041	-	pH-dependent sodium/proton antiporter
41	 50.67	0	47414..48313	+	299	29140584	nhaR	t0042	-	transcriptional activator NhaR
42	 54.26	0	48368..50407	-	679	29140585	-	t0043	-	putative glycosyl hydrolase
43	 48.69	0	50447..51820	-	457	29140586	-	t0044	-	putative transport protein
44	 46.59	-1	52277..52540	-	87	29140587	rpsT	t0045	-	30S ribosomal protein S20
45	 47.69	0	52646..52861	+	71	29140588	-	t0046	-	hypothetical protein
46	 56.55	0	52869..53807	+	312	29140589	ribF	t0047	-	bifunctional riboflavin kinase/FMN adenylyltransferase
47	 54.85	0	53852..56686	+	944	29140590	ileS	t0048	-	isoleucyl-tRNA synthetase
48	 51.70	0	56686..57186	+	166	29140591	lspA	t0049	-	lipoprotein signal peptidase
49	 54.67	0	57341..57790	+	149	29140592	fkpB	t0050	-	FkbB-type 16 kD peptidyl-prolyl cis-trans isomerase
50	 56.78	0	57793..58743	+	316	29140593	ispH	t0051	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
51	 48.55	0	58943..60145	+	400	29140594	-	t0052	-	hypothetical protein
52	 56.35	0	60161..61081	+	306	29140595	yaaF	t0053	-	ribonucleoside hydrolase RihC
53	 48.47	0	61103..61789	-	228	29140596	citB	t0054	-	transcriptional regulatory protein CitB
54	 47.84	0	61791..63410	-	539	29140597	citA	t0055	-	sensor kinase CitA
55	 63.52	+2	63545..64846	-	433	29140598	oadB	t0056	-	oxaloacetate decarboxylase beta chain
56	 64.02	+2	64859..66634	-	591	29140599	oadA	t0057	-	pyruvate carboxylase subunit B
57	 56.25	0	66650..66889	-	79	29140600	oadG	t0058	-	oxaloacetate decarboxylase subunit gamma
58	 49.22	0	67048..68388	-	446	29140601	citC	t0059	-	citrate-sodium symporter
59	 53.54	0	68633..69676	+	347	29140602	citC	t0060	-	[citrate (Pro-3S)-lyase] ligase
60	 56.46	0	69706..69999	+	97	29140603	citD	t0061	-	citrate lyase subunit gamma
61	 55.40	0	69996..70865	+	289	29140604	citE	t0062	-	citrate lyase beta chain
62	 54.96	0	70876..72396	+	506	29140605	citF	t0063	-	citrate lyase alpha chain
63	 55.98	0	72396..72947	+	183	29140606	citX	t0064	-	citx protein
64	 54.79	0	72925..73833	+	302	29140607	citG	t0065	-	CitG protein
65	 56.69	0	74013..74834	+	273	29140608	dapB	t0066	-	dihydrodipicolinate reductase
66	 55.61	0	75687..76835	+	382	29140609	carA	t0067	-	carbamoyl phosphate synthase small subunit
67	 58.95	+1	76851..80078	+	1075	29140610	carB	t0068	-	carbamoyl phosphate synthase large subunit
68	 46.46	-1	80352..80747	+	131	29140611	caiF	t0069	-	DNA-binding transcriptional activator CaiF
69	 55.78	0	80825..81421	-	198	29140612	caiE	t0070	-	carnitine operon protein CaiE
70	 56.49	0	81533..82318	-	261	29140613	caiD	t0071	-	carnitinyl-CoA dehydratase
71	 51.09	0	82372..83925	-	517	29140614	caiC	t0072	-	putative crotonobetaine/carnitine-CoA ligase
72	 53.61	0	83988..85205	-	405	29140615	caiB	t0073	-	crotonobetainyl-CoA:carnitine CoA-transferase
73	 52.49	0	85317..86459	-	380	29140616	caiA	t0074	-	crotonobetainyl-CoA dehydrogenase
74	 53.75	0	86494..88011	-	505	29140617	caiT	t0075	-	L-carnitine/gamma-butyrobetaine antiporter
75	 52.01	0	88492..89262	+	256	29140618	fixA	t0076	-	putative electron transfer flavoprotein FixA
76	 59.34	+1	89278..90219	+	313	29140619	fixB	t0077	-	putative electron transfer flavoprotein FixB
77	 55.48	0	90269..91555	+	428	29140620	fixC	t0078	-	putative oxidoreductase FixC
78	 53.82	0	91552..91839	+	95	29140621	fixX	t0079	-	ferredoxin like protein FixX
79	 54.14	0	91987..93327	+	446	29140622	yaaU	t0080	-	putative metabolite transport protein
80	 48.48	0	93416..93646	+	76	29140623	-	t0081	-	putative lipoprotein
81	 46.57	-1	93931..94353	+	140	29140624	-	t0082	-	hypothetical protein
82	 47.42	0	94577..94867	-	96	29140625	-	t0083	-	hypothetical protein
83	 38.46	-2	95077..95271	+	64	29140626	-	t0084	-	hypothetical protein
84	 48.44	0	95765..95989	+	74	29140627	-	t0085	-	hypothetical protein
85	 47.20	0	96041..97345	+	434	29140628	-	t0086	-	puatative sulfatase
86	 40.38	-2	97342..97653	+	103	29140629	-	t0087	-	hypothetical protein
87	 53.48	0	98060..98590	+	176	29140630	yabF	t0088	-	glutathione-regulated potassium-efflux system ancillary protein KefF
88	 57.86	+1	98583..100445	+	620	29140631	kefC	t0089	-	glutathione-regulated potassium-efflux system protein KefC
89	 53.54	0	100644..101123	+	159	29140632	folA	t0090	-	dihydrofolate reductase
90	 55.48	0	101219..102067	-	282	29140633	apaH	t0091	-	diadenosine tetraphosphatase
91	 53.97	0	102078..102455	-	125	29140634	apaG	t0092	-	ApaG
92	 52.68	0	102458..103279	-	273	29140635	ksgA	t0093	-	dimethyladenosine transferase
93	 58.79	+1	103276..104265	-	329	29140636	pdxA	t0094	-	4-hydroxythreonine-4-phosphate dehydrogenase
94	 54.16	0	104265..105551	-	428	29140637	surA	t0095	-	peptidyl-prolyl cis-trans isomerase SurA
95	 52.91	0	105605..107959	-	784	29140638	imp	t0096	-	organic solvent tolerance protein
96	 54.00	0	108213..109025	+	270	29140639	djlA	t0097	-	DNA-J like membrane chaperone protein
97	 57.58	0	109120..109779	-	219	29140640	rluA	t0098	-	23S rRNA/tRNA pseudouridine synthase A
98	 57.03	0	109791..112697	-	968	29140641	hepA	t0099	-	ATP-dependent helicase HepA
99	 56.59	0	112871..115222	-	783	29140642	polB	t0100	-	DNA polymerase II
100	 45.80	-1	115562..116002	-	146	29140643	-	t0101	-	putative IS element transposase
52.24	MEAN

5.57	STD DEV
