IslandPath Analysis: Saccharophagus degradans 2-40

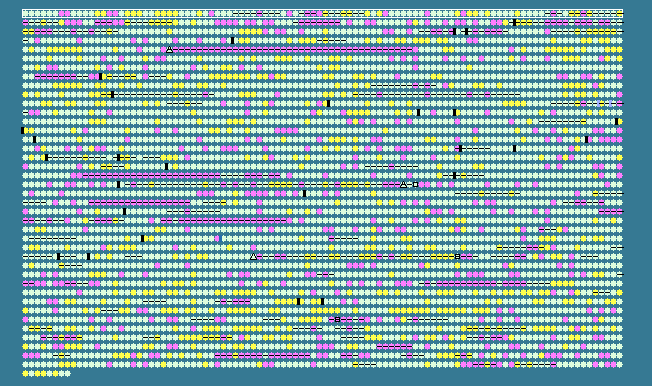

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 46.18   STD DEV: 3.60
Saccharophagus degradans 2-40, complete genome - 1..5057531
4008 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 47.87	0	383..1957	+	524	90019650	-	Sde_0001	-	chromosomal replication initiator protein DnaA
2	 44.47	0	2145..3248	+	367	90019651	-	Sde_0002	-	DNA polymerase III subunit beta
3	 45.20	0	3297..4400	+	367	90019652	-	Sde_0003	-	RecF protein
4	 46.56	0	4437..6863	+	808	90019653	gyrB	Sde_0004	-	DNA gyrase subunit B
5	 45.99	0	7034..7507	+	157	90019654	-	Sde_0005	-	hypothetical protein
6	 46.21	0	7724..9664	+	646	90019655	-	Sde_0006	-	acetoacetyl-CoA synthetase
7	 36.46	-2	9715..10098	+	127	90019656	-	Sde_0007	-	hypothetical protein
8	 39.53	-1	10175..10690	+	171	90019657	-	Sde_0008	-	hypothetical protein
9	 43.47	0	10761..12200	-	479	90019658	-	Sde_0009	-	PAS
10	 46.28	0	12253..12669	-	138	90019659	-	Sde_0010	-	hypothetical protein
11	 43.15	0	12672..13394	-	240	90019660	-	Sde_0011	-	Protoheme IX farnesyltransferase
12	 48.29	0	13508..15580	-	690	90019661	-	Sde_0012	-	glycine--tRNA ligase
13	 50.78	+1	15577..16533	-	318	90019662	glyQ	Sde_0013	-	glycyl-tRNA synthetase subunit alpha
14	 50.68	+1	16846..17733	+	295	90019663	-	Sde_0014	-	lipid A biosynthesis lauroyl acyltransferase
15	 42.18	-1	17798..18328	+	176	90019664	-	Sde_0015	-	phenylacetic acid degradation-related protein
16	 40.29	-1	18822..19310	+	162	90019665	-	Sde_0016	-	hypothetical protein
17	 49.28	0	19328..20776	-	482	90019666	-	Sde_0017	-	potassium uptake protein TrkH
18	 51.67	+1	20815..22248	-	477	90019667	trkA	Sde_0018	-	potassium transporter peripheral membrane component
19	 51.35	+1	22285..23622	-	445	90019668	-	Sde_0019	-	Sun protein
20	 52.53	+1	23650..24618	-	322	90019669	-	Sde_0020	-	methionyl-tRNA formyltransferase
21	 47.40	0	24696..25214	-	172	90019670	def	Sde_0021	-	peptide deformylase
22	 49.39	0	25495..26553	+	352	90019671	-	Sde_0022	-	hypothetical protein
23	 49.92	+1	26674..27873	+	399	90019672	-	Sde_0023	-	filamentous haemagglutinin-like
24	 51.39	+1	28140..28715	+	191	90019673	-	Sde_0024	-	translation factor SUA5
25	 51.43	+1	28757..29668	+	303	90019674	-	Sde_0025	-	coproporphyrinogen III oxidase
26	 51.14	+1	29694..30530	+	278	90019675	-	Sde_0026	-	shikimate dehydrogenase
27	 48.44	0	30581..31798	+	405	90019676	-	Sde_0027	-	hypothetical protein
28	 48.06	0	31895..32539	+	214	90019677	-	Sde_0028	-	hypothetical protein
29	 45.53	0	32579..33349	-	256	90019678	-	Sde_0029	-	regulatory protein, LuxR
30	 50.90	+1	33407..33964	-	185	90019679	-	Sde_0030	-	anhydrase family 3 protein
31	 45.92	0	34108..36165	+	685	90019680	-	Sde_0031	-	oligopeptidase A
32	 42.19	-1	36162..36398	+	78	90019681	-	Sde_0032	-	hypothetical protein
33	 43.36	0	36416..37093	-	225	90019682	-	Sde_0033	-	hypothetical protein
34	 45.60	0	37816..40122	+	768	90019683	-	Sde_0034	-	hypothetical protein
35	 48.81	0	40360..41910	-	516	90019684	-	Sde_0035	-	DNA-damage-inducible protein F
36	 48.37	0	42043..43179	+	378	90019685	-	Sde_0036	-	cytochrome c oxidase, subunit II
37	 49.00	0	43193..44743	+	516	90019686	-	Sde_0037	-	cytochrome-c oxidase
38	 44.87	0	44801..45424	+	207	90019687	-	Sde_0038	-	cytochrome C oxidase assembly protein
39	 44.92	0	45455..46369	+	304	90019688	-	Sde_0039	-	cytochrome c oxidase, subunit III
40	 41.37	-1	46374..46622	-	82	90019689	-	Sde_0040	-	DNA polymerase A
41	 45.05	0	46651..47418	+	255	90019690	-	Sde_0041	-	hypothetical protein
42	 42.74	0	47519..48145	+	208	90019691	-	Sde_0042	-	hypothetical protein
43	 47.51	0	48155..49339	+	394	90019692	-	Sde_0043	-	putative cytochrome oxidase assembly protein
44	 44.52	0	49405..50316	+	303	90019693	-	Sde_0044	-	protoheme IX farnesyltransferase
45	 40.00	-1	50319..50978	+	219	90019694	-	Sde_0045	-	GGDEF
46	 43.04	0	51406..52116	+	236	90019695	-	Sde_0046	-	hypothetical protein
47	 43.11	0	52190..52639	+	149	90019696	-	Sde_0047	-	response regulator receiver domain-containing protein
48	 41.60	-1	52828..53202	+	124	90019697	-	Sde_0048	-	methyl-accepting chemotaxis sensory transducer
49	 38.99	-1	53230..53724	+	164	90019698	-	Sde_0049	-	hypothetical protein
50	 38.88	-2	53749..55335	+	528	90019699	-	Sde_0050	-	hypothetical protein
51	 49.70	0	55438..56280	-	280	90019700	-	Sde_0051	-	periplasmic nitrate reductase, large subunit
52	 48.72	0	56292..57422	-	376	90019701	-	Sde_0052	-	alcohol dehydrogenase class III
53	 43.83	0	57877..58857	+	326	90019702	-	Sde_0053	-	phospholipase/lecithinase/hemolysin-like
54	 50.99	+1	59302..60915	+	537	90019703	-	Sde_0054	-	adenylyl cyclase class-3/4/guanylyl cyclase
55	 54.43	+2	60987..62588	+	533	90019704	-	Sde_0055	-	hemolysin activation/secretion protein-like
56	 48.42	0	62662..70701	+	2679	90019705	-	Sde_0056	-	hypothetical protein
57	 47.40	0	70739..71527	-	262	90019706	-	Sde_0057	-	zinc transport system permease protein
58	 50.76	+1	71520..72305	-	261	90019707	-	Sde_0058	-	ABC-type Mn/Zn transport systems, ATPase component
59	 48.88	0	72305..72793	-	162	90019708	-	Sde_0059	-	zinc uptake regulation protein, putative
60	 50.87	+1	72902..73882	+	326	90019709	-	Sde_0060	-	XRE family transcriptional regulator
61	 41.08	-1	73913..75874	+	653	90019710	-	Sde_0061	-	prolyl oligopeptidase family protein
62	 43.51	0	75944..77053	-	369	90019711	-	Sde_0062	-	response regulator receiver domain-containing protein
63	 44.87	0	77167..78501	+	444	90019712	-	Sde_0063	-	hypothetical protein
64	 48.34	0	78862..80547	+	561	90019713	-	Sde_0064	-	putative secreted beta-mannosidase
65	 45.09	0	80594..81997	-	467	90019714	-	Sde_0065	-	NhaD family Na(+)/H(+) antiporter
66	 48.62	0	82187..82945	-	252	90019715	-	Sde_0066	-	putative ribonuclease HI
67	 43.41	0	83615..84031	-	138	90019716	-	Sde_0067	-	hypothetical protein
68	 41.92	-1	84125..84706	+	193	90019717	-	Sde_0068	-	TetR family transcriptional regulator
69	 43.57	0	84894..85274	-	126	90019718	-	Sde_0069	-	hypothetical protein
70	 46.11	0	85323..89135	-	1270	90019719	-	Sde_0070	-	hypothetical protein
71	 48.21	0	89135..90976	-	613	90019720	-	Sde_0071	-	Outer membrane protein/protective antigen OMA87-like
72	 44.56	0	91315..91608	-	97	90019721	-	Sde_0072	-	histidine kinase, HAMP region
73	 50.92	+1	92145..94925	+	926	90019722	-	Sde_0073	-	DNA polymerase I
74	 42.52	-1	95014..95568	-	184	90019723	-	Sde_0074	-	hypothetical protein
75	 51.25	+1	96189..96830	-	213	90019724	-	Sde_0075	-	cell division checkpoint GTPase YihA
76	 50.44	+1	97133..97816	+	227	90019725	-	Sde_0076	-	cytochrome c4 precursor
77	 46.94	0	98054..98935	+	293	90019726	-	Sde_0077	-	hypothetical protein
78	 51.41	+1	99134..100831	+	565	90019727	-	Sde_0078	-	GGDEF domain-containing protein
79	 47.62	0	100894..101670	+	258	90019728	-	Sde_0079	-	cellulose binding, type IV
80	 44.00	0	101735..102109	-	124	90019729	-	Sde_0080	-	response regulator receiver domain-containing protein
81	 48.81	0	102146..103780	-	544	90019730	-	Sde_0081	-	putative methyl-accepting chemotaxis sensory transducer
82	 48.20	0	103914..104135	+	73	90019731	-	Sde_0082	-	hypothetical protein
83	 50.53	+1	104132..104416	+	94	90019732	-	Sde_0083	-	hypothetical protein
84	 47.20	0	104416..106911	+	831	90019733	-	Sde_0084	-	nitrate reductase
85	 43.16	0	106915..107433	+	172	90019734	-	Sde_0085	-	periplasmic nitrate reductase subunit NapB
86	 46.90	0	107529..108044	+	171	90019735	-	Sde_0086	-	periplasmic nitrate reductase subunit NapC
87	 45.70	0	108353..110155	+	600	90019736	-	Sde_0087	-	hypothetical protein
88	 45.72	0	110214..110867	-	217	90019737	-	Sde_0088	-	hypothetical protein
89	 40.74	-1	111021..111425	+	134	90019738	-	Sde_0089	-	vault protein inter-alpha-trypsin
90	 48.03	0	111429..111986	-	185	90019739	-	Sde_0090	-	peptidase C60, sortase A and B
91	 47.30	0	112021..112779	-	252	90019740	-	Sde_0091	-	putative serine dehydrogenase
92	 51.42	+1	112839..114137	-	432	90019741	-	Sde_0092	-	hypothetical protein
93	 50.95	+1	114131..114499	-	122	90019742	-	Sde_0093	-	hypothetical protein
94	 40.42	-1	114662..115042	-	126	90019743	-	Sde_0094	-	hypothetical protein
95	 51.69	+1	115035..115595	-	186	90019744	-	Sde_0095	-	sigma-24 (FecI-like)
96	 49.62	0	115723..117177	+	484	90019745	-	Sde_0096	-	ferrochelatase
97	 47.76	0	117170..118528	+	452	90019746	-	Sde_0097	-	hypothetical protein
98	 49.27	0	118528..122172	+	1214	90019747	-	Sde_0098	-	hypothetical protein
99	 48.20	0	122243..123493	+	416	90019748	-	Sde_0099	-	hypothetical protein
100	 50.95	+1	123824..125356	-	510	90019749	-	Sde_0100	-	deacylase-like
46.18	MEAN

3.60	STD DEV
