IslandPath Analysis: Rubrobacter xylanophilus DSM 9941

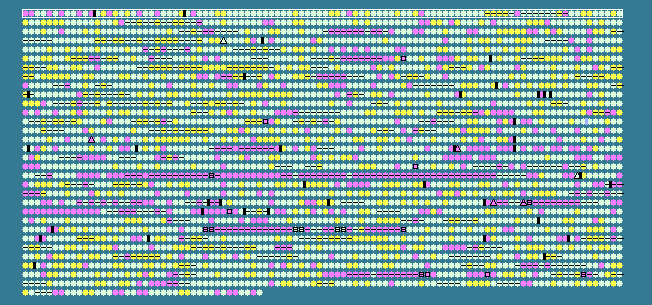

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 70.78   STD DEV: 4.99
Rubrobacter xylanophilus DSM 9941, complete genome - 1..3225748
3140 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 62.82	-1	2..1354	+	450	108802857	-	Rxyl_0001	-	chromosomal replication initiator protein DnaA
2	 66.67	0	1853..2980	+	375	108802858	-	Rxyl_0002	-	DNA polymerase III, beta subunit
3	 72.31	0	2980..3174	+	64	108802859	-	Rxyl_0003	-	RNA-binding S4
4	 70.67	0	3171..4295	+	374	108802860	-	Rxyl_0004	-	DNA replication and repair protein RecF
5	 65.48	-1	4458..6392	+	644	108802861	-	Rxyl_0005	-	DNA gyrase subunit B
6	 68.27	0	6385..8943	+	852	108802862	-	Rxyl_0006	-	DNA gyrase subunit A
7	 67.08	0	9127..10590	+	487	108802863	-	Rxyl_0007	-	hypothetical protein
8	 69.18	0	10572..10850	-	92	108802864	-	Rxyl_0008	-	hypothetical protein
9	 67.46	0	10952..11329	+	125	108802865	-	Rxyl_0009	-	hypothetical protein
10	 62.80	-1	11928..12626	+	232	108802866	-	Rxyl_0010	-	integral membrane protein
11	 68.42	0	12630..14399	+	589	108802867	sdhA	Rxyl_0011	-	succinate dehydrogenase flavoprotein subunit
12	 65.81	0	14396..15214	+	272	108802868	-	Rxyl_0012	-	fumarate reductase iron-sulfur subunit
13	 73.85	0	15373..15873	+	166	108802869	-	Rxyl_0013	-	NUDIX hydrolase
14	 75.26	0	15883..16452	-	189	108802870	-	Rxyl_0014	-	phosphopantothenoylcysteine decarboxylase
15	 67.08	0	16487..16729	-	80	108802871	-	Rxyl_0015	-	RDD domain-containing protein
16	 74.97	0	17060..17842	+	260	108802872	-	Rxyl_0016	-	short-chain dehydrogenase/reductase SDR
17	 72.79	0	17851..18471	+	206	108802873	-	Rxyl_0017	-	hypothetical protein
18	 75.00	0	18428..18799	-	123	108802874	-	Rxyl_0018	-	hypothetical protein
19	 71.66	0	18805..21246	-	813	108802875	-	Rxyl_0019	-	beta-lactamase-like protein
20	 65.83	0	21291..21647	+	118	108802876	-	Rxyl_0020	-	hypothetical protein
21	 73.76	0	21654..23654	-	666	108802877	-	Rxyl_0021	-	serine/threonine protein kinase
22	 70.50	0	23672..25186	-	504	108802878	-	Rxyl_0022	-	peptidoglycan glycosyltransferase
23	 67.21	0	25183..26472	-	429	108802879	-	Rxyl_0023	-	cell cycle protein
24	 73.21	0	26479..27624	-	381	108802880	-	Rxyl_0024	-	protein serine/threonine phosphatases
25	 71.37	0	27627..28094	-	155	108802881	-	Rxyl_0025	-	FHA domain-containing protein
26	 69.75	0	28099..28941	-	280	108802882	-	Rxyl_0026	-	FHA domain-containing protein
27	 74.78	0	28951..30540	-	529	108802883	-	Rxyl_0027	-	serine/threonine protein kinase
28	 70.82	0	30831..31817	+	328	108802884	-	Rxyl_0028	-	hypothetical protein
29	 63.51	-1	31839..32123	+	94	108802885	-	Rxyl_0029	-	AsnC family transcriptional regulator
30	 70.29	0	32128..33258	-	376	108802886	-	Rxyl_0030	-	carboxylate-amine ligase
31	 70.63	0	33290..33895	-	201	108802887	-	Rxyl_0031	-	redoxin
32	 73.46	0	34015..34470	+	151	108802888	-	Rxyl_0032	-	DoxX
33	 77.43	+1	34412..35284	-	290	108802889	-	Rxyl_0033	-	alpha/beta hydrolase fold
34	 75.13	0	35295..37067	-	590	108802890	-	Rxyl_0034	-	DNA mismatch repair protein MutL
35	 73.08	0	37137..37619	+	160	108802891	-	Rxyl_0035	-	biotin carboxyl carrier protein
36	 72.63	0	37623..39014	+	463	108802892	-	Rxyl_0036	-	acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha / biotin carboxylase
37	 71.90	0	39047..39886	+	279	108802893	-	Rxyl_0037	-	metal-dependent enzyme-like protein
38	 71.44	0	39883..40782	-	299	108802894	-	Rxyl_0038	-	hypothetical protein
39	 71.68	0	40779..42215	-	478	108802895	-	Rxyl_0039	-	hypothetical protein
40	 72.75	0	42266..42988	+	240	108802896	-	Rxyl_0040	-	DnaD and phage-associated region
41	 70.39	0	43068..43793	+	241	108802897	-	Rxyl_0041	-	hypothetical protein
42	 73.43	0	43790..44395	+	201	108802898	-	Rxyl_0042	-	hypothetical protein
43	 72.73	0	44402..45193	+	263	108802899	-	Rxyl_0043	-	hypothetical protein
44	 73.97	0	45190..46065	+	291	108802900	-	Rxyl_0044	-	beta-lactamase-like protein
45	 68.54	0	46145..46570	+	141	108802901	-	Rxyl_0045	-	single-strand binding protein
46	 76.16	+1	46567..47430	-	287	108802902	-	Rxyl_0046	-	hypothetical protein
47	 73.84	0	47427..48221	-	264	108802903	-	Rxyl_0047	-	MerR family transcriptional regulator
48	 70.31	0	48394..49491	+	365	108802904	-	Rxyl_0048	-	transaldolase
49	 71.40	0	49520..51400	+	626	108802905	-	Rxyl_0049	-	transketolase
50	 71.79	0	51418..52335	+	305	108802906	-	Rxyl_0050	-	6-phosphogluconate dehydrogenase-like protein
51	 71.36	0	52332..53864	+	510	108802907	-	Rxyl_0051	-	glucose-6-phosphate 1-dehydrogenase
52	 76.38	+1	53861..54931	+	356	108802908	-	Rxyl_0052	-	glucose-6-P dehydrogenase subunit-like protein
53	 75.99	+1	54928..55656	+	242	108802909	-	Rxyl_0053	-	6-phosphogluconolactonase
54	 72.86	0	55741..56289	+	182	108802910	-	Rxyl_0054	-	hypothetical protein
55	 67.24	0	56429..57478	-	349	108802911	-	Rxyl_0055	-	NAD-dependent epimerase/dehydratase
56	 75.35	0	57615..58604	+	329	108802912	-	Rxyl_0056	-	alcohol dehydrogenase GroES-like protein
57	 68.73	0	58656..59624	+	322	108802913	-	Rxyl_0057	-	magnesium and cobalt transport protein CorA
58	 78.29	+1	59615..60397	+	260	108802914	-	Rxyl_0058	-	biotin/lipoate A/B protein ligase
59	 70.93	0	60430..61908	+	492	108802915	-	Rxyl_0059	-	ABC-2 type transporter
60	 73.48	0	61914..62852	+	312	108802916	-	Rxyl_0060	-	ABC transporter related
61	 69.44	0	62882..64033	+	383	108802917	-	Rxyl_0061	-	hypothetical protein
62	 69.18	0	64030..65340	-	436	108802918	-	Rxyl_0062	-	extracellular solute-binding protein
63	 77.69	+1	65491..66288	+	265	108802919	-	Rxyl_0063	-	abortive infection protein
64	 72.38	0	66314..67048	+	244	108802920	-	Rxyl_0064	-	hypothetical protein
65	 70.54	0	67084..67470	+	128	108802921	-	Rxyl_0065	-	GntR family transcriptional regulator
66	 74.87	0	67457..68383	+	308	108802922	-	Rxyl_0066	-	ABC transporter related
67	 66.08	0	68373..69221	-	282	108802923	-	Rxyl_0067	-	binding-protein-dependent transport systems inner membrane component
68	 67.64	0	69223..70143	-	306	108802924	-	Rxyl_0068	-	binding-protein-dependent transport systems inner membrane component
69	 70.75	0	70158..71456	-	432	108802925	-	Rxyl_0069	-	twin-arginine translocation pathway signal
70	 70.36	0	71453..74266	-	937	108802926	-	Rxyl_0070	-	glycoside hydrolase family protein
71	 69.91	0	74263..74601	-	112	108802927	-	Rxyl_0071	-	hypothetical protein
72	 73.62	0	75249..76313	-	354	108802928	-	Rxyl_0072	-	dipeptidase
73	 70.00	0	76310..77119	-	269	108802929	dapD	Rxyl_0073	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
74	 72.50	0	77177..78394	-	405	108802930	-	Rxyl_0074	-	aminotransferase
75	 71.22	0	78454..79704	+	416	108802931	-	Rxyl_0075	-	diaminopimelate decarboxylase
76	 69.77	0	79822..81174	+	450	108802932	-	Rxyl_0076	-	major facilitator transporter
77	 73.36	0	81175..81921	+	248	108802933	-	Rxyl_0077	-	short-chain dehydrogenase/reductase SDR
78	 76.18	+1	81997..82953	+	318	108802934	-	Rxyl_0078	-	PfkB
79	 79.30	+1	82982..83638	+	218	108802935	-	Rxyl_0079	-	2-keto-3-deoxy-phosphogluconate aldolase
80	 76.83	+1	83635..84480	+	281	108802936	-	Rxyl_0080	-	D-mannonate oxidoreductase
81	 74.34	0	84572..86173	+	533	108802937	-	Rxyl_0081	-	GntR family transcriptional regulator
82	 69.90	0	86181..86675	-	164	108802938	-	Rxyl_0082	-	TQO small subunit DoxD
83	 65.19	-1	86899..87915	+	338	108802939	-	Rxyl_0083	-	twin-arginine translocation pathway signal
84	 69.70	0	87919..89103	+	394	108802940	-	Rxyl_0084	-	putative metal cation transporter
85	 73.12	0	89169..89648	+	159	108802941	-	Rxyl_0085	-	twin-arginine translocation pathway signal
86	 68.77	0	89704..90321	+	205	108802942	-	Rxyl_0086	-	hypothetical protein
87	 71.49	0	91359..91835	+	158	108802943	-	Rxyl_0088	-	regulatory protein, MarR
88	 70.89	0	91874..92797	+	307	108802944	-	Rxyl_0089	-	ABC transporter related
89	 73.48	0	92794..93615	+	273	108802945	-	Rxyl_0090	-	ABC-2 type transporter
90	 75.79	+1	93650..94942	+	430	108802946	-	Rxyl_0091	-	hypothetical protein
91	 66.23	0	94939..95397	-	152	108802947	-	Rxyl_0092	-	response regulator receiver protein
92	 72.73	0	95843..98413	+	856	108802948	-	Rxyl_0093	-	multi-sensor signal transduction histidine kinase
93	 73.84	0	98490..99158	+	222	108802949	-	Rxyl_0094	-	two component LuxR family transcriptional regulator
94	 74.65	0	99155..99943	-	262	108802950	-	Rxyl_0095	-	diaminopimelate epimerase
95	 75.99	+1	100363..101145	-	260	108802951	-	Rxyl_0096	-	dihydrodipicolinate reductase
96	 69.02	0	101142..102035	-	297	108802952	-	Rxyl_0097	-	dihydrodipicolinate synthase
97	 71.00	0	102028..103296	-	422	108802953	-	Rxyl_0098	-	aspartate kinase
98	 67.84	0	103337..103846	-	169	108802954	-	Rxyl_0099	-	hypothetical protein
99	 75.41	0	104425..105876	+	483	108802955	-	Rxyl_0100	-	hypothetical protein
100	 71.47	0	105879..106856	-	325	108802956	-	Rxyl_0101	-	abortive infection protein
70.78	MEAN

4.99	STD DEV
