IslandPath Analysis: Rickettsia rickettsii str. Iowa

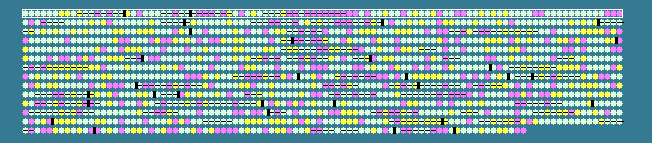

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).



No rRNA data available

A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 31.95   STD DEV: 4.51
Rickettsia rickettsii str. Iowa, complete genome - 1..1268175
1384 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 28.59	0	1..822	+	273	165932550	-	RrIowa_0001	-	hypothetical protein
2	 29.56	0	1082..1399	+	105	165932551	-	RrIowa_0002	-	thioredoxin
3	 29.60	0	1409..2158	+	249	165932552	-	RrIowa_0003	-	O-antigen export system ATP-binding protein
4	 29.09	0	2159..2935	+	258	165932553	-	RrIowa_0004	-	O-antigen export system permease protein
5	 32.56	0	2932..6033	+	1033	165932554	-	RrIowa_0005	-	putative bifunctional glutamate synthase subunit beta/2-polyprenylphenol hydroxylase
6	 32.51	0	6077..6319	-	80	165932555	-	RrIowa_0006	-	PEMK-like protein
7	 36.98	+1	6443..7237	-	264	165932556	-	RrIowa_0007	-	UDP-N-acetylglucosamine acyltransferase
8	 36.07	0	7244..7681	-	145	165932557	-	RrIowa_0008	-	(3R)-hydroxymyristoyl-ACP dehydratase
9	 35.16	0	7877..8914	-	345	165932558	-	RrIowa_0009	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
10	 41.81	+2	8966..9142	-	58	165932559	-	RrIowa_0010	-	hypothetical protein
11	 34.17	0	9627..9986	+	119	165932560	-	RrIowa_0011	-	hypothetical protein
12	 29.03	0	10010..10195	+	61	165932561	-	RrIowa_0012	-	hypothetical protein
13	 21.28	-2	10961..11101	+	46	165932562	-	RrIowa_0013	-	hypothetical protein
14	 28.99	0	11213..11350	+	45	165932563	-	RrIowa_0014	-	hypothetical protein
15	 26.00	-1	11497..11646	-	49	165932564	-	RrIowa_0015	-	hypothetical protein
16	 32.21	0	11702..11968	-	88	165932565	-	RrIowa_0016	-	hypothetical protein
17	 29.33	0	12022..12321	-	99	165932566	-	RrIowa_0017	-	hypothetical protein
18	 39.71	+1	12789..13808	+	339	165932567	-	RrIowa_0019	-	tRNA-dihydrouridine synthase
19	 28.68	0	13826..14749	+	307	165932568	-	RrIowa_0020	-	hypothetical protein
20	 24.36	-1	14835..14990	+	51	165932569	-	RrIowa_0021	-	hypothetical protein
21	 29.36	0	14998..15525	-	175	165932570	-	RrIowa_0022	-	ATP/GTP hydrolase
22	 30.19	0	15513..16466	-	317	165932571	-	RrIowa_0023	-	periplasmic solute binding protein
23	 31.12	0	16463..17773	-	436	165932572	-	RrIowa_0024	-	poly(A) polymerase
24	 32.44	0	18263..18487	-	74	165932573	-	RrIowa_0025	-	hypothetical protein
25	 32.52	0	18572..19309	-	245	165932574	comA	RrIowa_0026	-	DNA translocation competence protein
26	 27.89	0	19321..19467	-	48	165932575	-	RrIowa_0027	-	hypothetical protein
27	 29.91	0	19665..19781	+	38	165932576	-	RrIowa_0028	-	hypothetical protein
28	 33.82	0	20187..25787	+	1866	165932577	-	RrIowa_0029	-	hypothetical protein
29	 32.38	0	26069..26173	+	34	165932578	-	RrIowa_0031	-	hypothetical protein
30	 26.05	-1	27105..27845	+	246	165932579	-	RrIowa_0032	-	hypothetical protein
31	 26.47	-1	27944..28045	+	33	165932580	-	RrIowa_0033	-	hypothetical protein
32	 22.95	-1	28186..28368	+	60	165932581	-	RrIowa_0034	-	TPR repeat-containing protein
33	 29.90	0	28700..29194	-	164	165932582	-	RrIowa_0035	-	F0F1 ATP synthase subunit B
34	 25.32	-1	29194..29667	-	157	165932583	-	RrIowa_0036	-	F0F1 ATP synthase subunit B'
35	 37.13	+1	29686..29922	-	78	165932584	-	RrIowa_0037	-	F0F1 ATP synthase subunit C
36	 30.32	0	30106..30834	-	242	165932585	-	RrIowa_0038	-	F0F1 ATP synthase subunit A
37	 28.28	0	30839..31135	-	98	165932586	-	RrIowa_0039	-	hypothetical protein
38	 31.06	0	31213..32046	-	277	165932587	dsbA	RrIowa_0040	-	thiol:disulfide interchange protein
39	 35.44	0	32210..32731	+	173	165932588	-	RrIowa_0041	-	carD-like transcriptional regulator
40	 32.02	0	32978..34582	-	534	165932589	-	RrIowa_0042	-	methyltransferase
41	 34.29	0	34705..34914	+	69	165932590	-	RrIowa_0043	-	hypothetical protein
42	 31.12	0	35011..36093	-	360	165932591	recF	RrIowa_0044	-	recombination protein F
43	 29.70	0	36117..36419	-	100	165932592	-	RrIowa_0045	-	hypothetical protein
44	 35.96	0	36403..36516	-	37	165932593	-	RrIowa_0046	-	hypothetical protein
45	 27.07	-1	36755..37249	-	164	165932594	-	RrIowa_0047	-	dihydrofolate reductase
46	 26.88	-1	37246..37338	-	30	165932595	-	RrIowa_0048	-	hypothetical protein
47	 30.61	0	38996..39655	-	219	165932596	-	RrIowa_0051	-	hypothetical protein
48	 26.00	-1	39737..40036	-	99	165932597	-	RrIowa_0052	-	hypothetical protein
49	 27.02	-1	40204..40599	-	131	165932598	-	RrIowa_0053	-	hypothetical protein
50	 19.35	-2	40706..40891	+	61	165932599	-	RrIowa_0054	-	hypothetical protein
51	 23.81	-1	41023..41295	-	90	165932601	-	RrIowa_0056	-	hypothetical protein
52	 19.77	-2	41279..41455	+	58	165932600	-	RrIowa_0055	-	hypothetical protein
53	 25.35	-1	41671..41958	-	95	165932602	-	RrIowa_0057	-	hypothetical protein
54	 27.12	-1	42131..42307	-	58	165932603	-	RrIowa_0058	-	hypothetical protein
55	 21.15	-2	42297..42452	-	51	165932604	-	RrIowa_0059	-	hypothetical protein
56	 26.63	-1	42595..43191	+	198	165932605	-	RrIowa_0060	-	cytochrome c oxidase Cu(A) center assembly protein
57	 31.58	0	43202..43771	-	189	165932606	algH	RrIowa_0061	-	hypothetical protein
58	 27.06	-1	43837..44505	+	222	165932607	-	RrIowa_0062	-	hypothetical protein
59	 32.93	0	45067..45564	+	165	165932608	-	RrIowa_0063	-	hypothetical protein
60	 34.34	0	45569..45865	+	98	165932609	-	RrIowa_0064	-	hypothetical protein
61	 36.55	+1	45968..46309	+	113	165932610	-	RrIowa_0065	-	hypothetical protein
62	 34.32	0	46543..47865	-	440	165932611	-	RrIowa_0066	-	hypothetical protein
63	 29.34	0	48027..48377	-	116	165932612	-	RrIowa_0067	-	hypothetical protein
64	 24.85	-1	48534..48698	-	54	165932613	-	RrIowa_0068	-	hypothetical protein
65	 31.31	0	49184..49381	-	65	165932614	-	RrIowa_0071	-	hypothetical protein
66	 38.16	+1	49809..50264	-	151	165932615	-	RrIowa_0072	-	acetoacetyl-CoA reductase
67	 34.57	0	50373..50534	-	53	165932616	-	RrIowa_0073	-	acetoacetyl-CoA reductase
68	 33.92	0	50834..51004	-	56	165932617	-	RrIowa_0074	-	hypothetical protein
69	 36.36	0	52562..55135	+	857	165932618	clpB	RrIowa_0079	-	ClpB
70	 25.61	-1	55366..55857	-	163	165932619	-	RrIowa_0080	-	hypothetical protein
71	 34.01	0	55984..57018	-	344	165932620	-	RrIowa_0081	-	O-sialoglycoprotein endopeptidase
72	 31.49	0	57202..58395	-	397	165932621	-	RrIowa_0082	-	acyl-CoA desaturase
73	 27.22	-1	58674..58853	-	59	165932622	phoB	RrIowa_0083	-	phosphate regulon transcriptional regulatory protein
74	 26.62	-1	59305..59706	+	133	165932623	-	RrIowa_0084	-	30S ribosomal protein S6
75	 31.94	0	59731..60018	+	95	165932624	-	RrIowa_0085	-	30S ribosomal protein S18
76	 30.04	0	60030..60545	+	171	165932625	-	RrIowa_0086	-	50S ribosomal protein L9
77	 38.00	+1	60688..60837	-	49	165932626	-	RrIowa_0087	-	hypothetical protein
78	 30.90	0	60847..62283	+	478	165932627	tilS	RrIowa_0088	-	tRNA(Ile)-lysidine synthetase
79	 37.62	+1	62383..64296	+	637	165932628	ftsH	RrIowa_0089	-	cell division protein
80	 32.32	0	64380..64577	+	65	165932629	-	RrIowa_0090	-	hypothetical protein
81	 36.64	+1	65083..65868	+	261	165932630	-	RrIowa_0091	-	succinate dehydrogenase iron-sulfur subunit
82	 30.30	0	65958..66155	+	65	165932631	-	RrIowa_0092	-	hypothetical protein
83	 35.29	0	66152..66304	+	50	165932632	-	RrIowa_0093	-	hypothetical protein
84	 33.09	0	66429..67649	-	406	165932633	-	RrIowa_0094	-	putative cytoplasmic protein
85	 31.67	0	67628..68407	-	259	165932634	-	RrIowa_0095	-	prolipoprotein diacylglyceryl transferase
86	 24.04	-1	68466..68648	+	60	165932635	-	RrIowa_0096	-	hypothetical protein
87	 27.66	0	68652..69815	+	387	165932636	-	RrIowa_0097	-	mechanosensitive ion channel
88	 30.36	0	70007..71689	+	560	165932637	yidC	RrIowa_0098	-	putative inner membrane protein translocase component YidC
89	 30.04	0	71693..72238	+	181	165932638	-	RrIowa_0099	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
90	 29.59	0	72252..72812	+	186	165932639	-	RrIowa_0100	-	hypothetical protein
91	 30.95	0	72981..73400	-	139	165932640	-	RrIowa_0101	-	hypothetical protein
92	 35.19	0	74731..74838	+	35	165932641	-	RrIowa_0104	-	hypothetical protein
93	 30.07	0	74905..75579	-	224	165932642	-	RrIowa_0105	-	peptide deformylase
94	 31.60	0	75778..77274	+	498	165932643	-	RrIowa_0106	-	ADP,ATP carrier protein
95	 34.88	0	77504..78799	+	431	165932644	uhpC	RrIowa_0107	-	regulatory protein
96	 32.86	0	78824..79246	+	140	165932645	-	RrIowa_0108	-	nucleoside diphosphate kinase
97	 32.74	0	79250..81118	+	622	165932646	-	RrIowa_0109	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
98	 25.56	-1	81099..81677	+	192	165932647	-	RrIowa_0110	-	glucose-inhibited division protein B
99	 28.26	0	81674..82441	+	255	165932648	parA	RrIowa_0111	-	chromosome partitioning protein
100	 27.41	-1	82428..83288	+	286	165932649	parB	RrIowa_0112	-	chromosome partitioning protein
31.95	MEAN

4.51	STD DEV
