IslandPath Analysis: Rickettsia canadensis str. McKiel

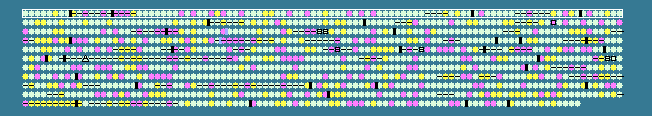

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 31.03   STD DEV: 4.11
Rickettsia canadensis str. McKiel, complete genome - 1..1159772
1093 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 28.71	0	1..822	+	273	157803190	-	A1E_00005	-	hypothetical protein
2	 31.45	0	1065..1382	+	105	157803191	-	A1E_00010	-	thioredoxin
3	 27.95	0	1375..2136	+	253	157803192	-	A1E_00015	-	O-antigen export system ATP-binding protein RfbE
4	 27.80	0	2295..3071	+	258	157803193	-	A1E_00020	-	hypothetical protein
5	 31.46	0	3068..6214	+	1048	157803194	-	A1E_00025	-	putative bifunctional glutamate synthase subunit beta/2-polyprenylphenol hydroxylase
6	 35.35	+1	6333..7127	-	264	157803195	-	A1E_00030	-	UDP-N-acetylglucosamine acyltransferase
7	 33.33	0	7135..7569	-	144	157803196	fabZ	A1E_00035	-	(3R)-hydroxymyristoyl-ACP dehydratase
8	 33.53	0	7570..8598	-	342	157803197	-	A1E_00040	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
9	 39.04	+1	8865..9845	+	326	157803198	-	A1E_00045	-	nifR3-like protein
10	 29.17	0	10469..10900	-	143	157803199	-	A1E_00050	-	hypothetical protein
11	 24.50	-1	10891..11694	-	267	157803200	-	A1E_00055	-	zinc/manganese ABC transporter substrate binding protein
12	 27.56	0	11798..13009	-	403	157803201	-	A1E_00060	-	poly(A) polymerase
13	 30.04	0	13738..14010	-	90	157803202	-	A1E_00065	-	ComEC/Rec2-related protein
14	 19.14	-2	14292..14453	+	53	157803203	-	A1E_00070	-	hypothetical protein
15	 32.14	0	14710..19161	+	1483	157803204	-	A1E_00075	-	cell surface antigen Sca1
16	 26.87	-1	19742..20143	+	133	157803205	lpxD	A1E_00080	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
17	 25.81	-1	21912..22403	-	163	157803206	-	A1E_00085	-	F0F1 ATP synthase subunit B
18	 23.50	-1	22403..22870	-	155	157803207	-	A1E_00090	-	F0F1 ATP synthase subunit B'
19	 37.33	+1	22888..23112	-	74	157803208	-	A1E_00095	-	F0F1 ATP synthase subunit C
20	 28.26	0	23287..24015	-	242	157803209	-	A1E_00100	-	F0F1 ATP synthase subunit A
21	 28.79	0	24020..24283	-	87	157803210	-	A1E_00105	-	hypothetical protein
22	 29.70	0	24453..25277	-	274	157803211	-	A1E_00110	-	protein-disulfide isomerase
23	 34.28	0	25444..25971	+	175	157803212	-	A1E_00115	-	hypothetical protein
24	 30.47	0	26180..27784	-	534	157803213	-	A1E_00120	-	F0F1 ATP synthase subunit A
25	 30.47	0	27939..29021	-	360	157803214	-	A1E_00125	-	recombination protein F
26	 30.04	0	29046..29714	-	222	157803215	recF	A1E_00130	-	recombination protein F
27	 25.56	-1	29838..29927	-	29	157803216	-	A1E_00135	-	hypothetical protein
28	 30.18	0	31347..31916	-	189	157803217	-	A1E_00140	-	hypothetical protein
29	 24.57	-1	31988..32626	+	212	157803218	-	A1E_00145	-	hypothetical protein
30	 29.82	0	33032..33145	+	37	157803219	-	A1E_00150	-	hypothetical protein
31	 32.20	0	33425..34747	-	440	157803220	-	A1E_00155	-	hypothetical protein
32	 27.41	0	34766..34900	-	44	157803221	-	A1E_00160	-	hypothetical protein
33	 36.40	+1	36670..39246	+	858	157803222	-	A1E_00165	-	clpB protein
34	 23.93	-1	39386..39874	-	162	157803223	-	A1E_00170	-	hypothetical protein
35	 33.72	0	40067..41095	-	342	157803224	-	A1E_00175	-	O-sialoglycoprotein endopeptidase
36	 30.07	0	41107..42300	-	397	157803225	-	A1E_00180	-	O-sialoglycoprotein endopeptidase
37	 26.78	-1	43248..43613	+	121	157803226	rpsF	A1E_00185	-	30S ribosomal protein S6
38	 31.60	0	43638..43925	+	95	157803227	rpsR	A1E_00190	-	30S ribosomal protein S18
39	 28.29	0	43937..44452	+	171	157803228	-	A1E_00195	-	50S ribosomal protein L9
40	 29.02	0	44961..46259	+	432	157803229	-	A1E_00200	-	tRNA(Ile)-lysidine synthetase TilS
41	 36.73	+1	46356..48266	+	636	157803230	rplI	A1E_00205	-	50S ribosomal protein L9
42	 36.90	+1	48267..49052	+	261	157803231	-	A1E_00210	-	succinate dehydrogenase iron-sulfur subunit
43	 30.36	0	50050..51126	-	358	157803232	sdhB	A1E_00215	-	succinate dehydrogenase iron-sulfur subunit
44	 29.49	0	51105..51884	-	259	157803233	-	A1E_00220	-	prolipoprotein diacylglyceryl transferase
45	 26.91	-1	52158..53309	+	383	157803234	-	A1E_00225	-	putative carbamate kinase
46	 29.95	0	53499..55181	+	560	157803235	-	A1E_00230	-	putative inner membrane protein translocase component YidC
47	 28.75	0	55181..55726	+	181	157803236	-	A1E_00235	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
48	 27.45	0	56122..56274	+	50	157803237	-	A1E_00240	-	hypothetical protein
49	 28.57	0	56527..56925	-	132	157803238	-	A1E_00245	-	hypothetical protein
50	 31.74	0	58011..59516	+	501	157803239	-	A1E_00250	-	ADP,ATP carrier protein
51	 34.88	0	59583..60872	+	429	157803240	-	A1E_00255	-	putative inner membrane protein translocase component YidC
52	 29.79	0	60902..61324	+	140	157803241	ndk	A1E_00260	-	nucleoside diphosphate kinase
53	 31.73	0	61328..63202	+	624	157803242	-	A1E_00265	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
54	 28.12	0	63722..64489	+	255	157803243	-	A1E_00270	-	soj protein
55	 27.18	0	64476..65336	+	286	157803244	-	A1E_00275	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
56	 30.22	0	65627..67294	+	555	157803245	-	A1E_00280	-	putative ABC transporter ATP-binding protein
57	 19.81	-2	67297..67614	+	105	157803246	-	A1E_00285	-	putative ABC transporter ATP-binding component
58	 33.94	0	67649..68473	+	274	157803247	-	A1E_00290	-	2-dehydro-3-deoxyphosphooctonate aldolase
59	 22.99	-1	69000..69086	+	28	157803248	-	A1E_00295	-	hypothetical protein
60	 33.03	0	69865..70197	-	110	157803249	-	A1E_00300	-	2-dehydro-3-deoxyphosphooctonate aldolase
61	 32.45	0	70360..71490	+	376	157803250	-	A1E_00305	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
62	 31.37	0	71666..73396	+	576	157803251	-	A1E_00310	-	arginyl-tRNA synthetase
63	 28.42	0	73472..74143	+	223	157803252	argS	A1E_00315	-	arginyl-tRNA synthetase
64	 34.42	0	74328..76544	+	738	157803253	-	A1E_00320	-	DNA topoisomerase IV subunit A
65	 34.01	0	76908..78230	-	440	157803254	-	A1E_00325	-	DNA topoisomerase IV subunit A
66	 31.75	0	78514..79080	+	188	157803255	dcd	A1E_00330	-	deoxycytidine triphosphate deaminase
67	 31.15	0	79177..79635	+	152	157803256	-	A1E_00335	-	preprotein translocase subunit SecB
68	 33.19	0	79861..80574	+	237	157803257	-	A1E_00340	-	preprotein translocase subunit SecB
69	 28.83	0	80578..81399	+	273	157803258	-	A1E_00345	-	7-cyano-7-deazaguanine reductase
70	 32.80	0	81672..82232	-	186	157803259	-	A1E_00350	-	hypothetical protein
71	 44.44	+2	82887..82976	-	29	157803260	-	A1E_00360	-	hypothetical protein
72	 31.78	0	83232..83489	+	85	157803261	-	A1E_00370	-	hypothetical protein
73	 34.56	0	83991..84722	-	243	157803262	-	A1E_00380	-	hypothetical protein
74	 32.32	0	84866..85750	+	294	157803263	-	A1E_00385	-	S-adenosylmethionine transporter
75	 33.73	0	85737..86999	+	420	157803264	queF	A1E_00390	-	7-cyano-7-deazaguanine reductase
76	 28.71	0	87321..87623	+	100	157803265	-	A1E_00395	-	preprotein translocase subunit SecG
77	 23.53	-1	87913..88575	+	220	157803266	-	A1E_00400	-	hypothetical protein
78	 28.55	0	88817..94246	-	1809	157803267	secG	A1E_00405	-	preprotein translocase subunit SecG
79	 32.54	0	94415..95794	+	459	157803268	cysS	A1E_00410	-	cysteinyl-tRNA synthetase
80	 32.09	0	96094..96981	+	295	157803269	rpsB	A1E_00415	-	30S ribosomal protein S2
81	 33.87	0	97003..97932	+	309	157803270	tsf	A1E_00420	-	elongation factor Ts
82	 30.22	0	98936..100189	-	417	157803271	-	A1E_00425	-	3-deoxy-D-manno-octulosonic-acid transferase
83	 31.51	0	100186..100842	-	218	157803272	-	A1E_00430	-	3-deoxy-D-manno-octulosonic-acid transferase
84	 33.99	0	100917..102137	-	406	157803273	-	A1E_00435	-	aspartate aminotransferase
85	 23.71	-1	102411..103418	+	335	157803274	-	A1E_00440	-	hypothetical protein
86	 33.72	0	103393..104178	+	261	157803275	-	A1E_00445	-	vacJ lipoprotein precursor
87	 28.09	0	104204..104794	+	196	157803276	-	A1E_00450	-	aspartate aminotransferase
88	 33.43	0	105806..106873	+	355	157803277	-	A1E_00455	-	alanine racemase
89	 35.26	+1	107108..107887	+	259	157803278	-	A1E_00460	-	ABC transporter permease protein
90	 31.36	0	107890..108651	+	253	157803279	-	A1E_00465	-	ribonucleotide ABC transporter ATP-binding protein
91	 23.29	-1	108694..108942	+	82	157803280	alr	A1E_00470	-	alanine racemase
92	 34.69	0	109015..109308	+	97	157803281	rpmB	A1E_00475	-	50S ribosomal protein L28
93	 32.49	0	109305..109541	+	78	157803282	-	A1E_00480	-	50S ribosomal protein L31
94	 30.00	0	110321..110980	+	219	157803283	-	A1E_00485	-	GTPase EngB
95	 23.81	-1	111131..111256	+	41	157803284	-	A1E_00490	-	acetylglutamate kinase
96	 30.56	0	111737..112024	+	95	157803285	-	A1E_00495	-	Type IV secretory pathway, VirB3-like protein
97	 33.66	0	112279..114696	+	805	157803286	-	A1E_00500	-	Type IV secretion/conjugal transfer ATPase, VirB4 family protein
98	 35.41	+1	114838..118152	+	1104	157803287	-	A1E_00505	-	TrbL/VirB6 plasmid conjugative transfer protein
99	 33.43	0	118139..120157	+	672	157803288	-	A1E_00510	-	TrbL/VirB6 plasmid conjugative transfer protein
100	 34.19	0	120164..123070	+	968	157803289	-	A1E_00515	-	VirB6-like protein of the type IV secretion system
31.03	MEAN

4.11	STD DEV
