IslandPath Analysis: Rhodopseudomonas palustris BisA53

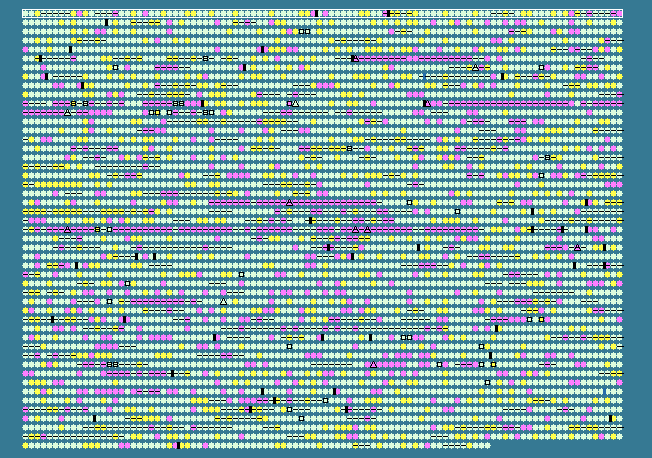

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 64.57   STD DEV: 3.96
Rhodopseudomonas palustris BisA53, complete genome - 1..5505494
4878 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 65.47	0	641..2065	+	474	115522031	dnaA	RPE_0001	-	chromosomal replication initiation protein
2	 66.13	0	2306..3424	+	372	115522032	-	RPE_0002	-	DNA polymerase III subunit beta
3	 71.14	+1	3588..4727	+	379	115522033	recF	RPE_0003	-	recombination protein F
4	 62.03	0	4860..6068	+	402	115522034	-	RPE_0004	-	hypothetical protein
5	 65.36	0	6454..8895	+	813	115522035	gyrB	RPE_0005	-	DNA gyrase subunit B
6	 66.87	0	9047..10018	-	323	115522036	-	RPE_0006	-	signal transduction histidine kinase
7	 64.52	0	10175..11107	+	310	115522037	-	RPE_0007	-	hypothetical protein
8	 62.55	0	11109..11618	-	169	115522038	-	RPE_0008	-	AsnC family transcriptional regulator
9	 68.83	+1	11769..11999	-	76	115522039	-	RPE_0009	-	hypothetical protein
10	 60.69	0	12084..12401	-	105	115522040	-	RPE_0010	-	hypothetical protein
11	 70.00	+1	12494..12673	-	59	115522041	-	RPE_0011	-	cytochrome oxidase maturation protein, cbb3-type
12	 66.90	0	12686..14860	-	724	115522042	-	RPE_0012	-	copper-translocating P-type ATPase
13	 66.07	0	14871..15371	-	166	115522043	-	RPE_0013	-	FixH family protein
14	 62.83	0	15392..16849	-	485	115522044	-	RPE_0014	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
15	 63.72	0	16971..17852	-	293	115522045	-	RPE_0015	-	cytochrome c oxidase, cbb3-type, subunit III
16	 56.36	-2	17859..18023	-	54	115522046	-	RPE_0016	-	Cbb3-type cytochrome oxidase component
17	 61.36	0	18036..18770	-	244	115522047	-	RPE_0017	-	cytochrome c oxidase, cbb3-type, subunit II
18	 62.84	0	18783..20429	-	548	115522048	-	RPE_0018	-	cytochrome c oxidase, cbb3-type, subunit I
19	 68.51	0	20685..21605	-	306	115522049	-	RPE_0019	-	2-dehydropantoate 2-reductase
20	 64.63	0	21866..22603	-	245	115522050	-	RPE_0020	-	short-chain dehydrogenase/reductase SDR
21	 61.00	0	22712..23311	-	199	115522051	-	RPE_0021	-	DSBA oxidoreductase
22	 64.41	0	23525..24232	+	235	115522052	-	RPE_0022	-	glutathione S-transferase
23	 64.66	0	24432..25328	-	298	115522053	-	RPE_0023	-	short chain dehydrogenase
24	 68.77	+1	25421..27181	-	586	115522054	-	RPE_0024	-	gamma-glutamyltransferase
25	 65.80	0	27247..28629	+	460	115522055	-	RPE_0025	-	major facilitator transporter
26	 66.48	0	28806..30410	-	534	115522056	purH	RPE_0026	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
27	 67.86	0	30655..32409	-	584	115522057	-	RPE_0027	-	heparinase II/III-like
28	 70.44	+1	32688..34037	-	449	115522058	-	RPE_0028	-	sun protein
29	 69.88	+1	34221..34469	+	82	115522059	-	RPE_0029	-	hypothetical protein
30	 65.10	0	34487..35251	-	254	115522060	-	RPE_0030	-	hypothetical protein
31	 64.04	0	35211..35591	-	126	115522061	-	RPE_0031	-	hypothetical protein
32	 70.98	+1	35733..36311	+	192	115522062	-	RPE_0032	-	nuclease
33	 65.58	0	36314..38068	-	584	115522063	-	RPE_0033	-	alkaline phosphatase
34	 64.35	0	38315..39652	-	445	115522064	-	RPE_0034	-	argininosuccinate synthase
35	 67.82	0	39755..40534	-	259	115522065	-	RPE_0035	-	phosphoesterase, PA-phosphatase related
36	 70.20	+1	40591..41127	-	178	115522066	-	RPE_0036	-	hypothetical protein
37	 66.50	0	41127..41729	-	200	115522067	-	RPE_0037	-	metal dependent phosphohydrolase
38	 64.44	0	41726..42937	-	403	115522068	-	RPE_0038	-	radical SAM protein
39	 67.17	0	43137..43727	-	196	115522069	-	RPE_0039	-	hypothetical protein
40	 63.59	0	44027..45001	+	324	115522070	-	RPE_0040	-	alcohol dehydrogenase
41	 67.52	0	45187..46479	+	430	115522071	-	RPE_0041	-	amine oxidase
42	 68.25	0	46533..46784	-	83	115522072	-	RPE_0042	-	hypothetical protein
43	 65.29	0	46848..47357	+	169	115522073	-	RPE_0043	-	GCN5-related N-acetyltransferase
44	 61.88	0	47450..47992	+	180	115522074	-	RPE_0044	-	inorganic pyrophosphatase
45	 65.59	0	48027..49508	+	493	115522075	-	RPE_0045	-	hypothetical protein
46	 63.73	0	49590..51290	-	566	115522076	-	RPE_0046	-	methyl-accepting chemotaxis sensory transducer
47	 68.24	0	51616..52503	-	295	115522077	-	RPE_0047	-	methenyltetrahydrofolate cyclohydrolase
48	 71.30	+1	52514..52837	-	107	115522078	-	RPE_0048	-	hypothetical protein
49	 57.39	-1	52859..53149	-	96	115522079	-	RPE_0049	-	protein of unknown function YGGT
50	 66.67	0	53521..53721	-	66	115522080	-	RPE_0050	-	hypothetical protein
51	 56.15	-2	53834..54736	-	300	115522081	-	RPE_0051	-	hypothetical protein
52	 66.26	0	54865..55350	-	161	115522082	-	RPE_0052	-	hypothetical protein
53	 67.26	0	55426..56265	-	279	115522083	-	RPE_0053	-	glutamine amidotransferase
54	 66.41	0	56410..57189	-	259	115522084	-	RPE_0054	-	short-chain dehydrogenase/reductase SDR
55	 62.89	0	57409..57885	-	158	115522085	-	RPE_0055	-	hypothetical protein
56	 66.45	0	58031..59440	-	469	115522086	-	RPE_0056	-	adenylate/guanylate cyclase
57	 68.87	+1	59437..60843	-	468	115522087	-	RPE_0057	-	cytochrome P450
58	 69.76	+1	61106..62788	+	560	115522088	-	RPE_0058	-	protein of unknown function DUF894, DitE
59	 64.81	0	62808..63023	-	71	115522089	-	RPE_0059	-	hypothetical protein
60	 62.72	0	63403..69405	+	2000	115522090	-	RPE_0060	-	putative DNA helicase
61	 58.66	-1	69841..70302	+	153	115522091	-	RPE_0061	-	hypothetical protein
62	 71.34	+1	70763..72496	-	577	115522092	-	RPE_0062	-	HemY domain-containing protein
63	 72.91	+2	72504..73880	-	458	115522093	-	RPE_0063	-	hypothetical protein
64	 67.34	0	73938..74684	-	248	115522094	-	RPE_0064	-	uroporphyrinogen III synthase HEM4
65	 68.63	+1	74813..75982	+	389	115522095	-	RPE_0065	-	O-sialoglycoprotein endopeptidase
66	 70.52	+1	76221..77207	+	328	115522096	gpsA	RPE_0066	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
67	 61.11	0	77211..77624	+	137	115522097	-	RPE_0067	-	hypothetical protein
68	 68.02	0	77843..78505	+	220	115522098	-	RPE_0068	-	hypothetical protein
69	 64.51	0	79015..80961	+	648	115522099	-	RPE_0069	-	acetyl-CoA synthetase
70	 67.64	0	82504..83118	-	204	115522100	-	RPE_0070	-	methyltransferase type 12
71	 68.51	0	83681..84601	-	306	115522101	-	RPE_0071	-	hypothetical protein
72	 62.70	0	84598..85152	-	184	115522102	-	RPE_0072	-	hypothetical protein
73	 64.66	0	85168..86313	-	381	115522103	-	RPE_0073	-	acyl-CoA dehydrogenase domain-containing protein
74	 66.07	0	86466..86966	-	166	115522104	-	RPE_0074	-	YbhB and YbcL
75	 62.76	0	87406..87840	+	144	115522105	-	RPE_0075	-	hypothetical protein
76	 69.06	+1	87979..88896	+	305	115522106	-	RPE_0076	-	hypothetical protein
77	 66.67	0	88997..89326	+	109	115522107	-	RPE_0077	-	hypothetical protein
78	 66.78	0	89385..91142	+	585	115522108	-	RPE_0078	-	carbamoyltransferase
79	 64.31	0	91124..91801	+	225	115522109	-	RPE_0079	-	hypothetical protein
80	 63.91	0	91837..92562	+	241	115522110	-	RPE_0080	-	hypothetical protein
81	 68.41	0	92597..93859	+	420	115522111	-	RPE_0081	-	cytochrome P450
82	 63.56	0	93972..94583	+	203	115522112	-	RPE_0082	-	FkbM family methyltransferase
83	 67.34	0	94723..95466	+	247	115522113	-	RPE_0083	-	nuclease
84	 69.25	+1	95497..96387	-	296	115522114	-	RPE_0084	-	transglutaminase domain-containing protein
85	 70.44	+1	96384..98822	-	812	115522115	-	RPE_0085	-	hypothetical protein
86	 67.72	0	98882..102190	-	1102	115522116	-	RPE_0086	-	transglutaminase domain-containing protein
87	 63.14	0	102253..102564	-	103	115522117	-	RPE_0087	-	hypothetical protein
88	 62.24	0	102832..103260	+	142	115522118	-	RPE_0088	-	hypothetical protein
89	 69.14	+1	103330..103572	+	80	115522119	-	RPE_0089	-	hypothetical protein
90	 65.60	0	103550..105802	-	750	115522120	-	RPE_0090	-	diguanylate cyclase/phosphodiesterase with PAS/PAC sensor(s)
91	 69.61	+1	106170..107120	+	316	115522121	mepA	RPE_0091	-	penicillin-insensitive murein endopeptidase
92	 60.13	-1	107449..108228	+	259	115522122	-	RPE_0092	-	hypothetical protein
93	 69.00	+1	108475..110274	-	599	115522123	-	RPE_0093	-	potassium/proton antiporter
94	 64.00	0	110652..111476	+	274	115522124	-	RPE_0094	-	methionine aminopeptidase, type I
95	 58.97	-1	111820..112365	+	181	115522125	-	RPE_0095	-	hypothetical protein
96	 63.78	0	112747..113889	+	380	115522126	-	RPE_0096	-	TRAP dicarboxylate transporter
97	 64.99	0	113994..114707	+	237	115522127	-	RPE_0097	-	tripartite ATP-independent periplasmic transporter DctQ
98	 64.79	0	114704..116620	+	638	115522128	-	RPE_0098	-	TRAP C4-dicarboxylate transport system permease DctM subunit
99	 55.39	-2	116856..117449	-	197	115522129	-	RPE_0099	-	methyltransferase type 11
100	 56.20	-2	117559..118131	-	190	115522130	-	RPE_0100	-	hypothetical protein
64.57	MEAN

3.96	STD DEV
