IslandPath Analysis: Rhodoferax ferrireducens T118

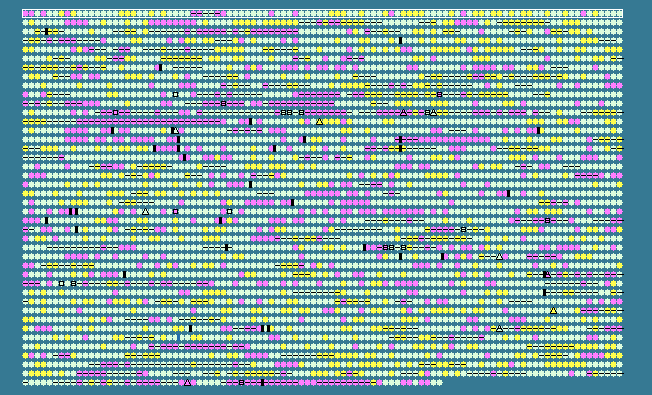

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 60.13   STD DEV: 4.20
Rhodoferax ferrireducens T118, complete genome - 1..4712337
4170 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 53.08	-1	7..1419	+	470	89898823	-	Rfer_0001	-	chromosomal replication initiator protein DnaA
2	 55.53	-1	1515..2618	+	367	89898824	-	Rfer_0002	-	DNA polymerase III, beta subunit
3	 59.82	0	2723..5335	+	870	89898825	-	Rfer_0003	-	DNA gyrase, B subunit
4	 51.52	-2	5397..5825	-	142	89898826	-	Rfer_0004	-	signal-transduction protein
5	 62.25	0	6309..7871	+	520	89898827	-	Rfer_0005	-	diguanylate cyclase
6	 63.56	0	7888..8466	+	192	89898828	-	Rfer_0006	-	NnrU
7	 64.23	0	8487..11159	+	890	89898829	-	Rfer_0007	-	GCN5-related N-acetyltransferase
8	 52.11	-1	11152..11364	-	70	89898830	-	Rfer_0008	-	hypothetical protein
9	 64.79	+1	11364..12215	-	283	89898831	-	Rfer_0009	-	integral membrane protein
10	 60.38	0	12308..12673	+	121	89898832	-	Rfer_0010	-	glutaredoxin
11	 60.99	0	12743..13288	-	181	89898833	-	Rfer_0011	-	hypothetical protein
12	 61.84	0	13460..14371	+	303	89898834	rdgC	Rfer_0012	-	recombination associated protein
13	 56.75	0	14571..15326	-	251	89898835	-	Rfer_0013	-	GntR family transcriptional regulator
14	 60.75	0	15516..16868	+	450	89898836	-	Rfer_0014	-	fumarate lyase
15	 58.12	0	16906..18333	+	475	89898837	-	Rfer_0015	-	anion transporter
16	 62.96	0	18731..19351	+	206	89898838	-	Rfer_0016	-	TetR family transcriptional regulator
17	 63.91	0	19454..20614	+	386	89898839	-	Rfer_0017	-	iron-containing alcohol dehydrogenase
18	 66.76	+1	20653..21687	+	344	89898840	-	Rfer_0018	-	zinc-binding alcohol dehydrogenase
19	 63.92	0	21742..22434	+	230	89898841	-	Rfer_0019	-	ThiJ/PfpI
20	 62.49	0	22508..23584	+	358	89898842	-	Rfer_0020	-	hypothetical protein
21	 59.09	0	23634..23831	-	65	89898843	-	Rfer_0021	-	hypothetical protein
22	 66.96	+1	23927..24616	-	229	89898844	-	Rfer_0022	-	Crp/FNR family transcriptional regulator
23	 61.39	0	24678..25397	-	239	89898845	-	Rfer_0023	-	MerR family transcriptional regulator
24	 67.99	+1	25444..27717	+	757	89898846	-	Rfer_0024	-	heavy metal translocating P-type ATPase
25	 59.20	0	27784..28506	-	240	89898847	-	Rfer_0025	-	hypothetical protein
26	 62.27	0	28503..29048	-	181	89898848	-	Rfer_0026	-	hypothetical protein
27	 61.50	0	29130..29516	-	128	89898849	-	Rfer_0027	-	hypothetical protein
28	 61.73	0	29673..32813	-	1046	89898850	-	Rfer_0028	-	HsdR family type I site-specific deoxyribonuclease
29	 51.06	-2	32826..33959	-	377	89898851	-	Rfer_0029	-	hypothetical protein
30	 53.57	-1	33956..35299	-	447	89898852	-	Rfer_0030	-	restriction modification system DNA specificity subunit
31	 58.18	0	35292..36422	-	376	89898853	-	Rfer_0031	-	hypothetical protein
32	 59.51	0	36476..38110	-	544	89898854	-	Rfer_0032	-	N-6 DNA methylase
33	 56.16	0	38073..38348	-	91	89898855	-	Rfer_0033	-	hypothetical protein
34	 55.56	-1	38578..38838	-	86	89898856	-	Rfer_0034	-	cell division topological specificity factor MinE
35	 58.46	0	38843..39658	-	271	89898857	-	Rfer_0035	-	septum site-determining protein MinD
36	 62.09	0	39734..40519	-	261	89898858	-	Rfer_0036	-	septum site-determining protein MinC
37	 61.74	0	41353..42753	-	466	89898859	-	Rfer_0037	-	tetratricopeptide TPR_2
38	 59.40	0	42750..43217	-	155	89898860	-	Rfer_0038	-	cytochrome C biogenesis protein
39	 57.33	0	43214..43738	-	174	89898861	-	Rfer_0039	-	periplasmic protein thiol
40	 58.97	0	43735..45708	-	657	89898862	-	Rfer_0040	-	cytochrome c-type biogenesis protein CcmF
41	 58.33	0	45719..46162	-	147	89898863	-	Rfer_0041	-	CcmE/CycJ protein
42	 52.22	-1	46159..46338	-	59	89898864	-	Rfer_0042	-	Heme exporter protein D (CcmD)
43	 59.78	0	46325..47065	-	246	89898865	-	Rfer_0043	-	heme exporter protein CcmC
44	 62.13	0	47062..47745	-	227	89898866	-	Rfer_0044	-	heme exporter protein CcmB
45	 62.24	0	47742..48374	-	210	89898867	-	Rfer_0045	-	heme exporter protein CcmA
46	 56.48	0	48665..49135	+	156	89898868	-	Rfer_0046	-	cytochrome c family protein, putative
47	 61.74	0	49239..49847	-	202	89898869	-	Rfer_0047	-	glutathione S-transferase-like
48	 59.64	0	50035..51486	-	483	89898870	-	Rfer_0048	-	aldehyde dehydrogenase
49	 61.62	0	51689..53728	+	679	89898871	-	Rfer_0049	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
50	 62.81	0	53728..54402	+	224	89898872	-	Rfer_0050	-	methyltransferase GidB
51	 58.78	0	54656..55441	+	261	89898873	-	Rfer_0051	-	cobyrinic acid a,c-diamide synthase
52	 66.51	+1	55517..56152	+	211	89898874	-	Rfer_0052	-	hypothetical protein
53	 65.50	+1	56171..57112	+	313	89898875	-	Rfer_0053	-	parB-like partition proteins
54	 72.04	+2	57198..57941	+	247	89898876	-	Rfer_0054	-	methyltransferase type 12
55	 59.30	0	58043..58789	+	248	89898877	-	Rfer_0055	-	metal dependent phosphohydrolase
56	 62.94	0	58963..60168	+	401	89898878	-	Rfer_0056	-	putative lipoprotein
57	 65.88	+1	60184..60690	+	168	89898879	-	Rfer_0057	-	hypothetical protein
58	 58.22	0	60804..61241	-	145	89898880	-	Rfer_0058	-	TPR repeat-containing protein
59	 58.10	0	61322..62839	-	505	89898881	-	Rfer_0059	-	hypothetical protein
60	 58.58	0	62970..63674	-	234	89898882	-	Rfer_0060	-	Crp/FNR family transcriptional regulator
61	 66.43	+1	63721..64143	-	140	89898883	-	Rfer_0061	-	phenylacetic acid degradation-related protein
62	 56.34	0	64247..65950	-	567	89898884	-	Rfer_0062	-	acyl-CoA dehydrogenase-like
63	 63.57	0	66180..66437	+	85	89898885	-	Rfer_0063	-	hypothetical protein
64	 65.39	+1	66445..68331	+	628	89898886	-	Rfer_0064	-	ferrous iron transport protein B
65	 67.01	+1	68336..68626	+	96	89898887	-	Rfer_0065	-	hypothetical protein
66	 65.26	+1	68690..69757	-	355	89898888	-	Rfer_0066	-	putative ammonia monooxygenase
67	 66.94	+1	69848..70219	+	123	89898889	-	Rfer_0067	-	hypothetical protein
68	 59.90	0	70250..70840	+	196	89898890	-	Rfer_0068	-	putative lipoprotein transmembrane
69	 62.55	0	70953..72239	-	428	89898891	-	Rfer_0069	-	uracil-xanthine permease
70	 59.22	0	72547..72801	-	84	89898892	-	Rfer_0070	-	17 kDa surface antigen
71	 62.35	0	72818..73465	-	215	89898893	-	Rfer_0071	-	hypothetical protein
72	 64.98	+1	73485..73958	-	157	89898894	-	Rfer_0072	-	17 kDa surface antigen
73	 59.90	0	73992..74582	-	196	89898895	-	Rfer_0073	-	transport-associated
74	 56.48	0	74835..75050	+	71	89898896	-	Rfer_0074	-	hypothetical protein
75	 61.41	0	75237..76511	+	424	89898897	-	Rfer_0075	-	hypothetical protein
76	 64.48	+1	76523..77026	-	167	89898898	-	Rfer_0076	-	CinA-like
77	 66.32	+1	77023..77604	-	193	89898899	-	Rfer_0077	-	phosphatidylglycerophosphatase A
78	 62.42	0	77643..79031	-	462	89898900	-	Rfer_0078	-	phospholipase D/transphosphatidylase
79	 64.43	+1	79028..81037	-	669	89898901	-	Rfer_0079	-	AsmA
80	 68.83	+2	81242..81565	-	107	89898902	-	Rfer_0080	-	collagen triple helix protein
81	 60.48	0	81897..82316	+	139	89898903	-	Rfer_0081	-	hypothetical protein
82	 70.43	+2	82418..83161	-	247	89898904	-	Rfer_0082	-	hypothetical protein
83	 56.89	0	84980..85756	+	258	89898905	-	Rfer_0084	-	ferredoxin--NADP(+) reductase
84	 65.08	+1	85846..86664	+	272	89898906	-	Rfer_0085	-	nucleotidyl transferase
85	 65.46	+1	86684..88093	+	469	89898907	-	Rfer_0086	-	peptidase M24
86	 60.62	0	88135..88647	+	170	89898908	-	Rfer_0087	-	thiol-disulfide isomerase-like protein
87	 60.09	0	88705..91500	-	931	89898909	-	Rfer_0088	-	pyruvate phosphate dikinase
88	 64.47	+1	91596..92597	-	333	89898910	-	Rfer_0089	-	proline iminopeptidase
89	 59.21	0	92806..93288	+	160	89898911	-	Rfer_0090	-	rubrerythrin
90	 62.42	0	93415..93579	+	54	89898912	-	Rfer_0091	-	rubredoxin-type Fe(Cys)4 protein
91	 66.51	+1	93595..94899	+	434	89898913	-	Rfer_0092	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
92	 60.00	0	94994..97303	+	769	89898914	-	Rfer_0093	-	malic enzyme
93	 56.74	0	97461..97853	+	130	89898915	-	Rfer_0094	-	guanine-specific ribonuclease N1 and T1
94	 55.33	-1	97888..98337	+	149	89898916	-	Rfer_0095	-	hypothetical protein
95	 59.80	0	98638..99423	-	261	89898917	-	Rfer_0096	-	dimethyladenosine transferase
96	 63.84	0	99450..100829	-	459	89898918	-	Rfer_0097	-	PpiC-type peptidyl-prolyl cis-trans isomerase
97	 60.21	0	100836..103235	-	799	89898919	-	Rfer_0098	-	organic solvent tolerance protein
98	 63.45	0	103322..104410	+	362	89898920	-	Rfer_0099	-	aminoglycoside phosphotransferase
99	 58.89	0	104452..104991	-	179	89898921	-	Rfer_0100	-	hypothetical protein
100	 60.67	0	105077..105526	-	149	89898922	-	Rfer_0101	-	hypothetical protein
60.13	MEAN

4.20	STD DEV
