IslandPath Analysis: Ralstonia solanacearum GMI1000

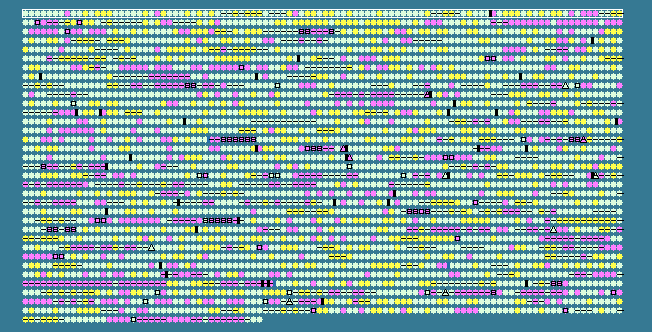

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 66.98   STD DEV: 4.55
Ralstonia solanacearum GMI1000, complete genome - 1..3716413
3440 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 63.70	0	486..620	+	44	17544720	rpmH	RSc0001	-	50S ribosomal protein L34
2	 68.69	0	718..1113	+	131	17544721	rnpA	RSc0002	-	ribonuclease P protein component
3	 68.25	0	1110..1424	+	104	17544722	-	RSc0003	-	hypothetical protein
4	 65.76	0	1431..3092	+	553	17544723	-	RSc0004	-	putative inner membrane protein translocase component YidC
5	 70.40	0	3222..4667	+	481	17544724	trmE	RSc0005	-	tRNA modification GTPase TrmE
6	 65.43	0	4757..5080	+	107	17544725	-	RSc0006	-	hypothetical protein
7	 66.67	0	5188..5721	+	177	17544726	-	RSc0007	-	hypothetical protein
8	 63.38	0	6204..6416	-	70	17544727	rpsU	RSc0008	-	30S ribosomal protein S21
9	 69.64	0	6899..8443	-	514	17544728	-	RSc0009	-	drug efflux lipoprotein
10	 65.87	0	8446..11595	-	1049	17544729	acrB	RSc0010	-	putative acriflavin resistance transmembrane protein
11	 70.68	0	11621..12817	-	398	17544730	acrA	RSc0011	-	acriflavin resistance lipoprotein A precursor
12	 65.61	0	13346..14005	+	219	17544731	acrR	RSc0012	-	putative AcrAB operon repressor transcription regulator protein
13	 71.36	0	14002..14895	+	297	17544732	-	RSc0013	-	hypothetical protein
14	 73.58	+1	14967..16412	+	481	17544733	gor	RSc0014	-	glutathione reductase oxidoreductase protein
15	 72.50	+1	16566..17456	+	296	17544734	-	RSc0015	-	hypothetical protein
16	 66.01	0	17482..18543	-	353	17544735	serA1	RSc0016	-	putative D-3-phosphoglycerate dehydrogenase oxidoreductase protein
17	 67.31	0	18932..20800	+	622	17544736	pckA	RSc0017	-	phosphoenolpyruvate carboxykinase
18	 69.52	0	21645..22484	+	279	17544737	-	RSc0018	-	response regulator transcription regulator protein
19	 66.67	0	22608..23075	+	155	17544738	-	RSc0019	-	hypothetical protein
20	 68.95	0	23149..23937	-	262	17544739	-	RSc0020	-	hypothetical protein
21	 71.58	+1	24619..26082	-	487	17544740	-	RSc0021	-	transmembrane sensor histidine kinase transcription regulator protein
22	 66.72	0	26383..28443	+	686	17544741	cstA	RSc0022	-	carbon starvation A transmembrane protein
23	 63.08	0	28493..28687	+	64	17544742	-	RSc0023	-	hypothetical protein
24	 72.20	+1	28773..29531	-	252	17544743	-	RSc0024	-	putative signal peptide protein
25	 65.90	0	29697..30218	-	173	17544744	-	RSc0025	-	hypothetical protein
26	 68.21	0	30445..31092	-	215	17544745	-	RSc0026	-	hypothetical protein
27	 68.23	0	31089..32300	-	403	17544746	metX	RSc0027	-	homoserine O-acetyltransferase
28	 71.75	+1	32580..34073	-	497	17544747	gabD1	RSc0028	-	succinate-semialdehyde dehydrogenase oxidoreductase protein
29	 69.24	0	34078..35358	-	426	17544748	goaG	RSc0029	-	4-aminobutyrate aminotransferase protein
30	 72.48	+1	35476..37005	+	509	17544749	-	RSc0030	-	putative transcription regulator protein
31	 70.02	0	37200..37856	-	218	17544750	slmA	RSc0031	-	nucleoid occlusion protein
32	 71.88	+1	37895..38758	-	287	17544751	-	RSc0032	-	hypothetical protein
33	 64.09	0	38758..39690	-	310	17544752	argB	RSc0033	-	acetylglutamate kinase
34	 68.18	0	39866..40459	+	197	17544753	-	RSc0034	-	RNA polymerase sigma factor
35	 68.69	0	40490..40687	+	65	17544754	-	RSc0035	-	hypothetical protein
36	 80.66	+2	40687..40929	+	80	17544755	-	RSc0036	-	putative signal peptide protein
37	 69.91	0	40971..41186	-	71	17544756	-	RSc0037	-	hypothetical protein
38	 70.63	0	41235..41738	-	167	17544757	-	RSc0038	-	putative transmembrane protein
39	 71.34	0	41881..43227	+	448	17544758	-	RSc0039	-	transmembrane sensor histidine kinase transcription regulator protein
40	 71.50	0	43274..43852	+	192	17544759	-	RSc0040	-	response regulator transcription regulator protein
41	 64.66	0	44050..45342	+	430	17544760	-	RSc0041	-	hypothetical protein
42	 65.84	0	45560..46891	-	443	17544761	hslU	RSc0042	-	ATP-dependent protease ATP-binding subunit
43	 67.41	0	46926..47462	-	178	17544762	hslV	RSc0043	-	ATP-dependent protease peptidase subunit
44	 69.11	0	47608..49200	-	530	17544763	-	RSc0044	-	substrate-binding periplasmic (PBP) ABC transporter protein
45	 70.98	0	49301..50575	-	424	17544764	-	RSc0045	-	hypothetical protein
46	 63.33	0	50669..51088	-	139	17544765	dksA	RSc0046	-	putative DNAK suppressor protein
47	 65.11	0	51498..52586	-	362	17544766	-	RSc0047	-	hypothetical protein
48	 73.22	+1	52574..53092	-	172	17544767	-	RSc0048	-	putative transcription regulator protein
49	 72.16	+1	53181..54437	-	418	17544768	-	RSc0049	-	putative hemaggltinin-related protein
50	 69.35	0	54450..55976	-	508	17544769	-	RSc0050	-	hypothetical protein
51	 71.44	0	56123..57316	-	397	17544770	-	RSc0051	-	hypothetical protein
52	 71.31	0	57356..58345	-	329	17544771	xerC	RSc0052	-	site-specific tyrosine recombinase XerC
53	 70.03	0	58359..59072	-	237	17544772	-	RSc0053	-	hypothetical protein
54	 67.42	0	59072..60538	-	488	17544773	gatB	RSc0054	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
55	 75.36	+1	60624..61601	-	325	17544774	-	RSc0055	-	putative signal peptide protein
56	 68.66	0	61580..62080	-	166	17544775	-	RSc0056	-	lipoprotein
57	 70.36	0	62121..63608	-	495	17544776	gatA	RSc0057	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
58	 67.33	0	63700..63999	-	99	17544777	gatC	RSc0058	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
59	 66.09	0	64477..65520	+	347	17544778	mreB	RSc0059	-	rod shape-determining protein
60	 72.53	+1	65698..66738	+	346	17544779	mreC	RSc0060	-	rod shape-determining MREC transmembrane protein
61	 67.45	0	66750..67262	+	170	17544780	mreD	RSc0061	-	rod shape-determining MRED transmembrane protein
62	 69.62	0	67285..69690	+	801	17544781	-	RSc0062	-	substrate-binding transmembrane protein
63	 65.97	0	69714..70856	+	380	17544782	mdrB	RSc0063	-	rod shape-determining (RODA protein) transmembrane
64	 69.99	0	70887..72692	-	601	17544783	-	RSc0064	-	putative long-chain-fatty-acid--CoA ligase protein
65	 67.09	0	73037..73975	+	312	17544784	-	RSc0065	-	transcription regulator protein
66	 65.22	0	74076..76709	-	877	17544785	topB	RSc0066	-	DNA topoisomerase III
67	 70.00	0	76940..77329	-	129	17544786	-	RSc0067	-	putative thioredoxin-like protein
68	 72.31	+1	77370..78575	-	401	17544787	smf	RSc0068	-	SMF protein
69	 69.14	0	78593..79765	-	390	17544788	-	RSc0069	-	signal peptide protein
70	 63.53	0	80019..80528	+	169	17544789	def	RSc0070	-	peptide deformylase
71	 70.75	0	80567..82549	+	660	17544790	-	RSc0071	-	hypothetical protein
72	 72.56	+1	82595..83578	+	327	17544791	fmt	RSc0072	-	methionyl-tRNA formyltransferase
73	 69.14	0	83613..84260	+	215	17544792	-	RSc0073	-	transporter transmembrane protein
74	 67.60	0	84379..85239	+	286	17544793	htpX	RSc0074	-	heat shock protein HtpX
75	 71.49	0	85330..86655	+	441	17544794	rrmB	RSc0075	-	putative RNA methyltransferase (SUN protein)
76	 69.39	0	86708..87478	+	256	17544795	-	RSc0076	-	proline rich signal peptide protein
77	 68.47	0	87475..89910	+	811	17544796	-	RSc0077	-	two component sensor histidine kinase transcription regulator protein
78	 67.22	0	89947..90666	+	239	17544797	-	RSc0078	-	two component response regulator transcription regulator protein
79	 59.76	-1	91044..93431	+	795	17544798	-	RSc0079	-	hypothetical protein
80	 65.03	0	93670..93975	+	101	17544799	-	RSc0080	-	hypothetical protein
81	 71.21	0	94180..95082	+	300	17544800	-	RSc0081	-	hypothetical protein
82	 71.54	+1	95113..96465	+	450	17544801	-	RSc0082	-	hypothetical protein
83	 73.88	+1	96462..97307	+	281	17544802	-	RSc0083	-	hypothetical protein
84	 63.69	0	97383..98288	+	301	17544803	-	RSc0084	-	amino-acid-binding periplasmic (PBP) ABC transporter protein
85	 73.51	+1	98292..99518	-	408	161621735	cca	RSc0085	-	multifunctional tRNA nucleotidyl transferase/2'3'-cyclic phosphodiesterase/2'nucleotidase/phosphatase
86	 68.12	0	99578..100267	-	229	17544805	-	RSc0086	-	hypothetical protein
87	 71.94	+1	100460..101464	-	334	17544806	-	RSc0087	-	putative NADH-ubiquinone oxidoreductase oxidoreductase protein
88	 68.66	0	101627..103579	-	650	17544807	slt	RSc0088	-	soluble lytic murein transglycosylase precursor transmembrane protein
89	 72.44	+1	103618..104223	+	201	17544808	-	RSc0089	-	hypothetical protein
90	 73.20	+1	104315..104773	-	152	17544809	-	RSc0090	-	hypothetical protein
91	 67.27	0	104782..105612	-	276	17544810	metF	RSc0091	-	5,10-methylenetetrahydrofolate reductase oxidoreductase protein
92	 61.11	-1	105626..105967	-	113	17544811	-	RSc0092	-	hypothetical protein
93	 64.28	0	106034..107458	-	474	17544812	ahcY	RSc0093	-	S-adenosyl-L-homocysteine hydrolase
94	 57.79	-2	107707..108258	-	183	17544813	-	RSc0094	-	putative lipoprotein transmembrane
95	 56.02	-2	108255..108686	-	143	17544814	-	RSc0095	-	hypothetical protein
96	 55.32	-2	108738..109019	+	93	17544815	-	RSc0096	-	hypothetical protein
97	 69.70	0	109053..110504	+	483	17544816	-	RSc0097	-	putative alkaline phosphatase lipoprotein transmembrane
98	 69.52	0	110524..111927	+	467	17544817	-	RSc0098	-	putative alkaline phosphatase signal peptide protein
99	 73.53	+1	112009..112707	+	232	17544818	-	RSc0099	-	putative signal peptide protein
100	 72.41	+1	112778..113683	+	301	17544819	thiD	RSc0100	-	bifunctional hydroxy-phosphomethylpyrimidine kinase/hydroxy-methylpyrimidine kinase
66.98	MEAN

4.55	STD DEV
