IslandPath Analysis: Ralstonia metallidurans CH34

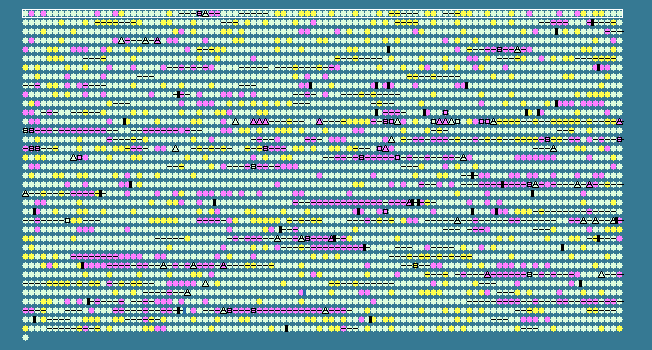

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 63.96   STD DEV: 3.54
Ralstonia metallidurans CH34 chromosome 1, complete sequence - 1..3928089
3601 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 63.33	0	104..1843	+	579	94308946	dnaA	Rmet_0001	-	chromosomal replication initiation protein
2	 60.30	-1	2220..3335	+	371	94308947	-	Rmet_0002	-	DNA polymerase III subunit beta
3	 63.14	0	3521..6046	+	841	94308948	gyrB	Rmet_0003	-	DNA gyrase subunit B
4	 54.14	-2	6990..8099	+	369	94308949	-	Rmet_0004	-	hypothetical protein
5	 64.96	0	8367..10121	-	584	94308950	-	Rmet_0005	-	twin-arginine translocation pathway signal
6	 65.38	0	10260..11189	-	309	94308951	-	Rmet_0006	-	hypothetical protein
7	 66.67	0	11295..12113	-	272	94308952	-	Rmet_0007	-	AraC family transcriptional regulator
8	 60.92	0	12151..13038	-	295	94308953	-	Rmet_0008	-	binding-protein-dependent transport systems inner membrane component
9	 61.74	0	13040..13972	-	310	94308954	-	Rmet_0009	-	binding-protein-dependent transport systems inner membrane component
10	 64.16	0	13969..15006	-	345	94308955	-	Rmet_0010	-	ABC transporter-related protein
11	 63.58	0	15026..16420	-	464	94308956	-	Rmet_0011	-	twin-arginine translocation pathway signal
12	 64.09	0	16618..17277	-	219	94308957	-	Rmet_0012	-	isoprenylcysteine carboxyl methyltransferase
13	 60.22	-1	17396..17752	+	118	94308958	-	Rmet_0013	-	hypothetical protein
14	 63.20	0	17884..18834	+	316	94308959	-	Rmet_0014	-	hypothetical protein
15	 65.64	0	18848..19531	+	227	94308960	-	Rmet_0015	-	DEAD/DEAH box helicase-like protein
16	 58.28	-1	19721..20161	+	146	94308961	-	Rmet_0016	-	signal-transduction protein
17	 68.49	+1	20369..21955	+	528	94308962	-	Rmet_0017	-	EmrB/QacA family drug resistance transporter
18	 63.64	0	22066..22692	+	208	94308963	-	Rmet_0018	-	glutathione peroxidase
19	 62.92	0	22853..23626	+	257	94308964	-	Rmet_0019	-	beta-lactamase-like protein
20	 66.67	0	23692..24558	+	288	94308965	-	Rmet_0020	-	fumarylacetoacetate (FAA) hydrolase
21	 64.87	0	24791..26068	+	425	94308966	-	Rmet_0021	-	peptidase M20D, amidohydrolase
22	 67.40	0	26084..26902	-	272	94308967	-	Rmet_0022	-	AraC family transcriptional regulator
23	 64.96	0	27028..28257	+	409	94308968	-	Rmet_0023	-	major facilitator transporter
24	 65.68	0	28320..29636	-	438	94308969	-	Rmet_0024	-	glutamate carboxypeptidase
25	 69.55	+1	29809..30120	+	103	94308970	-	Rmet_0025	-	hypothetical protein
26	 66.76	0	30161..31252	+	363	94308971	-	Rmet_0026	-	hypothetical protein
27	 67.19	0	31311..32078	-	255	94308972	-	Rmet_0027	-	two component transcriptional regulator
28	 65.30	0	32264..33070	+	268	94308973	-	Rmet_0028	-	two component transcriptional regulator
29	 61.51	0	33083..33877	-	264	94308974	-	Rmet_0029	-	porin
30	 60.00	-1	33977..34276	+	99	94308975	-	Rmet_0030	-	transposase IS3/IS911
31	 61.74	0	34273..35166	+	297	94308976	-	Rmet_0031	-	integrase catalytic subunit
32	 59.82	-1	35163..35498	-	111	94308977	-	Rmet_0032	-	porin
33	 57.65	-1	35919..36173	-	84	94308978	-	Rmet_0033	-	cell division topological specificity factor MinE
34	 61.01	0	36189..37001	-	270	94308979	-	Rmet_0034	-	septum site-determining protein MinD
35	 67.02	0	37050..37898	-	282	94308980	-	Rmet_0035	-	septum formation inhibitor
36	 62.42	0	37986..39068	+	360	94308981	-	Rmet_0036	-	Mg2+ transporter protein, CorA-like protein
37	 64.66	0	39303..39551	-	82	94308982	-	Rmet_0037	-	hypothetical protein
38	 64.21	0	39542..41374	+	610	94308983	-	Rmet_0038	-	potassium-transporting ATPase subunit A
39	 66.31	0	41393..43624	+	743	94308984	-	Rmet_0039	-	potassium-translocating P-type ATPase, B subunit
40	 64.87	0	43646..44257	+	203	94308985	-	Rmet_0040	-	potassium-transporting ATPase, C subunit
41	 67.08	0	44406..47309	+	967	94308986	-	Rmet_0041	-	osmosensitive K+ channel signal transduction histidine kinase
42	 66.38	0	47311..48006	+	231	94308987	-	Rmet_0042	-	two component transcriptional regulator
43	 68.50	+1	48145..48855	+	236	94308988	-	Rmet_0043	-	Sel1
44	 67.80	+1	48933..51581	+	882	94308989	-	Rmet_0044	-	hypothetical protein
45	 65.67	0	51578..52480	+	300	94308990	-	Rmet_0045	-	transglutaminase-like protein
46	 64.88	0	52552..54006	-	484	94308991	gatB	Rmet_0046	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
47	 71.62	+2	54086..55156	-	356	94308992	-	Rmet_0047	-	dienelactone hydrolase
48	 68.14	+1	55190..55663	-	157	94308993	-	Rmet_0048	-	putative lipoprotein
49	 68.40	+1	55671..57170	-	499	94308994	gatA	Rmet_0049	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
50	 66.00	0	57222..57521	-	99	94308995	gatC	Rmet_0050	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
51	 64.27	0	58487..59530	+	347	94308996	-	Rmet_0051	-	rod shape-determining protein MreB
52	 68.25	+1	59673..60683	+	336	94308997	-	Rmet_0052	-	rod shape-determining protein MreC
53	 64.13	0	60680..61192	+	170	94308998	-	Rmet_0053	-	rod shape-determining protein MreD
54	 66.54	0	61236..63617	+	793	94308999	-	Rmet_0054	-	peptidoglycan glycosyltransferase
55	 61.33	0	63631..64773	+	380	94309000	-	Rmet_0055	-	rod shape-determining protein RodA
56	 68.01	+1	64826..65497	+	223	94309001	-	Rmet_0056	-	hypothetical protein
57	 67.21	0	65517..66626	+	369	94309002	xerC	Rmet_0057	-	site-specific tyrosine recombinase XerC
58	 66.89	0	66623..67516	-	297	94309003	-	Rmet_0058	-	DNA-binding transcriptional activator GcvA
59	 65.04	0	67773..68141	+	122	94309004	-	Rmet_0059	-	hypothetical protein
60	 67.55	+1	68214..69008	+	264	94309005	lipB	Rmet_0060	-	lipoyltransferase
61	 63.44	0	69085..70077	+	330	94309006	-	Rmet_0061	-	lipoyl synthase
62	 68.36	+1	70418..71068	+	216	94309007	-	Rmet_0062	-	hypothetical protein
63	 70.98	+1	71065..72084	+	339	94309008	-	Rmet_0063	-	allophanate hydrolase subunit 2
64	 66.40	0	72161..72901	+	246	94309009	-	Rmet_0064	-	hypothetical protein
65	 64.22	0	72969..73703	+	244	94309010	-	Rmet_0065	-	hypothetical protein
66	 62.67	0	73707..74657	+	316	94309011	-	Rmet_0066	-	hypothetical protein
67	 67.41	0	74671..75339	+	222	94309012	-	Rmet_0067	-	pyrrolidone-carboxylate peptidase
68	 67.80	+1	75351..76673	-	440	94309013	-	Rmet_0068	-	VanZ like protein
69	 69.14	+1	76725..77372	-	215	94309014	-	Rmet_0069	-	putative lipoprotein
70	 63.91	0	77417..78358	-	313	94309015	-	Rmet_0070	-	hypothetical protein
71	 67.26	0	78358..79197	-	279	94309016	-	Rmet_0071	-	ABC transporter-related protein
72	 64.46	0	79194..80324	-	376	94309017	-	Rmet_0072	-	hypothetical protein
73	 70.16	+1	80485..81342	+	285	94309018	-	Rmet_0073	-	biotin--protein ligase
74	 70.14	+1	81339..82172	+	277	94309019	-	Rmet_0074	-	pantothenate kinase
75	 69.81	+1	82215..83009	+	264	94309020	-	Rmet_0075	-	sporulation related
76	 66.67	0	83133..83624	-	163	94309021	-	Rmet_0076	-	bifunctional ADP-heptose synthase
77	 61.79	0	83702..84562	-	286	94309022	-	Rmet_0077	-	hypothetical protein
78	 68.50	+1	84692..85948	-	418	94309023	-	Rmet_0078	-	patatin
79	 65.89	0	85945..86844	-	299	94309024	-	Rmet_0079	-	hypothetical protein
80	 65.94	0	86899..87726	-	275	94309025	-	Rmet_0080	-	enoyl-CoA hydratase
81	 65.61	0	88108..89148	-	346	94309026	-	Rmet_0081	-	fumarylacetoacetate (FAA) hydrolase
82	 67.48	0	89192..90049	+	285	94309027	-	Rmet_0082	-	IclR family transcriptional regulator
83	 67.26	0	90102..91106	+	334	94309028	-	Rmet_0083	-	putative prolin-rich signal peptide protein
84	 63.84	0	91161..92009	+	282	94309029	-	Rmet_0084	-	3-oxoadipate enol-lactonase
85	 53.10	-2	92245..92502	+	85	94309030	-	Rmet_0085	-	hypothetical protein
86	 63.87	0	92621..93013	-	130	94309031	-	Rmet_0086	-	rhodanese-like protein
87	 65.73	0	93237..94304	+	355	94309032	-	Rmet_0087	-	methionine synthase (B12-dependent)
88	 64.41	0	94333..97080	+	915	94309033	-	Rmet_0088	-	methionine synthase (B12-dependent)
89	 66.37	0	97386..97724	+	112	94309034	-	Rmet_0089	-	cell wall surface anchor family protein
90	 60.35	-1	97974..98606	+	210	94309035	-	Rmet_0090	-	two component LuxR family transcriptional regulator
91	 62.01	0	98767..99174	+	135	94309036	-	Rmet_0091	-	response regulator receiver domain-containing protein
92	 65.15	0	99240..100625	-	461	94309037	-	Rmet_0092	-	histidine kinase
93	 58.84	-1	100777..101070	+	97	94309038	-	Rmet_0093	-	hypothetical protein
94	 68.28	+1	101101..101535	+	144	94309039	-	Rmet_0094	-	protein of unknown function DUF883, ElaB
95	 61.68	0	101947..102267	-	106	94309040	-	Rmet_0095	-	hypothetical protein
96	 68.27	+1	102445..104253	+	602	94309041	argS	Rmet_0096	-	arginyl-tRNA synthetase
97	 67.61	+1	104393..105133	+	246	94309042	-	Rmet_0097	-	sporulation related
98	 62.75	0	105279..105917	+	212	94309043	-	Rmet_0098	-	DSBA oxidoreductase
99	 67.42	0	106009..106806	+	265	94309044	-	Rmet_0099	-	short chain dehydrogenase
100	 65.84	0	106806..107648	+	280	94309045	-	Rmet_0100	-	hypothetical protein
63.96	MEAN

3.54	STD DEV
