IslandPath Analysis: Pyrobaculum calidifontis JCM 11548

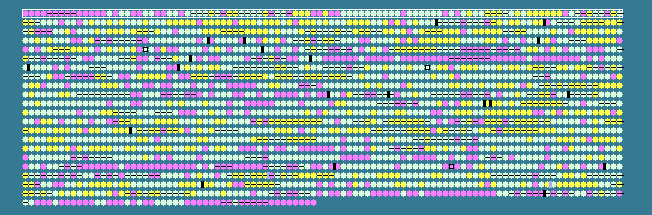

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 57.17   STD DEV: 5.24
Pyrobaculum calidifontis JCM 11548, complete genome - 1..2009313
2149 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 38.00	-2	9..308	+	99	126458629	-	Pcal_0001	-	hypothetical protein
2	 46.72	-1	379..1551	+	390	126458630	cdc6	Pcal_0002	-	cell division control protein 6
3	 42.71	-2	1548..1835	+	95	126458631	-	Pcal_0003	-	regulatory protein, ArsR
4	 48.26	-1	1830..3095	-	421	126458632	-	Pcal_0004	-	replication factor C large subunit
5	 50.25	-1	3095..4075	-	326	126458633	rfc	Pcal_0005	-	replication factor C small subunit
6	 49.26	-1	4106..4777	-	223	126458634	-	Pcal_0006	-	30S ribosomal protein S7P
7	 46.30	-2	4799..5014	-	71	126458635	-	Pcal_0007	-	hypothetical protein
8	 50.22	-1	5083..5307	-	74	126458636	-	Pcal_0008	-	regulatory protein, Crp
9	 48.37	-1	5329..5727	-	132	126458637	-	Pcal_0009	-	hypothetical protein
10	 50.39	-1	5845..6618	-	257	126458638	-	Pcal_0010	-	putative circadian clock protein, KaiC
11	 52.34	0	6661..7044	-	127	126458639	-	Pcal_0011	-	cytidine deaminase
12	 38.19	-2	7057..8004	+	315	126458640	-	Pcal_0012	-	hypothetical protein
13	 51.98	0	8023..8805	+	260	126458641	-	Pcal_0013	-	short-chain dehydrogenase/reductase SDR
14	 52.36	0	8802..10094	-	430	126458642	glyA	Pcal_0014	-	serine hydroxymethyltransferase
15	 55.01	0	10125..10853	-	242	126458643	-	Pcal_0015	-	molybdenum cofactor biosynthesis protein (moaC)
16	 51.52	-1	10850..11146	-	98	126458644	-	Pcal_0016	-	hypothetical protein
17	 56.09	0	11209..12267	-	352	126458645	-	Pcal_0017	-	isopentenyl pyrophosphate isomerase
18	 57.41	0	12267..13001	-	244	126458646	rpl2p	Pcal_0018	-	50S ribosomal protein L2P
19	 50.93	-1	13328..13543	+	71	126458647	rps17E	Pcal_0019	-	30S ribosomal protein S17e
20	 53.62	0	13546..14235	+	229	126458648	-	Pcal_0020	-	peptidylprolyl isomerase, FKBP-type
21	 54.62	0	14264..14869	+	201	126458649	-	Pcal_0021	-	proteasome endopeptidase complex
22	 56.63	0	14872..16107	+	411	126458650	-	Pcal_0022	-	enolase
23	 49.51	-1	16157..16564	+	135	126458651	-	Pcal_0023	-	ModE family transcriptional regulator
24	 50.00	-1	16811..17740	-	309	126458652	-	Pcal_0024	-	GTP cyclohydrolase subunit MoaA
25	 54.47	0	18142..19248	+	368	126458653	-	Pcal_0025	-	protein kinase
26	 56.00	0	19286..19735	+	149	126458654	-	Pcal_0026	-	FHA domain-containing protein
27	 52.63	0	19769..20395	+	208	126458655	rps2P	Pcal_0027	-	30S ribosomal protein S2
28	 55.32	0	20428..21273	+	281	126458656	-	Pcal_0028	-	hypothetical protein
29	 59.08	0	21253..22623	-	456	126458657	-	Pcal_0029	-	pyruvate kinase
30	 55.07	0	22625..24529	-	634	126458658	-	Pcal_0030	-	beta-lactamase domain-containing protein
31	 57.81	0	24812..26233	-	473	126458659	-	Pcal_0031	-	cysteinyl-tRNA synthetase
32	 62.29	0	26406..29927	-	1173	126458660	-	Pcal_0032	-	hypothetical protein
33	 54.10	0	29959..31899	+	646	126458661	-	Pcal_0033	-	hypothetical protein
34	 53.66	0	31940..39925	+	2661	126458662	-	Pcal_0034	-	hypothetical protein
35	 61.20	0	39984..40568	+	194	126458663	-	Pcal_0035	-	AMMECR1 domain-containing protein
36	 63.80	+1	40597..41397	+	266	126458664	-	Pcal_0036	-	hypothetical protein
37	 58.76	0	41378..41908	+	176	126458665	-	Pcal_0037	-	adenylate cyclase
38	 54.44	0	42120..42929	-	269	126458666	-	Pcal_0038	-	hypothetical protein
39	 59.19	0	42958..44709	-	583	126458667	-	Pcal_0039	-	ATP-dependent DNA ligase
40	 54.03	0	44748..45293	-	181	126458668	-	Pcal_0040	-	hypothetical protein
41	 62.19	0	45295..46209	+	304	126458669	-	Pcal_0041	-	ribokinase-like domain-containing protein
42	 51.65	-1	46232..46564	+	110	126458670	-	Pcal_0042	-	hypothetical protein
43	 56.43	0	46655..47338	+	227	126458671	-	Pcal_0043	-	nucleotidyl transferase
44	 54.91	0	47383..48105	+	240	126458672	-	Pcal_0044	-	hypothetical protein
45	 53.63	0	48102..48638	+	178	126458673	-	Pcal_0045	-	hypothetical protein
46	 64.74	+1	48635..48997	-	120	126458674	-	Pcal_0046	-	hypothetical protein
47	 61.39	0	49022..50083	+	353	126458675	-	Pcal_0047	-	hypothetical protein
48	 61.15	0	50114..51001	+	295	126458676	-	Pcal_0048	-	abortive infection protein
49	 50.17	-1	51029..51628	+	199	126458677	-	Pcal_0049	-	PaREP1/PaREP8 domain-contain protein
50	 48.40	-1	52166..52477	-	103	126458678	-	Pcal_0050	-	hypothetical protein
51	 62.75	+1	52453..53346	-	297	126458679	-	Pcal_0051	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
52	 50.88	-1	53350..53691	-	113	126458680	-	Pcal_0052	-	hypothetical protein
53	 52.56	0	54062..54373	+	103	126458681	-	Pcal_0053	-	50S ribosomal protein L14e
54	 58.38	0	54370..55371	+	333	126458682	-	Pcal_0054	-	H/ACA RNA-protein complex component Cbf5p
55	 54.31	0	55407..55673	+	88	126458683	-	Pcal_0055	-	hypothetical protein
56	 60.40	0	55670..56164	+	164	126458684	-	Pcal_0056	-	hypothetical protein
57	 54.90	0	56186..56644	+	152	126458685	-	Pcal_0057	-	hypothetical protein
58	 57.56	0	56641..57573	+	310	126458686	-	Pcal_0058	-	oxidoreductase domain-containing protein
59	 55.25	0	57865..58407	+	180	126458687	-	Pcal_0059	-	AAA ATPase
60	 57.17	0	58394..58972	-	192	126458688	-	Pcal_0060	-	abortive infection protein
61	 57.32	0	58999..59469	+	156	126458689	-	Pcal_0061	-	hypothetical protein
62	 58.05	0	59459..60247	-	262	126458690	-	Pcal_0062	-	competence damage-inducible protein A
63	 59.91	0	60256..61113	-	285	126458691	-	Pcal_0063	-	hypothetical protein
64	 53.28	0	61160..61570	+	136	126458692	-	Pcal_0064	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
65	 56.87	0	61769..62350	-	193	126458693	-	Pcal_0065	-	peroxiredoxin-like protein
66	 54.24	0	62370..63029	-	219	126458694	-	Pcal_0066	-	HhH-GPD family protein
67	 56.79	0	63077..63562	+	161	126458695	-	Pcal_0067	-	hypothetical protein
68	 54.91	0	63606..64379	+	257	126458696	-	Pcal_0068	-	hypothetical protein
69	 54.65	0	64428..65900	+	490	126458697	-	Pcal_0069	-	carboxypeptidase Taq
70	 56.34	0	65872..66549	-	225	126458698	-	Pcal_0070	-	hypothetical protein
71	 52.60	0	66564..67025	+	153	126458699	-	Pcal_0071	-	phosphopantetheine adenylyltransferase
72	 59.98	0	67002..68318	-	438	126458700	-	Pcal_0072	-	hypothetical protein
73	 51.88	-1	68406..68777	-	123	126458701	-	Pcal_0073	-	hypothetical protein
74	 58.77	0	68792..69589	-	265	126458702	-	Pcal_0074	-	hypothetical protein
75	 60.70	0	69794..70564	+	256	126458703	-	Pcal_0075	-	prephenate dehydratase
76	 57.07	0	70539..71090	-	183	126458704	-	Pcal_0076	-	PaREP1 domain-containing protein
77	 56.52	0	71152..73044	+	630	126458705	-	Pcal_0077	-	aldehyde ferredoxin oxidoreductase
78	 63.99	+1	73027..75153	-	708	126458706	-	Pcal_0078	-	DEAD/DEAH box helicase domain-containing protein
79	 61.90	0	75249..76571	+	440	126458707	-	Pcal_0079	-	hypothetical protein
80	 64.85	+1	76568..77008	+	146	126458708	-	Pcal_0080	-	hypothetical protein
81	 58.47	0	77005..80445	+	1146	126458709	-	Pcal_0081	-	hypothetical protein
82	 58.95	0	80442..81128	+	228	126458710	-	Pcal_0082	-	hypothetical protein
83	 63.83	+1	81125..81688	+	187	126458711	-	Pcal_0083	-	hypothetical protein
84	 59.80	0	81749..83788	+	679	126458712	-	Pcal_0084	-	replicative DNA helicase Mcm
85	 64.75	+1	83850..84995	-	381	126458713	-	Pcal_0085	-	hypothetical protein
86	 65.95	+1	85025..85585	-	186	126458714	-	Pcal_0086	-	methyltransferase type 11
87	 65.20	+1	86308..87738	+	476	126458715	-	Pcal_0087	-	hypothetical protein
88	 63.32	+1	87763..89196	+	477	126458716	-	Pcal_0088	-	radical SAM domain-containing protein
89	 62.28	0	89227..90228	+	333	126458717	-	Pcal_0089	-	histidinol phosphate aminotransferase
90	 63.41	+1	90197..92779	-	860	126458718	-	Pcal_0090	-	hypothetical protein
91	 52.38	0	92869..93057	-	62	126458719	-	Pcal_0091	-	PaREP6 domain-containing protein/PaREP6 domain-containing protein
92	 57.26	0	93630..94565	-	311	126458720	-	Pcal_0093	-	hypothetical protein
93	 54.80	0	94691..95044	+	117	126458721	-	Pcal_0094	-	hypothetical protein
94	 43.56	-2	95095..95622	+	175	126458722	-	Pcal_0095	-	hypothetical protein
95	 66.67	+1	95652..96278	+	208	126458723	-	Pcal_0096	-	hypothetical protein
96	 53.93	0	96356..96724	-	122	126458724	-	Pcal_0097	-	hypothetical protein
97	 58.15	0	96892..98007	+	371	126458725	-	Pcal_0098	-	hypothetical protein
98	 46.31	-2	98585..99031	+	148	126458726	-	Pcal_0099	-	hypothetical protein
99	 64.90	+1	99193..100434	-	413	126458727	-	Pcal_0100	-	hypothetical protein
100	 56.55	0	101561..101827	-	88	126458728	-	Pcal_0101	-	hypothetical protein
57.17	MEAN

5.24	STD DEV
