IslandPath Analysis: Pseudomonas mendocina ymp

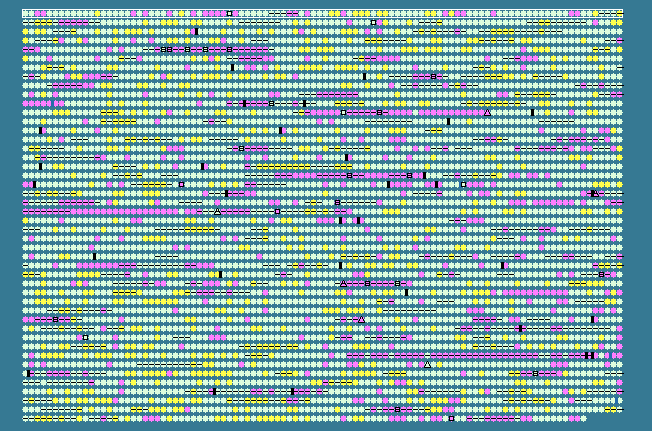

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 64.78   STD DEV: 4.15
Pseudomonas mendocina ymp, complete genome - 1..5072807
4594 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 62.76	0	82..1566	+	494	146305043	dnaA	Pmen_0001	-	chromosomal replication initiation protein
2	 62.68	0	1601..2704	+	367	146305044	-	Pmen_0002	-	DNA polymerase III subunit beta
3	 60.96	0	2712..3815	+	367	146305045	recF	Pmen_0003	-	recombination protein F
4	 60.18	-1	3820..6240	+	806	146305046	gyrB	Pmen_0004	-	DNA gyrase subunit B
5	 63.67	0	6506..7438	-	310	146305047	-	Pmen_0005	-	phosphatidate cytidylyltransferase
6	 67.31	0	7440..8063	-	207	146305048	-	Pmen_0006	-	phospholipid/glycerol acyltransferase
7	 65.75	0	8073..8507	-	144	146305049	-	Pmen_0007	-	hypothetical protein
8	 67.79	0	8497..9834	-	445	146305050	-	Pmen_0008	-	dual specificity protein phosphatase
9	 67.92	0	9834..11588	-	584	146305051	-	Pmen_0009	-	alpha/beta hydrolase fold
10	 66.67	0	11614..12219	-	201	146305052	-	Pmen_0010	-	CDP-alcohol phosphatidyltransferase
11	 63.80	0	12430..13197	-	255	146305053	-	Pmen_0011	-	phospholipid/glycerol acyltransferase
12	 64.41	0	13211..13741	-	176	146305054	-	Pmen_0012	-	D,D-heptose 1,7-bisphosphate phosphatase
13	 68.47	0	13811..15865	-	684	146305055	glyS	Pmen_0013	-	glycyl-tRNA synthetase subunit beta
14	 64.77	0	15862..16809	-	315	146305056	glyQ	Pmen_0014	-	glycyl-tRNA synthetase subunit alpha
15	 65.43	0	17057..17623	+	188	146305057	-	Pmen_0015	-	DNA-3-methyladenine glycosylase I
16	 64.08	0	17717..18604	+	295	162286125	-	Pmen_0016	-	lipid A biosynthesis lauroyl acyltransferase
17	 62.92	0	18721..18987	+	88	146305059	-	Pmen_0017	-	type IV pilus assembly PilZ
18	 61.90	0	19365..19931	+	188	146305060	-	Pmen_0018	-	NLP/P60 protein
19	 60.73	0	20108..20545	+	145	146305061	-	Pmen_0019	-	TIR chaperone family protein
20	 63.84	0	20545..22776	+	743	146305062	-	Pmen_0020	-	hypothetical protein
21	 60.68	0	22972..23322	-	116	146305063	-	Pmen_0021	-	hypothetical protein
22	 62.25	0	23325..23528	-	67	146305064	-	Pmen_0022	-	hypothetical protein
23	 62.08	0	23528..25618	-	696	146305065	-	Pmen_0023	-	YscC/HrcC family type III secretion outer membrane protein
24	 64.32	0	25620..26045	-	141	146305066	-	Pmen_0024	-	hypothetical protein
25	 59.56	-1	26032..26256	-	74	146305067	-	Pmen_0025	-	hypothetical protein
26	 63.27	0	26417..27004	-	195	146305068	-	Pmen_0026	-	HrpE/YscL family type III secretion apparatus protein
27	 68.54	0	26994..27527	-	177	146305069	-	Pmen_0027	-	hypothetical protein
28	 61.90	0	27524..28342	-	272	146305070	-	Pmen_0028	-	YscJ/HrcJ family type III secretion apparatus lipoprotein
29	 57.72	-1	28353..28721	-	122	146305071	-	Pmen_0029	-	YscI/HrpB family type III secretion apparatus protein
30	 61.78	0	28765..29664	-	299	146305072	-	Pmen_0030	-	HrpZ family protein
31	 58.16	-1	29716..30009	-	97	146305073	-	Pmen_0031	-	hypothetical protein
32	 59.05	-1	30305..31210	-	301	146305074	-	Pmen_0032	-	sigma-54 dependent trancsriptional regulator
33	 58.82	-1	31594..32523	-	309	146305075	-	Pmen_0033	-	sigma-54 dependent trancsriptional regulator
34	 52.20	-2	32882..33268	-	128	146305076	-	Pmen_0034	-	hypothetical protein
35	 63.94	0	33458..35032	-	524	146305077	-	Pmen_0036	-	transposase IS66
36	 59.44	-1	35052..35411	-	119	146305078	-	Pmen_0037	-	IS66 Orf2 family protein
37	 62.26	0	36171..37328	+	385	146305079	-	Pmen_0038	-	TyeA family type III secretion effector delivery regulator
38	 61.97	0	37328..39412	+	694	146305080	-	Pmen_0039	-	HrcV family type III secretion protein
39	 64.37	0	39429..40343	+	304	146305081	-	Pmen_0040	-	YscD/HrpQ family type III secretion apparatus protein
40	 65.05	0	40340..41698	+	452	146305082	-	Pmen_0041	-	FliI/YscN family ATPase
41	 63.53	0	41701..42147	+	148	146305083	-	Pmen_0042	-	hypothetical protein
42	 63.69	0	42137..42673	+	178	146305084	-	Pmen_0043	-	hypothetical protein
43	 64.71	0	42670..43386	+	238	146305085	-	Pmen_0044	-	hypothetical protein
44	 62.44	0	43376..43777	+	133	146305086	-	Pmen_0045	-	surface presentation of antigens (SPOA) protein
45	 58.26	-1	43774..44427	+	217	146305087	-	Pmen_0046	-	type III secretion system protein
46	 60.23	-1	44435..44698	+	87	146305088	-	Pmen_0047	-	HrpO family type III secretion protein
47	 61.55	0	44699..45499	+	266	146305089	-	Pmen_0048	-	type III secretion protein SpaR/YscT/HrcT
48	 58.98	-1	45496..46575	+	359	146305090	-	Pmen_0049	-	YscU/HrpY family type III secretion protein
49	 64.21	0	46762..47412	+	216	146305091	-	Pmen_0050	-	hypothetical protein
50	 65.71	0	47452..47766	-	104	146305092	-	Pmen_0051	-	TPR repeat-containing protein
51	 65.72	0	47855..49228	-	457	146305093	trkA	Pmen_0052	-	potassium transporter peripheral membrane component
52	 68.34	0	49240..50553	-	437	146305094	-	Pmen_0053	-	sun protein
53	 68.78	0	50550..51494	-	314	146305095	fmt	Pmen_0054	-	methionyl-tRNA formyltransferase
54	 58.38	-1	51547..52053	-	168	146305096	def	Pmen_0055	-	peptide deformylase
55	 63.39	0	52207..53244	+	345	146305097	-	Pmen_0056	-	peptidoglycan-binding LysM
56	 70.37	+1	53331..54437	+	368	146305098	-	Pmen_0057	-	DNA protecting protein DprA
57	 68.28	0	54504..55061	+	185	146305099	-	Pmen_0058	-	SUA5/yciO/yrdC domain-containing protein
58	 68.71	0	55173..56150	-	325	146305100	-	Pmen_0059	-	alcohol dehydrogenase
59	 66.67	0	56295..57209	+	304	146305101	-	Pmen_0060	-	coproporphyrinogen III oxidase
60	 69.46	+1	57317..58138	+	273	146305102	aroE	Pmen_0061	-	shikimate 5-dehydrogenase
61	 69.10	+1	58342..59982	-	546	146305103	-	Pmen_0062	-	sulphate transporter
62	 65.36	0	60029..60949	-	306	146305104	-	Pmen_0063	-	substrate-binding region of ABC-type glycine betaine transport system
63	 67.13	0	60993..62501	-	502	146305105	-	Pmen_0064	-	sulfatase
64	 68.03	0	62616..63569	+	317	146305106	-	Pmen_0065	-	LysR family transcriptional regulator
65	 64.78	0	63685..64587	+	300	146305107	pbpG	Pmen_0066	-	D-alanyl-D-alanine endopeptidase
66	 66.67	0	64684..65592	-	302	146305108	-	Pmen_0067	-	LysR family transcriptional regulator
67	 67.41	0	65802..66605	+	267	146305109	-	Pmen_0068	-	aldo/keto reductase
68	 71.37	+1	66677..67420	-	247	146305110	-	Pmen_0069	-	short-chain dehydrogenase/reductase SDR
69	 69.01	+1	67576..68385	-	269	146305111	trpA	Pmen_0070	-	tryptophan synthase subunit alpha
70	 65.13	0	68382..69617	-	411	146305112	-	Pmen_0071	-	tryptophan synthase subunit beta
71	 56.65	-1	69732..70400	+	222	146305113	-	Pmen_0072	-	hypothetical protein
72	 71.27	+1	70405..71316	+	303	146305114	-	Pmen_0073	-	LysR family transcriptional regulator
73	 60.83	0	71370..71609	+	79	146305115	-	Pmen_0074	-	hypothetical protein
74	 57.41	-1	71708..71923	+	71	146305116	-	Pmen_0075	-	hypothetical protein
75	 66.46	0	71892..72869	-	325	146305117	-	Pmen_0076	-	NAD-dependent epimerase/dehydratase
76	 64.26	0	73153..73734	+	193	146305118	-	Pmen_0077	-	hypothetical protein
77	 67.97	0	73972..75201	-	409	146305119	-	Pmen_0078	-	nucleoside recognition domain-containing protein
78	 65.58	0	75366..75827	-	153	146305120	-	Pmen_0079	-	hypothetical protein
79	 57.58	-1	75838..76002	-	54	146305121	-	Pmen_0080	-	hypothetical protein
80	 66.30	0	76022..76294	-	90	146305122	-	Pmen_0081	-	hypothetical protein
81	 64.18	0	76571..76972	+	133	146305123	-	Pmen_0082	-	thioesterase superfamily protein
82	 63.82	0	77048..77680	-	210	146305124	-	Pmen_0083	-	two component LuxR family transcriptional regulator
83	 64.15	0	77721..79070	-	449	146305125	-	Pmen_0084	-	integral membrane sensor signal transduction histidine kinase
84	 64.67	0	79640..80740	-	366	146305126	-	Pmen_0085	-	TRAP dicarboxylate transporter- DctP subunit
85	 63.17	0	80925..81467	+	180	146305127	-	Pmen_0086	-	tripartite ATP-independent periplasmic transporter DctQ
86	 65.00	0	81460..82836	+	458	146305128	-	Pmen_0087	-	TRAP dicarboxylate transporter, DctM subunit
87	 66.67	0	82941..83843	+	300	146305129	-	Pmen_0088	-	aldose 1-epimerase
88	 67.43	0	84279..85841	+	520	146305130	-	Pmen_0089	-	ImpA domain-containing protein
89	 62.33	0	85896..86402	+	168	146305131	-	Pmen_0090	-	hypothetical protein
90	 62.47	0	86428..87906	+	492	146305132	-	Pmen_0091	-	hypothetical protein
91	 65.27	0	87913..88341	+	142	146305133	-	Pmen_0092	-	GPW/gp25 family protein
92	 60.58	-1	88331..89776	+	481	146305134	-	Pmen_0093	-	hypothetical protein
93	 52.71	-2	89769..90155	+	128	146305135	-	Pmen_0094	-	hypothetical protein
94	 65.66	0	90186..91976	+	596	146305136	-	Pmen_0095	-	hypothetical protein
95	 66.87	0	91940..92947	+	335	146305137	-	Pmen_0096	-	hypothetical protein
96	 69.67	+1	92959..95559	+	866	146305138	-	Pmen_0097	-	ATPase
97	 67.12	0	95546..97078	+	510	146305139	-	Pmen_0098	-	Fis family transcriptional regulator
98	 67.41	0	97126..97260	+	44	146305140	-	Pmen_0099	-	hypothetical protein
99	 68.25	0	97281..98477	+	398	146305141	-	Pmen_0100	-	FHA domain-containing protein
100	 68.94	+1	98483..98965	+	160	146305142	-	Pmen_0101	-	hypothetical protein
64.78	MEAN

4.15	STD DEV
