IslandPath Analysis: Psychromonas ingrahamii 37

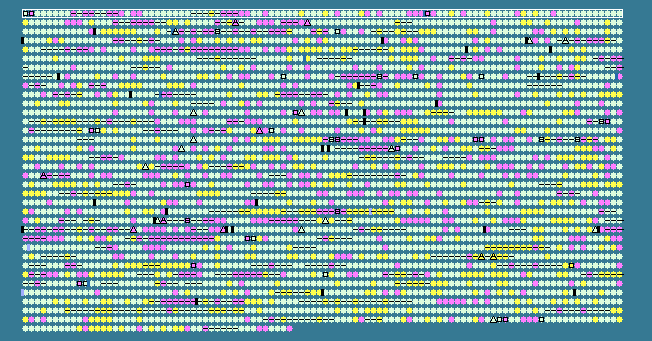

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.65   STD DEV: 3.86
Psychromonas ingrahamii 37, complete genome - 1..4559598
3545 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 38.86	0	6451..7047	-	198	119943795	-	Ping_0001	-	putative transposase
2	 35.80	-1	6998..7483	-	161	119943796	-	Ping_0002	-	transposase and inactivated derivative
3	 38.58	0	7861..9195	-	444	119943797	hslU	Ping_0003	-	ATP-dependent protease ATP-binding subunit
4	 41.08	0	9207..9761	-	184	119943798	-	Ping_0004	-	ATP-dependent protease peptidase subunit
5	 39.33	0	10064..10597	-	177	119943799	ftsN	Ping_0005	-	cell division protein FtsN
6	 40.37	0	10601..12349	-	582	119943800	argS	Ping_0006	-	arginyl-tRNA synthetase
7	 40.35	0	12572..13027	-	151	119943801	-	Ping_0007	-	hypothetical protein
8	 42.36	0	13204..15375	-	723	119943802	-	Ping_0008	-	UvrD/REP helicase
9	 35.17	-1	15412..16119	-	235	119943803	-	Ping_0009	-	HAD family hydrolase
10	 39.44	0	16153..17052	-	299	119943804	-	Ping_0010	-	tyrosine recombinase XerC
11	 33.14	-1	17602..18108	+	168	119943805	-	Ping_0011	-	hypothetical protein
12	 35.89	-1	18217..19665	+	482	119943806	-	Ping_0012	-	hypothetical protein
13	 39.11	0	19699..20217	+	172	119943807	-	Ping_0013	-	secreted protein Hcp, potential oxidative stress protein
14	 39.27	0	20228..20935	+	235	119943808	-	Ping_0014	-	hypothetical protein
15	 33.19	-1	20951..22315	+	454	119943809	-	Ping_0015	-	hypothetical protein
16	 29.94	-2	22319..22966	+	215	119943810	-	Ping_0016	-	hypothetical protein
17	 34.68	-1	22981..26403	+	1140	119943811	-	Ping_0017	-	hypothetical protein
18	 37.64	0	26407..28101	+	564	119943812	-	Ping_0018	-	hypothetical protein
19	 37.01	0	28101..28589	+	162	119943813	-	Ping_0019	-	hypothetical protein
20	 33.09	-1	28589..28993	+	134	119943814	-	Ping_0020	-	hypothetical protein
21	 39.21	0	28993..30762	+	589	119943815	-	Ping_0021	-	hypothetical protein
22	 40.15	0	30759..31712	+	317	119943816	-	Ping_0022	-	hypothetical protein
23	 39.67	0	31751..34876	+	1041	119943817	-	Ping_0023	-	Rhs element Vgr protein
24	 41.19	0	34893..37742	+	949	119943818	-	Ping_0024	-	pentapeptide repeat-containing protein
25	 39.54	0	37743..38789	+	348	119943819	-	Ping_0025	-	pentapeptide repeat-containing protein
26	 40.25	0	38873..39523	+	216	119943820	-	Ping_0026	-	hypothetical protein
27	 43.24	0	39545..39958	+	137	119943821	-	Ping_0027	-	hypothetical protein
28	 39.74	0	40134..43757	+	1207	119943822	-	Ping_0028	-	Rhs element Vgr protein
29	 42.89	0	43781..46711	+	976	119943823	-	Ping_0029	-	pentapeptide repeat-containing protein
30	 37.59	0	46717..47796	+	359	119943824	-	Ping_0030	-	pentapeptide repeat-containing protein
31	 41.55	0	47840..48484	+	214	119943825	-	Ping_0031	-	hypothetical protein
32	 44.77	+1	48493..48903	+	136	119943826	-	Ping_0032	-	hypothetical protein
33	 37.94	0	48954..50753	+	599	119943827	-	Ping_0033	-	sensor protein
34	 33.33	-1	50753..51106	+	117	119943828	-	Ping_0034	-	hypothetical protein
35	 32.84	-2	51362..53788	+	808	119943829	-	Ping_0035	-	major facilitator transporter
36	 34.73	-1	53800..54942	+	380	119943830	-	Ping_0036	-	D-alanine--D-alanine ligase
37	 36.82	0	55201..56406	-	401	119943831	-	Ping_0037	-	ABC-type uncharacterized transport system, periplasmic component
38	 32.56	-2	57147..57404	-	85	119943832	-	Ping_0038	-	hypothetical protein
39	 41.43	0	58562..59389	-	275	119943833	-	Ping_0040	-	diaminopimelate epimerase
40	 41.79	0	59442..60707	-	421	119943834	-	Ping_0041	-	diaminopimelate decarboxylase
41	 35.22	-1	61094..61411	+	105	119943835	-	Ping_0042	-	frataxin family protein
42	 41.36	0	61851..62336	+	161	119943836	-	Ping_0043	-	pantetheine-phosphate adenylyltransferase
43	 42.71	0	63117..64823	+	568	119943837	-	Ping_0044	-	hypothetical protein
44	 40.47	0	65289..66059	-	256	119943838	-	Ping_0045	-	short-chain dehydrogenase/reductase SDR
45	 42.70	0	66314..67786	-	490	119943839	-	Ping_0046	-	transcriptional regulator
46	 40.67	0	68054..69061	+	335	119943840	-	Ping_0047	-	taurine ABC transporter, periplasmic binding protein
47	 44.52	+1	69103..69942	+	279	119943841	-	Ping_0048	-	ABC transporter for nitrate/sulfonate/bicarbonate ATP-binding protein
48	 42.20	0	69952..70944	+	330	119943842	-	Ping_0049	-	ABC taurine transporter, binding protein inner membrane component
49	 41.87	0	71683..72420	-	245	119943843	-	Ping_0050	-	hypothetical protein
50	 42.82	0	72640..74052	+	470	119943844	-	Ping_0051	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
51	 44.44	0	74599..75579	-	326	119943845	-	Ping_0052	-	hypothetical protein
52	 43.05	0	76031..76843	-	270	119943846	-	Ping_0053	-	formamidopyrimidine-DNA glycosylase
53	 32.05	-2	77146..77301	-	51	119943847	-	Ping_0054	-	ribosomal protein L33
54	 40.51	0	77313..77549	-	78	119943848	-	Ping_0055	-	ribosomal protein L28
55	 42.33	0	77684..78361	-	225	119943849	-	Ping_0056	-	DNA repair protein RadC
56	 43.28	0	78569..79804	+	411	119943850	-	Ping_0057	-	phosphopantothenoylcysteine decarboxylase/phosphopantothenate--cysteine ligase
57	 44.74	+1	79804..80259	+	151	119943851	-	Ping_0058	-	deoxyuridine 5'-triphosphate nucleotidohydrolase Dut
58	 37.15	0	80294..80896	+	200	119943852	slmA	Ping_0059	-	nucleoid occlusion protein
59	 41.58	0	80966..81256	-	96	119943853	-	Ping_0060	-	transcriptional repressor protein MetJ
60	 36.59	-1	81340..83949	-	869	119943854	cyaA	Ping_0061	-	adenylate cyclase
61	 39.37	0	84139..85116	-	325	119943855	-	Ping_0062	-	glycine cleavage T protein (aminomethyl transferase)
62	 42.06	0	85557..85808	+	83	119943856	-	Ping_0063	-	hypothetical protein
63	 42.65	0	86239..87870	-	543	119943857	-	Ping_0064	-	L-aspartate oxidase
64	 39.00	0	88101..88682	+	193	119943858	rpoE	Ping_0065	-	RNA polymerase sigma factor RpoE
65	 36.70	-1	88695..89228	+	177	119943859	-	Ping_0066	-	anti sigma-E protein, RseA
66	 33.33	-1	89413..90420	+	335	119943860	-	Ping_0067	-	sigma E regulatory protein, MucB/RseB
67	 34.00	-1	90424..90873	+	149	119943861	rseC	Ping_0068	-	sigma-E factor regulatory protein RseC
68	 36.22	-1	97662..98561	+	299	119943862	-	Ping_0069	-	transposase, IS4 family protein
69	 32.20	-2	98920..99183	-	87	119943863	-	Ping_0070	-	hypothetical protein
70	 39.80	0	99340..100158	-	272	119943864	-	Ping_0071	-	shikimate 5-dehydrogenase
71	 39.41	0	100251..100826	-	191	119943865	-	Ping_0072	-	ribosome maturation factor
72	 45.10	+1	100832..101341	-	169	119943866	-	Ping_0073	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
73	 39.72	0	101393..101956	-	187	119943867	-	Ping_0074	-	DNA topoisomerase type IA Zn finger domain-containing protein
74	 34.81	-1	101958..102431	-	157	119943868	-	Ping_0075	-	hypothetical protein
75	 40.60	0	102477..103535	-	352	119943869	-	Ping_0076	-	DNA protecting protein DprA
76	 39.15	0	103658..104740	-	360	119943870	-	Ping_0077	-	peptidoglycan-binding LysM
77	 40.28	0	104839..105342	+	167	119943871	-	Ping_0078	-	peptide deformylase
78	 44.48	0	105437..106387	+	316	119943872	-	Ping_0079	-	methionyl-tRNA formyltransferase
79	 43.10	0	106392..107702	+	436	119943873	-	Ping_0080	-	sun protein
80	 41.39	0	107913..109289	+	458	119943874	trkA	Ping_0081	-	potassium transporter peripheral membrane component
81	 40.80	0	109302..110747	+	481	119943875	trkH	Ping_0082	-	potassium uptake protein TrkH
82	 38.03	0	111015..112376	-	453	119943876	-	Ping_0083	-	hypothetical protein
83	 27.45	-2	112376..112630	-	84	119943877	-	Ping_0084	-	hypothetical protein
84	 44.17	0	113145..114980	+	611	119943878	-	Ping_0085	-	D-fructose-6-phosphate amidotransferase
85	 39.96	0	115296..116246	-	316	119943879	-	Ping_0086	-	transaldolase B
86	 44.65	+1	116597..117577	-	326	119943880	-	Ping_0087	-	transcriptional regulator
87	 40.59	0	118212..120098	+	628	119943881	-	Ping_0088	-	PTS system, mannitol-specific IIABC protein
88	 41.34	0	120193..121341	+	382	119943882	-	Ping_0089	-	mannitol-1-phosphate 5-dehydrogenase
89	 36.11	-1	121396..121935	+	179	119943883	mtlR	Ping_0090	-	mannitol repressor protein
90	 40.76	0	122411..123406	-	331	119943884	-	Ping_0091	-	fermentative D-lactate dehydrogenase, NAD-dependent
91	 40.96	0	123735..124835	+	366	119943885	-	Ping_0092	-	hypothetical protein
92	 41.05	0	124919..126550	-	543	119943886	-	Ping_0093	-	phosphoenolpyruvate carboxykinase
93	 38.68	0	126788..127648	-	286	119943887	-	Ping_0094	-	Hsp33 protein
94	 40.49	0	127724..128128	-	134	119943888	-	Ping_0095	-	RNA-binding S4 domain-containing protein
95	 41.37	0	128460..129293	+	277	119943889	-	Ping_0096	-	general secretion pathway protein C
96	 40.87	0	129387..131375	+	662	119943890	-	Ping_0097	-	general secretion pathway protein D
97	 42.19	0	131375..132910	+	511	119943891	-	Ping_0098	-	general secretory pathway protein E
98	 43.58	0	132936..134126	+	396	119943892	-	Ping_0099	-	general secretion pathway protein F
99	 42.76	0	134210..134644	+	144	119943893	-	Ping_0100	-	general secretion pathway protein G
100	 41.21	0	134713..135258	+	181	119943894	-	Ping_0101	-	general secretion pathway protein H
40.65	MEAN

3.86	STD DEV
