IslandPath Analysis: Psychrobacter arcticus 273-4

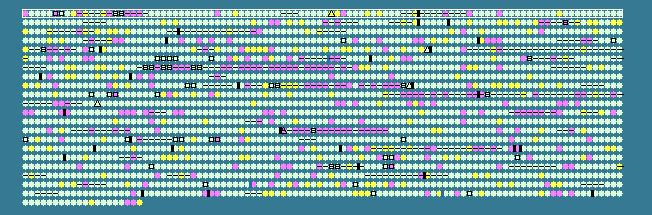

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 44.09   STD DEV: 3.30
Psychrobacter arcticus 273-4, complete genome - 1..2650701
2120 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 38.17	-1	520..1965	+	481	71064582	dnaA	Psyc_0001	-	chromosomal replication initiator protein DnaA
2	 42.94	0	2125..3300	+	391	71064583	dnaN	Psyc_0002	-	DNA polymerase III, beta subunit
3	 42.88	0	3463..4677	+	404	71064584	recF	Psyc_0003	-	DNA replication and repair protein RecF
4	 44.07	0	5179..7794	+	871	71064585	gyrB	Psyc_0004	-	DNA gyrase subunit B
5	 42.93	0	7907..8500	+	197	71064586	-	Psyc_0005	-	hypothetical protein
6	 38.04	-1	8586..9371	-	261	71064587	-	Psyc_0006	-	IS3 family transposase
7	 45.28	0	9413..9931	-	172	71064588	-	Psyc_0007	-	IS3/IS911 family transposase orfA
8	 45.28	0	10178..11215	-	345	71064589	-	Psyc_0008	-	putative SAM-dependent methyltransferase
9	 48.17	+1	11806..13416	+	536	71064590	guaA	Psyc_0009	-	bifunctional GMP synthase/glutamine amidotransferase protein
10	 33.41	-2	13573..14865	+	430	71064591	-	Psyc_0010	-	hypothetical protein
11	 47.86	+1	14993..15997	-	334	71064592	-	Psyc_0011	-	Zinc-containing alcohol dehydrogenase
12	 47.24	0	16221..17198	-	325	71064593	-	Psyc_0012	-	nuclear receptor binding factor related protein
13	 45.88	0	17341..17595	-	84	71064594	-	Psyc_0013	-	hypothetical protein
14	 47.89	+1	18119..19162	-	347	71064595	-	Psyc_0014	-	2-nitropropane dioxygenase protein
15	 30.54	-2	19335..20621	-	428	71064596	-	Psyc_0015	-	hypothetical protein
16	 44.78	0	20634..20930	+	98	71064597	-	Psyc_0016	-	IS3/IS911 family transposase OrfA
17	 44.69	0	20981..21799	+	272	71064598	-	Psyc_0017	-	IS30 family transposase
18	 32.72	-2	21800..22450	-	216	71064599	-	Psyc_0018	-	hypothetical protein
19	 32.75	-2	22443..22952	-	169	71064600	-	Psyc_0019	-	hypothetical protein
20	 34.76	-2	22945..23997	-	350	71064601	-	Psyc_0020	-	hypothetical protein
21	 44.71	0	24177..24554	-	125	71064602	-	Psyc_0021	-	hypothetical protein
22	 45.39	0	24825..25877	-	350	71064603	-	Psyc_0022	-	hypothetical protein
23	 46.90	0	26178..26774	-	198	71064604	-	Psyc_0023	-	hypothetical protein
24	 45.56	0	26978..27697	+	239	71064605	-	Psyc_0024	-	ribosomal small subunit pseudouridine synthase A
25	 45.49	0	28179..29264	+	361	71064606	-	Psyc_0025	-	hypothetical protein
26	 44.85	0	29409..30059	-	216	71064607	-	Psyc_0026	-	hypothetical protein
27	 46.93	0	30543..31667	+	374	71064608	-	Psyc_0027	-	chaperone protein dnaJ
28	 47.55	+1	31996..32832	+	278	71064609	dapB	Psyc_0028	-	dihydrodipicolinate reductase
29	 43.11	0	32915..34090	-	391	71064610	-	Psyc_0029	-	ornithine decarboxylase
30	 42.70	0	34198..34752	-	184	71064611	def	Psyc_0030	-	peptide deformylase
31	 43.92	0	35124..35378	-	84	71064612	-	Psyc_0031	-	hypothetical protein
32	 44.20	0	35713..37230	-	505	71064613	mpl	Psyc_0032	-	putative UDP-N-acetylmuramate:L-alanyl-gamma-D-glutamyl-meso-diaminopimelate ligase
33	 40.54	-1	37523..38146	-	207	71064614	-	Psyc_0033	-	hypothetical protein
34	 45.20	0	38341..38871	-	176	71064615	dsbB	Psyc_0034	-	disulfide bond formation protein
35	 43.94	0	38926..40509	-	527	71064616	gshA	Psyc_0035	-	glutamate-cysteine ligase
36	 47.77	+1	40901..41281	-	126	71064617	-	Psyc_0036	-	iron-sulfur cluster insertion protein ErpA
37	 47.00	0	41787..43805	+	672	71064618	-	Psyc_0037	-	ABC transporter ATPase
38	 40.65	-1	43911..44279	-	122	71064619	rlpA	Psyc_0038	-	putative lipoprotein A
39	 45.35	0	44824..45822	+	332	71064620	-	Psyc_0039	-	heat shock protein DnaJ
40	 46.91	0	45908..46231	+	107	71064621	-	Psyc_0040	-	hypothetical protein
41	 45.97	0	46320..47522	-	400	71064622	sstT	Psyc_0041	-	serine/threonine transporter SstT
42	 40.74	-1	47861..48319	-	152	71064623	holC	Psyc_0042	-	DNA polymerase III, chi subunit
43	 44.54	0	48355..50013	-	552	71064624	pepA	Psyc_0043	-	PepA aminopeptidase
44	 44.55	0	50261..50866	-	201	71064625	-	Psyc_0044	-	isochorismatase hydrolase
45	 45.08	0	51384..52634	+	416	71064626	-	Psyc_0045	-	hypothetical protein
46	 44.00	0	52634..53842	+	402	71064627	-	Psyc_0046	-	hypothetical protein
47	 41.71	0	53920..54528	-	202	71064628	-	Psyc_0047	-	hypothetical protein
48	 42.37	0	55288..55752	-	154	71064629	-	Psyc_0048	-	hypothetical protein
49	 41.38	0	55758..56192	-	144	71064630	-	Psyc_0049	-	hypothetical protein
50	 41.45	0	56291..57226	+	311	71064631	-	Psyc_0050	-	LysR family transcriptional regulator
51	 44.17	0	57548..59107	+	519	71064632	-	Psyc_0051	-	hypothetical protein
52	 48.24	+1	59255..60193	-	312	71064633	xerD	Psyc_0052	-	phage integrase
53	 49.22	+1	60448..61662	-	404	71064634	-	Psyc_0053	-	hypothetical protein
54	 40.23	-1	61869..62129	-	86	71064635	-	Psyc_0054	-	hypothetical protein
55	 42.30	0	62205..62717	-	170	71064636	-	Psyc_0055	-	hypothetical protein
56	 44.01	0	62796..63329	-	177	71064637	-	Psyc_0056	-	hypothetical protein
57	 46.28	0	63380..63943	-	187	71064638	algH	Psyc_0057	-	putative transcriptional regulator
58	 47.92	+1	64062..65741	-	559	71064639	recN	Psyc_0058	-	DNA repair protein
59	 45.24	0	66427..66762	+	111	71064640	-	Psyc_0059	-	hypothetical protein
60	 48.51	+1	66968..67738	+	256	71064641	-	Psyc_0060	-	RNA methyltransferase
61	 47.33	0	67701..68393	-	230	71064642	coaE	Psyc_0061	-	dephospho-CoA kinase
62	 42.44	0	68477..69376	-	299	71064643	pilD	Psyc_0062	-	type 4 prepilin peptidase 1. Aspartic peptidase. MEROPS family A24A
63	 43.87	0	69402..70625	-	407	71064644	pilC	Psyc_0063	-	pilin secretion/fimbrial assembly system protein, PilC
64	 44.26	0	70862..72637	-	591	71064645	pilB	Psyc_0064	-	pilin secretion/fimbrial assembly system protein, PilB
65	 46.54	0	73127..73936	+	269	71064646	tpiA	Psyc_0065	-	triosephosphate isomerase
66	 49.19	+1	74165..74473	+	102	71064647	secG	Psyc_0066	-	preprotein translocase subunit SecG
67	 43.11	0	75377..75877	+	166	71064648	-	Psyc_0067	-	hypothetical protein
68	 43.43	0	76010..77494	+	494	71064649	nusA	Psyc_0068	-	transcription elongation factor NusA
69	 45.76	0	77646..80372	+	908	71064650	infB	Psyc_0069	-	translation initiation factor IF-2
70	 43.95	0	80587..80991	+	134	71064651	rbfA	Psyc_0070	-	ribosome-binding factor A
71	 40.51	-1	81008..82150	+	380	71064652	truB	Psyc_0071	-	tRNA pseudouridine synthase B
72	 40.86	0	82492..82677	+	61	71064653	-	Psyc_0072	-	hypothetical protein
73	 44.19	0	83015..83281	+	88	71064654	rpsO	Psyc_0073	-	30S ribosomal protein S15
74	 44.65	0	83907..86009	+	700	71064655	pnp	Psyc_0074	-	polynucleotide phosphorylase/polyadenylase
75	 39.36	-1	86116..86397	-	93	71064656	-	Psyc_0075	-	hypothetical protein
76	 41.91	0	86461..87066	-	201	71064657	-	Psyc_0076	-	hypothetical protein
77	 45.88	0	87218..87472	-	84	71064658	-	Psyc_0077	-	hypothetical protein
78	 44.83	0	87473..89698	-	741	71064659	prlC	Psyc_0078	-	oligopeptidase A
79	 43.49	0	90323..91435	+	370	71064660	-	Psyc_0079	-	hypothetical protein
80	 40.59	-1	91496..92404	+	302	71064661	-	Psyc_0080	-	hypothetical protein
81	 45.05	0	92464..93462	+	332	71064662	-	Psyc_0081	-	hypothetical protein
82	 41.42	0	93498..94115	-	205	71064663	alkB	Psyc_0082	-	DNA-N1-methyladenine dioxygenase
83	 44.72	0	94165..96078	-	637	71064664	-	Psyc_0083	-	eflux ABC transporter inner membrane protein
84	 45.70	0	96361..97209	+	282	71064665	-	Psyc_0084	-	hypothetical protein
85	 44.22	0	97383..98273	+	296	71064666	-	Psyc_0085	-	fructose-1,6-bisphosphate aldolase
86	 47.35	0	98385..100460	-	691	71064667	thiC	Psyc_0086	-	thiamine biosynthesis protein ThiC
87	 43.30	0	100903..101193	-	96	71064668	-	Psyc_0087	-	hypothetical protein
88	 47.53	+1	101502..102875	-	457	71064669	argH	Psyc_0088	-	argininosuccinate lyase
89	 46.82	0	103385..104422	+	345	71064670	hemC	Psyc_0089	-	hydroxymethylbilane synthase
90	 48.78	+1	104539..105522	+	327	71064671	hemD	Psyc_0090	-	uroporphyrinogen-III synthase
91	 43.85	0	105653..106612	+	319	71064672	-	Psyc_0091	-	hypothetical protein
92	 45.47	0	106671..107156	+	161	71064673	-	Psyc_0092	-	hypothetical protein
93	 47.26	0	107401..108513	-	370	71064674	ribB	Psyc_0093	-	GTP cyclohydrolase II / 3,4-dihydroxy-2-butanone 4-phosphate synthase
94	 47.29	0	108765..110054	-	429	71064675	-	Psyc_0094	-	recombination factor protein RarA
95	 44.51	0	110387..110878	+	163	71064676	-	Psyc_0095	-	hypothetical protein
96	 43.43	0	110986..111837	+	283	71064677	-	Psyc_0096	-	hypothetical protein
97	 44.11	0	111902..113182	-	426	71064678	gltA	Psyc_0097	-	citrate synthase
98	 42.89	0	114223..114609	+	128	71064679	sdhC	Psyc_0098	-	succinate dehydrogenase subunit C
99	 46.42	0	114609..115013	+	134	71064680	sdhD	Psyc_0099	-	succinate dehydrogenase subunit D
100	 47.27	0	115192..117042	+	616	71064681	sdhA	Psyc_0100	-	succinate dehydrogenase flavoprotein subunit
44.09	MEAN

3.30	STD DEV
