IslandPathversion 1.0

IslandPath Analysis: Prochlorococcus marinus str. MIT 9301

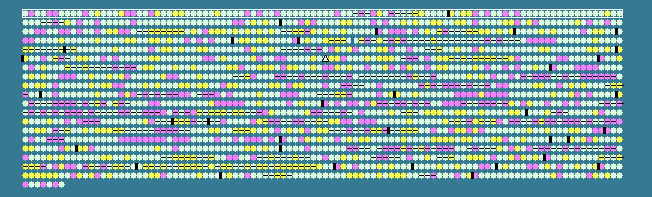

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 31.59 STD DEV: 4.38
Prochlorococcus marinus str. MIT 9301, complete genome - 1..1641879
1907 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 30.14	0	170..1327	+	385	126695338	dnaN	P9301_00001	-	DNA polymerase III subunit beta
2	 28.11	0	1329..2036	+	235	126695339	-	P9301_00011	-	hypothetical protein
3	 32.61	0	2040..4379	+	779	126695340	-	P9301_00021	-	phosphoribosylformylglycinamidine synthase II
4	 33.47	0	4427..5887	+	486	126695341	purF	P9301_00031	-	amidophosphoribosyltransferase
5	 27.35	0	5884..8325	-	813	126695342	-	P9301_00041	-	DNA gyrase/topoisomerase IV, subunit A
6	 27.31	0	8403..9266	-	287	126695343	-	P9301_00051	-	TPR-repeat pilus assembly protein TadD
7	 32.39	0	9263..10219	-	318	126695344	-	P9301_00061	-	hypothetical protein
8	 33.20	0	10366..11100	+	244	126695345	-	P9301_00071	-	hypothetical protein
9	 29.94	0	11104..11721	+	205	126695346	nusB	P9301_00081	-	transcription antitermination protein NusB
10	 31.74	0	11784..13103	+	439	126695347	ftsY	P9301_00091	-	signal recognition particle docking protein FtsY
11	 27.75	0	13171..14514	+	447	126695348	rsbU	P9301_00101	-	protein phosphatase 2C domain-containing protein
12	 32.17	0	14576..15955	+	459	126695349	argH	P9301_00111	-	argininosuccinate lyase
13	 50.15	+2	16071..16724	+	217	126695350	-	P9301_00121	-	RNA recognition motif-containing protein
14	 30.85	0	16721..17725	-	334	126695351	-	P9301_00131	-	tRNA-dihydrouridine synthase A
15	 34.95	0	17748..18242	+	164	126695352	-	P9301_00141	-	peptide methionine sulfoxide reductase domain-containing protein
16	 31.81	0	18317..19036	+	239	126695353	grpE	P9301_00151	-	heat shock protein GrpE
17	 38.67	+1	19066..20190	+	374	126695354	dnaJ	P9301_00161	-	DnaJ protein
18	 25.11	-1	20190..20420	+	76	126695355	-	P9301_00171	-	hypothetical protein
19	 27.12	-1	20410..21327	+	305	126695356	-	P9301_00181	-	GTPase
20	 29.91	0	21293..21643	-	116	126695357	-	P9301_00191	-	hypothetical protein
21	 28.30	0	21661..22554	-	297	126695358	murB	P9301_00201	-	UDP-N-acetylenolpyruvoylglucosamine reductase
22	 27.91	0	22570..23916	-	448	126695359	murC	P9301_00211	-	UDP-N-acetylmuramate-alanine ligase
23	 37.05	+1	24170..25192	+	340	126695360	gap2	P9301_00221	-	glyceraldehyde 3-phosphate dehydrogenase(NADP+)(phosphorylating)
24	 30.40	0	25193..26179	-	328	126695361	thiL	P9301_00231	-	putative thiamine-monophosphate kinase
25	 33.52	0	26172..27263	-	363	126695362	-	P9301_00241	-	cyclophilin-type peptidyl-prolyl cis-trans isomerase
26	 38.68	+1	27307..27867	+	186	126695363	efp	P9301_00251	-	elongation factor P
27	 36.09	+1	27867..28373	+	168	126695364	accB	P9301_00261	-	biotin / lipoyl attachment:Acetyl-CoA biotin carboxyl carrier subunit
28	 34.34	0	28350..29339	-	329	126695365	pdxA	P9301_00271	-	4-hydroxythreonine-4-phosphate dehydrogenase
29	 31.06	0	29404..30282	-	292	126695366	-	P9301_00281	-	nucleoside-diphosphate-sugar epimerase
30	 28.14	0	30315..30545	+	76	126695367	-	P9301_00291	-	transcription factor TFIID (or TATA-b)
31	 34.33	0	30546..30947	-	133	126695368	-	P9301_00301	-	HNH endonuclease:HNH nuclease
32	 28.92	0	31114..31566	-	150	126695369	-	P9301_00311	-	type II secretion system protein-like protein
33	 38.79	+1	31623..32135	-	170	126695370	-	P9301_00321	-	hypothetical protein
34	 33.33	0	32269..32466	+	65	126695371	-	P9301_00331	-	hypothetical protein
35	 33.33	0	32468..33631	-	387	126695372	dhsS	P9301_00341	-	soluble hydrogenase small subunit
36	 29.47	0	33692..34804	+	370	126695373	cbiD	P9301_00351	-	cobalt-precorrin-6A synthase
37	 33.65	0	34859..36445	+	528	126695374	guaA	P9301_00361	-	bifunctional GMP synthase/glutamine amidotransferase protein
38	 27.36	0	36630..36947	-	105	126695375	-	P9301_00371	-	hypothetical protein
39	 28.54	0	37790..39103	-	437	126695376	-	P9301_00381	-	hypothetical protein
40	 27.70	0	39429..40937	-	502	126695377	-	P9301_00391	-	TPR repeat-containing protein
41	 28.43	0	41480..42193	+	237	126695378	-	P9301_00401	-	hypothetical protein
42	 30.71	0	42273..42881	+	202	126695379	-	P9301_00411	-	hypothetical protein
43	 21.53	-2	42990..43133	+	47	126695380	-	P9301_00421	-	hypothetical protein
44	 32.73	0	43289..44935	+	548	126695381	-	P9301_00431	-	putative penicillin-binding protein
45	 30.29	0	44958..45482	-	174	126695382	-	P9301_00441	-	putative reductase
46	 32.78	0	45500..47302	-	600	126695383	-	P9301_00451	-	flavoprotein
47	 34.40	0	47319..49094	-	591	126695384	-	P9301_00461	-	flavoprotein
48	 31.19	0	49214..51874	+	886	126695385	alaS	P9301_00471	-	alanyl-tRNA synthetase
49	 29.33	0	51859..53805	-	648	126695386	speA	P9301_00481	-	arginine decarboxylase
50	 34.64	0	53928..54386	+	152	126695387	ndk	P9301_00491	-	nucleoside diphosphate kinase
51	 31.80	0	54390..55499	-	369	126695388	dadA	P9301_00501	-	putative thiamine biosynthesis oxidoreductase
52	 31.95	0	55606..57051	+	481	126695389	gatB	P9301_00511	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
53	 26.05	-1	57055..57672	-	205	126695390	coaE	P9301_00521	-	putative dephospho-CoA kinase
54	 33.33	0	57749..58987	+	412	126695391	argJ	P9301_00531	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
55	 29.54	0	59311..62076	-	921	126695392	-	P9301_00541	-	hypothetical protein
56	 29.99	0	62086..62832	-	248	126695393	-	P9301_00551	-	hypothetical protein
57	 25.29	-1	62819..63253	-	144	126695394	-	P9301_00561	-	hypothetical protein
58	 30.39	0	63318..63758	+	146	126695395	-	P9301_00571	-	hypothetical protein
59	 23.72	-1	63799..63954	+	51	126695396	-	P9301_00581	-	hypothetical protein
60	 39.73	+1	64299..64970	-	223	126695397	-	P9301_00591	-	ATPases involved in chromosome partitioning
61	 31.15	0	65120..66082	+	320	126695398	tas	P9301_00601	-	aldo/keto reductase
62	 24.64	-1	66091..66228	-	45	126695399	-	P9301_00611	-	hypothetical protein
63	 29.78	0	66707..67831	+	374	126695400	-	P9301_00621	-	RNA methylase family protein
64	 31.01	0	67833..68219	-	128	126695401	-	P9301_00631	-	hypothetical protein
65	 32.68	0	68221..68682	-	153	126695402	-	P9301_00641	-	hypothetical protein
66	 35.71	0	68849..68974	-	41	126695403	-	P9301_00651	-	hypothetical protein
67	 35.26	0	68853..69008	+	51	126695404	-	P9301_00661	-	hypothetical protein
68	 28.65	0	69089..69451	+	120	126695405	-	P9301_00671	-	hypothetical protein
69	 29.85	0	69528..73118	+	1196	126695406	smc	P9301_00681	-	SMC ATPase superfamily chromosome segregation protein
70	 34.83	0	73164..74231	+	355	126695407	-	P9301_00691	-	hypothetical protein
71	 28.52	0	74235..75521	-	428	126695408	-	P9301_00701	-	lipid A disaccharide synthetase-like protein
72	 37.26	+1	75867..77216	+	449	126695409	accC	P9301_00711	-	acetyl-CoA carboxylase biotin carboxylase subunit
73	 28.76	0	77235..77540	-	101	126695410	-	P9301_00721	-	hypothetical protein
74	 40.32	+1	77631..77816	+	61	126695411	-	P9301_00731	-	photosystem II protein X PsbX
75	 38.92	+1	77896..78825	+	309	126695412	-	P9301_00741	-	hypothetical protein
76	 27.90	0	78826..79101	-	91	126695413	-	P9301_00751	-	high light inducible protein
77	 32.83	0	79110..81092	-	660	126695414	-	P9301_00761	-	ABC transporter, ATP binding protein
78	 27.60	0	81135..81413	-	92	126695415	-	P9301_00771	-	hypothetical protein
79	 30.41	0	81460..81801	-	113	126695416	hit	P9301_00781	-	HIT (histidine triad) family protein
80	 33.50	0	81806..82411	-	201	126695417	def	P9301_00791	-	peptide deformylase
81	 27.05	-1	82492..84417	+	641	126695418	dap2	P9301_00801	-	esterase/lipase/thioesterase family protein
82	 30.78	0	84414..85667	-	417	126695419	-	P9301_00811	-	putative cysteine desulfurase or selenocysteine lyase
83	 27.59	0	85667..86884	-	405	126695420	-	P9301_00821	-	ABC transporter, membrane component
84	 33.97	0	86889..87674	-	261	126695421	sufC	P9301_00831	-	ABC transporter, ATP binding component
85	 34.40	0	87692..89194	-	500	126695422	-	P9301_00841	-	cysteine desulfurase activator complex subunit SufB
86	 28.53	0	89231..89584	+	117	126695423	-	P9301_00851	-	hypothetical protein
87	 34.62	0	89872..90957	+	361	126695424	-	P9301_00861	-	hypothetical protein
88	 28.65	0	90970..91140	+	56	126695425	-	P9301_00871	-	membrane protein
89	 33.33	0	91173..92810	+	545	126695426	pgm	P9301_00881	-	phosphoglucomutase
90	 30.39	0	92844..94133	+	429	126695427	mgs1	P9301_00891	-	recombination factor protein RarA
91	 30.85	0	94130..94813	-	227	126695428	-	P9301_00901	-	putative 4'-phosphopantetheinyl transferase family protein
92	 30.98	0	94786..95253	+	155	126695429	-	P9301_00911	-	putative bacterioferritin comigratory (BCP) protein
93	 30.89	0	95245..95940	-	231	126695430	-	P9301_00921	-	transcriptional regulator
94	 31.81	0	95956..96678	-	240	126695431	cysH	P9301_00931	-	phosphoadenosine phosphosulfate reductase
95	 29.40	0	96774..97967	+	397	126695432	-	P9301_00941	-	putative NADH dehydrogenase, transport associated
96	 34.66	0	98017..99825	+	602	126695433	citT	P9301_00951	-	DASS family sodium/sulfate transporter
97	 32.98	0	99830..101233	+	467	126695434	trkG	P9301_00961	-	Trk family sodium transporter
98	 36.17	+1	101252..101956	+	234	126695435	-	P9301_00971	-	VIC family potassium channel protein
99	 30.69	0	101963..102265	-	100	126695436	-	P9301_00981	-	hypothetical protein
100	 31.56	0	102383..102721	+	112	126695437	-	P9301_00991	-	hypothetical protein
31.59	MEAN

4.38	STD DEV
