IslandPath Analysis: Prosthecochloris aestuarii DSM 271

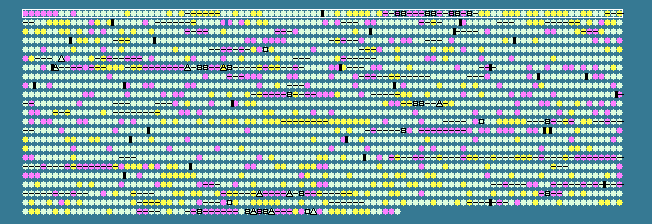

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 50.15   STD DEV: 4.10
Prosthecochloris aestuarii DSM 271, complete genome - 1..2512923
2263 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 43.68	-1	1..1479	+	492	194332854	-	Paes_0001	-	chromosomal replication initiator protein DnaA
2	 41.05	-2	1749..2876	+	375	194332855	-	Paes_0002	-	DNA polymerase III, beta subunit
3	 41.51	-2	2893..4005	+	370	194332856	-	Paes_0003	-	DNA replication and repair protein RecF
4	 40.21	-2	4005..4295	+	96	194332857	-	Paes_0004	-	hypothetical protein
5	 42.81	-1	4367..5590	-	407	194332858	-	Paes_0005	-	beta-lactamase domain protein
6	 43.95	-1	5789..8191	-	800	194332859	-	Paes_0006	-	DNA polymerase B region
7	 47.72	0	8261..10123	-	620	194332860	-	Paes_0007	-	glucose inhibited division protein A
8	 47.95	0	10694..11131	+	145	194332861	-	Paes_0008	-	thiosulfate-binding protein SoxY
9	 46.28	0	11156..11464	+	102	194332862	-	Paes_0009	-	Sulphur oxidation protein SoxZ
10	 48.29	0	11525..11905	+	126	194332863	-	Paes_0010	-	cytochrome c class I
11	 49.57	0	11922..13214	+	430	194332864	-	Paes_0011	-	Flavocytochrome c sulphide dehydrogenase flavin-binding
12	 50.81	0	13381..15165	+	594	194332865	-	Paes_0012	-	protein-export membrane protein SecD
13	 49.46	0	15190..16119	+	309	194332866	-	Paes_0013	-	protein-export membrane protein SecF
14	 49.39	0	16227..17546	+	439	194332867	-	Paes_0014	-	SurA domain
15	 50.28	0	17535..19469	-	644	194332868	-	Paes_0015	-	DNA gyrase, B subunit
16	 50.26	0	19561..19944	-	127	194332869	-	Paes_0016	-	protein of unknown function UPF0102
17	 52.98	0	19959..20579	-	206	194332870	-	Paes_0017	-	Ribonuclease H
18	 55.21	+1	20672..20863	+	63	194332871	-	Paes_0018	-	hypothetical protein
19	 51.15	0	20912..22567	+	551	194332872	-	Paes_0019	-	ribonuclease, Rne/Rng family
20	 53.36	0	22582..23445	+	287	194332873	-	Paes_0020	-	2,3,4,5-tetrahydropyridine-2,6-dicarboxylate N-succinyltransferase
21	 52.30	0	23505..25175	+	556	194332874	-	Paes_0021	-	carboxyl-terminal protease
22	 53.19	0	25177..25851	-	224	194332875	-	Paes_0022	-	hypothetical protein
23	 51.05	0	25852..26991	-	379	194332876	-	Paes_0023	-	geranylgeranyl reductase
24	 52.22	0	27054..28520	-	488	194332877	-	Paes_0024	-	glycyl-tRNA synthetase
25	 55.06	+1	28904..29377	+	157	194332878	-	Paes_0025	-	Rhodanese domain protein
26	 53.59	0	29460..29696	+	78	194332879	-	Paes_0026	-	SirA family protein
27	 56.49	+1	29764..31158	+	464	194332880	-	Paes_0027	-	cobyrinic acid a,c-diamide synthase
28	 52.08	0	31555..31890	+	111	194332881	-	Paes_0028	-	sulfur relay protein, TusE/DsrC/DsvC family
29	 55.42	+1	31945..33198	+	417	194332882	-	Paes_0029	-	sulfite reductase, dissimilatory-type alpha subunit
30	 54.81	+1	33271..34350	+	359	194332883	-	Paes_0030	-	sulfite reductase, dissimilatory-type beta subunit
31	 57.05	+1	34374..36110	+	578	194332884	-	Paes_0031	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
32	 55.11	+1	36155..36526	+	123	194332885	-	Paes_0032	-	hypothetical protein
33	 55.56	+1	36539..36898	+	119	194332886	-	Paes_0033	-	sulfur relay protein TusD/DsrE
34	 50.00	0	36903..37280	+	125	194332887	-	Paes_0034	-	sulfur relay protein TusC/DsrF
35	 51.36	0	37323..37616	+	97	194332888	-	Paes_0035	-	sulfur relay protein TusB/DsrH
36	 55.26	+1	37660..38106	+	148	194332889	-	Paes_0036	-	hypothetical protein
37	 51.10	0	38103..39098	+	331	194332890	-	Paes_0037	-	Nitrate reductase gamma subunit
38	 52.30	0	39101..40750	+	549	194332891	-	Paes_0038	-	DsrK protein
39	 53.85	0	40740..41129	+	129	194332892	-	Paes_0039	-	hypothetical protein
40	 55.47	+1	41126..41902	+	258	194332893	-	Paes_0040	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
41	 53.56	0	41912..43063	+	383	194332894	-	Paes_0041	-	Polysulphide reductase NrfD
42	 48.67	0	43180..43629	+	149	194332895	-	Paes_0042	-	porphyrin biosynthesis protein, putative
43	 53.28	0	43731..45119	+	462	194332896	-	Paes_0043	-	uroporphyrin-III C-methyltransferase
44	 51.02	0	45492..46079	+	195	194332897	-	Paes_0044	-	hypothetical protein
45	 51.32	0	46212..49535	-	1107	194332898	-	Paes_0045	-	Patatin
46	 52.04	0	49764..51404	+	546	194332899	-	Paes_0046	-	hypothetical protein
47	 47.71	0	51474..51779	-	101	194332900	-	Paes_0047	-	ATP-dependent Clp protease adaptor protein ClpS
48	 52.38	0	51861..52805	-	314	194332901	-	Paes_0048	-	Muramoyltetrapeptide carboxypeptidase
49	 49.44	0	52933..53199	-	88	194332902	-	Paes_0049	-	H+transporting two-sector ATPase delta/epsilon subunit
50	 53.28	0	53215..54603	-	462	194332903	-	Paes_0050	-	ATP synthase F1, beta subunit
51	 51.21	0	54943..55479	+	178	194332904	-	Paes_0051	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
52	 53.34	0	55552..57420	+	622	194332905	-	Paes_0052	-	Phosphoenolpyruvate carboxykinase (GTP)
53	 55.23	+1	57704..59119	+	471	194332906	-	Paes_0053	-	membrane protein involved in aromatic hydrocarbon degradation
54	 51.64	0	59254..59466	-	70	194332907	-	Paes_0054	-	protein of unknown function DUF1458
55	 55.49	+1	59965..61512	+	515	194332908	-	Paes_0055	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
56	 56.37	+1	61525..64380	+	951	194332909	-	Paes_0056	-	molydopterin dinucleotide-binding region
57	 54.44	+1	64454..65410	+	318	194332910	-	Paes_0057	-	protein of unknown function DUF81
58	 55.95	+1	65414..65833	+	139	194332911	-	Paes_0058	-	hypothetical protein
59	 51.27	0	66039..66551	+	170	194332912	-	Paes_0059	-	hypothetical protein
60	 56.47	+1	66923..68776	-	617	194332913	-	Paes_0060	-	ATP-dependent DNA helicase RecQ
61	 45.35	-1	69351..70124	+	257	194332914	-	Paes_0062	-	putative restriction endonuclease
62	 47.62	0	70421..70714	+	97	194332915	-	Paes_0063	-	hypothetical protein
63	 44.97	-1	70711..71028	+	105	194332916	-	Paes_0064	-	transposase
64	 46.89	0	71029..71301	+	90	194332917	-	Paes_0065	-	transposase
65	 38.48	-2	71761..72810	+	349	194332918	-	Paes_0067	-	FRG domain protein
66	 33.33	-2	74650..75186	+	178	194332919	-	Paes_0069	-	hypothetical protein
67	 33.92	-2	75189..76901	+	570	194332920	-	Paes_0070	-	RelA/SpoT domain protein
68	 46.88	0	78529..79089	-	186	194332921	-	Paes_0073	-	transposase
69	 46.84	0	79125..79598	-	157	194332922	-	Paes_0074	-	transposase
70	 43.33	-1	79824..80033	-	69	194332923	-	Paes_0075	-	RNA-directed DNA polymerase
71	 50.50	0	80534..80935	-	133	194332924	-	Paes_0077	-	hypothetical protein
72	 44.56	-1	80932..81225	-	97	194332925	-	Paes_0078	-	transposase IS3/IS911 family protein
73	 49.81	0	81364..81630	-	88	194332926	-	Paes_0079	-	transposase IS3/IS911 family protein
74	 44.30	-1	81946..82173	-	75	194332927	-	Paes_0080	-	hypothetical protein
75	 48.91	0	82313..83596	-	427	194332928	-	Paes_0081	-	transposase IS116/IS110/IS902 family protein
76	 51.43	0	83916..84545	-	209	194332929	-	Paes_0082	-	hypothetical protein
77	 55.64	+1	84645..85397	+	250	194332930	-	Paes_0083	-	Methyltransferase type 11
78	 56.37	+1	85416..85784	+	122	194332931	-	Paes_0084	-	hypothetical protein
79	 52.14	0	85860..85976	+	38	194332932	-	Paes_0085	-	hypothetical protein
80	 53.58	0	86113..87594	+	493	194332933	-	Paes_0086	-	RNA-directed DNA polymerase (Reverse transcriptase)
81	 60.28	+2	87602..87883	+	93	194332934	-	Paes_0087	-	hypothetical protein
82	 55.27	+1	88032..88496	+	154	194332935	-	Paes_0088	-	putative transmembrane protein
83	 54.87	+1	88680..89018	+	112	194332936	-	Paes_0089	-	alkylphosphonate utilization operon protein PhnA
84	 53.19	0	89027..89731	-	234	194332937	-	Paes_0090	-	DNA alkylation repair enzyme
85	 56.58	+1	89837..91165	+	442	194332938	-	Paes_0091	-	major facilitator superfamily MFS_1
86	 55.85	+1	91301..91753	+	150	194332939	-	Paes_0092	-	methionine-R-sulfoxide reductase
87	 53.11	0	91813..92808	-	331	194332940	-	Paes_0093	-	hypothetical protein
88	 55.44	+1	92962..95259	+	765	194332941	-	Paes_0094	-	NADH dehydrogenase (quinone)
89	 56.43	+1	95262..95681	+	139	194332942	-	Paes_0095	-	Na+/H+ antiporter MnhB subunit-related protein
90	 57.18	+1	95678..96046	+	122	194332943	-	Paes_0096	-	NADH-ubiquinone oxidoreductase chain 4L
91	 55.07	+1	96043..97560	+	505	194332944	-	Paes_0097	-	NADH dehydrogenase (quinone)
92	 52.53	0	97557..98030	+	157	194332945	-	Paes_0098	-	cation antiporter
93	 49.82	0	98027..98299	+	90	194332946	-	Paes_0099	-	multiple resistance and pH regulation protein F
94	 55.36	+1	98296..98640	+	114	194332947	-	Paes_0100	-	monovalent cation/proton antiporter, MnhG/PhaG subunit
95	 56.00	+1	98669..99727	-	352	194332948	-	Paes_0101	-	phytase
96	 53.26	0	99809..102649	-	946	194332949	-	Paes_0102	-	TonB-dependent receptor
97	 52.11	0	102852..103325	+	157	194332950	-	Paes_0103	-	hypothetical protein
98	 57.59	+1	103392..105353	-	653	194332951	-	Paes_0104	-	alpha amylase catalytic region
99	 53.48	0	105571..106518	+	315	194332952	-	Paes_0105	-	Cache type 2 domain protein
100	 54.92	+1	106537..107889	+	450	194332953	-	Paes_0106	-	Xanthine/uracil/vitamin C permease
50.15	MEAN

4.10	STD DEV
