IslandPath Analysis: Porphyromonas gingivalis ATCC 33277

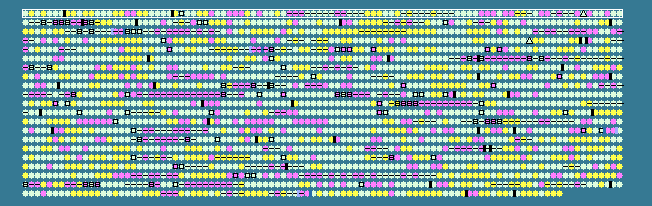

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 48.47   STD DEV: 4.89
Porphyromonas gingivalis ATCC 33277, complete genome - 1..2354886
2090 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 50.63	0	1..1422	+	473	188993865	dnaA	PGN_0001	-	chromosomal replication initiator protein DnaA
2	 52.88	0	1435..2007	+	190	188993866	-	PGN_0002	-	hypothetical protein
3	 49.90	0	2009..3028	-	339	188993867	-	PGN_0003	-	hypothetical protein
4	 52.48	0	3108..3812	+	234	188993868	-	PGN_0004	-	putative nicotinate mononucleotide:5,6-dimethylbenzimidazole phosphoribosyltransferase
5	 51.60	0	3887..5041	-	384	188993869	-	PGN_0005	-	hypothetical protein
6	 51.81	0	5094..6473	-	459	188993870	-	PGN_0006	-	putative Na+driven multidrug efflux pump
7	 49.36	0	6487..6642	+	51	188993871	-	PGN_0007	-	hypothetical protein
8	 55.16	+1	7400..9979	+	859	188993872	clpC	PGN_0008	-	ATP-dependent Clp protease ATP-binding subunit ClpC
9	 53.22	0	10119..13130	+	1003	188993873	-	PGN_0009	-	glycosyl hydrolase family 3
10	 48.88	0	13178..14206	+	342	188993874	-	PGN_0010	-	probable L-threonine-O-3-phosphate decarboxylase
11	 53.05	0	14216..14986	+	256	188993875	-	PGN_0011	-	hypothetical protein
12	 52.74	0	15571..16920	+	449	188993876	-	PGN_0012	-	two-component system response regulator
13	 50.37	0	16930..18267	+	445	188993877	-	PGN_0013	-	putative two-component system sensor histidine kinase
14	 49.76	0	18271..20517	+	748	188993878	-	PGN_0014	-	hypothetical protein
15	 49.93	0	20602..21306	+	234	188993879	-	PGN_0015	-	probable transcriptional regulator
16	 53.29	0	21292..22293	-	333	188993880	-	PGN_0016	-	putative TIM-barrel protein
17	 52.18	0	22290..23966	-	558	188993881	-	PGN_0017	-	sulfate transporter permease
18	 31.58	-2	24234..24404	-	56	188993882	-	PGN_0018	-	hypothetical protein
19	 44.14	0	24770..24880	+	36	188993883	-	PGN_0019	-	hypothetical protein
20	 54.19	+1	24952..25608	+	218	188993884	-	PGN_0020	-	probable DNA-binding protein
21	 53.18	0	25677..26336	+	219	188993885	-	PGN_0021	-	probable hydrolase
22	 51.19	0	26349..29825	+	1158	188993886	-	PGN_0022	-	hypothetical protein
23	 47.28	0	29901..31076	+	391	188993887	-	PGN_0023	-	hypothetical protein
24	 49.90	0	31083..31571	+	162	188993888	-	PGN_0024	-	putative 2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
25	 46.41	0	31674..32216	-	180	188993889	-	PGN_0025	-	probable SpoU rRNA methylase family protein
26	 55.97	+1	33069..33545	+	158	188993890	-	PGN_0026	-	putative cytidine deaminase
27	 48.34	0	33765..34850	+	361	188993891	-	PGN_0027	-	transposase in ISPg1
28	 46.00	0	34875..35024	+	49	188993892	-	PGN_0028	-	hypothetical protein
29	 49.74	0	35420..36004	-	194	188993893	-	PGN_0029	-	hypothetical protein
30	 54.22	+1	36142..38688	-	848	188993894	-	PGN_0030	-	beta-mannosidase
31	 53.43	+1	38757..40055	-	432	188993895	-	PGN_0031	-	conserved hypothetical protein with RmuC domain
32	 43.10	-1	40103..40276	+	57	188993896	-	PGN_0032	-	hypothetical protein
33	 48.25	0	40685..40999	-	104	188993897	-	PGN_0033	-	thioredoxin
34	 49.28	0	41048..44734	-	1228	188993898	-	PGN_0034	-	DNA polymerase III alpha subunit
35	 44.81	0	45013..45378	+	121	188993899	rplS	PGN_0035	-	50S ribosomal protein L19
36	 43.94	0	45792..46055	+	87	188993900	-	PGN_0036	-	hypothetical protein
37	 42.50	-1	46140..46259	+	39	188993901	-	PGN_0037	-	hypothetical protein
38	 52.30	0	46617..47897	+	426	188993902	-	PGN_0038	-	serine hydroxymethyltransferase
39	 50.68	0	48048..50387	+	779	188993903	-	PGN_0039	-	beta-hexosaminidase
40	 42.98	-1	50737..50850	-	37	188993904	-	PGN_0040	-	hypothetical protein
41	 51.63	0	51051..53105	+	684	188993905	htpG	PGN_0041	-	heat shock protein 90
42	 50.76	0	53288..54142	-	284	188993906	-	PGN_0042	-	probable phosphatidate cytidylyltransferase
43	 52.08	0	54171..56192	-	673	188993907	-	PGN_0043	-	putative transmembrane AAA-metalloprotease FtsH
44	 49.37	0	56393..57496	-	367	188993908	-	PGN_0044	-	GTP-binding protein
45	 43.64	0	57515..57679	-	54	188993909	-	PGN_0045	-	hypothetical protein
46	 44.19	0	58549..58815	+	88	188993910	-	PGN_0046	-	hypothetical protein
47	 36.99	-2	58828..59046	+	72	188993911	-	PGN_0047	-	hypothetical protein
48	 45.08	0	59059..59475	+	138	188993912	-	PGN_0048	-	hypothetical protein
49	 46.33	0	59497..60027	+	176	188993913	-	PGN_0049	-	probable anti-restriction protein
50	 45.49	0	60044..61318	+	424	188993914	-	PGN_0050	-	hypothetical protein
51	 45.49	0	61345..61599	+	84	188993915	-	PGN_0051	-	hypothetical protein
52	 48.48	0	61604..61834	+	76	188993916	-	PGN_0052	-	hypothetical protein
53	 35.70	-2	62092..63318	+	408	188993917	-	PGN_0053	-	hypothetical protein
54	 38.77	-1	63320..63724	+	134	188993918	-	PGN_0054	-	hypothetical protein
55	 50.97	0	63785..64300	-	171	188993919	-	PGN_0055	-	probable lysozyme
56	 48.27	0	64284..64745	-	153	188993920	-	PGN_0056	-	probable conserved protein found in conjugate transposon
57	 50.99	0	64770..65624	-	284	188993921	traP	PGN_0057	-	probable conserved protein found in conjugate transposon TraP
58	 52.82	0	65624..66208	-	194	188993922	-	PGN_0058	-	probable conserved protein found in conjugate transposon
59	 53.09	0	66210..67130	-	306	188993923	traN	PGN_0059	-	conserved protein found in conjugate transposon TraN
60	 53.07	0	67169..68536	-	455	188993924	traM	PGN_0060	-	conserved protein found in conjugate transposon TraM
61	 48.95	0	68487..68819	-	110	188993925	-	PGN_0061	-	hypothetical protein
62	 51.60	0	68816..69439	-	207	188993926	traK	PGN_0062	-	putative conserved protein found in conjugate transposon TraK
63	 53.48	+1	69459..70535	-	358	188993927	traJ	PGN_0063	-	conserved transmembrane protein found in conjugate transposon TraJ
64	 51.27	0	70538..71167	-	209	188993928	traI	PGN_0064	-	putative conserved protein found in conjugate transposon TraI
65	 53.08	0	71302..73803	-	833	188993929	traG	PGN_0065	-	conserved protein found in conjugate transposon TraG
66	 50.26	0	73800..74177	-	125	188993930	traF	PGN_0066	-	probable conserved transmembrane protein found in conjugate transposon TraF
67	 51.33	0	74182..74481	-	99	188993931	traF	PGN_0067	-	probable conserved transmembrane protein found in conjugate transposon TraE
68	 50.17	0	74657..75244	-	195	188993932	-	PGN_0068	-	hypothetical protein
69	 54.79	+1	75232..75972	-	246	188993933	traA	PGN_0069	-	probable conserved protein found in conjugate transposon TraA
70	 51.78	0	76002..76592	-	196	188993934	-	PGN_0070	-	hypothetical protein
71	 47.74	0	76589..76942	-	117	188993935	-	PGN_0071	-	hypothetical protein
72	 46.06	0	76968..77399	-	143	188993936	-	PGN_0072	-	hypothetical protein
73	 51.60	0	77383..78165	-	260	188993937	traA	PGN_0073	-	putative conserved protein found in conjugate transposon TraA
74	 46.14	0	78954..79367	+	137	188993938	-	PGN_0074	-	hypothetical protein
75	 46.76	0	79352..80587	+	411	188993939	-	PGN_0075	-	hypothetical protein
76	 48.36	0	80770..82779	+	669	188993940	-	PGN_0076	-	putative mobilization protein TraG family
77	 44.87	0	82878..83033	+	51	188993941	-	PGN_0077	-	hypothetical protein
78	 44.60	0	83075..83287	+	70	188993942	-	PGN_0078	-	hypothetical protein
79	 44.51	0	83317..84354	+	345	188993943	-	PGN_0079	-	conserved hypothetical protein with DUF1016 domain
80	 45.87	0	84397..84723	-	108	188993944	-	PGN_0080	-	probable tetracycline resistance element mobilization regulatory protein RteC
81	 43.41	-1	85010..86368	-	452	188993945	-	PGN_0081	-	putative Na driven multidrug efflux pump
82	 44.41	0	86465..87313	-	282	188993946	-	PGN_0082	-	probable transcriptional regulator AraC family
83	 51.97	0	87598..88992	+	464	188993947	-	PGN_0083	-	hypothetical protein
84	 53.76	+1	89027..91156	+	709	188993948	-	PGN_0084	-	DNA topoisomerase I
85	 50.00	0	91296..91727	+	143	188993949	-	PGN_0085	-	hypothetical protein
86	 51.78	0	91714..97200	+	1828	188993950	-	PGN_0086	-	putative DNA methylase
87	 36.58	-2	97257..99167	-	636	188993951	-	PGN_0087	-	hypothetical protein
88	 37.14	-2	99167..99376	-	69	188993952	-	PGN_0088	-	putative transcriptional regulator
89	 45.79	0	99529..99849	-	106	188993953	-	PGN_0089	-	hypothetical protein
90	 44.35	0	99833..100186	-	117	188993954	-	PGN_0090	-	hypothetical protein
91	 48.75	0	100407..100685	+	92	188993955	-	PGN_0091	-	hypothetical protein
92	 47.76	0	100714..101025	+	103	188993956	-	PGN_0092	-	hypothetical protein
93	 43.99	0	101075..101440	-	121	188993957	-	PGN_0093	-	hypothetical protein
94	 46.60	0	101455..102690	-	411	188993958	-	PGN_0094	-	putative bacteriophage integrase
95	 39.33	-1	102733..102882	-	49	188993959	-	PGN_0095	-	hypothetical protein
96	 50.41	0	103084..104424	-	446	188993960	-	PGN_0096	-	aspartate kinase
97	 51.01	0	104442..105182	-	246	188993961	-	PGN_0097	-	putative cell-division ATP-binding protein
98	 41.38	-1	105346..105519	-	57	188993962	-	PGN_0098	-	hypothetical protein
99	 47.44	0	105575..106588	+	337	188993963	-	PGN_0099	-	probable peptidase
100	 51.87	0	106598..107746	+	382	188993964	-	PGN_0100	-	diaminopimelate decarboxylase
48.47	MEAN

4.89	STD DEV
