IslandPath Analysis: Photobacterium profundum SS9

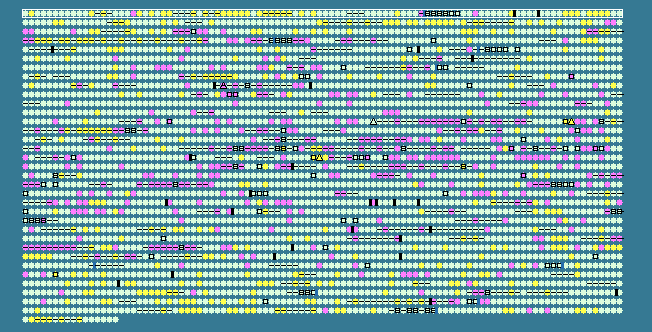

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 42.37   STD DEV: 3.35
Photobacterium profundum SS9 chromosome 1, complete sequence - 1..4085304
3416 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 42.16	0	139..591	-	150	54307238	-	PBPRA0001	-	flavodoxin
2	 46.64	+1	746..2113	-	455	54307239	trmE	PBPRA0002	-	tRNA modification GTPase TrmE
3	 45.33	0	2254..3870	-	538	54307240	-	PBPRA0003	-	putative inner membrane protein translocase component YidC
4	 43.42	0	4097..4453	-	118	54307241	rnpA	PBPRA0004	-	ribonuclease P
5	 43.45	0	4752..5522	-	256	54307242	-	PBPRA0005	-	amino acid ABC transporter ATP-binding protein
6	 43.94	0	5519..6244	-	241	54307243	-	PBPRA0006	-	amino acid ABC transporter permease
7	 40.21	0	6296..7051	-	251	54307244	-	PBPRA0007	-	amino acid ABC transporter periplasmic amino acid-binding protein
8	 43.02	0	7364..8788	+	474	54307245	dnaA	PBPRA0008	-	chromosomal replication initiation protein
9	 44.05	0	8790..9890	+	366	54307246	-	PBPRA0009	-	DNA polymerase III subunit beta
10	 43.33	0	9894..10973	+	359	161936342	recF	PBPRA0010	-	recombination protein F
11	 43.84	0	10993..13410	+	805	54307248	gyrB	PBPRA0011	-	DNA gyrase subunit B
12	 46.22	+1	13497..15599	-	700	54307249	-	PBPRA0012	-	putative flagellar biosynthesis protein
13	 45.48	0	15616..16743	-	375	54307250	-	PBPRA0013	-	FlhB flagellar biosynthetic protein
14	 49.74	+2	16740..17519	-	259	54307251	-	PBPRA0014	-	flagellar biosynthetic protein FliR
15	 45.19	0	17523..17792	-	89	54307252	-	PBPRA0015	-	putative flagellar biosynthetic protein
16	 44.44	0	17795..18523	-	242	54307253	fliP	PBPRA0016	-	flagellar biosynthesis protein FliP
17	 42.09	0	18523..18876	-	117	54307254	-	PBPRA0017	-	putative flagellar motor switch protein
18	 42.31	0	18888..19778	-	296	54307255	-	PBPRA0018	-	hypothetical protein
19	 38.03	-1	20484..21356	+	290	54307256	-	PBPRA0019	-	hypothetical protein
20	 46.44	+1	21377..22795	+	472	54307257	-	PBPRA0020	-	putative two-component response regulator
21	 42.90	0	22816..23160	+	114	54307258	-	PBPRA0021	-	FliE-like hook basal body protein
22	 46.05	+1	23174..24856	+	560	54307259	fliF	PBPRA0022	-	flagellar MS-ring protein
23	 44.74	0	24843..25850	+	335	54307260	fliG	PBPRA0023	-	flagellar motor switch protein G
24	 45.85	+1	25868..26554	+	228	54307261	fliH	PBPRA0024	-	flagellar assembly protein H
25	 48.25	+1	26547..27887	+	446	54307262	-	PBPRA0025	-	putative FliI, flagellum-specific ATP synthase
26	 45.43	0	27987..28325	+	112	54307263	-	PBPRA0026	-	hypothetical protein
27	 42.78	0	28357..28737	-	126	54307264	-	PBPRA0027	-	hypothetical protein
28	 41.84	0	28830..29111	-	93	54307265	-	PBPRA0028	-	flagellar protein
29	 46.72	+1	29470..30231	-	253	54307266	-	PBPRA0029	-	hypothetical protein
30	 43.10	0	30287..30706	+	139	54307267	flgB	PBPRA0030	-	flagellar basal body rod protein FlgB
31	 47.00	+1	30712..31128	+	138	54307268	-	PBPRA0031	-	FlgC flagellar basal-body rod protein
32	 45.19	0	31138..31812	+	224	54307269	-	PBPRA0032	-	flagellar basal-body rod modification protein FlgD
33	 46.93	+1	31866..33284	+	472	54307270	-	PBPRA0033	-	flagellar hook protein FlgE
34	 48.71	+1	33299..34033	+	244	54307271	-	PBPRA0034	-	FlgF flagellar basal-body rod protein
35	 46.06	+1	34093..34878	+	261	54307272	-	PBPRA0035	-	putative FlgG flagellar basal-body rod protein
36	 47.82	+1	35533..36657	+	374	54307273	flgI	PBPRA0036	-	flagellar basal body P-ring protein
37	 46.40	+1	36807..37181	+	124	54307274	-	PBPRA0037	-	flagellar protein
38	 49.04	+1	37178..38584	+	468	54307275	-	PBPRA0038	-	flagellar hook-associated protein
39	 44.04	0	38612..39526	+	304	54307276	flgL	PBPRA0039	-	flagellar hook-associated protein FlgL
40	 47.88	+1	39582..40667	+	361	54307277	-	PBPRA0040	-	hypothetical protein
41	 47.31	+1	41029..42309	+	426	54307278	-	PBPRA0041	-	flagellin type B
42	 50.29	+2	42577..44121	+	514	54307279	-	PBPRA0042	-	hypothetical protein
43	 48.28	+1	44142..44549	+	135	54307280	-	PBPRA0043	-	LafC
44	 49.22	+2	44569..44826	+	85	54307281	-	PBPRA0044	-	hypothetical protein
45	 49.80	+2	44839..46113	+	424	54307282	-	PBPRA0045	-	flagellar hook control length protein
46	 45.05	0	46134..46628	+	164	54307283	-	PBPRA0046	-	hypothetical protein
47	 46.96	+1	46640..47395	+	251	54307284	-	PBPRA0047	-	flagellar-specific transcription initiation factor sigma, LafS
48	 40.99	0	47408..48256	+	282	54307285	-	PBPRA0048	-	flagellar motor protein MotA
49	 46.02	+1	48263..49255	+	330	54307286	-	PBPRA0049	-	chemotaxis LafU protein
50	 40.62	0	49573..50670	+	365	54307287	-	PBPRA0050	-	hypothetical protein
51	 41.63	0	50663..51361	+	232	54307288	-	PBPRA0051	-	hypothetical protein
52	 43.46	0	51476..51781	-	101	54307289	-	PBPRA0052	-	hypothetical protein
53	 39.73	0	51829..52266	+	145	54307290	-	PBPRA0053	-	putative 16kDa heat shock protein A
54	 42.21	0	52470..53720	-	416	54307291	avtA	PBPRA0054	-	valine--pyruvate transaminase
55	 44.40	0	54008..56077	-	689	54307292	glyS	PBPRA0055	-	glycyl-tRNA synthetase subunit beta
56	 44.51	0	56087..57052	-	321	54307293	glyQ	PBPRA0056	-	glycyl-tRNA synthetase subunit alpha
57	 43.80	0	57289..58014	+	241	54307294	-	PBPRA0057	-	putative OmpA family protein
58	 44.09	0	58322..58879	+	185	54307295	-	PBPRA0058	-	hypothetical protein
59	 43.18	0	59018..59281	+	87	54307296	-	PBPRA0059	-	NADH dehydrogenase subunit II-like protein
60	 41.37	0	59336..59584	-	82	54307297	-	PBPRA0060	-	hypothetical protein
61	 44.27	0	60065..61006	+	313	54307298	-	PBPRA0061	-	LysR family transcriptional regulator
62	 45.19	0	61412..62482	-	356	54307299	-	PBPRA0062	-	putative zinc-binding alcohol dehydrogenase
63	 47.08	+1	62599..63762	-	387	54307300	fadA	PBPRA0063	-	3-ketoacyl-CoA thiolase
64	 44.94	0	63779..65941	-	720	54307301	fadB	PBPRA0064	-	multifunctional fatty acid oxidation complex subunit alpha
65	 42.58	0	66439..67065	+	208	54307302	-	PBPRA0065	-	hypothetical protein
66	 43.21	0	67096..68553	+	485	54307303	-	PBPRA0066	-	putative potassium uptake protein TrkH
67	 36.95	-1	68563..69087	+	174	54307304	hemG	PBPRA0067	-	protoporphyrinogen oxidase
68	 44.33	0	81181..81744	-	187	54307305	-	PBPRA0078	-	transposase and inactivated derivative
69	 41.40	0	81746..82216	-	156	54307306	-	PBPRA0079	-	transposase and inactivated derivative
70	 41.59	0	82353..83369	+	338	54307307	-	PBPRA0080	-	transposase
71	 44.68	0	83654..84217	-	187	54307308	-	PBPRA0081	-	transposase and inactivated derivative
72	 41.40	0	84219..84689	-	156	54307309	-	PBPRA0082	-	transposase and inactivated derivative
73	 41.79	0	84826..85842	+	338	54307310	-	PBPRA0083	-	transposase
74	 39.20	0	86129..86998	-	289	54307311	-	PBPRA0084	-	DNA-binding transcriptional regulator IlvY
75	 42.96	0	87131..88615	+	494	54307312	-	PBPRA0085	-	ketol-acid reductoisomerase
76	 37.45	-1	88717..88983	-	88	54307313	-	PBPRA0086	-	hypothetical protein
77	 43.34	0	89116..92232	-	1038	54307314	-	PBPRA0087	-	putative multidrug resistance protein
78	 42.50	0	92245..92757	-	170	54307315	-	PBPRA0088	-	hypothetical protein
79	 42.42	0	92772..93332	-	186	54307316	-	PBPRA0089	-	hypothetical protein
80	 39.87	0	93379..94005	-	208	54307317	-	PBPRA0090	-	TetR family transcriptional regulator
81	 41.74	0	94145..96166	+	673	54307318	-	PBPRA0091	-	putative ATP-dependent DNA helicase Rep
82	 47.45	+1	96262..96672	-	136	54307319	-	PBPRA0092	-	putative cytochrome c5
83	 43.40	0	98233..99951	+	572	54307320	-	PBPRA0098	-	putative peptide ABC transporter, ATP-binding protein
84	 43.72	0	100062..101621	+	519	54307321	-	PBPRA0099	-	putative peptide ABC transporter,periplasmic peptide-binding protein
85	 45.60	0	101704..102681	+	325	54307322	-	PBPRA0100	-	putative peptide ABC transporter
86	 44.37	0	102685..103626	+	313	54307323	-	PBPRA0101	-	putative peptide ABC transporter, permease protein
87	 45.83	+1	104006..104389	-	127	54307324	ccrB	PBPRA0103	-	camphor resistance protein CrcB
88	 42.62	0	104704..105984	+	426	54307325	-	PBPRA0104	-	hypothetical protein
89	 41.61	0	106057..106479	+	140	54307326	-	PBPRA0105	-	hypothetical protein
90	 45.61	0	106855..108777	+	640	54307327	-	PBPRA0106	-	thiamine biosynthesis protein ThiC
91	 46.70	+1	108777..110048	+	423	54307328	thiE	PBPRA0107	-	thiamine-phosphate pyrophosphorylase
92	 48.78	+1	110035..110811	+	258	54307329	-	PBPRA0108	-	putative molybdopterin biosynthesis MoeB protein
93	 48.64	+1	111057..111827	+	256	54307330	thiG	PBPRA0109	-	thiazole synthase
94	 45.82	+1	111837..112949	+	370	54307331	thiH	PBPRA0110	-	thiamine biosynthesis protein ThiH
95	 48.21	+1	113086..114900	-	604	54307332	-	PBPRA0111	-	putative aminopeptidase P
96	 46.61	+1	115072..116088	-	338	54307333	-	PBPRA0112	-	LysR family transcriptional regulator
97	 46.11	+1	116135..117355	+	406	54307334	-	PBPRA0113	-	putative multidrug resistance protein
98	 46.62	+1	117455..118357	-	300	54307335	-	PBPRA0114	-	hypothetical protein
99	 45.22	0	118582..120120	+	512	54307336	-	PBPRA0115	-	hypothetical protein
100	 43.00	0	120259..120951	+	230	54307337	-	PBPRA0116	-	putative ubiquinone/menaquinone biosynthesis methlytransferase UbiE
42.37	MEAN

3.35	STD DEV
