IslandPath Analysis: Nostoc sp. PCC 7120

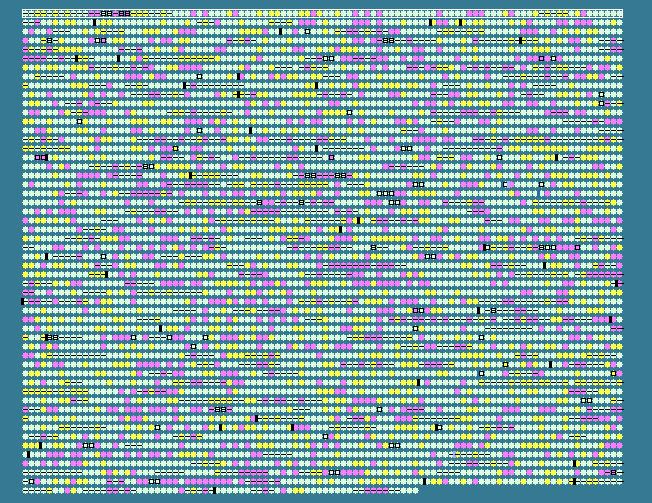

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 42.00   STD DEV: 4.11
Nostoc sp. PCC 7120, complete genome - 1..6413771
5366 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 40.38	0	981..1718	-	245	17227498	-	all0002	-	hypothetical protein
2	 42.33	0	2617..2805	-	62	17227499	-	asl0003	-	hypothetical protein
3	 47.89	+1	3418..4365	-	315	17227500	atpC	all0004	-	F0F1 ATP synthase subunit gamma
4	 46.55	+1	4454..5974	-	506	17227501	atpA	all0005	-	F0F1 ATP synthase subunit alpha
5	 44.57	0	6138..6689	-	183	17227502	atpD	all0006	-	F0F1 ATP synthase subunit delta
6	 46.81	+1	6686..7249	-	187	17227503	atpF	all0007	-	F0F1 ATP synthase subunit B
7	 45.33	0	7359..7850	-	163	17227504	atpG	all0008	-	F0F1 ATP synthase subunit B'
8	 47.56	+1	7996..8241	-	81	17227505	atpH	asl0009	-	F0F1 ATP synthase subunit C
9	 42.99	0	8324..9079	-	251	17227506	atpI	all0010	-	F0F1 ATP synthase subunit A
10	 40.65	0	9132..9500	-	122	17227507	atp1	all0011	-	ATP synthase subunit 1
11	 43.33	0	10130..11329	-	399	17227508	-	all0012	-	hypothetical protein
12	 34.71	-1	11560..11850	+	96	17227509	-	asr0013	-	hypothetical protein
13	 30.30	-2	11847..12275	+	142	17227510	-	alr0014	-	hypothetical protein
14	 43.54	0	12728..13168	-	146	17227511	-	all0015	-	transposase
15	 45.31	0	13138..13521	-	127	17227512	-	all0016	-	transposase
16	 28.74	-2	13600..14121	-	173	17227513	-	all0017	-	hypothetical protein
17	 32.32	-2	14319..14714	+	131	17227514	-	alr0018	-	transposase
18	 34.95	-1	14903..15274	+	123	17227515	-	alr0019	-	transposase
19	 46.34	+1	15778..19176	+	1132	17227516	apcE	alr0020	-	phycobilisome core-membrane linker protein
20	 50.62	+2	19615..20100	+	161	17227517	apcA	alr0021	-	allophycocyanin alpha subunit
21	 47.24	+1	20166..20654	+	162	17227518	apcB	alr0022	-	allophycocyanin beta subunit
22	 44.93	0	20870..21076	+	68	17227519	apcC	asr0023	-	phycobilisome core linker protein
23	 42.00	0	21221..22039	+	272	17227520	-	alr0024	-	hypothetical protein
24	 47.17	+1	22144..22584	-	146	17227521	-	all0025	-	hypothetical protein
25	 40.09	0	22723..22944	-	73	17227522	-	asl0026	-	hypothetical protein
26	 42.28	0	23018..23263	-	81	17227523	-	asl0027	-	hypothetical protein
27	 40.15	0	23449..23844	-	131	17227524	-	all0028	-	hypothetical protein
28	 42.59	0	24350..28033	+	1227	17227525	-	alr0029	-	WD-40 repeat-containing protein
29	 38.13	0	28285..30057	+	590	17227526	-	alr0030	-	hypothetical protein
30	 41.51	0	30263..31741	+	492	17227527	glgA	alr0031	-	glycogen synthase
31	 37.15	-1	31875..33290	-	471	17227528	-	all0032	-	menaquinone-specific isochorismate synthase
32	 41.61	0	33548..34477	+	309	17227529	menA	alr0033	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
33	 45.28	0	34486..35448	+	320	17227530	menC	alr0034	-	O-succinylbenzoate synthase
34	 40.91	0	35433..36884	+	483	17227531	menE	alr0035	-	O-succinylbenzoic acid--CoA ligase
35	 46.53	+1	36976..38331	-	451	17227532	murF	all0036	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2, 6-diaminopimelate--D-alanyl-D-alanine ligase
36	 37.36	-1	38535..38981	-	148	17227533	-	all0037	-	hypothetical protein
37	 43.32	0	39857..40927	+	356	17227534	rfbB	alr0038	-	dTDP-glucose 4-6-dehydratase
38	 43.49	0	40951..41826	+	291	17227535	-	alr0039	-	hypothetical protein
39	 42.34	0	41960..43492	-	510	17227536	-	all0040	-	hypothetical protein
40	 45.98	0	43542..44498	-	318	17227537	-	all0041	-	hypothetical protein
41	 43.35	0	44511..45458	-	315	17227538	-	all0042	-	hypothetical protein
42	 45.71	0	46643..46852	+	69	17227539	-	asr0043	-	hypothetical protein
43	 45.74	0	46892..47278	+	128	17227540	-	alr0044	-	hypothetical protein
44	 45.32	0	47278..47736	+	152	17227541	-	alr0045	-	hypothetical protein
45	 38.78	0	47902..48195	-	97	17227542	-	asl0046	-	hypothetical protein
46	 43.98	0	48470..50065	-	531	17227543	-	all0047	-	hypothetical protein
47	 49.01	+1	50091..50696	-	201	17227544	-	all0048	-	hypothetical protein
48	 46.43	+1	51283..53679	-	798	161353751	mutS	all0049	-	recombination and DNA strand exchange inhibitor protein
49	 38.05	0	53882..54919	-	345	17227546	-	all0050	-	hypothetical protein
50	 46.65	+1	55119..56282	+	387	17227547	-	alr0051	-	inositol-5-monophosphate dehydrogenase
51	 45.06	0	56642..56965	+	107	17227548	trxA	alr0052	-	thioredoxin
52	 43.46	0	57224..58309	+	361	17227549	-	alr0053	-	hypothetical protein
53	 46.52	+1	58472..59791	+	439	17227550	-	alr0054	-	hypothetical protein
54	 38.99	0	60168..61811	+	547	17227551	-	alr0055	-	hypothetical protein
55	 42.98	0	61836..62198	+	120	17227552	-	alr0056	-	hypothetical protein
56	 34.52	-1	62218..62385	+	55	17227553	-	asr0057	-	hypothetical protein
57	 42.50	0	62394..63419	+	341	17227554	-	alr0058	-	D-lactate dehydrogenase
58	 38.14	0	63555..65738	-	727	17227555	-	all0059	-	hypothetical protein
59	 42.71	0	66556..66843	-	95	17227556	-	asl0060	-	hypothetical protein
60	 33.57	-2	67154..67987	-	277	17227557	-	all0061	-	site-specific DNA-methyltransferase
61	 41.55	0	68148..68354	+	68	17227558	-	asr0062	-	hypothetical protein
62	 44.28	0	68534..68935	+	133	17227559	rbfA	alr0063	-	ribosome-binding factor A
63	 44.73	0	69988..70224	+	78	17227560	-	asr0064	-	hypothetical protein
64	 44.73	0	70601..70951	-	116	17227561	-	all0065	-	hypothetical protein
65	 41.83	0	71103..71702	-	199	17227562	dcd	all0066	-	deoxycytidine triphosphate deaminase
66	 43.20	0	71745..72281	-	178	17227563	-	all0067	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
67	 43.60	0	72595..73149	+	184	17227564	-	alr0068	-	adenylate kinase
68	 43.68	0	73290..74033	+	247	17227565	rph	alr0069	-	ribonuclease PH
69	 43.17	0	74146..74958	-	270	17227566	-	all0070	-	superoxide dismutase
70	 33.49	-2	75171..75794	-	207	17227567	-	all0071	-	hypothetical protein
71	 45.33	0	75965..76639	+	224	17227568	-	alr0072	-	two-component response regulator
72	 43.06	0	76760..77551	+	263	17227569	hisB	alr0073	-	imidazoleglycerol-phosphate dehydratase
73	 41.20	0	78171..79187	+	338	17227570	-	alr0074	-	hypothetical protein
74	 42.89	0	79339..80814	+	491	17227571	-	alr0075	-	hypothetical protein
75	 38.37	0	80974..81747	+	257	17227572	-	alr0076	-	hypothetical protein
76	 32.77	-2	81759..82652	+	297	17227573	-	alr0077	-	ABC transporter ATP-binding protein
77	 34.59	-1	82725..83282	+	185	17227574	-	alr0078	-	hypothetical protein
78	 43.53	0	83290..84525	+	411	17227575	-	alr0079	-	esterase
79	 40.57	0	84908..85294	+	128	17227576	-	alr0080	-	hypothetical protein
80	 43.84	0	85949..86167	+	72	17227577	-	asr0081	-	hypothetical protein
81	 48.53	+1	86231..87421	-	396	17227578	ribD	all0082	-	riboflavin biosynthesis protein
82	 37.68	-1	87523..87936	+	137	17227579	-	alr0083	-	hypothetical protein
83	 41.80	0	87929..88306	+	125	17227580	-	alr0084	-	hypothetical protein
84	 44.05	0	88561..89073	-	170	17227581	-	all0085	-	hypothetical protein
85	 44.40	0	89188..90009	-	273	17227582	mreC	all0086	-	rod shape-determining protein
86	 46.74	+1	90105..91148	-	347	17227583	mreB	all0087	-	rod shape-determining protein
87	 42.22	0	91483..91842	+	119	17227584	-	alr0088	-	single-strand DNA-binding protein
88	 46.55	+1	91903..92568	-	221	17227585	-	all0089	-	hypothetical protein
89	 41.52	0	92574..92744	-	56	17227586	-	asl0090	-	hypothetical protein
90	 46.09	0	93059..94516	+	485	17227587	-	alr0091	-	Na+/H+-exchanging protein
91	 46.66	+1	95168..97051	+	627	17227588	-	alr0092	-	N-acetylmuramoyl-L-alanine amidase
92	 45.22	0	97350..99233	+	627	17227589	-	alr0093	-	N-acetylmuramoyl-L-alanine amidase
93	 46.30	+1	99384..100262	+	292	17227590	-	alr0094	-	glutamate racemase
94	 34.76	-1	100490..100699	-	69	17227591	-	asl0095	-	hypothetical protein
95	 44.86	0	101711..102682	+	323	17227592	sds	alr0096	-	solanesyl diphosphate synthase
96	 43.59	0	102778..102933	-	51	17227593	-	asl0097	-	hypothetical protein
97	 40.61	0	103430..103594	+	54	17227594	-	asr0098	-	hypothetical protein
98	 43.43	0	103683..104663	+	326	17227595	-	alr0099	-	hypothetical protein
99	 42.37	0	104656..104832	+	58	17227596	-	asr0100	-	hypothetical protein
100	 42.99	0	104851..105627	+	258	17227597	-	alr0101	-	hypothetical protein
42.00	MEAN

4.11	STD DEV
