IslandPath Analysis: Nitrobacter hamburgensis X14

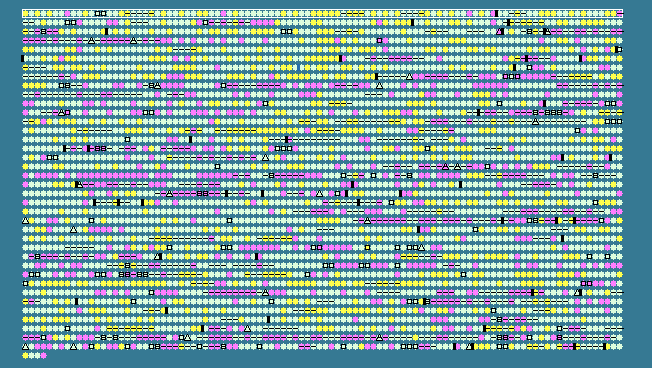

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 62.04   STD DEV: 4.09
Nitrobacter hamburgensis X14, complete genome - 1..4406967
3804 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 65.97	0	107..1534	+	475	92115634	dnaA	Nham_0001	-	chromosomal replication initiation protein
2	 63.00	0	1738..2856	+	372	92115635	-	Nham_0002	-	DNA polymerase III subunit beta
3	 70.26	+2	3021..4160	+	379	92115636	recF	Nham_0003	-	recombination protein F
4	 64.46	0	4459..6900	+	813	92115637	gyrB	Nham_0004	-	DNA gyrase subunit B
5	 65.70	0	7095..8228	-	377	92115638	-	Nham_0005	-	hypothetical protein
6	 62.19	0	8563..9120	+	185	92115639	-	Nham_0006	-	hypothetical protein
7	 61.85	0	9150..9896	-	248	92115640	-	Nham_0007	-	hypothetical protein
8	 58.25	0	9957..10241	-	94	92115641	-	Nham_0008	-	hypothetical protein
9	 65.36	0	10492..11412	+	306	92115642	-	Nham_0009	-	Pirin-like
10	 64.67	0	11419..12420	-	333	92115643	-	Nham_0010	-	PfkB
11	 65.85	0	12511..14100	+	529	92115644	-	Nham_0011	-	integral membrane protein MviN
12	 61.11	0	14196..15239	+	347	92115645	-	Nham_0012	-	tryptophanyl-tRNA synthetase
13	 61.54	0	15511..15861	+	116	92115646	-	Nham_0013	-	ISGsu3, transposase
14	 64.74	0	15896..16621	+	241	92115647	-	Nham_0014	-	transposase, IS4
15	 65.25	0	16865..17359	+	164	92115648	-	Nham_0015	-	hypothetical protein
16	 61.46	0	17538..18113	+	191	92115649	-	Nham_0016	-	nitrogen-fixing NifU-like
17	 67.73	+1	18143..19273	-	376	92115650	-	Nham_0017	-	hypothetical protein
18	 71.39	+2	19577..20275	+	232	92115651	-	Nham_0018	-	peptidase M22, glycoprotease
19	 65.22	0	20272..20754	+	160	92115652	-	Nham_0019	-	ribosomal-protein-alanine acetyltransferase
20	 60.22	0	20911..21360	+	149	92115653	-	Nham_0020	-	ferric uptake regulator family protein
21	 65.47	0	21543..22964	+	473	92115654	-	Nham_0021	-	tRNA-i(6)A37 modification enzyme MiaB
22	 65.81	0	22969..24018	+	349	92115655	-	Nham_0022	-	PhoH-like protein
23	 63.87	0	24020..24592	+	190	92115656	-	Nham_0023	-	hypothetical protein
24	 68.36	+1	24593..25717	+	374	92115657	-	Nham_0024	-	CBS:transporter-associated
25	 65.31	0	25714..27339	+	541	92115658	lnt	Nham_0025	-	apolipoprotein N-acyltransferase
26	 64.76	0	27538..27957	+	139	92115659	-	Nham_0026	-	XRE family transcriptional regulator
27	 66.93	+1	27995..28762	+	255	92115660	trmB	Nham_0027	-	tRNA (guanine-N(7))-methyltransferase
28	 64.77	0	29091..29882	+	263	92115661	-	Nham_0028	-	hypothetical protein
29	 64.87	0	29886..31496	+	536	92115662	nusA	Nham_0029	-	transcription elongation factor NusA
30	 66.67	+1	31572..32237	+	221	92115663	-	Nham_0030	-	hypothetical protein
31	 66.97	+1	32305..34911	+	868	92115664	infB	Nham_0031	-	translation initiation factor IF-2
32	 60.63	0	35047..35460	+	137	92115665	rbfA	Nham_0032	-	ribosome-binding factor A
33	 65.05	0	35466..36704	+	412	92115666	truB	Nham_0033	-	tRNA pseudouridine synthase B
34	 55.93	-1	36707..36976	+	89	92115667	rpsO	Nham_0034	-	30S ribosomal protein S15
35	 64.89	0	37219..39465	+	748	92115668	-	Nham_0035	-	polynucleotide phosphorylase/polyadenylase
36	 68.43	+1	39679..40584	-	301	92115669	-	Nham_0036	-	LysR family transcriptional regulator
37	 64.61	0	40839..43028	+	729	92115670	-	Nham_0037	-	catalase/peroxidase HPI
38	 63.99	0	43662..44258	+	198	92115671	-	Nham_0039	-	glutathione S-transferase-like
39	 65.02	0	44413..45261	-	282	92115672	-	Nham_0040	-	enoyl-(acyl carrier protein) reductase
40	 63.07	0	45427..46650	-	407	92115673	-	Nham_0041	-	3-oxoacyl-(acyl carrier protein) synthase I
41	 62.67	0	46736..47260	-	174	92115674	-	Nham_0042	-	3-hydroxydecanoyl-(acyl carrier protein) dehydratase
42	 60.64	0	48031..48528	+	165	92115675	-	Nham_0043	-	ferric uptake regulator family protein
43	 64.16	0	48625..49182	-	185	92115676	-	Nham_0044	-	hypothetical protein
44	 65.87	0	49669..50670	+	333	92115677	-	Nham_0045	-	glycolate reductase
45	 65.29	0	50818..51618	-	266	92115678	-	Nham_0046	-	UBA/THIF-type NAD/FAD binding fold
46	 67.93	+1	51840..53186	+	448	92115679	-	Nham_0047	-	peptidoglycan binding domain-containing protein
47	 65.31	0	53229..54110	-	293	92115680	-	Nham_0048	-	formamidopyrimidine-DNA glycosylase
48	 64.04	0	54202..54963	+	253	92115681	ubiE	Nham_0049	-	ubiquinone/menaquinone biosynthesis methyltransferase
49	 67.12	+1	54972..56528	+	518	92115682	-	Nham_0050	-	2-polyprenylphenol 6-hydroxylase
50	 67.08	+1	56591..58030	+	479	92115683	-	Nham_0051	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
51	 68.63	+1	58027..58485	+	152	92115684	-	Nham_0052	-	deoxyuridine 5'-triphosphate nucleotidohydrolase (dut)
52	 66.31	+1	58867..61383	+	838	92115685	-	Nham_0053	-	PAS/PAC sensor signal transduction histidine kinase
53	 67.19	+1	61380..62903	+	507	92115686	-	Nham_0054	-	hypothetical protein
54	 61.99	0	63003..63323	+	106	92115687	-	Nham_0055	-	hypothetical protein
55	 67.63	+1	63590..64312	+	240	92115688	-	Nham_0056	-	nucleotidyl transferase
56	 68.51	+1	64411..67560	+	1049	92115689	-	Nham_0057	-	hypothetical protein
57	 67.07	+1	67557..71045	+	1162	92115690	-	Nham_0058	-	UvrD/REP helicase
58	 62.93	0	71144..71464	+	106	92115691	-	Nham_0059	-	thioredoxin
59	 67.57	+1	71708..73036	-	442	92115692	-	Nham_0060	-	FolC bifunctional protein
60	 64.87	0	73033..73977	-	314	92115693	-	Nham_0061	-	acetyl-CoA carboxylase subunit beta
61	 66.79	+1	74164..75000	-	278	92115694	trpA	Nham_0062	-	tryptophan synthase subunit alpha
62	 64.66	0	74997..76241	-	414	92115695	-	Nham_0063	-	tryptophan synthase subunit beta
63	 67.26	+1	76389..77066	-	225	92115696	-	Nham_0064	-	N-(5'-phosphoribosyl)anthranilate isomerase
64	 65.23	0	77344..77691	-	115	92115697	-	Nham_0065	-	hypothetical protein
65	 59.80	0	77777..78082	-	101	92115698	ihfB	Nham_0066	-	integration host factor subunit beta
66	 64.21	0	78251..79228	-	325	92115699	-	Nham_0067	-	signal peptide peptidase SppA, 36K type
67	 67.07	+1	79411..80151	-	246	92115700	-	Nham_0068	-	CysZ-like protein
68	 67.27	+1	80250..80744	-	164	92115701	-	Nham_0069	-	hypothetical protein
69	 64.64	0	80741..81676	-	311	92115702	-	Nham_0070	-	hypothetical protein
70	 69.97	+1	81788..83302	+	504	92115703	-	Nham_0071	-	twin-arginine translocation pathway signal
71	 65.33	0	83299..83970	+	223	92115704	-	Nham_0072	-	protein of unknown function DUF71, ATP-binding region
72	 66.30	+1	84211..86664	-	817	92115705	pheT	Nham_0073	-	phenylalanyl-tRNA synthetase subunit beta
73	 63.23	0	86661..87767	-	368	92115706	pheS	Nham_0074	-	phenylalanyl-tRNA synthetase subunit alpha
74	 64.72	0	87949..88308	-	119	92115707	rplT	Nham_0075	-	50S ribosomal protein L20
75	 56.72	-1	88378..88578	-	66	92115708	rpmI	Nham_0076	-	50S ribosomal protein L35
76	 58.91	0	88906..89421	-	171	92115709	infC	Nham_0077	-	translation initiation factor IF-3
77	 70.03	+1	89676..90449	+	257	92115710	-	Nham_0078	-	hypothetical protein
78	 64.97	0	90511..92751	-	746	92115711	-	Nham_0079	-	hypothetical protein
79	 57.41	-1	93054..94781	-	575	92115712	-	Nham_0080	-	putative PAS/PAC sensor protein
80	 64.09	0	95549..96481	+	310	92115713	-	Nham_0081	-	thioredoxin-related
81	 62.37	0	96539..97213	+	224	92115714	-	Nham_0082	-	peptidase S16, lon-like
82	 61.11	0	97255..97452	+	65	92115715	-	Nham_0083	-	hypothetical protein
83	 67.11	+1	97735..99084	-	449	92115716	-	Nham_0084	-	ammonium transporter
84	 60.47	0	99122..99460	-	112	92115717	-	Nham_0085	-	nitrogen regulatory protein P-II (GlnB, GlnK)
85	 61.65	0	99872..100210	-	112	92115718	-	Nham_0086	-	nitrogen regulatory protein P-II (GlnB, GlnK)
86	 65.16	0	100358..101218	-	286	92115719	-	Nham_0087	-	acyl-CoA thioesterase II
87	 68.71	+1	101377..102597	+	406	92115720	-	Nham_0088	-	2-octaprenyl-6-methoxyphenyl hydroxylase
88	 67.30	+1	102806..104077	+	423	92115721	-	Nham_0089	-	aminotransferase, class I and II
89	 65.71	0	104090..106597	+	835	92115722	-	Nham_0090	-	cell divisionFtsK/SpoIIIE
90	 62.06	0	106840..107859	+	339	92115723	-	Nham_0091	-	outer membrane lipoprotein carrier protein LolA
91	 64.17	0	107936..108817	+	293	92115724	-	Nham_0092	-	exodeoxyribonuclease III (xth)
92	 67.11	+1	108887..109336	-	149	92115725	-	Nham_0093	-	cyclic nucleotide-binding domain-containing protein
93	 64.05	0	109421..110107	-	228	92115726	-	Nham_0094	-	two component transcriptional regulator
94	 67.60	+1	110256..110897	+	213	92115727	-	Nham_0095	-	hypothetical protein
95	 64.45	0	111017..111694	-	225	92115728	-	Nham_0096	-	hypothetical protein
96	 64.26	0	111728..112432	-	234	92115729	-	Nham_0097	-	glutathione S-transferase-like
97	 64.39	0	112586..115222	+	878	92115730	leuS	Nham_0098	-	leucyl-tRNA synthetase
98	 66.84	+1	115209..115793	+	194	92115731	-	Nham_0099	-	hypothetical protein
99	 67.54	+1	115805..116833	+	342	92115732	holA	Nham_0100	-	DNA polymerase III subunit delta
100	 49.31	-2	117041..117328	-	95	92115733	-	Nham_0101	-	excinuclease ABC subunit C
62.04	MEAN

4.09	STD DEV
