IslandPath Analysis: Nitrosomonas eutropha C91

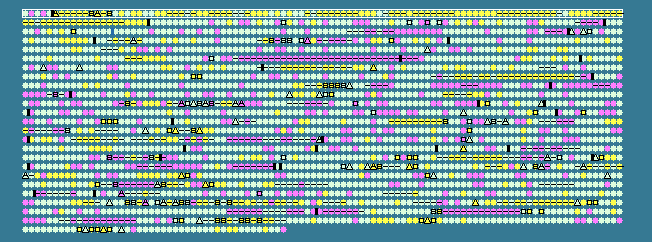

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 48.91   STD DEV: 4.81
Nitrosomonas eutropha C91, complete genome - 1..2661057
2444 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 45.72	0	35..1414	+	459	114330037	-	Neut_0001	-	chromosomal replication initiator protein DnaA
2	 43.05	-1	1619..2740	+	373	114330038	-	Neut_0002	-	DNA polymerase III, beta subunit
3	 47.20	0	2798..5227	+	809	114330039	gyrB	Neut_0003	-	DNA gyrase subunit B
4	 44.82	0	5248..5691	+	147	114330040	-	Neut_0004	-	hypothetical protein
5	 47.27	0	5747..6478	+	243	114330041	-	Neut_0005	-	pseudouridine synthase, Rsu
6	 57.55	+1	6914..8767	+	617	114330042	-	Neut_0006	-	phage integrase family protein
7	 58.67	+2	8854..9228	+	124	114330043	-	Neut_0007	-	transcriptional regulator, LysR family protein
8	 57.88	+1	9722..10381	-	219	114330044	-	Neut_0008	-	transcriptional regulator, LysR family protein
9	 56.44	+1	10750..11052	+	100	114330045	-	Neut_0009	-	transcriptional regulator, XRE family protein
10	 52.76	0	11619..12452	-	277	114330046	-	Neut_0010	-	redoxin domain-containing protein
11	 52.81	0	12740..13648	-	302	114330047	-	Neut_0011	-	transcriptional regulator, LysR family protein
12	 62.04	+2	13786..14109	+	107	114330048	-	Neut_0012	-	transposase IS3/IS911 family protein
13	 60.56	+2	14163..15014	+	283	114330049	-	Neut_0013	-	integrase catalytic subunit
14	 53.17	0	15676..17298	-	540	114330050	-	Neut_0014	-	twin-arginine translocation pathway signal
15	 58.17	+1	17925..18395	+	156	114330051	-	Neut_0016	-	transposase, IS4 family protein
16	 49.33	0	18615..20027	-	470	114330052	-	Neut_0017	-	heavy metal sensor signal transduction histidine kinase
17	 53.65	0	20033..20716	-	227	114330053	-	Neut_0018	-	two component heavy metal response transcriptional regulator, winged helix family protein
18	 48.26	0	21102..21302	-	66	114330054	-	Neut_0019	-	heavy metal transport/detoxification protein
19	 53.19	0	21966..22937	+	323	114330055	-	Neut_0020	-	BNR repeat-containing glycosyl hydrolase
20	 58.39	+1	23288..25171	+	627	114330056	-	Neut_0021	-	copper-resistance protein, CopA family protein
21	 51.55	0	26362..26910	+	182	114330057	-	Neut_0023	-	blue (type1) copper domain-containing protein
22	 48.45	0	27112..27693	+	193	114330058	-	Neut_0024	-	peptidase M23B
23	 53.29	0	27775..28260	+	161	114330059	-	Neut_0025	-	cytochrome c, class I
24	 57.65	+1	28282..30666	-	794	114330060	-	Neut_0026	-	heavy metal translocating P-type ATPase
25	 61.60	+2	32488..32724	-	78	114330061	-	Neut_0028	-	putative mercury resistance protein
26	 63.01	+2	32721..32966	-	81	114330062	-	Neut_0029	-	transcriptional regulator, MerR family protein
27	 61.80	+2	32984..34687	-	567	114330063	-	Neut_0030	-	putative mercuric reductase
28	 50.00	0	34684..34875	-	63	114330064	-	Neut_0031	-	hypothetical protein
29	 55.43	+1	34878..35153	-	91	114330065	-	Neut_0032	-	mercuric transport protein periplasmic component
30	 61.54	+2	35169..35519	-	116	114330066	-	Neut_0033	-	putative mercuric transport protein
31	 57.44	+1	35591..36067	+	158	114330067	-	Neut_0034	-	putative transcriptional regulator MerR
32	 53.91	+1	36191..36535	+	114	114330068	-	Neut_0035	-	hypothetical protein
33	 53.61	0	36832..37344	-	170	114330069	-	Neut_0036	-	blue (type1) copper domain-containing protein
34	 53.73	+1	37785..38735	-	316	114330070	-	Neut_0037	-	glycosyl transferase, group 1
35	 54.04	+1	40022..40306	+	94	114330071	-	Neut_0038	-	hypothetical protein
36	 51.46	0	40449..41783	-	444	114330072	-	Neut_0039	-	heavy metal sensor signal transduction histidine kinase
37	 51.01	0	41777..42472	-	231	114330073	-	Neut_0040	-	two component heavy metal response transcriptional regulator, winged helix family protein
38	 53.86	+1	42775..43797	-	340	114330074	-	Neut_0041	-	glycosyl transferase family protein
39	 55.68	+1	44321..44866	+	181	114330075	-	Neut_0042	-	hypothetical protein
40	 54.56	+1	44910..45842	-	310	114330076	-	Neut_0043	-	cation diffusion facilitator family transporter
41	 53.82	+1	45858..46184	+	108	114330077	-	Neut_0044	-	hypothetical protein
42	 52.24	0	46787..46987	-	66	114330078	-	Neut_0046	-	hypothetical protein
43	 53.99	+1	47236..47448	-	70	114330079	-	Neut_0047	-	hypothetical protein
44	 50.36	0	47909..48595	-	228	114330080	-	Neut_0048	-	multicopper oxidase, type 2
45	 53.53	0	49039..51375	-	778	114330081	-	Neut_0049	-	heavy metal translocating P-type ATPase
46	 51.56	0	51479..51895	-	138	114330082	-	Neut_0050	-	hypothetical protein
47	 51.67	0	51957..52436	-	159	114330083	-	Neut_0051	-	hypothetical protein
48	 53.51	0	52487..54751	-	754	114330084	-	Neut_0052	-	hypothetical protein
49	 47.03	0	54800..55288	-	162	114330085	-	Neut_0053	-	hypothetical protein
50	 53.82	+1	55436..56182	-	248	114330086	-	Neut_0054	-	cytochrome c biogenesis protein, transmembrane region
51	 58.51	+1	56862..57719	-	285	114330087	-	Neut_0056	-	tetratricopeptide domain-containing protein
52	 56.44	+1	57722..58171	-	149	114330088	-	Neut_0057	-	cytochrome C biogenesis protein
53	 52.57	0	58168..58692	-	174	114330089	-	Neut_0058	-	periplasmic protein thiol--disulphide oxidoreductase DsbE
54	 56.37	+1	58689..60650	-	653	114330090	-	Neut_0059	-	cytochrome c-type biogenesis protein CcmF
55	 55.70	+1	60656..61102	-	148	114330091	-	Neut_0060	-	CcmE/CycJ protein
56	 55.01	+1	61278..62015	-	245	114330092	-	Neut_0061	-	heme exporter protein CcmC
57	 57.60	+1	62027..62710	-	227	114330093	-	Neut_0062	-	heme exporter protein CcmB
58	 54.47	+1	62707..63321	-	204	114330094	-	Neut_0063	-	cytochrome c biogenesis protein CcmA
59	 52.66	0	63528..63884	-	118	114330095	-	Neut_0064	-	hypothetical protein
60	 52.25	0	63958..64845	-	295	114330096	-	Neut_0065	-	methyltransferase type 11
61	 51.33	0	64889..65938	-	349	114330097	-	Neut_0066	-	YVTN beta-propeller repeat-containing protein
62	 62.49	+2	66341..68854	+	837	114330098	-	Neut_0067	-	heavy metal translocating P-type ATPase
63	 53.72	0	68919..69281	+	120	114330099	-	Neut_0068	-	transcriptional regulator, MerR family protein
64	 60.34	+2	69328..71193	-	621	114330100	-	Neut_0069	-	relaxase
65	 62.82	+2	71463..71696	+	77	114330101	-	Neut_0070	-	transcriptional regulator/antitoxin, MazE
66	 53.48	0	71683..72099	+	138	114330102	-	Neut_0071	-	PilT domain-containing protein
67	 57.38	+1	72122..72487	+	121	114330103	-	Neut_0072	-	hypothetical protein
68	 59.16	+2	72484..73989	-	501	114330104	-	Neut_0073	-	hypothetical protein
69	 61.45	+2	74005..74349	-	114	114330105	-	Neut_0074	-	hypothetical protein
70	 62.59	+2	74346..75743	-	465	114330106	-	Neut_0075	-	hypothetical protein
71	 61.20	+2	75762..76694	-	310	114330107	-	Neut_0076	-	hypothetical protein
72	 60.88	+2	76691..77122	-	143	114330108	-	Neut_0077	-	hypothetical protein
73	 56.67	+1	77282..77851	-	189	114330109	-	Neut_0078	-	hypothetical protein
74	 54.76	+1	77979..78482	-	167	114330110	-	Neut_0079	-	DNA repair protein RadC
75	 60.29	+2	78680..79432	-	250	114330111	-	Neut_0080	-	hypothetical protein
76	 55.76	+1	79907..80566	-	219	114330112	-	Neut_0081	-	DSBA oxidoreductase
77	 56.00	+1	80563..81012	-	149	114330113	-	Neut_0082	-	disulphide bond formation protein DsbB
78	 58.38	+1	81058..81552	-	164	114330114	-	Neut_0083	-	hypothetical protein
79	 59.85	+2	81615..83741	-	708	114330115	-	Neut_0084	-	heavy metal translocating P-type ATPase
80	 55.95	+1	83808..84227	+	139	114330116	-	Neut_0085	-	transcriptional regulator, MerR family protein
81	 60.68	+2	84539..87430	-	963	114330117	-	Neut_0086	-	hypothetical protein
82	 64.37	+2	87430..87864	-	144	114330118	-	Neut_0087	-	putative secreted protein
83	 61.59	+2	87845..89242	-	465	114330119	-	Neut_0088	-	putative secreted protein
84	 63.90	+2	89232..90134	-	300	114330120	-	Neut_0089	-	putative secreted protein
85	 63.29	+2	90131..90811	-	226	114330121	-	Neut_0090	-	putative secreted protein
86	 62.66	+2	90808..91206	-	132	114330122	-	Neut_0091	-	hypothetical protein
87	 60.00	+2	91218..91577	-	119	114330123	-	Neut_0092	-	hypothetical protein
88	 58.12	+1	91592..91825	-	77	114330124	-	Neut_0093	-	hypothetical protein
89	 65.05	+2	91822..92193	-	123	114330125	-	Neut_0094	-	hypothetical protein
90	 52.16	0	92367..92621	+	84	114330126	-	Neut_0095	-	hypothetical protein
91	 45.95	0	92749..93477	+	242	114330127	-	Neut_0096	-	hypothetical protein
92	 56.80	+1	93530..94279	-	249	114330128	-	Neut_0097	-	hypothetical protein
93	 58.53	+1	94276..96450	-	724	114330129	-	Neut_0098	-	hypothetical protein
94	 61.51	+2	96455..96997	-	180	114330130	-	Neut_0099	-	hypothetical protein
95	 63.62	+2	96994..97584	-	196	114330131	-	Neut_0100	-	lytic transglycosylase, catalytic
96	 60.08	+2	97566..98294	-	242	114330132	-	Neut_0101	-	hypothetical protein
97	 60.98	+2	98309..98959	-	216	114330133	-	Neut_0102	-	hypothetical protein
98	 58.08	+1	98956..99537	-	193	114330134	-	Neut_0103	-	hypothetical protein
99	 56.21	+1	100122..102398	-	758	114330135	-	Neut_0104	-	helicase domain-containing protein
100	 56.73	+1	102502..102813	-	103	114330136	-	Neut_0105	-	hypothetical protein
48.91	MEAN

4.81	STD DEV
