IslandPath Analysis: Nitrosomonas europaea ATCC 19718

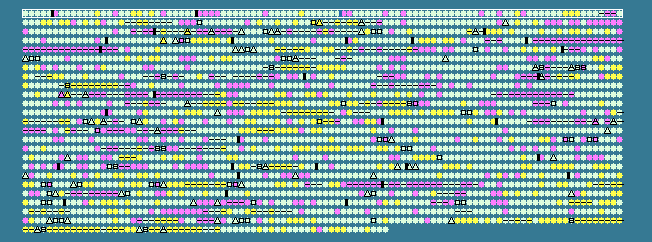

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 50.82   STD DEV: 4.40
Nitrosomonas europaea ATCC 19718, complete genome - 1..2812094
2461 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 48.84	0	211..1590	+	459	30248032	dnaA	NE0001	-	dnaA; chromosomal replication initiator protein
2	 48.66	0	1791..2912	+	373	30248033	dnaN	NE0002	-	DNA polymerase III, beta chain
3	 49.71	0	2961..5390	+	809	30248034	gyrB	NE0003	-	DNA gyrase subunit B
4	 52.93	0	5413..5856	+	147	30248035	-	NE0004	-	hypothetical protein
5	 50.27	0	5907..6638	+	243	30248036	-	NE0005	-	16S pseudouridylate synthase
6	 44.44	-1	7350..7673	+	107	30248037	fdxA	NE0006	-	7Fe ferredoxin
7	 50.28	0	7717..8076	+	119	30248038	-	NE0007	-	hypothetical protein
8	 53.13	0	8100..11564	-	1154	30248039	mfd	NE0008	-	mfd: transcription-repair coupling factor
9	 53.61	0	11591..12892	-	433	30248040	-	NE0009	-	MgtC family membrane protein
10	 53.80	0	12864..14627	-	587	30248041	recJ	NE0010	-	recJ: single-stranded-DNA-specific exonuclease
11	 50.92	0	14771..15367	-	198	30248042	cyp	NE0011	-	cytochrome P460 precursor
12	 53.53	0	15451..16371	-	306	30248043	trpC	NE0012	-	indole-3-glycerol phosphate synthase
13	 57.41	+1	16373..17398	-	341	30248044	trpD	NE0013	-	anthranilate phosphoribosyltransferase
14	 50.17	0	17395..17994	-	199	30248045	trpG	NE0014	-	anthranilate synthase component II
15	 49.40	0	18115..19614	+	499	30248046	yfhK	NE0015	-	sensory transduction histidine kinase
16	 43.09	-1	19611..20153	+	180	30248047	-	NE0016	-	hypothetical protein
17	 51.68	0	20166..21533	+	455	30248048	yfhA	NE0017	-	putative transcriptional regulator of two-component regulator protein
18	 52.24	0	21543..22748	-	401	30248049	-	NE0018	-	PDZ domain-containing protein
19	 55.50	+1	22874..26788	-	1304	30248050	purL	NE0019	-	phosphoribosylformylglycinamidine synthase
20	 57.91	+1	26860..28377	+	505	30248051	-	NE0020	-	sugar kinase
21	 51.05	0	28652..29176	+	174	30248052	-	NE0021	-	hypothetical protein
22	 55.53	+1	29244..30401	-	385	30248053	-	NE0022	-	alanine dehydrogenase
23	 49.02	0	30420..31184	-	254	30248054	xthA1	NE0023	-	exodeoxyribonuclease III:exodeoxyribonuclease III xth
24	 45.53	-1	31294..31662	+	122	30248055	-	NE0024	-	cytochrome c, class I
25	 51.74	0	31721..33127	-	468	30248056	-	NE0025	-	metallo-beta-lactamase superfamily protein
26	 52.10	0	33134..34444	-	436	30248057	bioA	NE0026	-	aminotransferase class-III pyridoxal-phosphate
27	 49.48	0	34605..34895	+	96	30248058	groES	NE0027	-	co-chaperonin GroES
28	 51.40	0	34935..36578	+	547	30248059	groEL	NE0028	-	chaperonin GroEL
29	 51.30	0	36729..37457	+	242	30248060	-	NE0029	-	short-chain dehydrogenase/reductase
30	 46.52	0	37794..39113	+	439	30248061	tig	NE0030	-	trigger factor
31	 47.29	0	39097..39741	+	214	30248062	clpP	NE0031	-	Clp protease
32	 45.67	-1	39802..41082	+	426	30248063	clpX	NE0032	-	ATP-dependent protease ATP-binding subunit
33	 46.12	-1	41193..43616	+	807	30248064	lon	NE0033	-	lon; ATP-dependent protease La protein
34	 49.26	0	43971..45188	+	405	30248065	-	NE0034	-	aminotransferase class-V
35	 49.59	0	45481..47934	+	817	30248066	-	NE0035	-	putative ATP-dependent protease LA, putative
36	 49.51	0	48009..49331	-	440	30248067	-	NE0036	-	Outer membrane efflux protein
37	 50.08	0	49394..50050	-	218	30248068	pcm	NE0037	-	pcm; protein-L-isoaspartate o-methyltransferase
38	 50.87	0	50259..52157	+	632	30248069	thiC	NE0038	-	thiamine biosynthesis protein ThiC
39	 48.18	0	52205..53026	+	273	30248070	bacA	NE0039	-	bacitracin resistance protein BacA
40	 51.88	0	53027..53479	-	150	30248071	-	NE0040	-	rhodanese/cdc25 fold
41	 45.33	-1	53561..54052	-	163	30248072	ppiB	NE0041	-	cyclophilin-type peptidyl-prolyl cis-trans isomerase
42	 47.98	0	54071..54712	-	213	30248073	ppiA	NE0042	-	cyclophilin-type peptidyl-prolyl cis-trans isomerase
43	 50.14	0	54841..56238	+	465	30248074	cysS	NE0043	-	cysteinyl-tRNA synthetase
44	 51.60	0	56251..57033	-	260	30248075	-	NE0044	-	hypothetical protein
45	 49.24	0	57039..57962	-	307	30248076	motB	NE0045	-	flagellar motor protein MotB
46	 50.06	0	58002..58862	-	286	30248077	motA	NE0046	-	flagellar motor protein MotA
47	 60.14	+2	59059..59640	+	193	30248078	-	NE0047	-	cytidine and deoxycytidylate deaminase zinc-binding region
48	 53.87	0	59943..60731	+	262	30248079	-	NE0048	-	hypothetical protein
49	 51.87	0	60731..64420	+	1229	30248080	-	NE0049	-	sensory transduction histidine kinase
50	 52.18	0	64417..65610	+	397	30248081	sucC	NE0050	-	ATP-citrate lyase/succinyl-CoA ligase:ATP-grasp domain
51	 51.03	0	65613..66488	+	291	30248082	sucD	NE0051	-	succinyl-CoA synthetase subunit alpha
52	 52.59	0	66507..66854	+	115	30248083	-	NE0052	-	hypothetical protein
53	 47.55	0	66873..68300	+	475	30248084	-	NE0053	-	D-alanyl-D-alanine carboxypeptidase
54	 45.77	-1	74631..76334	+	567	30248085	-	NE0054	-	ABC transporter transmembrane region:ABC transporter
55	 41.94	-2	76453..76998	+	181	30248086	ispZ	NE0055	-	intracellular septation protein A
56	 50.35	0	77027..78160	+	377	30248087	mutY	NE0056	-	HhH-GPD
57	 51.99	0	78153..78779	+	208	30248088	-	NE0057	-	5-formyltetrahydrofolate cyclo-ligase
58	 50.79	0	78837..79472	-	211	30248089	-	NE0058	-	aromatic acid decarboxylase
59	 50.31	0	79491..80462	-	323	30248090	-	NE0059	-	HPr kinase/phosphorylase
60	 50.11	0	80449..80919	-	156	30248091	ptsN	NE0060	-	phosphotransferase system mannitol/fructose-specific IIA domain-containing protein
61	 38.69	-2	81151..81486	-	111	30248092	-	NE0061	-	sigma 54 modulation protein / S30EA ribosomal protein
62	 49.45	0	81662..83125	-	487	30248093	rpoN1	NE0062	-	RNA polymerase sigma-54 factor family protein
63	 51.04	0	83132..83854	-	240	30248094	-	NE0063	-	ABC transporter ATPase
64	 46.60	0	83889..84506	-	205	30248095	-	NE0064	-	putative signal peptide protein
65	 47.59	0	84563..85144	-	193	30248096	-	NE0065	-	hypothetical protein
66	 52.04	0	85429..86529	+	366	30248097	nadA	NE0066	-	quinolinate synthetase
67	 50.30	0	86529..87353	+	274	30248098	-	NE0067	-	hypothetical protein
68	 53.28	0	87350..88507	+	385	30248099	-	NE0068	-	phospholipase D/transphosphatidylase
69	 53.80	0	88660..90042	+	460	30248100	pcnB	NE0069	-	poly A polymerase family protein
70	 53.22	0	90039..90551	+	170	30248101	-	NE0070	-	7,8-dihydro-6-hydroxymethylpterin-pyrophosphokinase
71	 50.39	0	90548..91192	+	214	30248102	-	NE0071	-	deoxynucleoside kinase
72	 53.21	0	91193..92002	+	269	30248103	panB	NE0072	-	ketopantoate hydroxymethyltransferase
73	 52.76	0	92026..92859	+	277	30248104	panC	NE0073	-	pantoate-beta-alanine ligase
74	 51.68	0	92896..95451	-	851	30248105	-	NE0074	-	putative alpha-glucan phosphorylase, putative
75	 48.35	0	95489..96034	-	181	30248106	-	NE0075	-	oligoribonuclease
76	 49.81	0	96161..97465	+	434	30248107	-	NE0076	-	M48 family peptidase
77	 46.20	-1	97462..97803	+	113	30248108	phhB	NE0077	-	pterin-4-alpha-carbinolamine dehydratase
78	 51.43	0	97800..98744	+	314	30248109	-	NE0078	-	putative ATP-binding protein
79	 51.30	0	98819..99280	-	153	30248110	fkpA	NE0079	-	FKBP-type peptidyl-prolyl cis-trans isomerase (PPIase)
80	 46.84	0	99423..101147	-	574	30248111	-	NE0080	-	diguanylate cyclase/phosphodiesterase
81	 50.21	0	101247..101969	-	240	30248112	-	NE0081	-	transmembrane protein
82	 52.06	0	102223..102756	+	177	30248113	-	NE0082	-	hypothetical protein
83	 55.31	+1	102770..103315	+	181	30248114	-	NE0083	-	hypothetical protein
84	 46.84	0	103482..103718	+	78	30248115	-	NE0084	-	thioredoxin
85	 51.19	0	103819..105078	-	419	30248116	-	NE0085	-	SAM-binding motif-containing protein
86	 49.31	0	105092..105817	-	241	30248117	-	NE0086	-	hypothetical protein
87	 53.24	0	105814..106446	-	210	30248118	purN	NE0087	-	phosphoribosylglycinamide formyltransferase
88	 51.94	0	106458..107516	-	352	30248119	purM	NE0088	-	phosphoribosylaminoimidazole synthetase
89	 49.86	0	107576..108634	+	352	30248120	-	NE0089	-	hypothetical protein
90	 52.27	0	108767..112162	-	1131	30248121	-	NE0090	-	guanylate cyclase
91	 55.11	0	112455..114539	-	694	30248122	-	NE0091	-	universal stress protein
92	 55.56	+1	114744..115454	-	236	30248123	-	NE0092	-	hypothetical protein
93	 57.64	+1	115940..120313	-	1457	30248124	-	NE0093	-	recQ; ATP-dependent DNA helicase
94	 53.01	0	121762..123321	-	519	30248125	guaA	NE0094	-	bifunctional GMP synthase/glutamine amidotransferase protein
95	 52.19	0	123333..124796	-	487	30248126	guaB	NE0095	-	guaB; inosine-5'-monophosphate dehydrogenase oxidoreductase protein
96	 48.76	0	124910..125272	-	120	30248127	-	NE0096	-	hypothetical protein
97	 47.60	0	125318..125983	-	221	30248128	-	NE0097	-	HAD family hydrolase
98	 47.06	0	126117..126779	-	220	30248129	-	NE0098	-	hypothetical protein
99	 40.20	-2	126918..128096	-	392	30248130	-	NE0099	-	hypothetical protein
100	 54.27	0	128125..129399	-	424	30248131	-	NE0100	-	general substrate transporters
50.82	MEAN

4.40	STD DEV
