IslandPathversion 1.0

IslandPath Analysis: Neisseria meningitidis FAM18

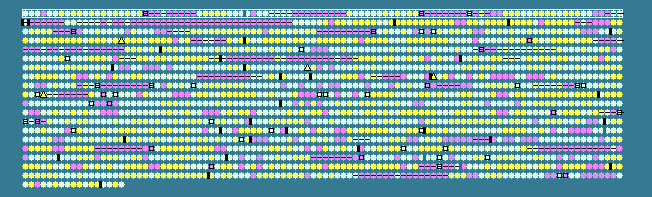

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 51.80 STD DEV: 7.07
Neisseria meningitidis FAM18, complete genome - 1..2194961
1917 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 53.79	0	1261..2184	-	307	121633902	lpxC	NMC0001	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
2	 52.73	0	3675..4040	-	121	121633903	pilS2	NMC0003	-	truncated pilin
3	 54.55	0	4069..4398	-	109	121633904	fbp	NMC0004	-	peptidyl-prolyl cis-trans isomerase
4	 47.95	0	4476..4694	-	72	121633905	-	NMC0005	-	hypothetical protein
5	 55.03	0	4816..5769	+	317	121633906	-	NMC0006	-	glycerate dehydrogenase
6	 53.98	0	5843..7900	-	685	121633907	metG	NMC0007	-	methionyl-tRNA synthetase
7	 57.86	0	8016..9854	-	612	121633908	glmS	NMC0008	-	D-fructose-6-phosphate amidotransferase
8	 49.90	0	10290..10808	+	172	121633909	-	NMC0009	-	putative lipoprotein
9	 58.82	0	11226..12551	-	441	121633910	gna33	NMC0010	-	outer membrane lipoprotein Gna33
10	 55.48	0	12763..13602	+	279	121633911	-	NMC0011	-	putative integral membrane protein
11	 53.73	0	13599..14765	+	388	121633912	-	NMC0012	-	hypothetical protein
12	 58.61	0	15029..16294	+	421	121633913	-	NMC0013	-	hypothetical protein
13	 52.42	0	16366..16695	-	109	121633914	phnA	NMC0014	-	putative phosphonoacetate hydrolase
14	 56.38	0	16772..18142	-	456	121633915	glmU	NMC0015	-	UDP-N-acetylglucosamine pyrophosphorylase
15	 55.11	0	18197..19174	-	325	121633916	-	NMC0016	-	hypothetical protein
16	 59.68	+1	19233..20234	+	333	121633917	tbpA	NMC0017	-	putative solute-binding periplasmic protein
17	 53.24	0	20328..21176	+	282	121633918	-	NMC0018	-	putative inner membrane protein
18	 61.32	+1	21203..21688	+	161	121633919	-	NMC0019	-	hypothetical protein
19	 54.62	0	21790..23358	-	522	121633920	pilB	NMC0020	-	peptide methionine sulfoxide reductase
20	 55.92	0	23503..24768	+	421	121633921	pilA	NMC0021	-	signal recognition particle protein
21	 39.29	-1	25628..26584	-	318	121633922	-	NMC0022	-	putative transposase
22	 44.70	-1	26799..27986	-	395	121633923	-	NMC0023	-	hypothetical protein
23	 44.91	0	27987..28271	-	94	121633924	-	NMC0024	-	putative inner membrane protein
24	 48.33	0	28574..30133	-	519	121633925	-	NMC0025	-	TspB protein
25	 42.90	-1	30552..30854	-	100	121633926	-	NMC0027	-	putative inner membrane protein
26	 45.89	0	30882..31112	-	76	121633927	-	NMC0028	-	putative periplasmic protein
27	 36.32	-2	31339..31539	-	66	121633928	-	NMC0029	-	hypothetical protein
28	 41.03	-1	31543..31854	-	103	121633929	-	NMC0030	-	hypothetical protein
29	 40.45	-1	31875..33083	-	402	121633930	-	NMC0031	-	hypothetical protein
30	 50.11	0	34401..37547	+	1048	121633931	pilC	NMC0033	-	pilus assembly protein PilC
31	 59.93	+1	38697..40847	-	716	121633932	-	NMC0034	-	putative inner membrane protein
32	 55.91	0	41133..42359	-	408	121633933	pilU	NMC0035	-	PilT-like protein
33	 57.09	0	42522..43565	-	347	121633934	pilT	NMC0036	-	putative pilus retraction protein
34	 56.48	0	43685..44371	+	228	121633935	-	NMC0037	-	hypothetical protein
35	 51.96	0	44371..44778	+	135	121633936	-	NMC0038	-	putative lipoprotein
36	 54.04	0	44827..45618	+	263	121633937	proC	NMC0039	-	pyrroline-5-carboxylate reductase
37	 50.12	0	45765..46181	+	138	121633938	dksA	NMC0040	-	DnaK suppressor protein
38	 54.62	0	51981..52445	+	154	121633939	-	NMC0041	-	putative DNA transport competence protein
39	 40.12	-1	52506..52667	-	53	121633940	-	NMC0042	-	hypothetical protein
40	 53.12	0	52714..53835	+	373	121633941	dnaJ	NMC0043	-	DnaJ protein
41	 54.88	0	54031..56049	+	672	121633942	-	NMC0044	-	putative inner membrane transport protein
42	 52.18	0	56093..56665	-	190	121633943	rfbC	NMC0045	-	dTDP-4-dehydrorhamnose 3,5-epimerase
43	 52.94	0	56704..57570	-	288	121633944	rfbA	NMC0046	-	glucose-1-phosphate thymidylyltransferase
44	 54.12	0	57633..58700	-	355	121633945	rfbB	NMC0047	-	dTDP-glucose 4,6-dehydratase
45	 50.59	0	58816..59835	-	339	121633946	galE	NMC0048	-	UDP-glucose 4-epimerase
46	 28.78	-2	61225..62607	-	460	121633947	-	NMC0050	-	hypothetical protein
47	 31.51	-2	62636..64114	-	492	121633948	-	NMC0051	-	alpha-2,9-polysialyltransferase
48	 40.95	-1	64194..65243	-	349	121633949	siaC	NMC0052	-	N-acetylneuraminic acid synthetase
49	 40.17	-1	65244..65930	-	228	121633950	siaB	NMC0053	-	acylneuraminate cytidylyltransferase
50	 38.10	-1	65934..67067	-	377	121633951	sacA	NMC0054	-	N-acetylglucosamine-6-phosphate 2-epimerase
51	 46.68	0	67202..68377	+	391	121633952	ctrA	NMC0055	-	capsule polysaccharide export outer membrane protein
52	 46.99	0	68392..69555	+	387	121633953	ctrB	NMC0056	-	capsule polysaccharide export inner-membrane protein
53	 42.73	-1	69555..70352	+	265	121633954	ctrC	NMC0057	-	capsule polysaccharide export inner-membrane protein
54	 46.54	0	70349..70999	+	216	121633955	ctrD	NMC0058	-	capsule polysaccharide export ATP-binding protein CtrD
55	 58.72	0	71060..73336	+	758	121633956	-	NMC0059	-	putative transcriptional accessory protein
56	 54.12	0	75521..76588	+	355	121633957	rfbB2	NMC0063	-	dTDP-glucose 4,6-dehydratase
57	 52.94	0	76651..77517	+	288	121633958	rfbA2	NMC0064	-	glucose-1-phosphate thymidylyltransferase
58	 51.35	0	77556..78110	+	184	121633959	rfbC2	NMC0065	-	dTDP-D-glucose 4,6-dehydratase
59	 51.77	0	78134..80248	+	704	121633960	lipA	NMC0066	-	capsule polysaccharide modification protein
60	 48.73	0	80385..81644	+	419	121633961	lipB	NMC0067	-	capsule polysaccharide modification protein
61	 57.50	0	82013..83419	+	468	121633962	-	NMC0068	-	hypothetical protein
62	 53.09	0	83637..84851	+	404	121633963	gltS	NMC0069	-	sodium/glutamate symport carrier protein
63	 57.33	0	84950..85966	+	338	121633964	-	NMC0071	-	putative lipoprotein
64	 51.52	0	85977..86174	+	65	121633965	-	NMC0072	-	hypothetical protein
65	 56.46	0	86600..88000	-	466	121633966	-	NMC0073	-	putative outer membrane transport protein
66	 59.95	+1	88308..89780	-	490	121633967	pykA	NMC0074	-	pyruvate kinase
67	 41.52	-1	90041..90370	+	109	121633968	-	NMC0075	-	IS1016 transposase, partial CDS
68	 38.40	-1	91332..91568	+	78	121633969	-	NMC0080	-	hypothetical protein
69	 34.21	-2	91562..91789	+	75	121633970	-	NMC0081	-	hypothetical protein
70	 22.75	-2	92161..92349	+	62	121633971	-	NMC0083	-	putative inner membrane protein
71	 47.06	0	92356..92508	+	50	121633972	-	NMC0083A	-	hypothetical protein
72	 26.81	-2	92609..92746	+	45	121633973	-	NMC0084	-	putative inner membrane protein
73	 37.44	-2	92791..94056	+	421	121633974	-	NMC0085	-	putative protein export protein
74	 34.29	-2	94059..96146	+	695	121633975	-	NMC0086	-	putative protein export protein
75	 53.87	0	96416..97423	+	335	121633976	-	NMC0088	-	putative IS1106 transposase
76	 34.69	-2	97605..97751	-	48	121633977	-	NMC0089	-	hypothetical protein
77	 58.88	+1	98556..99107	+	183	121633978	-	NMC0092	-	putative inner membrane protein
78	 37.73	-1	99384..100043	-	219	121633979	-	NMC0093	-	putative periplasmic peptidase (bacteriocin resistance)
79	 22.36	-2	100024..100260	-	78	121633980	-	NMC0094	-	putative inner membrane protein
80	 39.35	-1	100382..101057	-	224	121633981	-	NMC0095	-	hypothetical protein
81	 58.49	0	101184..101342	-	52	121633982	-	NMC0096	-	putative lipoprotein
82	 57.77	0	101339..102181	-	280	121633983	-	NMC0097	-	hypothetical protein
83	 56.79	0	102420..103340	+	306	121633984	pyrB	NMC0098	-	aspartate carbamoyltransferase catalytic subunit
84	 55.12	0	103350..103808	+	152	121633985	pyrI	NMC0099	-	aspartate carbamoyltransferase regulatory subunit
85	 52.85	0	103873..104538	+	221	121633986	-	NMC0100	-	putative inner membrane protein
86	 56.24	0	104601..105818	-	405	121633987	-	NMC0101	-	hypothetical protein
87	 55.75	0	106002..106505	+	167	121633988	def	NMC0102	-	peptide deformylase
88	 59.65	+1	106592..107518	+	308	121633989	fmt	NMC0103	-	methionyl-tRNA formyltransferase
89	 57.94	0	107597..108856	+	419	121633990	-	NMC0104	-	SUN-family protein
90	 54.67	0	108822..109421	+	199	121633991	-	NMC0105	-	hypothetical protein
91	 56.80	0	109421..111538	+	705	121633992	-	NMC0106	-	putative two-component sensor kinase
92	 56.65	0	111531..112808	+	425	121633993	-	NMC0107	-	putative two-component trancriptional regulator
93	 60.22	+1	112899..114092	+	397	121633994	smf	NMC0108	-	SMF-family protein
94	 53.25	0	114118..114579	+	153	121633995	-	NMC0109	-	SMG-family protein
95	 53.06	0	114651..116957	+	768	121633996	topA	NMC0110	-	DNA topoisomerase I
96	 44.54	-1	117030..117725	-	231	121633997	-	NMC0111	-	hypothetical protein
97	 33.45	-2	117745..118297	-	183	121633998	-	NMC0112	-	putative inner membrane protein
98	 46.03	0	118416..118793	+	125	121633999	-	NMC0113	-	hypothetical protein
99	 53.86	0	118882..119451	+	189	121634000	-	NMC0114	-	hypothetical protein
100	 49.60	0	119574..119825	+	83	121634001	-	NMC0115	-	putative ferredoxin
51.80	MEAN

7.07	STD DEV
