IslandPath Analysis: Mycobacterium vanbaalenii PYR-1

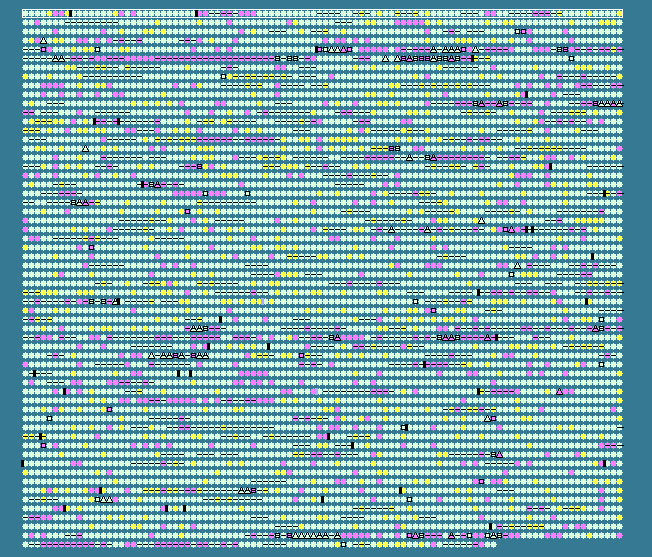

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 67.94   STD DEV: 3.09
Mycobacterium vanbaalenii PYR-1, complete genome - 1..6491865
5979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 64.65	-1	249..1733	+	494	120401029	dnaA	Mvan_0001	-	chromosomal replication initiation protein
2	 66.83	0	2309..3505	+	398	120401030	-	Mvan_0002	-	DNA polymerase III subunit beta
3	 64.88	0	3537..4430	+	297	120401031	-	Mvan_0003	-	6-phosphogluconate dehydrogenase-like protein
4	 66.32	0	4444..5604	+	386	120401032	recF	Mvan_0004	-	recombination protein F
5	 72.76	+1	5601..6158	+	185	120401033	-	Mvan_0005	-	hypothetical protein
6	 64.20	-1	6390..8417	+	675	120401034	gyrB	Mvan_0006	-	DNA gyrase subunit B
7	 64.40	-1	8449..12237	+	1262	120401035	-	Mvan_0007	-	DNA gyrase, A subunit
8	 72.19	+1	12238..13143	+	301	120401036	-	Mvan_0008	-	hypothetical protein
9	 69.23	0	13523..13717	-	64	120401037	-	Mvan_0009	-	hypothetical protein
10	 69.38	0	13823..14485	-	220	120401038	-	Mvan_0010	-	two component LuxR family transcriptional regulator
11	 69.91	0	14567..15862	+	431	120401039	-	Mvan_0011	-	integral membrane sensor signal transduction histidine kinase
12	 66.98	0	16015..17283	+	422	120401040	-	Mvan_0012	-	cytochrome P450
13	 67.83	0	17306..18424	+	372	120401041	-	Mvan_0013	-	alcohol dehydrogenase
14	 68.58	0	18488..20005	+	505	120401042	-	Mvan_0014	-	betaine-aldehyde dehydrogenase
15	 66.54	0	20015..21550	+	511	120401043	-	Mvan_0015	-	acyl-CoA synthetase
16	 71.72	+1	21673..22107	-	144	120401044	-	Mvan_0016	-	hypothetical protein
17	 64.18	-1	22179..22742	+	187	120401045	-	Mvan_0017	-	peptidylprolyl isomerase
18	 66.67	0	22791..23213	-	140	120401046	-	Mvan_0018	-	hypothetical protein
19	 59.93	-2	23369..23650	-	93	120401047	-	Mvan_0019	-	putative septation inhibitor protein
20	 69.11	0	23716..24534	+	272	120401048	-	Mvan_0020	-	hypothetical protein
21	 69.99	0	24746..25918	+	390	120401049	-	Mvan_0021	-	hypothetical protein
22	 67.11	0	25953..26627	+	224	120401050	-	Mvan_0022	-	para-aminobenzoate synthase component II
23	 69.38	0	26605..28482	-	625	120401051	-	Mvan_0023	-	protein kinase
24	 70.61	0	28479..29771	-	430	120401052	-	Mvan_0024	-	protein kinase
25	 68.56	0	29875..31350	-	491	120401053	-	Mvan_0025	-	penicillin-binding protein, transpeptidase
26	 65.04	0	31347..32759	-	470	120401054	-	Mvan_0026	-	cell cycle protein
27	 70.27	0	32756..34309	-	517	120401055	-	Mvan_0027	-	protein phosphatase 2C domain-containing protein
28	 66.07	0	34306..34812	-	168	120401056	-	Mvan_0028	-	FHA domain-containing protein
29	 69.71	0	34934..36346	-	470	120401057	-	Mvan_0029	-	FHA domain-containing protein
30	 62.90	-1	36837..37739	-	300	120401058	-	Mvan_0030	-	hypothetical protein
31	 62.89	-1	37736..38185	-	149	120401059	-	Mvan_0031	-	hypothetical protein
32	 64.84	-1	38210..39631	-	473	120401060	-	Mvan_0032	-	Fis family transcriptional regulator
33	 68.01	0	39801..41663	+	620	120401061	-	Mvan_0033	-	hypothetical protein
34	 63.55	-1	41676..43310	+	544	120401062	-	Mvan_0034	-	N-6 DNA methylase
35	 58.60	-2	43303..44505	+	400	120401063	-	Mvan_0035	-	hypothetical protein
36	 65.84	0	44554..45648	+	364	120401064	-	Mvan_0036	-	hypothetical protein
37	 63.59	-1	45645..48830	+	1061	120401065	-	Mvan_0037	-	HsdR family type I site-specific deoxyribonuclease
38	 60.98	-2	49139..49930	-	263	120401066	-	Mvan_0038	-	excinuclease ABC subunit C
39	 62.72	-1	50159..50842	-	227	120401067	-	Mvan_0039	-	hypothetical protein
40	 68.65	0	51521..52831	+	436	120401068	-	Mvan_0040	-	hypothetical protein
41	 66.53	0	52968..54452	-	494	120401069	-	Mvan_0041	-	hypothetical protein
42	 69.71	0	54714..56093	-	459	120401070	-	Mvan_0042	-	purine catabolism PurC domain-containing protein
43	 67.42	0	56236..57687	+	483	120401071	-	Mvan_0043	-	amino acid permease-associated region
44	 71.28	+1	57680..58372	+	230	120401072	-	Mvan_0044	-	short-chain dehydrogenase/reductase SDR
45	 69.80	0	58369..59133	+	254	120401073	-	Mvan_0045	-	short-chain dehydrogenase/reductase SDR
46	 69.88	0	59149..60114	+	321	120401074	-	Mvan_0046	-	putative agmatinase
47	 68.51	0	60111..60977	+	288	120401075	-	Mvan_0047	-	polysaccharide deacetylase
48	 68.32	0	60981..61526	-	181	120401076	-	Mvan_0048	-	hypothetical protein
49	 69.32	0	61510..63393	-	627	120401077	-	Mvan_0049	-	hypothetical protein
50	 68.44	0	63451..63675	-	74	120401078	-	Mvan_0050	-	hypothetical protein
51	 69.06	0	63824..65200	-	458	120401079	-	Mvan_0051	-	magnesium transporter
52	 68.80	0	65387..66511	+	374	120401080	-	Mvan_0052	-	hypothetical protein
53	 70.29	0	66641..67330	-	229	120401081	-	Mvan_0053	-	hydrolase
54	 71.33	+1	67327..68442	-	371	120401082	-	Mvan_0054	-	FAD dependent oxidoreductase
55	 70.33	0	68533..69078	+	181	120401083	-	Mvan_0055	-	HD phosphohydrolase-like
56	 67.67	0	69075..69773	+	232	120401084	-	Mvan_0056	-	UbiC transcription regulator-associated domain-containing protein
57	 72.11	+1	69811..70416	+	201	120401085	-	Mvan_0057	-	hypothetical protein
58	 66.67	0	70432..70644	-	70	120401086	-	Mvan_0058	-	hypothetical protein
59	 64.66	-1	70740..71237	+	165	120401087	-	Mvan_0059	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
60	 71.75	+1	71234..72040	-	268	120401088	-	Mvan_0060	-	hypothetical protein
61	 65.79	0	72059..72400	-	113	120401089	-	Mvan_0061	-	hypothetical protein
62	 71.12	+1	72409..73374	-	321	120401090	-	Mvan_0062	-	pirin domain-containing protein
63	 75.97	+2	73415..73801	-	128	120401091	-	Mvan_0063	-	hypothetical protein
64	 64.84	-1	73869..74306	-	145	120401092	-	Mvan_0064	-	hypothetical protein
65	 67.41	0	74390..74659	+	89	120401093	-	Mvan_0065	-	hypothetical protein
66	 71.92	+1	74652..76211	+	519	120401094	-	Mvan_0066	-	propionyl-CoA carboxylase
67	 68.71	0	76386..76679	-	97	120401095	-	Mvan_0067	-	transcription factor WhiB
68	 72.20	+1	77024..77764	+	246	120401096	-	Mvan_0068	-	hypothetical protein
69	 70.08	0	77748..78920	-	390	120401097	-	Mvan_0069	-	hypothetical protein
70	 68.08	0	79338..80189	+	283	120401098	-	Mvan_0070	-	hypothetical protein
71	 67.46	0	80207..80713	+	168	120401099	-	Mvan_0071	-	hypothetical protein
72	 67.36	0	80710..82434	+	574	120401100	-	Mvan_0072	-	ATPase central domain-containing protein
73	 68.68	0	82438..83925	+	495	120401101	-	Mvan_0073	-	hypothetical protein
74	 67.16	0	83922..86144	+	740	120401102	-	Mvan_0074	-	cell divisionFtsK/SpoIIIE
75	 67.23	0	86144..87904	+	586	120401103	-	Mvan_0075	-	cell divisionFtsK/SpoIIIE
76	 69.02	0	88073..88369	+	98	120401104	-	Mvan_0076	-	PE-like protein
77	 68.18	0	88399..89718	+	439	120401105	-	Mvan_0077	-	PPE protein
78	 64.38	-1	89821..90126	+	101	120401106	-	Mvan_0078	-	10 kDa culture filtrate antigen LHP (CFP10)
79	 63.12	-1	90169..90450	+	93	120401107	-	Mvan_0079	-	6 kDa early secretory antigenic target EsaT6 (EsaT-6)
80	 67.91	0	90551..91918	+	455	120401108	-	Mvan_0080	-	hypothetical protein
81	 66.80	0	91915..93441	+	508	120401109	-	Mvan_0081	-	hypothetical protein
82	 68.19	0	93451..94170	+	239	120401110	-	Mvan_0082	-	hypothetical protein
83	 68.91	0	94167..94478	+	103	120401111	-	Mvan_0083	-	hypothetical protein
84	 69.65	0	94479..95549	-	356	120401112	-	Mvan_0084	-	hypothetical protein
85	 66.62	0	95565..97766	-	733	120401113	-	Mvan_0085	-	hypothetical protein
86	 59.46	-2	97769..98962	-	397	120401114	-	Mvan_0086	-	hypothetical protein
87	 61.20	-2	99179..99544	-	121	120401115	-	Mvan_0087	-	hypothetical protein
88	 62.56	-1	99755..101167	-	470	120401116	-	Mvan_0088	-	hypothetical protein
89	 64.64	-1	101172..101516	-	114	120401117	-	Mvan_0089	-	hypothetical protein
90	 71.96	+1	101516..103141	-	541	120401118	-	Mvan_0090	-	hypothetical protein
91	 68.31	0	103173..104570	-	465	120401119	-	Mvan_0091	-	hypothetical protein
92	 69.41	0	104567..105913	-	448	120401120	-	Mvan_0092	-	peptidase S8 and S53, subtilisin, kexin, sedolisin
93	 70.16	0	106149..106406	-	85	120401121	-	Mvan_0093	-	phosphotransferase system, phosphocarrier protein HPr
94	 70.02	0	106439..108409	-	656	120401122	-	Mvan_0094	-	PTS system, fructose subfamily, IIC subunit
95	 72.49	+1	108433..109410	-	325	120401123	-	Mvan_0095	-	ribokinase-like domain-containing protein
96	 70.26	0	109407..110186	-	259	120401124	-	Mvan_0096	-	DeoR family transcriptional regulator
97	 71.13	+1	110199..111989	+	596	120401125	-	Mvan_0097	-	phosphoenolpyruvate-protein phosphotransferase
98	 70.42	0	111986..112225	-	79	120401126	-	Mvan_0098	-	hypothetical protein
99	 69.54	0	112316..113290	+	324	120401127	-	Mvan_0099	-	pirin domain-containing protein
100	 72.30	+1	113294..115441	-	715	120401128	-	Mvan_0100	-	membrane protein-like protein
67.94	MEAN

3.09	STD DEV
