IslandPath Analysis: Mycobacterium tuberculosis H37Rv

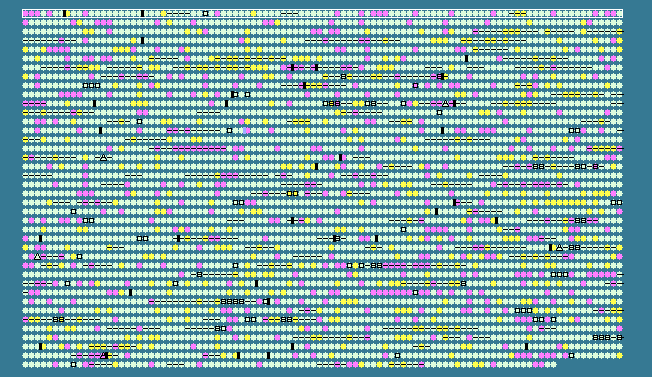

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 65.47   STD DEV: 3.39
Mycobacterium tuberculosis H37Rv, complete genome - 1..4411532
3989 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 58.92	-1	1..1524	+	507	15607143	dnaA	Rv0001	-	chromosomal replication initiation protein
2	 59.97	-1	2052..3260	+	402	15607144	dnaN	Rv0002	-	DNA polymerase III subunit beta
3	 59.93	-1	3280..4437	+	385	15607145	recF	Rv0003	-	recombination protein F
4	 66.13	0	4434..4997	+	187	15607146	-	Rv0004	-	hypothetical protein
5	 60.28	-1	5123..7267	+	714	15607147	gyrB	Rv0005	-	DNA gyrase subunit B
6	 63.89	0	7302..9818	+	838	15607148	gyrA	Rv0006	-	DNA gyrase subunit A
7	 68.20	0	9914..10828	+	304	15607149	-	Rv0007	-	hypothetical protein
8	 70.78	+1	11874..12311	-	145	15607150	-	Rv0008c	-	hypothetical protein
9	 62.48	0	12468..13016	+	182	15607151	ppiA	Rv0009	-	iron-regulated peptidyl-prolyl cis-trans isomerase A
10	 62.44	0	13133..13558	-	141	15607152	-	Rv0010c	-	hypothetical protein
11	 56.38	-2	13714..13995	-	93	15607153	-	Rv0011c	-	putative septation inhibitor protein
12	 64.77	0	14089..14877	+	262	15607154	-	Rv0012	-	hypothetical protein
13	 63.95	0	14914..15612	+	232	57116682	trpG	Rv0013	-	para-aminobenzoate synthase component II
14	 63.26	0	15590..17470	-	626	15607156	pknB	Rv0014c	-	transmembrane serine/threonine-protein kinase B PKNB (protein kinase B) (STPK B)
15	 67.67	0	17467..18762	-	431	15607157	pknA	Rv0015c	-	transmembrane serine/threonine-protein kinase A PKNA (protein kinase A) (STPK A)
16	 64.50	0	18759..20234	-	491	15607158	pbpA	Rv0016c	-	penicillin-binding protein PbpA
17	 62.13	0	20231..21640	-	469	15607159	rodA	Rv0017c	-	cell division protein RodA
18	 67.57	0	21637..23181	-	514	15607160	ppp	Rv0018c	-	serine/threonine phosphatase
19	 63.03	0	23270..23737	-	155	15607161	-	Rv0019c	-	hypothetical protein
20	 66.35	0	23861..25444	-	527	15607162	TB39.8	Rv0020c	-	hypothetical protein
21	 66.05	0	25913..26881	-	322	15607163	-	Rv0021c	-	hypothetical protein
22	 68.33	0	27023..27442	-	139	15607164	whiB5	Rv0022c	-	transcriptional regulatory protein WHIB-like WHIB5
23	 67.32	0	27595..28365	+	256	15607165	-	Rv0023	-	transcriptional regulatory protein
24	 69.03	+1	28362..29207	+	281	15607166	-	Rv0024	-	putative secreted protein P60-related protein
25	 65.29	0	29245..29607	+	120	15607167	-	Rv0025	-	hypothetical protein
26	 65.11	0	29722..31068	+	448	15607168	-	Rv0026	-	hypothetical protein
27	 62.89	0	31189..31506	+	105	15607169	-	Rv0027	-	hypothetical protein
28	 63.73	0	31514..31819	+	101	15607170	-	Rv0028	-	hypothetical protein
29	 66.12	0	32057..33154	+	365	15607171	-	Rv0029	-	hypothetical protein
30	 65.45	0	33224..33553	+	109	15607172	-	Rv0030	-	hypothetical protein
31	 66.67	0	33582..33794	+	70	15607173	-	Rv0031	-	remnant of A transposase
32	 62.05	-1	34295..36610	+	771	15607174	bioF2	Rv0032	-	8-amino-7-oxononanoate synthase BioF2
33	 56.82	-2	36607..36870	+	87	15607175	acpA	Rv0033	-	acyl carrier protein AcpA
34	 65.66	0	36867..37262	+	131	15607176	-	Rv0034	-	hypothetical protein
35	 63.59	0	37259..38947	+	562	57116683	fadD34	Rv0035	-	fatty-acid-CoA ligase
36	 68.73	0	39056..39829	-	257	15607178	-	Rv0036c	-	hypothetical protein
37	 67.72	0	39877..41202	-	441	15607179	-	Rv0037c	-	integral membrane protein
38	 65.35	0	41304..41912	+	202	15607180	-	Rv0038	-	hypothetical protein
39	 71.84	+1	42004..42351	-	115	15607181	-	Rv0039c	-	transmembrane protein
40	 67.52	0	42433..43365	-	310	57116684	mtc28	Rv0040c	-	secreted proline rich protein MTC28 (proline rich 28 kDa antigen)
41	 62.96	0	43562..46471	+	969	15607183	leuS	Rv0041	-	leucyl-tRNA synthetase
42	 63.80	0	46581..47207	-	208	15607184	-	Rv0042c	-	MarR family transcriptional regulator
43	 63.67	0	47366..48100	-	244	15607185	-	Rv0043c	-	GntR family transcriptional regulator
44	 66.54	0	48233..49027	-	264	15607186	-	Rv0044c	-	oxidoreductase
45	 67.11	0	49043..49939	-	298	15607187	-	Rv0045c	-	hydrolase
46	 63.95	0	50021..51124	-	367	15607188	ino1	Rv0046c	-	myo-inositol-1-phosphate synthase INO1 (inositol 1-phosphate synthetase) (D-glucose 6-phosphate cycloaldolase) (glucose 6-phosphate cyclase) (glucocycloaldolase)
47	 66.48	0	51185..51727	-	180	15607189	-	Rv0047c	-	hypothetical protein
48	 65.86	0	51828..52697	-	289	15607190	-	Rv0048c	-	hypothetical protein
49	 66.67	0	52831..53244	+	137	15607191	-	Rv0049	-	hypothetical protein
50	 63.33	0	53663..55699	+	678	57116685	ponA1	Rv0050	-	bifunctional penicillin-binding protein 1A/1B
51	 64.53	0	55696..57378	+	560	15607193	-	Rv0051	-	transmembrane protein
52	 65.96	0	57410..57973	+	187	15607194	-	Rv0052	-	hypothetical protein
53	 60.14	-1	58192..58482	+	96	15607195	rpsF	Rv0053	-	30S ribosomal protein S6
54	 66.67	0	58586..59080	+	164	15607196	ssb	Rv0054	-	single-strand DNA-binding protein
55	 64.71	0	59122..59376	+	84	57116686	rpsR	Rv0055	-	30S ribosomal protein S18
56	 62.09	0	59409..59867	+	152	15607198	rplI	Rv0056	-	50S ribosomal protein L9
57	 60.73	-1	59896..60417	+	173	15607199	-	Rv0057	-	hypothetical protein
58	 62.82	0	60396..63020	+	874	15607200	dnaB	Rv0058	-	replicative DNA helicase
59	 61.90	-1	63200..63892	+	230	15607201	-	Rv0059	-	hypothetical protein
60	 60.06	-1	63909..64967	+	352	15607202	-	Rv0060	-	hypothetical protein
61	 61.74	-1	64991..65416	+	141	15607203	-	Rv0061	-	hypothetical protein
62	 68.24	0	65552..66694	+	380	57116687	celA1	Rv0062	-	endo-1,4-beta-glucanase
63	 67.22	0	66923..68362	+	479	15607205	-	Rv0063	-	oxidoreductase
64	 63.67	0	68620..71559	+	979	15607206	-	Rv0064	-	hypothetical protein
65	 62.44	0	71821..72222	+	133	15607207	-	Rv0065	-	hypothetical protein
66	 61.80	-1	72274..74511	-	745	15607208	icd2	Rv0066c	-	isocitrate dehydrogenase [NADP]
67	 65.09	0	74629..75198	-	189	15607209	-	Rv0067c	-	TetR family transcriptional regulator
68	 65.79	0	75301..76212	+	303	15607210	-	Rv0068	-	short chain dehydrogenase
69	 65.08	0	76237..77622	-	461	15607211	sdaA	Rv0069c	-	L-serine dehydratase SdaA
70	 66.12	0	77619..78896	-	425	15607212	glyA2	Rv0070c	-	serine hydroxymethyltransferase
71	 64.69	0	79486..80193	+	235	15607213	-	Rv0071	-	maturase
72	 61.71	-1	80624..81673	+	349	15607214	-	Rv0072	-	glutamine-transport transmembrane protein ABC transporter
73	 62.64	0	81676..82668	+	330	15607215	-	Rv0073	-	glutamine-transport ATP-binding protein ABC transporter
74	 66.02	0	82748..83983	+	411	15607216	-	Rv0074	-	hypothetical protein
75	 64.11	0	83996..85168	+	390	15607217	-	Rv0075	-	aminotransferase
76	 62.31	0	85183..85572	-	129	15607218	-	Rv0076c	-	hypothetical protein
77	 66.19	0	85636..86466	-	276	15607219	-	Rv0077c	-	oxidoreductase
78	 67.99	0	86528..87133	+	201	15607220	-	Rv0078	-	transcriptional regulatory protein
79	 61.11	-1	87208..87801	-	197	57116688	-	Rv0078A	-	hypothetical protein
80	 68.13	0	88204..89025	+	273	15607221	-	Rv0079	-	hypothetical protein
81	 68.85	0	89022..89480	+	152	15607222	-	Rv0080	-	hypothetical protein
82	 65.51	0	89575..89919	+	114	15607223	-	Rv0081	-	transcriptional regulatory protein
83	 69.58	+1	89924..90403	+	159	15607224	-	Rv0082	-	oxidoreductase
84	 71.14	+1	90400..92322	+	640	15607225	-	Rv0083	-	oxidoreductase
85	 68.56	0	92328..93278	+	316	15607226	hycD	Rv0084	-	formate hydrogenlyase HYCD
86	 68.93	+1	93289..93951	+	220	15607227	hycP	Rv0085	-	hydrogenase HycP
87	 68.92	+1	93951..95417	+	488	15607228	hycQ	Rv0086	-	hydrogenase HycQ
88	 66.80	0	95414..96892	+	492	15607229	hycE	Rv0087	-	formate hydrogenase HycE
89	 61.78	-1	96927..97601	+	224	15607230	-	Rv0088	-	hypothetical protein
90	 67.00	0	97758..98351	+	197	15607231	-	Rv0089	-	methyltransferase/methylase
91	 65.63	0	98480..99250	+	256	15607232	-	Rv0090	-	hypothetical protein
92	 65.10	0	99684..100451	+	255	15607233	mtn	Rv0091	-	bifunctional 5'-methylthioadenosine nucleosidase/S-adenosylhomocysteine nucleosidase
93	 67.54	0	100583..102868	+	761	15607234	ctpA	Rv0092	-	cation transporter P-type ATPase A
94	 67.61	0	102815..103663	-	282	15607235	-	Rv0093c	-	hypothetical protein
95	 67.51	0	103710..104663	-	317	15607236	-	Rv0094c	-	hypothetical protein
96	 61.56	-1	104805..105215	-	136	15607237	-	Rv0095c	-	hypothetical protein
97	 65.09	0	105324..106715	+	463	57116689	PPE1	Rv0096	-	PPE family protein
98	 58.85	-1	106734..107603	+	289	15607239	-	Rv0097	-	oxidoreductase
99	 59.06	-1	107600..108151	+	183	15607240	-	Rv0098	-	hypothetical protein
100	 62.66	0	108156..109778	+	540	15607241	fadD10	Rv0099	-	acyl-CoA synthetase
65.47	MEAN

3.39	STD DEV
