IslandPath Analysis: Mycoplasma penetrans HF-2

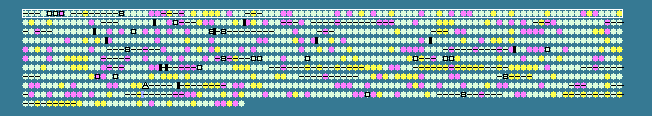

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 26.11   STD DEV: 3.47
Mycoplasma penetrans HF-2, complete genome - 1..1358633
1037 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 23.18	0	1..1359	+	452	26553453	dnaA	MYPE10	-	chromosomal replication initiation protein
2	 25.33	0	1450..2586	+	378	26553454	-	MYPE20	-	DNA polymerase III subunit beta
3	 29.13	0	3002..4951	+	649	26553455	gyrB	MYPE30	-	DNA gyrase subunit B
4	 29.08	0	4970..7483	+	837	26553456	-	MYPE40	-	DNA gyrase subunit A
5	 26.90	0	8390..8995	+	201	26553457	-	MYPE50	-	transposase
6	 23.58	0	9286..9654	+	122	26553458	-	MYPE60	-	transposase
7	 18.82	-2	9776..9961	+	61	26553459	-	MYPE70	-	transposase
8	 27.66	0	12011..12838	+	275	26553460	-	MYPE80	-	Soj protein
9	 23.79	0	12851..13678	+	275	26553461	-	MYPE90	-	hypothetical protein
10	 25.51	0	13682..14167	+	161	26553462	-	MYPE100	-	rRNA methylase
11	 29.63	+1	14264..14506	-	80	26553463	-	MYPE110	-	hypothetical protein
12	 27.23	0	14624..15082	-	152	26553464	-	MYPE120	-	hypothetical protein
13	 23.07	0	15438..16343	-	301	26553465	-	MYPE130	-	pseudouridine synthase
14	 25.26	0	16424..16906	+	160	26553466	-	MYPE140	-	peroxiredoxin
15	 24.19	0	17109..18683	+	524	26553467	-	MYPE150	-	hypothetical protein
16	 28.44	0	18805..19704	+	299	26553468	-	MYPE160	-	UTP-glucose-1-phosphate uridylyltransferase
17	 25.18	0	19895..21451	-	518	26553469	-	MYPE170	-	transposase
18	 29.29	0	21634..24378	+	914	26553470	-	MYPE180	-	hypothetical protein
19	 28.43	0	24393..28433	+	1346	26553471	-	MYPE190	-	hypothetical protein
20	 25.96	0	28477..31512	+	1011	26553472	-	MYPE200	-	phosphoglycerate mutase
21	 26.58	0	31521..32438	+	305	26553473	-	MYPE210	-	triose phosphate isomerase
22	 22.27	-1	32759..34078	+	439	26553474	cysS	MYPE220	-	cysteinyl-tRNA synthetase
23	 22.32	-1	34086..34802	+	238	26553475	-	MYPE230	-	rRNA methylase
24	 20.65	-1	34793..35407	+	204	26553476	-	MYPE240	-	hypothetical protein
25	 30.98	+1	35628..36095	+	155	26553477	rplK	MYPE250	-	50S ribosomal protein L11
26	 29.18	0	36106..37116	+	336	26553478	-	MYPE260	-	50S ribosomal protein L1
27	 21.05	-1	37157..38092	-	311	26553479	-	MYPE270	-	glycosyltransferase
28	 23.46	0	38104..38559	-	151	26553480	-	MYPE280	-	hypothetical protein
29	 34.04	+2	39162..39584	+	140	26553481	rpsL	MYPE290	-	30S ribosomal protein S12
30	 28.63	0	39599..40066	+	155	26553482	-	MYPE300	-	30S ribosomal protein S7
31	 32.94	+1	40085..42133	+	682	26553483	-	MYPE310	-	elongation factor G
32	 35.78	+2	42293..43477	+	394	26553484	tuf	MYPE320	-	elongation factor Tu
33	 35.00	+2	43741..44757	+	338	26553485	-	MYPE330	-	hypothetical protein
34	 27.40	0	44860..45213	+	117	26553486	-	MYPE340	-	hypothetical protein
35	 20.94	-1	45182..45544	+	120	26553487	-	MYPE350	-	holo-acyl carrier protein synthase
36	 28.09	0	45685..45951	+	88	26553488	-	MYPE360	-	hypothetical protein
37	 26.08	0	46091..46903	+	270	26553489	-	MYPE370	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
38	 23.97	0	46920..47795	+	291	26553490	-	MYPE380	-	hypothetical protein
39	 30.30	+1	47785..48378	+	197	26553491	scpB	MYPE390	-	segregation and condensation protein B
40	 28.51	0	48388..48615	+	75	26553492	-	MYPE400	-	hypothetical protein
41	 22.99	0	48615..49175	+	186	26553493	-	MYPE410	-	GTPase EngB
42	 24.40	0	49185..51803	+	872	26553494	-	MYPE420	-	valyl-tRNA synthetase
43	 24.84	0	52584..53678	+	364	26553495	-	MYPE430	-	competence protein
44	 20.89	-1	53570..55570	+	666	26553496	-	MYPE440	-	hypothetical protein
45	 20.23	-1	55583..56521	+	312	26553497	-	MYPE450	-	hypothetical protein
46	 27.01	0	56499..57842	+	447	26553498	-	MYPE460	-	putative integral membrane protein
47	 26.21	0	57935..58846	+	303	26553499	-	MYPE470	-	putative integral membrane protein
48	 28.27	0	58901..59137	-	78	26553500	-	MYPE480	-	ribosomal protein S20
49	 24.78	0	59212..60006	+	264	26553501	-	MYPE490	-	hypothetical protein
50	 25.29	0	59967..60923	+	318	26553502	-	MYPE500	-	methionyl-tRNA formyltransferase
51	 29.45	0	60933..62735	+	600	26553503	-	MYPE510	-	GTP-binding protein LepA
52	 27.30	0	62857..64464	+	535	26553504	-	MYPE520	-	CTP synthetase
53	 22.42	-1	64475..65299	+	274	26553505	-	MYPE530	-	GTPase
54	 24.16	0	65383..65916	+	177	26553506	-	MYPE540	-	hypothetical protein
55	 18.75	-2	66016..66447	+	143	26553507	-	MYPE550	-	hypothetical protein
56	 28.71	0	66469..67377	+	302	26553508	-	MYPE560	-	F0F1 ATP synthase subunit A
57	 32.49	+1	67456..67692	+	78	26553509	-	MYPE570	-	ATP synthase subunit C
58	 25.85	0	67714..68301	+	195	26553510	-	MYPE580	-	ATP synthase subunit B
59	 22.05	-1	68318..68884	+	188	26553511	-	MYPE590	-	ATP synthase subunit delta
60	 28.34	0	68887..70428	+	513	26553512	-	MYPE600	-	F0F1 ATP synthase subunit alpha
61	 24.27	0	70439..71299	+	286	26553513	-	MYPE610	-	F0F1 ATP synthase subunit gamma
62	 31.63	+1	72168..73637	+	489	161723286	-	MYPE620	-	F0F1 ATP synthase subunit beta
63	 23.28	0	73649..74056	+	135	26553515	-	MYPE630	-	ATP synthase subunit epsilon
64	 27.78	0	74156..74443	+	95	161723285	rpmE	MYPE640	-	50S ribosomal protein L31
65	 28.98	0	74531..75610	+	359	26553517	prfA	MYPE650	-	peptide chain release factor 1
66	 23.94	0	75576..76448	+	290	26553518	-	MYPE660	-	S-adenosylmethionine-dependent methyltransferase
67	 22.12	-1	76451..77092	+	213	26553519	-	MYPE670	-	translation factor
68	 26.21	0	77058..77534	+	158	26553520	-	MYPE680	-	ribose 5-phosphate and galactose-6-phosphate isomerase
69	 23.79	0	77536..78258	+	240	26553521	-	MYPE690	-	putative two-component response regulator
70	 29.90	+1	78521..79102	+	193	26553522	-	MYPE700	-	intracellular protease
71	 26.35	0	79238..80254	+	338	26553523	hrcA	MYPE710	-	heat-inducible transcription repressor
72	 18.68	-2	80229..80774	+	181	26553524	-	MYPE720	-	hypothetical protein
73	 25.50	0	80780..82618	+	612	26553525	-	MYPE730	-	1-deoxy-D-xylulose-5-phosphate synthase
74	 21.32	-1	82797..83687	+	296	26553526	-	MYPE740	-	hypothetical protein
75	 22.42	-1	83702..84031	-	109	26553527	-	MYPE750	-	hypothetical protein
76	 27.78	0	84059..84310	+	83	26553528	-	MYPE760	-	nitrogen fixation protein
77	 28.64	0	84320..86344	+	674	26553529	-	MYPE770	-	transketolase
78	 28.79	0	86502..87998	+	498	26553530	-	MYPE780	-	pyruvate kinase
79	 29.70	+1	88217..92344	+	1375	26553531	rpoB	MYPE790	-	DNA-directed RNA polymerase subunit beta
80	 29.04	0	92365..96231	+	1288	26553532	-	MYPE800	-	DNA-directed RNA polymerase subunit beta'
81	 27.44	0	96331..96771	+	146	26553533	rplM	MYPE810	-	50S ribosomal protein L13
82	 30.53	+1	96789..97181	+	130	26553534	rpsI	MYPE820	-	30S ribosomal protein S9
83	 23.74	0	97919..98137	+	72	26553535	-	MYPE830	-	hypothetical protein
84	 22.69	0	98295..98510	+	71	26553536	-	MYPE835	-	hypothetical protein
85	 26.16	0	98853..99674	+	273	26553537	-	MYPE840	-	haloacid dehalogenase-like hydrolase
86	 28.74	0	100051..102228	-	725	26553538	-	MYPE850	-	ribonucleotide-diphosphate reductase subunit alpha
87	 26.44	0	102261..102710	-	149	26553539	nrdI	MYPE860	-	ribonucleotide reductase stimulatory protein
88	 30.10	+1	102713..103732	-	339	26553540	nrdF	MYPE870	-	ribonucleotide-diphosphate reductase subunit beta
89	 26.25	0	104027..109387	+	1786	26553541	-	MYPE880	-	permease
90	 26.77	0	109575..114956	+	1793	26553542	-	MYPE890	-	permease
91	 27.07	0	115033..116757	-	574	26553543	-	MYPE900	-	hypothetical protein
92	 24.01	0	116865..117722	-	285	26553544	-	MYPE910	-	putative membrane integrated oxidoreductase
93	 23.93	0	117724..118446	-	240	26553545	-	MYPE920	-	hypothetical protein
94	 20.62	-1	118459..118875	-	138	26553546	-	MYPE930	-	hypothetical protein
95	 29.99	+1	119066..120202	+	378	26553547	-	MYPE940	-	S-adenosylmethionine synthetase
96	 20.67	-1	120286..120885	-	199	26553548	-	MYPE950	-	hypothetical protein
97	 25.52	0	121160..122272	-	370	26553549	-	MYPE960	-	ABC transporter ATP-binding protein
98	 26.76	0	122274..124313	-	679	26553550	-	MYPE970	-	integral membrane protein
99	 26.74	0	124534..124806	+	90	26553551	-	MYPE980	-	chaperonin GroES
100	 29.98	+1	124836..126473	+	545	26553552	groEL	MYPE990	-	chaperonin GroEL
26.11	MEAN

3.47	STD DEV
