IslandPath Analysis: Mycoplasma mycoides subsp. mycoides SC str. PG1

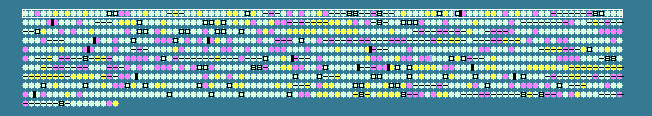

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 23.80   STD DEV: 3.70
Mycoplasma mycoides subsp. mycoides SC str. PG1, complete genome - 1..1211703
1016 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 23.33	0	1..1440	+	479	42560561	dnaA	MSC_0001	-	chromosomal replication initiator protein DnaA
2	 20.92	0	1602..2729	+	375	42560562	dnaN	MSC_0002	-	DNA polymerase III, beta chain
3	 18.91	-1	2766..3299	+	177	42560563	-	MSC_0003	-	primase-related protein
4	 20.72	0	3299..4099	+	266	42560564	ksgA	MSC_0004	-	dimethyladenosine transferase
5	 21.52	0	4156..5247	+	363	42560565	-	MSC_0005	-	putative purine NTPase
6	 28.35	+1	5607..7511	+	634	42560566	gyrB	MSC_0006	-	DNA gyrase subunit B
7	 26.87	0	7527..10031	+	834	42560567	gyrA	MSC_0007	-	DNA gyrase subunit A
8	 29.75	+1	10082..11059	-	325	42560568	rbsC-2	MSC_0008	-	ribose/galactose ABC transporter permease
9	 22.31	0	11059..13626	-	855	42560569	rbsC-1	MSC_0009	-	ribose/galactose ABC transporter permease
10	 27.09	0	13616..15232	-	538	42560570	rbsA	MSC_0010	-	ribose/galactose ABC transporter ATP-binding protein
11	 27.83	+1	15235..16887	-	550	42560571	rbsB	MSC_0011	-	ribose/galactose ABC transporter substrate-binding protein
12	 23.20	0	17078..18607	-	509	42560572	metS	MSC_0012	-	methionyl-tRNA synthetase
13	 23.56	0	18811..20457	+	548	42560573	lpp	MSC_0013	-	prolipoprotein
14	 25.27	0	20490..22088	+	532	42560574	p72	MSC_0014	-	immunodominant protein P72 precursor
15	 24.74	0	22141..23001	-	286	42560575	tnpB	MSC_0015	-	IS1296SQ transposase protein B
16	 23.94	0	23010..23552	-	180	42560576	tnpA	MSC_0016	-	IS1296SQ transposase protein A
17	 19.15	-1	23628..24614	-	328	42560577	mtlD	MSC_0017	-	mannitol-1-phosphate 5-dehydrogenase
18	 19.55	-1	24615..25412	-	265	42560578	-	MSC_0018	-	RpiR family transcriptional regulator
19	 21.68	0	25446..25874	-	142	42560579	EIIA-mtl	MSC_0019	-	PTS system, mannitol-permease IIA component
20	 25.82	0	25874..26632	-	252	42560580	srlD	MSC_0020	-	sorbitol-6-phosphate dehydrogenase
21	 27.32	0	26632..28194	-	520	42560581	EIIBC-mtl	MSC_0021	-	PTS system, mannitol-permease IIBC component
22	 22.99	0	28445..28705	-	86	42560582	-	MSC_0022	-	hypothetical protein
23	 25.82	0	28675..29286	-	203	42560583	recG	MSC_0023	-	DNA recombinase recG
24	 26.83	0	29333..29824	-	163	42560584	-	MSC_0024	-	hypothetical protein
25	 25.00	0	30178..30405	-	75	42560585	rpsR	MSC_0025	-	30S ribosomal protein S18
26	 28.12	+1	30425..30865	-	146	42560586	ssb	MSC_0026	-	single-strand binding protein
27	 24.64	0	30877..31290	-	137	42560587	rpsF	MSC_0027	-	30S ribosomal protein S6
28	 23.81	0	31496..31705	-	69	42560588	csp	MSC_0028	-	cold shock protein
29	 27.17	0	31891..32490	+	199	42560589	acpD	MSC_0029	-	Acyl carrier protein phosphodiesterase
30	 27.44	0	32527..33561	-	344	42560590	abc	MSC_0030	-	ABC transporter ATP-binding protein
31	 21.12	0	33609..34484	-	291	42560591	hsp33	MSC_0031	-	HEAT shock protein (33 kDa chaperonin)
32	 21.60	0	34684..37836	-	1050	42560592	-	MSC_0032	-	hypothetical protein
33	 23.39	0	37983..43370	+	1795	42560593	-	MSC_0033	-	permease
34	 27.05	0	43808..44794	+	328	42560594	ldh	MSC_0034	-	D-lactate dehydrogenase
35	 28.09	+1	44813..45937	+	374	42560595	-	MSC_0035	-	malate permease
36	 29.34	+1	46289..47215	+	308	42560596	-	MSC_0036	-	hypothetical protein
37	 25.14	0	47223..47576	+	117	42560597	-	MSC_0037	-	hypothetical protein
38	 26.22	0	47780..49453	+	557	42560598	tnp	MSC_0038	-	IS1634BT transposase
39	 30.56	+1	49583..51529	-	648	42560599	ftsH	MSC_0039	-	ATP-dependent zinc metallopeptidase FtsH
40	 20.57	0	51761..52144	+	127	42560600	-	MSC_0040	-	hypothetical protein
41	 22.22	0	52237..52605	+	122	42560601	-	MSC_0041	-	hypothetical protein
42	 18.24	-1	52589..53794	-	401	42560602	-	MSC_0042	-	hypothetical protein
43	 25.24	0	53797..54624	-	275	42560603	-	MSC_0043	-	hypothetical protein
44	 21.44	0	54676..55398	-	240	42560604	-	MSC_0044	-	methyltransferase
45	 19.16	-1	55398..56138	-	246	42560605	holB	MSC_0045	-	DNA polymerase III delta subunit
46	 25.08	0	56116..56757	-	213	42560606	tmk	MSC_0046	-	thymidylate kinase
47	 20.05	-1	56990..57358	-	122	42560607	recR	MSC_0047	-	DNA repair protein RecR
48	 21.54	0	57351..59309	-	652	42560608	dnaX	MSC_0048	-	DNA polymerase III gamma-tau subunits
49	 20.51	0	59379..59846	-	155	42560609	codA	MSC_0049	-	cytosine deaminase
50	 27.93	+1	59963..60925	-	320	42560610	guaC	MSC_0050	-	guanosine 5'-monophosphate oxidoreductase
51	 19.31	-1	61276..61824	-	182	42560611	-	MSC_0051	-	hypothetical protein
52	 22.69	0	62352..64427	-	691	42560612	-	MSC_0052	-	hypothetical protein
53	 24.00	0	64605..65054	-	149	42560613	-	MSC_0053	-	AhpC/TSA family protein
54	 25.13	0	65125..66867	+	580	42560614	ptsG	MSC_0054	-	PTS system, glucose-specific IIABC component
55	 24.74	0	66921..67781	-	286	42560615	tnpB	MSC_0055	-	IS1296IE transposase protein B
56	 24.68	0	67790..68344	-	184	42560616	tnpA	MSC_0056	-	IS1296IE transposase protein A
57	 22.95	0	68400..68582	-	60	42560617	-	MSC_0057	-	hypothetical protein
58	 22.09	0	68766..69014	-	82	42560618	-	MSC_0058	-	hypothetical protein
59	 20.00	-1	68941..69090	-	49	42560619	-	MSC_0059	-	hypothetical protein
60	 26.16	0	69594..71267	+	557	42560620	tnp	MSC_0060	-	IS1634BK transposase
61	 22.07	0	71462..72136	-	224	42560621	lpp	MSC_0061	-	prolipoprotein
62	 22.00	0	72310..72609	+	99	42560622	-	MSC_0062	-	hypothetical protein
63	 21.65	0	72628..73209	+	193	42560623	-	MSC_0063	-	hypothetical protein
64	 29.09	+1	73306..74436	+	376	42560624	ald	MSC_0064	-	alanine dehydrogenase
65	 24.97	0	74837..75661	+	274	42560625	-	MSC_0065	-	hypothetical protein
66	 25.61	0	75743..77011	+	422	42560626	serS	MSC_0066	-	seryl-tRNA synthetase
67	 26.03	0	77113..77427	+	104	42560627	-	MSC_0067	-	hypothetical protein
68	 28.51	+1	77429..78403	+	324	42560628	-	MSC_0068	-	NifR transcriptional regulator
69	 27.35	0	78406..79908	+	500	42560629	lysS	MSC_0069	-	lysine-tRNA ligase
70	 26.51	0	80179..81702	-	507	42560630	tnp	MSC_0070	-	IS1634BA transposase
71	 28.80	+1	82309..82617	-	102	42560631	trxA	MSC_0072	-	thioredoxin
72	 25.39	0	82628..83470	-	280	42560632	-	MSC_0073	-	HAD family hydrolase
73	 26.11	0	88758..90431	+	557	42560633	tnp	MSC_0074	-	IS1634BV transposase
74	 15.01	-2	91074..92372	+	432	42560634	-	MSC_0075	-	hypothetical protein
75	 20.44	0	92413..93141	+	242	42560635	comEC	MSC_0076	-	competence protein ComEC
76	 22.66	0	93174..95909	-	911	42560636	phnE	MSC_0077	-	phosphonate ABC transporter, permease component
77	 26.96	0	95913..96665	-	250	42560637	phnC	MSC_0078	-	phosphonate ABC transporter, ATP-binding component
78	 27.46	0	96679..98022	-	447	42560638	phnD?	MSC_0079	-	prolipoprotein, putative phosphonate ABC transport
79	 28.18	+1	98313..99671	-	452	42560639	asnC	MSC_0080	-	asparaginyl-tRNA synthetase
80	 24.88	0	99680..100519	-	279	42560640	-	MSC_0081	-	HAD family hydrolase
81	 20.16	0	100530..101660	-	376	42560641	-	MSC_0082	-	alpha/beta family hydrolase
82	 26.25	0	101683..102642	-	319	42560642	gcp	MSC_0083	-	O-sialoglycoprotein endopeptidase
83	 32.44	+2	102736..102960	-	74	42560643	-	MSC_0084	-	hypothetical protein
84	 23.62	0	103160..104518	+	452	42560644	trmE	MSC_0085	-	tRNA modification GTPase TrmE
85	 26.42	0	104566..104811	-	81	161723280	rpsT	MSC_0086	-	30S ribosomal protein S20
86	 20.32	0	105138..105890	-	250	42560646	-	MSC_0087	-	hypothetical protein
87	 22.82	0	105976..106593	-	205	42560647	-	MSC_0088	-	hypothetical protein
88	 27.02	0	106684..109518	-	944	42560648	secA	MSC_0089	-	preprotein translocase subunit SecA
89	 17.71	-1	109609..110184	+	191	42560649	pepQ	MSC_0090	-	proline dipeptidase
90	 21.75	0	110260..111174	+	304	42560650	polA	MSC_0091	-	DNA polymerase I, 5'-3' exonuclease
91	 21.44	0	111334..111888	+	184	42560651	-	MSC_0092	-	hypothetical protein
92	 22.71	0	112407..113027	+	206	42560652	-	MSC_0093	-	hypothetical protein
93	 21.86	0	113162..113719	+	185	42560653	-	MSC_0094	-	hypothetical protein
94	 23.91	0	114283..114558	+	91	42560654	-	MSC_0095	-	hypothetical protein
95	 18.95	-1	114548..115117	+	189	42560655	coaE	MSC_0096	-	dephospho-COA kinase
96	 25.99	0	115276..116949	+	557	42560656	tnp	MSC_0097	-	IS1634BO transposase
97	 25.99	0	117662..119335	-	557	42560657	tnp	MSC_0098	-	IS1634AP transposase
98	 23.56	0	119428..119877	-	149	42560658	hlyA	MSC_0099	-	hemolysin A
99	 24.07	0	119877..120092	-	71	42560659	xseB	MSC_0100	-	exodeoxyribonuclease VII small subunit
100	 23.90	0	120082..121491	-	469	42560660	xseA	MSC_0101	-	exodeoxyribonuclease VII large subunit
23.80	MEAN

3.70	STD DEV
