IslandPath Analysis: Mycobacterium leprae TN

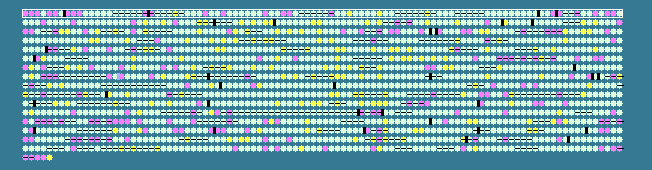

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 59.70   STD DEV: 3.21
Mycobacterium leprae TN, complete genome - 1..3268203
1605 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 53.64	-1	1..1566	+	521	15826866	dnaA	ML0001	-	chromosomal replication initiation protein
2	 54.08	-1	2081..3280	+	399	15826867	dnaN	ML0002	-	DNA polymerase III subunit beta
3	 53.80	-1	3281..4438	+	385	15826868	recF	ML0003	-	recombination protein F
4	 57.19	0	4435..5004	+	189	15826869	-	ML0004	-	hypothetical protein
5	 50.47	-2	5229..7265	+	678	15826870	gyrB	ML0005	-	DNA gyrase subunit B
6	 52.19	-2	7318..11067	+	1249	15826871	gyrA	ML0006	-	putative DNA gyrase subunit A
7	 56.47	-1	11195..12106	+	303	15826872	-	ML0007	-	hypothetical protein
8	 46.93	-2	12856..13230	-	124	15826873	-	ML0008	-	hypothetical protein
9	 43.23	-2	13775..13966	+	63	15826874	-	ML0009	-	hypothetical protein
10	 56.10	-1	15993..16541	+	182	15826875	ppiA	ML0011	-	putative peptidyl-prolyl cis-trans isomerase
11	 56.52	0	16566..16979	-	137	15826876	-	ML0012	-	hypothetical protein
12	 57.45	0	17134..17415	-	93	15826877	-	ML0013	-	putative septation inhibitor protein
13	 57.80	0	18325..19023	+	232	15826878	pabA	ML0015	-	para-aminobenzoate synthase component II
14	 58.75	0	19001..20869	-	622	15826879	pknB	ML0016	-	putative serine/threonine protein kinase
15	 60.58	0	20879..22192	-	437	15826880	pknA	ML0017	-	putative serine/threonine protein kinase
16	 61.33	0	22189..23667	-	492	15826881	pbpA	ML0018	-	putative penicillin-binding protein
17	 56.58	0	23664..25061	-	465	15826882	rodA	ML0019	-	putative cell-division protein
18	 60.92	0	25058..26587	-	509	15826883	-	ML0020	-	hypothetical protein
19	 57.48	0	26584..27051	-	155	15826884	-	ML0021	-	hypothetical protein
20	 61.28	0	27173..28639	-	488	15826885	-	ML0022	-	hypothetical protein
21	 56.09	-1	28954..29265	-	103	15826886	-	ML0023	-	hypothetical protein
22	 51.98	-2	29775..30026	+	83	15826887	-	ML0024	-	hypothetical protein
23	 60.14	0	30293..30583	-	96	15826888	-	ML0025	-	hypothetical protein
24	 59.08	0	33100..33705	+	201	15826889	-	ML0028	-	hypothetical protein
25	 56.44	-1	34033..34638	-	201	15826890	-	ML0029	-	hypothetical protein
26	 64.62	+1	34750..35091	-	113	15826891	-	ML0030	-	hypothetical protein
27	 60.81	0	35287..36123	-	278	15826892	-	ML0031	-	hypothetical protein
28	 58.82	0	36321..39239	+	972	15826893	leuS	ML0032	-	leucyl-tRNA synthetase
29	 60.85	0	50656..51996	+	446	15826894	-	ML0041	-	secreted protease
30	 59.26	0	51993..53396	+	467	15826895	-	ML0042	-	hypothetical protein
31	 55.85	-1	54698..55039	+	113	15826896	-	ML0044	-	hypothetical protein
32	 60.43	0	58020..59558	-	512	15826897	-	ML0047	-	hypothetical protein
33	 59.68	0	59555..61315	-	586	15826898	-	ML0048	-	hypothetical protein
34	 54.17	-1	61406..61693	-	95	15826899	-	ML0049	-	hypothetical protein
35	 56.44	-1	61720..62022	-	100	15826900	-	ML0050	-	hypothetical protein
36	 58.97	0	62201..63109	-	302	15826901	-	ML0051	-	PPE-family protein
37	 59.48	0	63319..65112	-	597	15826902	-	ML0052	-	hypothetical protein
38	 59.46	0	65186..67420	-	744	15826903	-	ML0053	-	hypothetical protein
39	 58.78	0	67417..68862	-	481	15826904	-	ML0054	-	hypothetical protein
40	 59.41	0	68866..70587	-	573	15826905	-	ML0055	-	hypothetical protein
41	 55.10	-1	70584..71093	-	169	15826906	-	ML0056	-	hypothetical protein
42	 58.49	0	77709..82292	+	1527	15826907	gltB	ML0061	-	putative ferredoxin-dependent glutamate synthase
43	 60.05	0	82285..83751	+	488	15826908	gltD	ML0062	-	glutamate synthase subunit beta
44	 55.81	-1	85968..86612	-	214	15826909	-	ML0064	-	putative transcriptional regulator
45	 54.48	-1	86681..88165	+	494	15826910	-	ML0065	-	putative monooxygenase
46	 60.97	0	88246..88719	-	157	15826911	menG	ML0066	-	ribonuclease activity regulator protein RraA
47	 56.83	0	88741..89106	-	121	15826912	hns	ML0067	-	histone-like protein
48	 60.81	0	89620..90336	-	238	15826913	-	ML0068	-	hypothetical protein
49	 59.40	0	90521..90919	-	132	15826914	-	ML0069	-	hypothetical protein
50	 60.98	0	91296..91559	-	87	15826915	-	ML0070	-	hypothetical protein
51	 58.24	0	91913..92446	-	177	15826916	-	ML0071	-	hypothetical protein
52	 53.85	-1	92647..93270	-	207	15826917	sodA	ML0072	-	superoxide dismutase
53	 60.68	0	94092..95126	+	344	15826918	-	ML0073	-	hypothetical protein
54	 61.76	0	95132..95947	+	271	15826919	glpQ	ML0074	-	putative glycerophosphoryl diester phosphodiesterase
55	 65.22	+1	98425..99393	+	322	15826920	pheA	ML0078	-	prephenate dehydratase
56	 60.06	0	99390..100085	+	231	15826921	-	ML0079	-	putative phosphoglycerate mutase
57	 61.79	0	100648..102000	-	450	15826922	-	ML0081	-	hypothetical protein
58	 61.96	0	102122..103375	+	417	15826923	serS	ML0082	-	seryl-tRNA synthetase
59	 59.69	0	109049..109822	+	257	15826924	-	ML0087	-	putative acyltransferase
60	 64.42	+1	110329..111174	+	281	15826925	-	ML0089	-	hypothetical protein
61	 59.63	0	113153..113863	-	236	15826926	-	ML0091	-	28 kDa antigen precursor
62	 57.97	0	114130..115371	+	413	15826927	glf	ML0092	-	putative UDP-galactopyranose mutase
63	 59.32	0	115371..117302	+	643	15826928	-	ML0093	-	hypothetical protein
64	 62.18	0	117295..117873	+	192	15826929	-	ML0094	-	hypothetical protein
65	 59.19	0	117870..118778	+	302	15826930	-	ML0095	-	phosphoribose diphosphate:decaprenyl-phosphate phosphoribosyltransferase
66	 60.56	0	118819..120768	+	649	15826931	-	ML0096	-	hypothetical protein
67	 60.52	0	121157..122149	+	330	15826932	fbpA	ML0097	-	antigen 85A, mycolytransferase
68	 63.69	+1	122310..123215	+	301	15826933	fbpC	ML0098	-	antigen 85C, mycolyltransferase
69	 59.94	0	123370..124380	+	336	15826934	-	ML0099	-	hypothetical protein
70	 61.37	0	124599..126506	+	635	15826935	fadD32	ML0100	-	acyl-CoA synthetase
71	 60.80	0	126518..131872	+	1784	15826936	pks13	ML0101	-	polyketide synthase
72	 59.20	0	131869..133422	+	517	15826937	accD4	ML0102	-	putative acyl CoA carboxylase [beta] subunit
73	 60.85	0	136573..139824	-	1083	15826938	embB	ML0104	-	putative arabinosyl transferase
74	 62.77	0	139821..143156	-	1111	15826939	embA	ML0105	-	putative arabinosyl transferase
75	 61.81	0	144115..147327	-	1070	15826940	embC	ML0106	-	putative arabinosyl transferase
76	 62.66	0	147460..149358	-	632	15826941	-	ML0107	-	hypothetical protein
77	 58.56	0	149361..150125	-	254	15826942	-	ML0108	-	short chain dehydrogenase
78	 59.07	0	150128..151510	-	460	15826943	-	ML0109	-	putative FAD-linked oxidoreductase
79	 56.45	-1	151578..151949	-	123	15826944	-	ML0110	-	hypothetical protein
80	 56.56	0	152783..153613	-	276	15826945	-	ML0112	-	putative ABC transporter component
81	 59.62	0	153663..154514	-	283	15826946	rfbE	ML0113	-	putative glycosyl transferase
82	 59.34	0	154576..155394	-	272	15826947	-	ML0114	-	putative ABC transporter ATP-binding component
83	 62.10	0	155413..155937	-	174	15826948	-	ML0115	-	hypothetical protein
84	 60.41	0	155965..157929	-	654	15826949	-	ML0116	-	hypothetical protein
85	 61.82	0	158056..159252	+	398	15826950	-	ML0117	-	hypothetical protein
86	 61.82	0	159249..160259	-	336	15826951	-	ML0118	-	putative oxidireductase
87	 61.08	0	160495..161730	-	411	15826952	lipE	ML0119	-	hydrolase
88	 61.17	0	161741..162577	-	278	15826953	echA1	ML0120	-	enoyl-CoA hydratase
89	 54.81	-1	163770..164039	-	89	15826954	-	ML0121	-	hypothetical protein
90	 54.42	-1	166949..167389	-	146	15826955	-	ML0124	-	hypothetical protein
91	 60.14	0	167598..168914	+	438	15826956	-	ML0125	-	putative glycosyl transferase
92	 57.30	0	169585..170406	+	273	15826957	-	ML0126	-	hypothetical protein
93	 48.99	-2	170662..171351	+	229	15826958	-	ML0127	-	hypothetical protein
94	 59.40	0	171616..172923	+	435	15826959	-	ML0128	-	putative glycosyl transferase
95	 59.67	0	173170..174426	-	418	15826960	-	ML0129	-	hypothetical protein
96	 55.97	-1	174466..175278	-	270	15826961	-	ML0130	-	hypothetical protein
97	 57.18	0	175441..176589	+	382	15826962	-	ML0131	-	putative oxidoreductase
98	 56.03	-1	177464..179212	+	582	161723272	fadD29	ML0132	-	acyl-CoA synthetase
99	 46.13	-2	179256..179888	+	210	15826964	-	ML0133	-	hypothetical protein
100	 57.16	0	180027..182150	+	707	15826965	fadD22	ML0134	-	acyl-CoA synthetase
59.70	MEAN

3.21	STD DEV
