IslandPath Analysis: Mycobacterium bovis AF2122/97

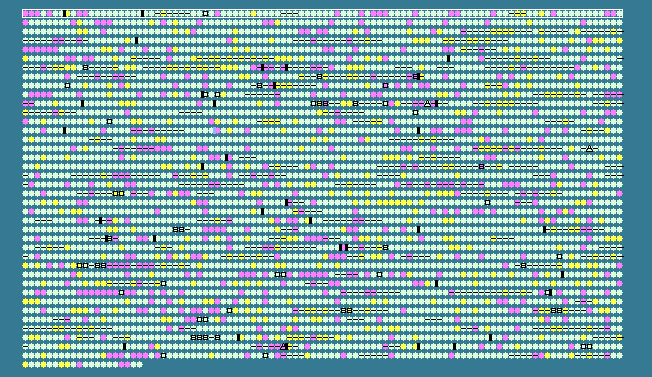

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 65.47   STD DEV: 3.40
Mycobacterium bovis AF2122/97, complete genome - 1..4345492
3920 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 58.92	-1	1..1524	+	507	31791178	dnaA	Mb0001	-	chromosomal replication initiation protein
2	 60.13	-1	2052..3260	+	402	31791179	dnaN	Mb0002	-	DNA polymerase III subunit beta
3	 60.10	-1	3280..4437	+	385	31791180	recF	Mb0003	-	recombination protein F
4	 65.96	0	4434..4997	+	187	31791181	-	Mb0004	-	hypothetical protein
5	 60.14	-1	5123..7267	+	714	31791182	gyrB	Mb0005	-	DNA gyrase subunit B
6	 63.85	0	7302..9818	+	838	31791183	gyrA	Mb0006	-	DNA gyrase subunit A
7	 68.31	0	9914..10828	+	304	31791184	-	Mb0007	-	hypothetical protein
8	 71.00	+1	11874..12311	-	145	31791185	-	Mb0008c	-	hypothetical protein
9	 62.48	0	12468..13016	+	182	31791186	ppiA	Mb0009	-	iron-regulated peptidyl-prolyl cis-trans isomerase A
10	 61.90	-1	13222..13557	-	111	31791187	-	Mb0010c	-	hypothetical protein
11	 56.38	-2	13713..13994	-	93	31791188	-	Mb0011c	-	putative septation inhibitor protein
12	 65.02	0	14088..14876	+	262	31791189	-	Mb0012	-	hypothetical protein
13	 63.95	0	14913..15611	+	232	31791190	trpG	Mb0013	-	para-aminobenzoate synthase component II
14	 63.26	0	15589..17469	-	626	31791191	pknB	Mb0014c	-	transmembrane serine/threonine-protein kinase B PKNB (protein kinase B) (STPK B)
15	 67.75	0	17466..18761	-	431	31791192	pknA	Mb0015c	-	transmembrane serine/threonine-protein kinase A PKNA (protein kinase A) (STPK A)
16	 64.50	0	18758..20233	-	491	31791193	pbpA	Mb0016c	-	penicillin-binding protein PbpA
17	 62.13	0	20230..21639	-	469	31791194	rodA	Mb0017c	-	cell division protein RodA
18	 67.57	0	21636..23180	-	514	31791195	ppp	Mb0018c	-	serine/threonine phosphatase
19	 62.82	0	23269..23736	-	155	31791196	-	Mb0019c	-	hypothetical protein
20	 66.48	0	23860..25425	-	521	31791197	TB39.8	Mb0020c	-	hypothetical protein
21	 66.05	0	25894..26862	-	322	31791198	-	Mb0021c	-	hypothetical protein
22	 68.33	0	27004..27423	-	139	31791199	whiB5	Mb0022c	-	putative transcriptional regulatory protein WHIB-like WHIB5
23	 67.32	0	27576..28346	+	256	31791200	-	Mb0023	-	transcriptional regulatory protein
24	 69.30	+1	28343..29176	+	277	31791201	-	Mb0024	-	hypothetical protein
25	 65.01	0	29225..29587	+	120	31791202	-	Mb0026	-	hypothetical protein
26	 65.48	0	29702..31135	+	477	31791203	-	Mb0027	-	hypothetical protein
27	 62.89	0	31173..31490	+	105	31791204	-	Mb0028	-	hypothetical protein
28	 63.73	0	31498..31803	+	101	31791205	-	Mb0029	-	hypothetical protein
29	 66.03	0	32041..33138	+	365	31791206	-	Mb0030	-	hypothetical protein
30	 65.45	0	33208..33537	+	109	31791207	-	Mb0031	-	hypothetical protein
31	 66.67	0	33566..33778	+	70	31791208	-	Mb0032	-	putative remnant of a transposase
32	 62.13	0	34279..36594	+	771	31791209	bioF2	Mb0033	-	8-amino-7-oxononanoate synthase BioF2
33	 57.20	-2	36591..36854	+	87	31791210	acpA	Mb0034	-	acyl carrier protein AcpA
34	 65.66	0	36851..37246	+	131	31791211	-	Mb0035	-	hypothetical protein
35	 63.59	0	37243..38931	+	562	31791212	fadD34	Mb0036	-	fatty-acid-CoA ligase
36	 68.86	0	39040..39813	-	257	31791213	-	Mb0037c	-	hypothetical protein
37	 67.72	0	39861..41186	-	441	31791214	-	Mb0038c	-	integral membrane protein
38	 65.19	0	41288..41896	+	202	31791215	-	Mb0039	-	hypothetical protein
39	 71.55	+1	41988..42335	-	115	31791216	-	Mb0040c	-	transmembrane protein
40	 67.52	0	42417..43349	-	310	31791217	mtc28	Mb0041c	-	secreted proline rich protein MTC28 (proline rich 28 kDa antigen)
41	 62.96	0	43546..46455	+	969	31791218	leuS	Mb0042	-	leucyl-tRNA synthetase
42	 63.80	0	46565..47191	-	208	31791219	-	Mb0043c	-	MarR family transcriptional regulator
43	 63.67	0	47350..48084	-	244	31791220	-	Mb0044c	-	GntR family transcriptional regulator
44	 66.54	0	48217..49011	-	264	31791221	-	Mb0045c	-	oxidoreductase
45	 67.11	0	49027..49923	-	298	31791222	-	Mb0046c	-	hydrolase
46	 64.04	0	50005..51108	-	367	31791223	ino1	Mb0047c	-	myo-inositol-1-phosphate synthase INO1 (inositol 1-phosphate synthetase) (D-glucose 6-phosphate cycloaldolase) (glucose 6-phosphate cyclase) (glucocycloaldolase)
47	 66.48	0	51169..51711	-	180	31791224	-	Mb0048c	-	hypothetical protein
48	 65.86	0	51812..52681	-	289	31791225	-	Mb0049c	-	hypothetical protein
49	 66.67	0	52815..53228	+	137	31791226	-	Mb0050	-	hypothetical protein
50	 63.34	0	53647..55689	+	680	31791227	ponA1	Mb0051	-	bifunctional penicillin-binding protein 1A/1B
51	 64.53	0	55686..57368	+	560	31791228	-	Mb0052	-	transmembrane protein
52	 65.96	0	57400..57963	+	187	31791229	-	Mb0053	-	hypothetical protein
53	 60.14	-1	58182..58472	+	96	31791230	rpsF	Mb0054	-	30S ribosomal protein S6
54	 66.67	0	58576..59070	+	164	31791231	ssb	Mb0055	-	single-strand DNA-binding protein
55	 64.71	0	59112..59366	+	84	31791232	rpsR	Mb0056	-	30S ribosomal protein S18
56	 62.09	0	59399..59857	+	152	31791233	rplI	Mb0057	-	50S ribosomal protein L9
57	 60.73	-1	59886..60407	+	173	31791234	-	Mb0058	-	hypothetical protein
58	 62.90	0	60386..63010	+	874	31791235	dnaB	Mb0059	-	replicative DNA helicase
59	 61.90	-1	63190..63882	+	230	31791236	-	Mb0060	-	hypothetical protein
60	 60.06	-1	63899..64957	+	352	31791237	-	Mb0061	-	hypothetical protein
61	 61.74	-1	64981..65406	+	141	31791238	-	Mb0062	-	hypothetical protein
62	 68.15	0	65542..66684	+	380	31791239	celA1	Mb0063	-	endo-1,4-beta-glucanase
63	 67.22	0	66913..68352	+	479	31791240	-	Mb0064	-	oxidoreductase
64	 63.64	0	68610..71549	+	979	31791241	-	Mb0065	-	hypothetical protein
65	 62.44	0	71848..72249	+	133	31791242	-	Mb0066	-	hypothetical protein
66	 61.75	-1	72301..74538	-	745	31791243	icd2	Mb0067c	-	isocitrate dehydrogenase [NADP]
67	 65.09	0	74656..75225	-	189	31791244	-	Mb0068c	-	TetR family transcriptional regulator
68	 65.79	0	75328..76239	+	303	31791245	-	Mb0069	-	short chain dehydrogenase
69	 65.08	0	76264..77649	-	461	31791246	sdaA	Mb0070c	-	L-serine dehydratase SdaA
70	 66.20	0	77646..78923	-	425	31791247	glyA2	Mb0071c	-	serine hydroxymethyltransferase
71	 64.71	0	79513..80229	+	238	31791248	-	Mb0072	-	maturase
72	 61.71	-1	80660..81709	+	349	31791249	-	Mb0073	-	glutamine-transport transmembrane protein ABC transporter
73	 61.68	-1	81712..82554	+	280	31791250	-	Mb0074	-	glutamine-transport ATP-binding protein ABC transporter GlnQ
74	 66.02	0	82783..84018	+	411	31791251	-	Mb0076	-	hypothetical protein
75	 64.11	0	84031..85203	+	390	31791252	-	Mb0077	-	aminotransferase
76	 62.31	0	85218..85607	-	129	31791253	-	Mb0078c	-	hypothetical protein
77	 66.19	0	85671..86501	-	276	31791254	-	Mb0079c	-	oxidoreductase
78	 68.15	0	86563..87168	+	201	31791255	-	Mb0080	-	transcriptional regulatory protein
79	 61.11	-1	87243..87836	-	197	31791256	-	Mb0081c	-	hypothetical protein
80	 68.13	0	88239..89060	+	273	31791257	-	Mb0082	-	hypothetical protein
81	 68.63	0	89057..89515	+	152	31791258	-	Mb0083	-	hypothetical protein
82	 65.51	0	89610..89954	+	114	31791259	-	Mb0084	-	transcriptional regulatory protein
83	 69.79	+1	89959..90438	+	159	31791260	-	Mb0085	-	oxidoreductase
84	 71.12	+1	90435..92363	+	642	31791261	-	Mb0086	-	oxidoreductase
85	 68.56	0	92363..93313	+	316	31791262	hycD	Mb0087	-	formate hydrogenlyase HYCD
86	 68.93	+1	93324..93986	+	220	31791263	hycP	Mb0088	-	hydrogenase HycP
87	 68.98	+1	93986..95452	+	488	31791264	hycQ	Mb0089	-	hydrogenase HycQ
88	 66.73	0	95449..96927	+	492	31791265	hycE	Mb0090	-	formate hydrogenase HycQ
89	 61.78	-1	96962..97636	+	224	31791266	-	Mb0091	-	hypothetical protein
90	 67.00	0	97793..98386	+	197	31791267	-	Mb0092	-	methyltransferase/methylase
91	 65.63	0	98515..99285	+	256	31791268	-	Mb0093	-	hypothetical protein
92	 65.10	0	99719..100486	+	255	31791269	mtn	Mb0094	-	bifunctional 5'-methylthioadenosine nucleosidase/S-adenosylhomocysteine nucleosidase
93	 67.59	0	100618..102903	+	761	31791270	ctpA	Mb0095	-	cation transporter P-type ATPase A
94	 67.73	0	102850..103698	-	282	31791271	-	Mb0096c	-	hypothetical protein
95	 67.30	0	103745..104698	-	317	31791272	-	Mb0097c	-	hypothetical protein
96	 63.86	0	104469..105251	-	260	31791273	-	Mb0098c	-	hypothetical protein
97	 64.94	0	105360..106751	+	463	31791274	PPE1	Mb0099	-	PPE family protein
98	 58.85	-1	106770..107639	+	289	31791275	-	Mb0100	-	oxidoreductase
99	 59.06	-1	107636..108187	+	183	31791276	-	Mb0101	-	hypothetical protein
100	 62.66	0	108192..109814	+	540	31791277	fadD10	Mb0102	-	acyl-CoA synthetase
65.47	MEAN

3.40	STD DEV
