IslandPath Analysis: Mycobacterium avium subsp. paratuberculosis K-10

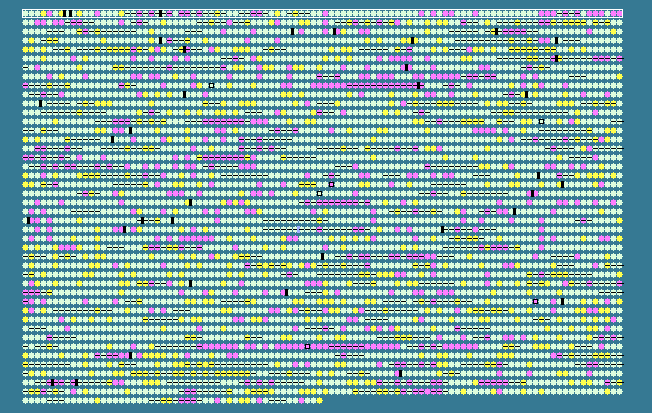

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 69.39   STD DEV: 3.47
Mycobacterium avium subsp. paratuberculosis K-10, complete genome - 1..4829781
4350 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 66.54	0	1..1530	+	509	41406099	dnaA	MAP0001	-	chromosomal replication initiation protein
2	 68.92	0	2100..3299	+	399	41406100	dnaN	MAP0002	-	DNA polymerase III subunit beta
3	 70.90	0	3300..4457	+	385	41406101	recF	MAP0003	-	recombination protein F
4	 75.25	+1	4499..4999	+	166	41406102	-	MAP0004	-	hypothetical protein
5	 64.01	-1	5258..7291	+	677	41406103	gyrB	MAP0005	-	DNA gyrase subunit B
6	 67.98	0	7303..9822	+	839	41406104	gyrA	MAP0006	-	DNA gyrase subunit A
7	 72.89	+1	9925..10776	+	283	41406105	-	MAP0007	-	hypothetical protein
8	 72.54	0	11146..11724	-	192	41406106	-	MAP0008c	-	hypothetical protein
9	 68.63	0	11810..13135	+	441	41406107	-	MAP0009	-	hypothetical protein
10	 76.55	+2	13137..13571	-	144	41406108	-	MAP0010c	-	hypothetical protein
11	 67.40	0	13662..14210	+	182	41406109	ppiA	MAP0011	-	PpiA
12	 68.31	0	14222..14647	-	141	41406110	-	MAP0012c	-	hypothetical protein
13	 60.99	-2	14804..15085	-	93	41406111	-	MAP0013c	-	putative septation inhibitor protein
14	 72.18	0	15216..15959	+	247	41406112	-	MAP0014	-	hypothetical protein
15	 69.00	0	16008..16694	+	228	41406113	pabA	MAP0015	-	para-aminobenzoate synthase component II
16	 68.42	0	16672..18552	-	626	41406114	pknB	MAP0016c	-	PknB
17	 78.63	+2	18549..19058	-	169	41406115	-	MAP0017c	-	hypothetical protein
18	 68.77	0	19070..19831	-	253	41406116	pknA	MAP0018c	-	PknA
19	 69.84	0	19828..21306	-	492	41406117	pbpA	MAP0019c	-	PbpA
20	 64.61	-1	21303..22712	-	469	41406118	rodA	MAP0020c	-	RodA
21	 71.60	0	22709..24208	-	499	41406119	ppp	MAP0021c	-	Ppp
22	 65.81	-1	24273..24740	-	155	41406120	-	MAP0022c	-	hypothetical protein
23	 70.95	0	24865..26499	-	544	41406121	-	MAP0023c	-	hypothetical protein
24	 67.87	0	26932..27597	-	221	41406122	-	MAP0024c	-	hypothetical protein
25	 61.36	-2	27648..27911	+	87	41406123	-	MAP0025	-	acyl carrier protein
26	 69.30	0	27908..29464	+	518	41406124	fadD33_1	MAP0026	-	acyl-CoA synthetase
27	 65.67	-1	29619..31517	+	632	41406125	-	MAP0027	-	hypothetical protein
28	 63.92	-1	32641..33876	-	411	41406126	-	MAP0028c	-	hypothetical protein
29	 70.52	0	35295..36539	-	414	41406127	-	MAP0029c	-	hypothetical protein
30	 61.21	-2	36594..36923	-	109	41406128	-	MAP0030c	-	hypothetical protein
31	 68.48	0	36910..37902	-	330	41406129	-	MAP0031c	-	hypothetical protein
32	 67.39	0	37908..39290	-	460	41406130	fadE25_1	MAP0032c	-	FadE25_1
33	 72.90	+1	39384..39800	-	138	41406131	-	MAP0033c	-	hypothetical protein
34	 67.16	0	40022..41242	+	406	41406132	-	MAP0034	-	hypothetical protein
35	 68.19	0	41395..42183	+	262	41406133	-	MAP0035	-	hypothetical protein
36	 72.24	0	42180..43004	+	274	41406134	-	MAP0036	-	hypothetical protein
37	 68.32	0	43053..43415	+	120	41406135	-	MAP0037	-	hypothetical protein
38	 70.45	0	43531..44982	+	483	41406136	-	MAP0038	-	hypothetical protein
39	 65.09	-1	45033..45350	+	105	41406137	-	MAP0039	-	hypothetical protein
40	 65.38	-1	45347..45658	+	103	41406138	-	MAP0040	-	hypothetical protein
41	 72.54	0	45918..47552	+	544	41406139	-	MAP0041	-	hypothetical protein
42	 67.28	0	47604..47927	+	107	41406140	-	MAP0042	-	hypothetical protein
43	 75.06	+1	47969..48742	-	257	41406141	-	MAP0043c	-	hypothetical protein
44	 71.02	0	48800..50086	-	428	41406142	-	MAP0044c	-	hypothetical protein
45	 69.64	0	50217..50822	+	201	41406143	-	MAP0045	-	hypothetical protein
46	 75.73	+1	50838..51179	-	113	41406144	-	MAP0046c	-	hypothetical protein
47	 72.22	0	51235..52458	-	407	41406145	-	MAP0047c	-	hypothetical protein
48	 68.73	0	52505..55414	+	969	41406146	leuS	MAP0048	-	leucyl-tRNA synthetase
49	 69.05	0	55421..56092	-	223	41406147	-	MAP0049c	-	short chain dehydrogenase
50	 68.85	0	56151..56699	-	182	41406148	-	MAP0050c	-	hypothetical protein
51	 65.60	-1	56721..57467	-	248	41406149	gluA	MAP0051c	-	GluA
52	 68.91	0	57464..59203	-	579	41406150	glnQ	MAP0052c	-	hypothetical protein
53	 68.29	0	59323..60063	-	246	41406151	-	MAP0053c	-	hypothetical protein
54	 68.82	0	60182..60970	-	262	41406152	-	MAP0054c	-	hypothetical protein
55	 69.84	0	60978..61892	-	304	41406153	-	MAP0055c	-	hypothetical protein
56	 68.53	0	61916..63151	-	411	41406154	-	MAP0056c	-	hypothetical protein
57	 71.14	0	63154..63957	-	267	41406155	-	MAP0057c	-	hypothetical protein
58	 67.54	0	63959..65101	-	380	41406156	-	MAP0058c	-	hypothetical protein
59	 69.68	0	65125..66252	-	375	41406157	-	MAP0059c	-	hypothetical protein
60	 65.94	0	66384..67490	-	368	41406158	-	MAP0060c	-	hypothetical protein
61	 67.03	0	67550..68092	-	180	41406159	-	MAP0061c	-	hypothetical protein
62	 70.40	0	68239..69123	-	294	41406160	-	MAP0062c	-	hypothetical protein
63	 69.06	0	69266..69682	+	138	41406161	-	MAP0063	-	hypothetical protein
64	 70.24	0	69679..72312	+	877	41406162	ponA_1	MAP0064	-	PonA_1
65	 68.86	0	72309..73946	+	545	41406163	-	MAP0065	-	hypothetical protein
66	 70.25	0	73943..74584	+	213	41406164	-	MAP0066	-	hypothetical protein
67	 62.89	-1	74719..75009	+	96	41406165	rpsF	MAP0067	-	30S ribosomal protein S6
68	 71.01	0	75127..75633	+	168	41406166	ssb	MAP0068	-	single-strand DNA-binding protein
69	 62.75	-1	75675..75929	+	84	41406167	rpsR	MAP0069	-	30S ribosomal protein S18
70	 69.06	0	75960..76418	+	152	41406168	rplI	MAP0070	-	50S ribosomal protein L9
71	 65.49	-1	76950..79577	+	875	41406169	dnaB	MAP0071	-	hypothetical protein
72	 60.92	-2	79717..80604	-	295	41406170	-	MAP0072c	-	hypothetical protein
73	 67.04	0	80690..81499	-	269	41406171	-	MAP0073c	-	hypothetical protein
74	 69.30	0	81582..82151	+	189	41406172	-	MAP0074	-	hypothetical protein
75	 66.19	0	83657..84079	+	140	41406173	-	MAP0075	-	hypothetical protein
76	 65.20	-1	84088..87009	+	973	41406174	mmpL4_1	MAP0076	-	MmpL4_1
77	 68.11	0	87226..88332	+	368	41406175	-	MAP0077	-	hypothetical protein
78	 72.83	0	88415..88690	+	91	41406176	-	MAP0078	-	hypothetical protein
79	 68.02	0	88710..89450	+	246	41406177	-	MAP0079	-	hypothetical protein
80	 67.30	0	89479..90114	-	211	41406178	-	MAP0080c	-	hypothetical protein
81	 69.63	0	90461..91777	+	438	41406179	-	MAP0081	-	hypothetical protein
82	 66.37	0	92165..92842	+	225	41406180	-	MAP0082	-	hypothetical protein
83	 67.57	0	92839..93282	-	147	41406181	-	MAP0083c	-	hypothetical protein
84	 67.01	0	93303..94178	-	291	41406182	-	MAP0084c	-	hypothetical protein
85	 70.58	0	94329..95171	-	280	41406183	LysR	MAP0085c	-	hypothetical protein
86	 69.88	0	95335..96267	+	310	41406184	-	MAP0086	-	hypothetical protein
87	 65.55	-1	96357..97073	+	238	41406185	-	MAP0087	-	hypothetical protein
88	 60.50	-2	97261..97698	+	145	41406186	-	MAP0088	-	hypothetical protein
89	 64.77	-1	97733..98311	+	192	41406187	-	MAP0089	-	hypothetical protein
90	 66.98	0	98324..98962	-	212	41406188	-	MAP0090c	-	hypothetical protein
91	 62.72	-1	99010..99693	-	227	41406189	-	MAP0091c	-	hypothetical protein
92	 66.21	0	99947..100816	+	289	41406190	-	MAP0092	-	hypothetical protein
93	 65.53	-1	100818..101345	+	175	41406191	-	MAP0093	-	hypothetical protein
94	 66.32	0	101555..101839	+	94	41406192	-	MAP0094	-	hypothetical protein
95	 64.58	-1	102968..103495	-	175	41406193	nuoI_1	MAP0095c	-	NADH dehydrogenase subunit I
96	 61.26	-2	103696..104028	-	110	41406194	-	MAP0096c	-	hypothetical protein
97	 63.44	-1	104057..104644	-	195	41406195	-	MAP0097c	-	hypothetical protein
98	 66.67	0	104739..105512	-	257	41406196	-	MAP0098c	-	hypothetical protein
99	 62.07	-2	106041..106214	+	57	41406197	-	MAP0099	-	hypothetical protein
100	 61.04	-2	107007..107504	+	165	41406198	-	MAP0100	-	hypothetical protein
69.39	MEAN

3.47	STD DEV
