IslandPath Analysis: Methanosphaera stadtmanae DSM 3091

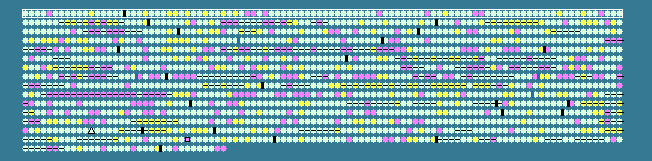

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 29.00   STD DEV: 3.63
Methanosphaera stadtmanae DSM 3091, complete genome - 1..1767403
1534 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 28.14	0	718..1872	+	384	84488832	cdc6-1	Msp_0001	-	cell division control protein 6-like 1
2	 27.73	0	1926..2246	-	106	84488833	-	Msp_0002	-	hypothetical protein
3	 28.96	0	2530..3444	-	304	84488834	pyrB	Msp_0003	-	aspartate carbamoyltransferase catalytic subunit
4	 27.07	0	3462..4196	-	244	84488835	-	Msp_0004	-	tRNA(1-methyladenosine) methyltransferase
5	 24.41	-1	4253..7066	-	937	84488836	-	Msp_0005	-	helicase
6	 27.39	0	7082..7468	-	128	84488837	-	Msp_0006	-	NUDIX-related protein
7	 28.77	0	7473..9731	-	752	84488838	-	Msp_0007	-	Hef nuclease
8	 31.58	0	10175..11374	-	399	84488839	-	Msp_0008	-	hypothetical protein
9	 29.53	0	11403..12770	-	455	84488840	-	Msp_0009	-	putative single-stranded-DNA-specific exonuclease
10	 30.60	0	12736..13137	-	133	84488841	rps15p	Msp_0010	-	30S ribosomal protein S15P
11	 31.52	0	13239..13790	-	183	84488842	-	Msp_0011	-	putative xanthosine triphosphate pyrophosphatase
12	 34.63	+1	13845..14924	-	359	84488843	-	Msp_0012	-	hypothetical protein
13	 30.97	0	15048..16652	+	534	84488844	-	Msp_0013	-	O-sialoglycoprotein endopeptidase/protein kinase
14	 30.08	0	16660..17490	-	276	84488845	uppP	Msp_0014	-	UppP
15	 32.36	0	17696..18616	-	306	84488846	ilvE	Msp_0015	-	hypothetical protein
16	 28.33	0	18690..19289	-	199	84488847	-	Msp_0016	-	hypothetical protein
17	 26.43	0	19623..20897	+	424	84488848	-	Msp_0017	-	hypothetical protein
18	 26.78	0	21276..22145	-	289	84488849	-	Msp_0019	-	hypothetical protein
19	 31.13	0	22300..23070	+	256	84488850	surE	Msp_0020	-	hypothetical protein
20	 29.39	0	23071..24084	-	337	84488851	-	Msp_0021	-	hypothetical protein
21	 33.94	+1	24192..25184	-	330	84488852	ilvC	Msp_0022	-	ketol-acid reductoisomerase
22	 26.52	0	25444..26499	+	351	84488853	-	Msp_0023	-	hypothetical protein
23	 28.22	0	26602..27285	+	227	84488854	-	Msp_0024	-	hypothetical protein
24	 29.72	0	27305..27802	-	165	84488855	ilvH	Msp_0025	-	acetolactate synthase 3 regulatory subunit
25	 34.88	+1	27804..29483	-	559	84488856	ilvB1	Msp_0026	-	IlvB1
26	 37.00	+2	29173..29499	+	108	84488857	-	Msp_0027	-	hypothetical protein
27	 29.12	0	29541..30038	-	165	84488858	ilvH	Msp_0028	-	acetolactate synthase 3 regulatory subunit
28	 34.28	+1	30031..31719	-	562	84488859	ilvB2	Msp_0029	-	IlvB2
29	 30.68	0	32023..33339	+	438	84488860	purD	Msp_0030	-	phosphoribosylamine--glycine ligase
30	 29.70	0	33553..34461	+	302	84488861	argF	Msp_0031	-	ornithine carbamoyltransferase
31	 33.70	+1	34542..35366	+	274	84488862	hisF	Msp_0032	-	imidazole glycerol phosphate synthase subunit HisF
32	 30.32	0	35562..36491	+	309	84488863	-	Msp_0033	-	hypothetical protein
33	 25.53	0	36512..37447	+	311	84488864	-	Msp_0034	-	putative 3-methyladenine DNA glycosylase/8-oxoguanine DNA glycosylase
34	 34.49	+1	37551..37982	-	143	84488865	-	Msp_0035	-	peptidyl-prolyl cis-trans isomerase 1
35	 29.45	0	38180..39928	+	582	84488866	-	Msp_0036	-	putative ATP-dependent helicase
36	 33.93	+1	39958..41124	-	388	84488867	argD	Msp_0037	-	acetylornithine aminotransferase
37	 29.31	0	41543..42238	+	231	84488868	cbiL	Msp_0038	-	CbiL
38	 24.23	-1	42250..43347	-	365	84488869	-	Msp_0039	-	glycosyltransferase
39	 23.64	-1	43359..43688	-	109	84488870	-	Msp_0040	-	hypothetical protein
40	 26.58	0	43777..44013	+	78	84488871	-	Msp_0041	-	hypothetical protein
41	 25.26	-1	44110..44988	+	292	84488872	-	Msp_0042	-	glycosyltransferase
42	 29.21	0	45180..47630	+	816	84488873	-	Msp_0043	-	asn/thr-rich large protein family protein
43	 28.50	0	47838..49079	+	413	84488874	-	Msp_0044	-	glycosyltransferase
44	 26.17	0	49081..50043	+	320	84488875	-	Msp_0045	-	glycosyltransferase
45	 28.91	0	50256..52901	+	881	84488876	-	Msp_0046	-	asn/thr-rich large protein family protein
46	 32.28	0	52995..53756	-	253	84488877	-	Msp_0047	-	3-ketoacyl-(acyl-carrier-protein) reductase
47	 26.75	0	54048..59777	-	1909	84488878	-	Msp_0048	-	asn/thr-rich large protein family protein
48	 28.00	0	60229..61335	-	368	84488879	-	Msp_0049	-	glycosyltransferase
49	 28.65	0	61352..63742	-	796	84488880	-	Msp_0050	-	hypothetical protein
50	 26.01	0	63754..64941	-	395	84488881	-	Msp_0051	-	glycosyltransferase
51	 28.34	0	64938..66059	-	373	84488882	-	Msp_0052	-	glycosyltransferase
52	 29.09	0	66955..68109	-	384	84488883	-	Msp_0053	-	glycosyltransferase
53	 31.88	0	68199..68888	-	229	84488884	-	Msp_0054	-	glycosyltransferase
54	 26.70	0	68998..70188	-	396	84488885	-	Msp_0055	-	glycosyltransferase
55	 26.72	0	70200..71333	-	377	84488886	-	Msp_0056	-	glycosyltransferase
56	 28.04	0	71362..72588	-	408	84488887	-	Msp_0057	-	glycosyltransferase
57	 30.72	0	72635..73630	-	331	84488888	-	Msp_0058	-	nucleoside-diphosphate-sugar epimerase
58	 27.83	0	74019..74636	+	205	84488889	-	Msp_0059	-	hypothetical protein
59	 27.10	0	74643..75524	-	293	84488890	-	Msp_0060	-	putative lipooligosaccharide cholinephosphotransferase
60	 24.39	-1	75918..76655	+	245	84488891	-	Msp_0061	-	hypothetical protein
61	 27.94	0	76652..77356	-	234	84488892	-	Msp_0062	-	hypothetical protein
62	 28.80	0	77359..78813	-	484	84488893	-	Msp_0063	-	polysaccharide biosynthesis protein
63	 28.41	0	78823..79431	-	202	84488894	-	Msp_0064	-	acetyltransferase
64	 26.65	0	79428..80609	-	393	84488895	-	Msp_0065	-	UDP-galactopyranose mutase
65	 26.25	0	80632..81930	-	432	84488896	-	Msp_0066	-	polysaccharide biosynthesis protein
66	 30.27	0	81975..82922	-	315	84488897	-	Msp_0067	-	putative UDP-glucose 4-epimerase
67	 26.11	0	83044..83472	-	142	84488898	-	Msp_0068	-	hypothetical protein
68	 25.00	-1	83593..84612	+	339	84488899	-	Msp_0069	-	hypothetical protein
69	 31.75	0	84622..85506	+	294	84488900	ftr2	Msp_0070	-	tetrahydromethanopterin formyltransferase
70	 27.62	0	85516..86460	+	314	84488901	-	Msp_0071	-	ribokinase
71	 36.49	+2	86551..87438	+	295	84488902	pdx1	Msp_0072	-	pyridoxine biosynthesis protein
72	 28.08	0	87529..88194	+	221	84488903	-	Msp_0073	-	exopolysaccharide synthesis protein
73	 26.97	0	88224..89543	-	439	84488904	-	Msp_0074	-	hypothetical protein
74	 27.62	0	89934..90563	-	209	84488905	-	Msp_0075	-	hypothetical protein
75	 29.93	0	90827..92029	+	400	84488906	-	Msp_0076	-	hypothetical protein
76	 23.44	-1	92049..92594	-	181	84488907	-	Msp_0077	-	hypothetical protein
77	 23.28	-1	92721..93128	+	135	84488908	-	Msp_0078	-	hypothetical protein
78	 26.96	0	93176..93646	+	156	84488909	-	Msp_0079	-	hypothetical protein
79	 30.71	0	93731..94684	-	317	84488910	-	Msp_0080	-	glycosyltransferase
80	 27.51	0	94685..95182	-	165	84488911	-	Msp_0081	-	hypothetical protein
81	 27.36	0	95197..96804	-	535	84488912	-	Msp_0082	-	hypothetical protein
82	 31.56	0	96801..98831	-	676	84488913	metG	Msp_0083	-	methionyl-tRNA synthetase
83	 29.09	0	99079..100422	+	447	84488914	-	Msp_0084	-	DNA primase large subunit
84	 30.15	0	100419..101393	+	324	84488915	-	Msp_0085	-	DNA primase small subunit
85	 26.88	0	101390..102676	-	428	84488916	-	Msp_0086	-	tRNA CCA-pyrophosphorylase
86	 31.08	0	102830..103405	-	191	84488917	cbiT	Msp_0087	-	CbiT
87	 28.83	0	103443..103997	-	184	84488918	-	Msp_0088	-	3-polyprenyl-4-hydroxybenzoate decarboxylase
88	 26.81	0	104008..104559	-	183	84488919	-	Msp_0089	-	2'-5' RNA ligase
89	 31.02	0	104629..105708	-	359	84488920	-	Msp_0090	-	3-dehydroquinate synthase
90	 36.60	+2	105722..106516	-	264	84488921	-	Msp_0091	-	fructose-bisphosphate aldolase
91	 26.88	0	106637..107101	-	154	84488922	-	Msp_0092	-	hypothetical protein
92	 27.78	0	107130..108371	-	413	84488923	-	Msp_0093	-	flavoprotein
93	 29.63	0	108381..108623	-	80	84488924	-	Msp_0094	-	hypothetical protein
94	 32.64	+1	108767..109342	-	191	84488925	-	Msp_0095	-	phosphatidylglycerophosphate synthase
95	 25.68	0	109391..110017	+	208	84488926	-	Msp_0096	-	hypothetical protein
96	 29.08	0	110053..110358	+	101	84488927	-	Msp_0097	-	hypothetical protein
97	 20.40	-2	110369..110716	-	115	84488928	-	Msp_0098	-	hypothetical protein
98	 26.45	0	110750..111214	-	154	84488929	-	Msp_0099	-	hypothetical protein
99	 29.59	0	111241..113325	-	694	84488930	-	Msp_0100	-	helicase
100	 28.44	0	113358..114419	-	353	84488931	-	Msp_0101	-	glycosyltransferase
29.00	MEAN

3.63	STD DEV
