IslandPath Analysis: Metallosphaera sedula DSM 5348

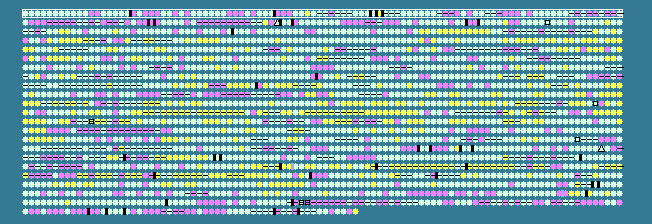

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.47 STD DEV: 4.15
Metallosphaera sedula DSM 5348, complete genome - 1..2191517
2256 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 48.87	0	331..1521	+	396	146302786	-	Msed_0001	-	ORC complex protein Cdc6/Orc1
2	 48.17	0	1499..2017	+	172	146302787	-	Msed_0002	-	hypothetical protein
3	 48.08	0	2038..2973	-	311	146302788	-	Msed_0003	-	thioesterase superfamily protein
4	 46.02	0	2970..3434	-	154	146302789	-	Msed_0004	-	nicotinamide-nucleotide adenylyltransferase
5	 44.15	0	3446..4249	-	267	146302790	-	Msed_0005	-	hypothetical protein
6	 46.45	0	4230..4778	-	182	146302791	-	Msed_0006	-	adenylate cyclase
7	 45.40	0	4779..5789	+	336	146302792	-	Msed_0007	-	ribosomal RNA methyltransferase NOP2
8	 46.07	0	5768..6238	+	156	146302793	-	Msed_0008	-	hypothetical protein
9	 47.90	0	6305..7279	+	324	146302794	radA	Msed_0009	-	DNA repair and recombination protein RadA
10	 43.14	0	7314..7823	+	169	146302795	-	Msed_0010	-	histidine triad (HIT) protein
11	 44.33	0	7850..9058	+	402	146302796	-	Msed_0011	-	threonine dehydratase
12	 42.35	0	9305..9925	+	206	146302797	-	Msed_0012	-	prephenate dehydratase
13	 42.86	0	9918..10883	-	321	146302798	-	Msed_0013	-	AsnC family transcriptional regulator
14	 46.13	0	10929..12335	-	468	146302799	-	Msed_0014	-	FAD dependent oxidoreductase
15	 44.48	0	12337..13350	-	337	146302800	-	Msed_0015	-	adenylosuccinate synthetase
16	 44.06	0	13486..14529	-	347	146302801	purP	Msed_0016	-	5-formaminoimidazole-4-carboxamide-1-(beta)-D-ribofuranosyl 5'-monophosphate synthetase-like protein
17	 44.34	0	14526..15524	-	332	146302802	purP	Msed_0017	-	5-formaminoimidazole-4-carboxamide-1-(beta)-D-ribofuranosyl 5'-monophosphate synthetase
18	 45.90	0	15575..16951	+	458	146302803	-	Msed_0018	-	adenylosuccinate lyase
19	 40.98	-1	17075..18016	+	313	146302804	-	Msed_0019	-	AIR synthase-like protein
20	 44.44	0	18084..19829	+	581	146302805	-	Msed_0020	-	radical SAM domain-containing protein
21	 42.03	-1	19852..20472	-	206	146302806	-	Msed_0021	-	hypothetical protein
22	 40.19	-1	20640..21164	-	174	146302807	-	Msed_0022	-	hypothetical protein
23	 42.09	-1	21161..21868	-	235	146302808	-	Msed_0023	-	phosphoribosyltransferase
24	 43.28	0	21947..23374	-	475	146302809	gatB	Msed_0024	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
25	 46.17	0	23377..23781	-	134	146302810	-	Msed_0025	-	cytidine deaminase
26	 42.59	0	23756..24403	-	215	146302811	upp	Msed_0026	-	uracil phosphoribosyltransferase
27	 43.21	0	24408..24650	-	80	146302812	rps28e	Msed_0027	-	30S ribosomal protein S28e
28	 42.47	0	24724..24909	+	61	146302813	-	Msed_0028	-	50S ribosomal protein L24E
29	 45.15	0	24911..25333	+	140	146302814	-	Msed_0029	-	nucleoside diphosphate kinase
30	 43.26	0	25323..27116	-	597	146302815	-	Msed_0030	-	translation initiation factor IF-2
31	 46.15	0	27200..28486	+	428	146302816	-	Msed_0031	-	malate dehydrogenase
32	 43.65	0	28542..28793	+	83	146302817	rpoH	Msed_0032	-	DNA-directed RNA polymerase subunit H
33	 43.64	0	28796..32170	+	1124	146302818	-	Msed_0033	-	DNA-directed RNA polymerase subunit beta
34	 45.43	0	32163..34823	+	886	146302819	-	Msed_0034	-	DNA-directed RNA polymerase subunit alpha
35	 42.58	0	34829..36007	+	392	146302820	-	Msed_0035	-	DNA-directed RNA polymerase subunit A''
36	 41.35	-1	36015..36326	+	103	146302821	-	Msed_0036	-	50S ribosomal protein L30e
37	 37.96	-2	36339..36770	+	143	146302822	-	Msed_0037	-	transcription elongation factor NusA-like protein
38	 44.67	0	36782..37222	+	146	146302823	rps12P	Msed_0038	-	30S ribosomal protein S12P
39	 38.71	-1	37242..37706	-	154	146302824	-	Msed_0039	-	hypothetical protein
40	 44.96	0	37794..38378	+	194	146302825	-	Msed_0040	-	30S ribosomal protein S7P
41	 45.34	0	38432..39739	+	435	146302826	-	Msed_0041	-	elongation factor 1-alpha
42	 43.69	0	39760..40068	+	102	146302827	rps10p	Msed_0042	-	30S ribosomal protein S10P
43	 41.63	-1	40201..41490	+	429	146302828	-	Msed_0043	-	hydrogenobyrinic acid a,c-diamide synthase (glutamine-hydrolysing) / cobyrinate a,c-diamide synthase
44	 35.85	-2	41464..42219	-	251	146302829	-	Msed_0044	-	hypothetical protein
45	 40.60	-1	42263..42730	+	155	146302830	-	Msed_0045	-	hypothetical protein
46	 47.06	0	42768..43430	+	220	146302831	-	Msed_0046	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
47	 49.89	0	43427..43897	+	156	146302832	-	Msed_0047	-	riboflavin synthase
48	 50.22	0	43878..44333	+	151	146302833	ribH	Msed_0048	-	riboflavin synthase subunit beta
49	 46.61	0	44339..45031	+	230	146302834	-	Msed_0049	-	GTP cyclohydrolase IIA
50	 45.59	0	45010..46110	+	366	146302835	-	Msed_0050	-	amidohydrolase
51	 45.03	0	46082..46825	-	247	146302836	-	Msed_0051	-	DNA polymerase sliding clamp subunit B
52	 42.39	0	46825..47133	-	102	146302837	-	Msed_0052	-	hypothetical protein
53	 44.28	0	47130..48773	-	547	146302838	-	Msed_0053	-	hypothetical protein
54	 47.83	0	48813..51530	+	905	146302839	-	Msed_0054	-	DEAD/DEAH box helicase domain-containing protein
55	 44.33	0	51572..51862	+	96	146302840	-	Msed_0055	-	50S ribosomal protein L14e
56	 47.84	0	51863..52117	+	84	146302841	-	Msed_0056	-	DKCLD domain-containing protein
57	 49.00	0	52182..52883	+	233	146302842	-	Msed_0057	-	PUA domain-containing protein
58	 48.48	0	52871..53431	+	186	146302843	-	Msed_0058	-	methyltransferase small
59	 43.21	0	54355..55953	-	532	146302844	-	Msed_0059	-	hypothetical protein
60	 51.09	+1	57034..58632	+	532	146302845	-	Msed_0060	-	hypothetical protein
61	 46.33	0	58947..59246	+	99	146302846	-	Msed_0061	-	50S ribosomal protein L21e
62	 45.43	0	59260..59598	+	112	146302847	-	Msed_0062	-	DNA-directed RNA polymerase, subunit F
63	 47.33	0	59643..60278	+	211	146302848	-	Msed_0063	-	hypothetical protein
64	 44.50	0	60275..60928	+	217	146302849	ksgA	Msed_0064	-	dimethyladenosine transferase
65	 48.00	0	60880..61479	+	199	146302850	-	Msed_0065	-	putative methylase
66	 46.70	0	61451..62146	+	231	146302851	-	Msed_0066	-	tRNA/rRNA methyltransferase (SpoU)
67	 44.55	0	62180..62830	+	216	146302852	-	Msed_0067	-	30S ribosomal protein S3Ae
68	 46.09	0	62802..64016	+	404	146302853	-	Msed_0068	-	nucleotidyl transferase
69	 45.55	0	64095..65297	-	400	146302854	-	Msed_0069	-	translation-associated GTPase
70	 46.70	0	65368..66018	+	216	146302855	-	Msed_0070	-	50S ribosomal protein L15e
71	 38.74	-1	66024..66467	+	147	146302856	-	Msed_0071	-	hypothetical protein
72	 41.11	-1	66442..66981	+	179	146302857	-	Msed_0072	-	hypothetical protein
73	 39.91	-1	66962..67387	+	141	146302858	-	Msed_0073	-	ribonuclease P-related protein
74	 46.20	0	67481..68203	+	240	146302859	-	Msed_0074	-	proteasome subunit alpha
75	 42.35	0	68218..68916	+	232	146302860	-	Msed_0075	-	putative RNA-associated protein
76	 43.55	0	68918..69661	+	247	146302861	-	Msed_0076	-	exosome complex RNA-binding protein Rrp4
77	 45.93	0	69627..70364	+	245	146302862	-	Msed_0077	-	exosome complex exonuclease Rrp41
78	 45.20	0	70366..71208	+	280	146302863	-	Msed_0078	-	exosome complex RNA-binding protein Rrp42
79	 48.40	0	71208..71426	+	72	146302864	rpl37ae	Msed_0079	-	50S ribosomal protein L37Ae
80	 39.58	-1	71431..71910	+	159	146302865	-	Msed_0080	-	ribosomal biogenesis protein, containing Brix domain
81	 32.92	-2	71907..72149	+	80	146302866	-	Msed_0081	-	hypothetical protein
82	 41.60	-1	72127..72513	+	128	146302867	-	Msed_0082	-	prefoldin subunit beta
83	 41.41	-1	72547..73239	+	230	146302868	-	Msed_0083	-	ERCC4 domain-containing protein
84	 45.32	0	73404..75614	+	736	146302869	-	Msed_0084	-	elongation factor EF-2
85	 41.32	-1	75621..76346	+	241	146302870	-	Msed_0085	-	HAD family hydrolase
86	 43.22	0	76329..77633	-	434	146302871	-	Msed_0086	-	aminopeptidase
87	 43.80	0	77668..78240	+	190	146302872	-	Msed_0087	-	hypothetical protein
88	 45.60	0	78253..79263	+	336	146302873	-	Msed_0088	-	3-isopropylmalate dehydrogenase
89	 43.58	0	79263..82463	+	1066	146302874	ileS	Msed_0089	-	isoleucyl-tRNA synthetase
90	 43.90	0	82464..83192	+	242	146302875	-	Msed_0090	-	hypothetical protein
91	 44.64	0	83347..84372	+	341	146302876	rpl3p	Msed_0091	-	50S ribosomal protein L3P
92	 44.19	0	84378..85169	+	263	146302877	rpl4lp	Msed_0092	-	50S ribosomal protein L4P
93	 42.28	-1	85166..85411	+	81	146302878	-	Msed_0093	-	50S ribosomal protein L23P
94	 44.91	0	85421..86137	+	238	146302879	rpl2p	Msed_0094	-	50S ribosomal protein L2P
95	 42.32	-1	86170..86592	+	140	146302880	rps19p	Msed_0095	-	30S ribosomal protein S19P
96	 41.83	-1	86598..87068	+	156	146302881	rpl22p	Msed_0096	-	50S ribosomal protein L22P
97	 43.98	0	87072..87794	+	240	146302882	rps3p	Msed_0097	-	30S ribosomal protein S3P
98	 40.10	-1	87775..87981	+	68	146302883	-	Msed_0098	-	50S ribosomal protein L29
99	 37.65	-2	87968..88222	+	84	146302884	-	Msed_0099	-	ribonuclease P, Rpp29
100	 44.35	0	88227..88562	+	111	146302885	rps17p	Msed_0100	-	30S ribosomal protein S17P
46.47	MEAN

4.15	STD DEV
