IslandPath Analysis: Methanosarcina mazei Go1

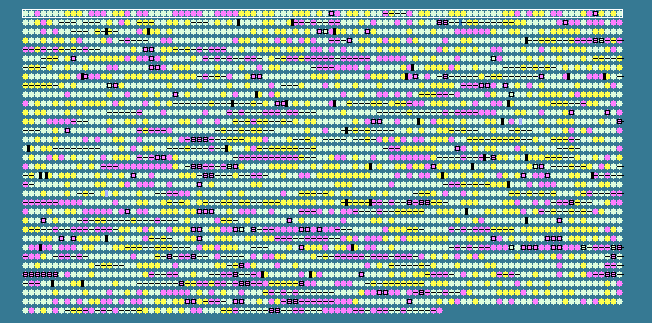

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 43.57   STD DEV: 4.98
Methanosarcina mazei Go1, complete genome - 1..4096345
3370 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 47.04	0	522..2126	+	534	21226103	-	MM_0001	-	peptide ABC transporter ATP-binding protein
2	 44.53	0	2677..4284	+	535	21226104	-	MM_0002	-	peptide ABC transporter ATP-binding protein
3	 32.39	-2	4334..4546	+	70	21226105	-	MM_0003	-	hypothetical protein
4	 44.31	0	4615..5607	+	330	21226106	dppB	MM_0004	-	peptide ABC transporter permease
5	 44.64	0	5630..6487	+	285	21226107	dppC	MM_0005	-	peptide ABC transporter permease
6	 41.62	0	6523..7500	+	325	21226108	dppD	MM_0006	-	peptide ABC transporter ATP-binding protein
7	 41.18	0	7490..8101	+	203	21226109	dppF	MM_0007	-	peptide ABC transporter ATP-binding protein
8	 49.48	+1	8186..9343	-	385	21226110	-	MM_0008	-	hypothetical protein
9	 51.12	+1	9608..10900	-	430	21226111	-	MM_0009	-	hypothetical protein
10	 47.42	0	11087..11299	-	70	21226112	-	MM_0010	-	hypothetical protein
11	 43.14	0	12748..13155	+	135	21226113	-	MM_0011	-	hypothetical protein
12	 37.98	-1	14436..14801	+	121	21226114	-	MM_0012	-	RNA signal recognition particle 4.5S RNA
13	 39.23	0	15146..15637	+	163	21226115	-	MM_0013	-	hypothetical protein
14	 37.37	-1	16177..16548	+	123	21226116	-	MM_0014	-	undecaprenyl pyrophosphate synthetase
15	 44.94	0	16763..17365	-	200	21226117	-	MM_0015	-	methyltransferase
16	 48.63	+1	18916..19098	+	60	21226118	-	MM_0016	-	translation initiation factor IF-1A
17	 47.08	0	19760..20581	-	273	21226119	ubiE	MM_0017	-	ubiquinone/menaquinone biosynthesis methyltransferase
18	 37.46	-1	21863..22201	+	112	21226120	-	MM_0018	-	hypothetical protein
19	 40.43	0	22682..23977	-	431	21226121	-	MM_0019	-	hypothetical protein
20	 35.91	-1	24297..25307	-	336	21226122	-	MM_0020	-	hypothetical protein
21	 37.60	-1	25929..26186	+	85	21226123	-	MM_0021	-	hypothetical protein
22	 41.39	0	26685..26957	+	90	21226124	-	MM_0022	-	hypothetical protein
23	 43.11	0	26958..27182	+	74	21226125	-	MM_0023	-	hypothetical protein
24	 41.67	0	27399..27710	+	103	21226126	-	MM_0024	-	hypothetical protein
25	 40.28	0	27707..28066	+	119	21226127	-	MM_0025	-	hypothetical protein
26	 38.46	-1	28927..29472	-	181	21226128	-	MM_0026	-	hypothetical protein
27	 36.21	-1	29820..30167	-	115	21226129	-	MM_0027	-	hypothetical protein
28	 33.60	-2	30530..33127	+	865	21226130	-	MM_0028	-	superfamily I DNA/RNA helicase
29	 34.83	-1	33708..34109	+	133	21226131	-	MM_0029	-	hypothetical protein
30	 30.66	-2	34526..35647	-	373	21226132	-	MM_0030	-	O-linked N-acetylglucosamine transferase
31	 41.76	0	36332..36604	+	90	21226133	-	MM_0031	-	hypothetical protein
32	 46.22	0	36605..36829	+	74	21226134	-	MM_0032	-	hypothetical protein
33	 37.63	-1	36987..37358	-	123	21226135	-	MM_0033	-	hypothetical protein
34	 25.50	-2	37836..38780	-	314	21226136	-	MM_0034	-	hypothetical protein
35	 32.96	-2	39205..41862	-	885	21226137	-	MM_0035	-	hypothetical protein
36	 32.49	-2	42333..44348	+	671	21226138	-	MM_0036	-	hypothetical protein
37	 52.74	+1	44603..45787	-	394	161485685	-	MM_0037	-	argininosuccinate synthase
38	 50.25	+1	46169..49390	-	1073	21226140	carB	MM_0038	-	carbamoyl phosphate synthase large subunit
39	 49.74	+1	49390..50529	-	379	21226141	-	MM_0039	-	carbamoyl phosphate synthase small subunit
40	 42.57	0	51425..52777	+	450	21226142	otaA	MM_0040	-	glycine betaine transporter, ATP-binding protein
41	 47.17	0	52774..53604	+	276	21226143	otaB	MM_0041	-	glycine betaine transporter, permease protein
42	 47.45	0	53778..54698	+	306	21226144	otaC	MM_0042	-	glycine betaine transporter, substrate-binding protein
43	 40.37	0	55009..57651	-	880	21226145	-	MM_0043	-	hypothetical protein
44	 45.31	0	58247..59089	+	280	21226146	-	MM_0044	-	hypothetical protein
45	 41.83	0	59399..60481	+	360	21226147	-	MM_0045	-	hypothetical protein
46	 50.10	+1	60558..61070	+	170	21226148	-	MM_0046	-	hypothetical protein
47	 49.65	+1	61663..63090	-	475	21226149	-	MM_0047	-	acetylornithine aminotransferase
48	 48.61	+1	63093..64571	-	492	21226150	-	MM_0048	-	aldehyde dehydrogenase
49	 42.93	0	65089..65484	-	131	21226151	-	MM_0049	-	hypothetical protein
50	 47.11	0	66148..68049	-	633	21226152	-	MM_0050	-	glutamyl-tRNA(Gln) amidotransferase subunit E
51	 41.73	0	68755..69171	+	138	21226153	-	MM_0051	-	hypothetical protein
52	 35.58	-1	69361..70605	-	414	21226154	-	MM_0052	-	transposase
53	 34.27	-1	70675..70887	-	70	21226155	-	MM_0053	-	hypothetical protein
54	 45.97	0	71424..71882	+	152	21226156	-	MM_0054	-	universal stress protein
55	 50.37	+1	72307..73809	-	500	21226157	-	MM_0055	-	tungsten formylmethanofuran dehydrogenase subunit F
56	 50.25	+1	73806..76187	-	793	21226158	-	MM_0056	-	heterodisulfate reductase, subunit A
57	 45.39	0	77008..77289	+	93	21226159	-	MM_0057	-	ferredoxin-thioredoxin reductase, catalytic chain
58	 49.46	+1	77762..78226	+	154	21226160	-	MM_0058	-	tungsten formylmethanofuran dehydrogenase subunit G
59	 46.02	0	78236..79480	+	414	21226161	-	MM_0059	-	tungsten formylmethanofuran dehydrogenase subunit B
60	 44.61	0	79480..79878	+	132	21226162	-	MM_0060	-	tungsten formylmethanofuran dehydrogenase subunit D
61	 39.65	0	80012..80296	+	94	21226163	-	MM_0061	-	hypothetical protein
62	 47.15	0	80558..81223	-	221	21226164	-	MM_0062	-	SAM-dependent methyltransferase
63	 43.22	0	81389..82753	-	454	21226165	-	MM_0063	-	surface layer protein B
64	 42.45	0	83342..85348	-	668	21226166	-	MM_0064	-	surface layer protein B
65	 23.27	-2	85364..85522	-	52	21226167	-	MM_0065	-	hypothetical protein
66	 41.75	0	85907..89065	-	1052	21226168	-	MM_0066	-	hypothetical protein
67	 48.09	0	89713..91257	-	514	21226169	-	MM_0067	-	hypothetical protein
68	 49.27	+1	91254..92966	-	570	21226170	-	MM_0068	-	N-methylhydantoinase (ATP-hydrolyzing)
69	 45.94	0	93523..94458	-	311	21226171	-	MM_0069	-	Sodium-dependent transporter
70	 44.95	0	94842..95573	+	243	21226172	-	MM_0070	-	putative ribosomal RNA methyltransferase
71	 44.54	0	95590..96258	+	222	21226173	-	MM_0071	-	hypothetical protein
72	 49.06	+1	96455..98158	-	567	21226174	-	MM_0072	-	thermosome subunit
73	 47.80	0	98569..99273	-	234	21226175	-	MM_0073	-	ribose 5-phosphate isomerase
74	 48.84	+1	99386..100720	-	444	21226176	aspC	MM_0074	-	aspartyl-tRNA synthetase
75	 42.74	0	101277..101648	+	123	21226177	-	MM_0075	-	hypothetical protein
76	 40.61	0	101875..102135	+	86	21226178	-	MM_0076	-	hypothetical protein
77	 44.92	0	102801..103499	+	232	21226179	-	MM_0077	-	hypothetical protein
78	 44.15	0	103957..104409	-	150	21226180	-	MM_0078	-	xanthine-guanine phosphoribosyltransferase
79	 46.60	0	105080..105976	+	298	21226181	-	MM_0079	-	hypothetical protein
80	 43.94	0	106128..107258	-	376	21226182	-	MM_0080	-	hypothetical protein
81	 48.68	+1	107742..109103	-	453	21226183	-	MM_0081	-	hypothetical protein
82	 47.31	0	109130..109408	-	92	21226184	-	MM_0082	-	hypothetical protein
83	 15.96	-2	109586..109798	-	70	21226185	-	MM_0083	-	hypothetical protein
84	 42.75	0	109844..110374	-	176	21226186	aroK	MM_0084	-	shikimate kinase
85	 39.62	0	110609..110974	-	121	21226187	-	MM_0085	-	hypothetical protein
86	 49.25	+1	111384..111917	-	177	21226188	-	MM_0086	-	tRNA 2'-O-methylase
87	 47.44	0	112009..113532	-	507	21226189	-	MM_0087	-	thymidine phosphorylase
88	 45.21	0	113888..114763	-	291	21226190	-	MM_0088	-	transporter
89	 38.16	-1	115136..115342	-	68	21226191	-	MM_0089	-	hypothetical protein
90	 39.92	0	115984..116226	-	80	21226192	-	MM_0090	-	hypothetical protein
91	 46.56	0	117271..118449	-	392	21226193	-	MM_0091	-	ABC transporter permease protein
92	 46.13	0	118499..119647	-	382	21226194	-	MM_0092	-	hypothetical protein
93	 46.80	0	120209..121708	+	499	21226195	-	MM_0093	-	cobyric acid synthase
94	 52.79	+1	122045..122599	-	184	21226196	-	MM_0094	-	hypothetical protein
95	 39.39	0	123133..123825	+	230	21226197	-	MM_0095	-	hypothetical protein
96	 35.62	-1	124395..125663	+	422	21226198	-	MM_0096	-	transposase
97	 49.15	+1	125736..126740	-	334	21226199	-	MM_0097	-	alanine dehydrogenase
98	 45.01	0	126929..127639	+	236	21226200	-	MM_0098	-	hypothetical protein
99	 49.51	+1	127683..128300	-	205	21226201	-	MM_0099	-	O-linked N-acetylglucosamine transferase
100	 44.36	0	128355..128735	-	126	21226202	-	MM_0100	-	hypothetical protein
43.57	MEAN

4.98	STD DEV
