IslandPath Analysis: Methylobacterium extorquens PA1

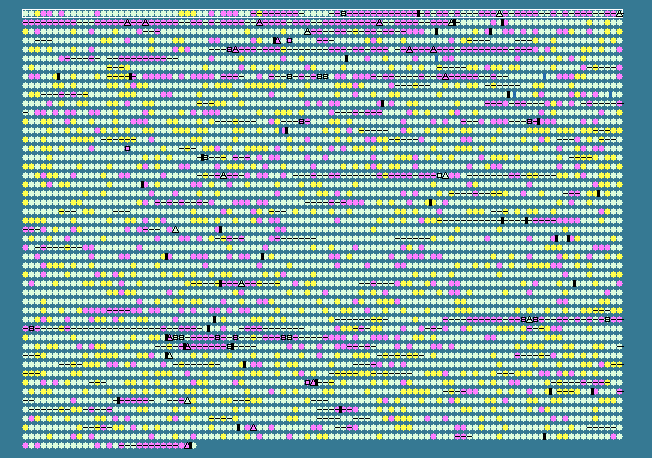

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 68.64   STD DEV: 4.16
Methylobacterium extorquens PA1, complete genome - 1..5471154
4829 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 68.99	0	44..1549	+	501	163849458	-	Mext_0001	-	chromosomal replication initiation protein
2	 67.02	0	1870..2991	+	373	163849459	-	Mext_0002	-	DNA polymerase III subunit beta
3	 73.59	+1	3032..4186	+	384	163849460	-	Mext_0003	-	DNA replication and repair protein RecF
4	 64.69	0	4190..4594	-	134	163849461	-	Mext_0004	-	PilT domain-containing protein
5	 62.08	-1	4594..4833	-	79	163849462	-	Mext_0005	-	transcription factor
6	 68.67	0	4936..6783	+	615	163849463	-	Mext_0006	-	ATP-dependent DNA helicase RecQ
7	 54.87	-2	6841..7179	-	112	163849464	-	Mext_0007	-	hypothetical protein
8	 67.69	0	7495..8181	+	228	163849465	-	Mext_0008	-	hypothetical protein
9	 69.98	0	8303..10504	+	733	163849466	-	Mext_0009	-	RecD/TraA family helicase
10	 69.90	0	10657..11832	+	391	163849467	-	Mext_0010	-	hypothetical protein
11	 68.91	0	12023..14248	+	741	163849468	-	Mext_0011	-	phosphoribosylformylglycinamidine synthase II
12	 67.93	0	14276..14512	+	78	163849469	-	Mext_0012	-	BolA family protein
13	 61.31	-1	14586..14921	+	111	163849470	-	Mext_0013	-	glutaredoxin-like protein
14	 69.88	0	14994..15896	+	300	163849471	-	Mext_0014	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
15	 67.68	0	16005..16889	+	294	163849472	-	Mext_0015	-	SMP-30/gluconolaconase/LRE domain-containing protein
16	 67.13	0	17075..17290	+	71	163849473	-	Mext_0016	-	hypothetical protein
17	 69.89	0	17318..18154	-	278	163849474	-	Mext_0017	-	hypothetical protein
18	 69.06	0	18512..20557	-	681	163849475	-	Mext_0018	-	ATPase domain-containing protein
19	 65.83	0	20557..22119	-	520	163849476	-	Mext_0019	-	non-specific serine/threonine protein kinase
20	 69.25	0	22475..23674	+	399	163849477	-	Mext_0020	-	hypothetical protein
21	 69.87	0	23704..24702	-	332	163849478	-	Mext_0021	-	short-chain dehydrogenase/reductase SDR
22	 70.31	0	24825..25511	-	228	163849479	-	Mext_0022	-	GntR domain-containing protein
23	 68.25	0	26161..27807	+	548	163849480	-	Mext_0024	-	malonate decarboxylase, alpha subunit
24	 71.52	0	27815..28123	+	102	163849481	-	Mext_0025	-	malonate decarboxylase subunit delta
25	 71.81	0	28126..29058	+	310	163849482	-	Mext_0026	-	malonate decarboxylase subunit beta
26	 71.97	0	29045..29761	+	238	163849483	-	Mext_0027	-	malonate decarboxylase, gamma subunit
27	 74.73	+1	29754..30410	+	218	163849484	-	Mext_0028	-	hypothetical protein
28	 75.15	+1	30407..31267	+	286	163849485	-	Mext_0029	-	triphosphoribosyl-dephospho-CoA synthase MdcB
29	 72.51	0	31264..32187	+	307	163849486	-	Mext_0030	-	acyl transferase domain-containing protein
30	 70.94	0	32325..34709	-	794	163849487	-	Mext_0031	-	general secretion pathway protein D
31	 65.98	0	34769..35206	-	145	163849488	-	Mext_0032	-	ROSMUCR transcriptional regulator
32	 64.41	-1	35503..35946	-	147	163849489	-	Mext_0033	-	hypothetical protein
33	 66.76	0	36123..37223	+	366	163849490	-	Mext_0034	-	helix-turn-helix domain-containing protein
34	 58.83	-2	37811..38818	+	335	163849491	-	Mext_0035	-	D-isomer specific 2-hydroxyacid dehydrogenase NAD-binding
35	 55.67	-2	38822..41194	+	790	163849492	-	Mext_0036	-	Kojibiose phosphorylase
36	 62.72	-1	41357..42952	+	531	163849493	-	Mext_0037	-	YidE/YbjL duplication
37	 67.80	0	43248..45533	-	761	163849494	-	Mext_0038	-	Kojibiose phosphorylase
38	 68.72	0	45526..46254	-	242	163849495	-	Mext_0039	-	HAD family hydrolase
39	 60.34	-1	46285..48720	-	811	163849496	-	Mext_0040	-	putative phosphoketolase
40	 72.46	0	48862..49362	-	166	163849497	-	Mext_0041	-	hypothetical protein
41	 57.94	-2	49557..49808	-	83	163849498	-	Mext_0042	-	hypothetical protein
42	 63.43	-1	50049..51131	-	360	163849499	-	Mext_0043	-	helix-turn-helix domain-containing protein
43	 59.34	-2	51685..51957	-	90	163849500	-	Mext_0044	-	hypothetical protein
44	 63.19	-1	52134..53255	-	373	163849501	-	Mext_0045	-	helix-turn-helix domain-containing protein
45	 57.61	-2	53426..53734	+	102	163849502	-	Mext_0046	-	hypothetical protein
46	 64.87	0	53886..54443	+	185	163849503	-	Mext_0047	-	hypothetical protein
47	 69.07	0	54670..55209	+	179	163849504	-	Mext_0048	-	hypothetical protein
48	 68.82	0	55414..57084	-	556	163849505	-	Mext_0049	-	sulphate transporter
49	 69.25	0	57598..58023	+	141	163849506	-	Mext_0050	-	hypothetical protein
50	 65.52	0	58205..58726	-	173	163849507	-	Mext_0051	-	GCN5-related N-acetyltransferase
51	 67.49	0	59158..60132	+	324	163849508	-	Mext_0052	-	phosphate butyryltransferase
52	 67.99	0	60136..61344	+	402	163849509	-	Mext_0053	-	acetate kinase
53	 61.41	-1	61361..61855	+	164	163849510	-	Mext_0054	-	hypothetical protein
54	 68.51	0	62921..63733	-	270	163849511	-	Mext_0055	-	transposase IS4 family protein
55	 62.76	-1	63895..64893	-	332	163849512	-	Mext_0056	-	alpha/beta hydrolase fold
56	 61.38	-1	65086..65331	-	81	163849513	-	Mext_0057	-	hypothetical protein
57	 55.62	-2	65450..66517	-	355	163849514	-	Mext_0058	-	peptidase M42 family protein
58	 57.72	-2	68678..69493	-	271	163849515	-	Mext_0059	-	inositol monophosphatase
59	 61.19	-1	69694..70113	+	139	163849516	-	Mext_0060	-	glyoxalase/bleomycin resistance protein/dioxygenase
60	 61.23	-1	70186..71049	+	287	163849517	-	Mext_0061	-	alpha/beta hydrolase fold
61	 59.15	-2	71265..71876	+	203	163849518	-	Mext_0062	-	isochorismatase hydrolase
62	 60.73	-1	71912..72652	+	246	163849519	-	Mext_0063	-	hypothetical protein
63	 60.00	-2	72717..73016	+	99	163849520	-	Mext_0064	-	hypothetical protein
64	 64.47	-1	74421..75104	-	227	163849521	-	Mext_0065	-	nuclease
65	 57.60	-2	76284..76625	+	113	163849522	-	Mext_0066	-	hypothetical protein
66	 62.94	-1	76972..77427	-	151	163849523	-	Mext_0067	-	hypothetical protein
67	 66.25	0	78700..80124	-	474	163849524	-	Mext_0068	-	GTP-binding proten HflX
68	 59.31	-2	80629..80832	-	67	163849525	-	Mext_0069	-	hypothetical protein
69	 66.45	0	81062..81523	-	153	163849526	-	Mext_0070	-	hypothetical protein
70	 57.84	-2	82224..82778	+	184	163849527	-	Mext_0071	-	hypothetical protein
71	 60.91	-1	83173..83415	+	80	163849528	-	Mext_0072	-	hypothetical protein
72	 66.67	0	83457..84224	-	255	163849529	-	Mext_0073	-	cyclic nucleotide-binding
73	 63.08	-1	84221..84610	-	129	163849530	-	Mext_0074	-	response regulator receiver protein
74	 67.93	0	84876..85589	+	237	163849531	-	Mext_0075	-	hypothetical protein
75	 66.67	0	85589..85849	+	86	163849532	-	Mext_0076	-	hypothetical protein
76	 68.10	0	85897..86175	+	92	163849533	-	Mext_0077	-	hypothetical protein
77	 61.57	-1	86210..86464	-	84	163849534	-	Mext_0078	-	hypothetical protein
78	 62.07	-1	87032..87292	+	86	163849535	-	Mext_0079	-	hypothetical protein
79	 63.91	-1	88117..88515	-	132	163849536	-	Mext_0080	-	hypothetical protein
80	 65.61	0	88725..89294	+	189	163849537	-	Mext_0081	-	integrase family protein
81	 64.41	-1	89423..90529	+	368	163849538	-	Mext_0082	-	ErfK/YbiS/YcfS/YnhG family protein
82	 67.03	0	90667..91758	-	363	163849539	-	Mext_0083	-	lytic transglycosylase catalytic
83	 63.04	-1	92148..92423	-	91	163849540	-	Mext_0084	-	hypothetical protein
84	 64.00	-1	92517..93680	-	387	163849541	-	Mext_0085	-	hypothetical protein
85	 60.75	-1	93748..93933	+	61	163849542	-	Mext_0086	-	hypothetical protein
86	 61.62	-1	94010..94405	+	131	163849543	-	Mext_0087	-	hypothetical protein
87	 65.98	0	94529..95107	+	192	163849544	-	Mext_0088	-	hypothetical protein
88	 66.26	0	95151..95393	+	80	163849545	-	Mext_0089	-	transcriptional regulator protein-like protein
89	 64.29	-1	95390..95767	+	125	163849546	-	Mext_0090	-	transcriptional regulator protein-like protein
90	 65.53	0	95764..96468	-	234	163849547	-	Mext_0091	-	dienelactone hydrolase
91	 60.00	-2	96638..97042	-	134	163849548	-	Mext_0092	-	hypothetical protein
92	 67.72	0	97029..97979	-	316	163849549	-	Mext_0093	-	hypothetical protein
93	 63.90	-1	98364..99014	-	216	163849550	-	Mext_0094	-	putative cytochrome c oxidase subunit III protein
94	 63.28	-1	99011..100927	-	638	163849551	-	Mext_0095	-	cytochrome c oxidase, subunit I
95	 64.88	0	100924..101928	-	334	163849552	-	Mext_0096	-	cytochrome c oxidase, subunit II
96	 65.78	0	101936..102499	-	187	163849553	-	Mext_0097	-	cytochrome c class I
97	 66.07	0	102496..103332	-	278	163849554	-	Mext_0098	-	extracellular solute-binding protein
98	 64.74	0	103313..105130	-	605	163849555	-	Mext_0099	-	methanol/ethanol family PQQ-dependent dehydrogenase
99	 59.88	-2	105565..105888	+	107	163849556	-	Mext_0100	-	hypothetical protein
100	 66.44	0	105966..107288	-	440	163849557	-	Mext_0101	-	integrase family protein
68.64	MEAN

4.16	STD DEV
