IslandPath Analysis: Methylococcus capsulatus str. Bath

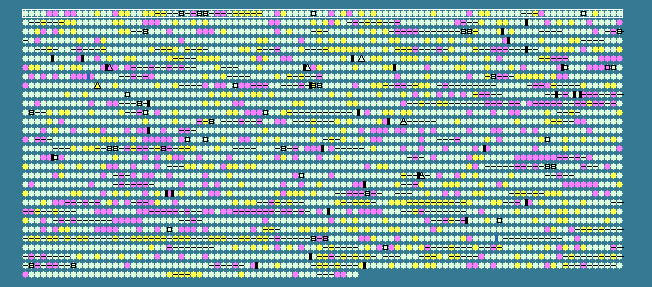

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 63.47   STD DEV: 3.81
Methylococcus capsulatus str. Bath, complete genome - 1..3304561
2956 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 66.08	0	44..1921	+	625	53802710	gidA	MCA0001	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
2	 65.70	0	1936..2553	+	205	53802709	gidB	MCA0002	-	glucose-inhibited division protein B
3	 62.99	0	2554..3342	+	262	53802708	-	MCA0003	-	ParA family protein
4	 66.08	0	3364..4212	+	282	53802707	-	MCA0004	-	ParB family protein
5	 57.53	-1	4268..4639	+	123	53802706	-	MCA0005	-	ATP synthase protein I, putative
6	 58.72	-1	4667..5446	+	259	53802705	atpB-1	MCA0006	-	F0F1 ATP synthase subunit A
7	 60.16	0	5502..5747	+	81	53802704	atpE-1	MCA0007	-	F0F1 ATP synthase subunit C
8	 58.23	-1	5810..6283	+	157	53802695	atpF	MCA0008	-	ATP synthase F0, B subunit
9	 59.03	-1	6290..6826	+	178	53802694	atpH	MCA0009	-	ATP synthase F1, delta subunit
10	 62.39	0	6842..8383	+	513	53802693	atpA-1	MCA0010	-	F0F1 ATP synthase subunit alpha
11	 63.54	0	8394..9257	+	287	53802692	atpG-1	MCA0011	-	ATP synthase F1, gamma subunit
12	 62.98	0	9293..10675	+	460	53802691	atpD-1	MCA0012	-	F0F1 ATP synthase subunit beta
13	 67.61	+1	10701..11123	+	140	53802690	atpC-1	MCA0013	-	ATP synthase F1, epsilon subunit
14	 64.50	0	11242..12627	+	461	53802689	glmU	MCA0014	-	UDP-N-acetylglucosamine pyrophosphorylase
15	 66.72	0	12615..14447	+	610	53802680	glmS	MCA0015	-	glucosamine--fructose-6-phosphate aminotransferase, isomerizing
16	 59.23	-1	14534..16618	+	694	53802679	metG	MCA0016	-	methionyl-tRNA synthetase
17	 68.22	+1	16626..17981	+	451	53802678	bioA	MCA0017	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
18	 70.22	+1	17988..18719	+	243	53802677	-	MCA0018	-	hypothetical protein
19	 65.58	0	18756..19217	+	153	53802676	-	MCA0019	-	hypothetical protein
20	 64.98	0	19221..20051	-	276	53802675	djlA	MCA0020	-	DNA-J like membrane chaperone protein
21	 67.11	0	20139..21032	+	297	53802674	purC	MCA0021	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
22	 71.44	+2	21053..22330	-	425	53802666	cca	MCA0022	-	tRNA nucleotidyltransferase
23	 69.15	+1	22396..23280	+	294	53802665	-	MCA0023	-	hypothetical protein
24	 70.06	+1	23287..23994	-	235	53802664	pgl-1	MCA0024	-	6-phosphogluconolactonase
25	 64.11	0	23996..25483	-	495	53802663	zwf-1	MCA0025	-	glucose-6-phosphate 1-dehydrogenase
26	 63.95	0	25693..28341	-	882	53802662	-	MCA0026	-	type III restriction-modification system, R subunit, putative
27	 64.40	0	28538..29773	-	411	53802661	-	MCA0027	-	ISMca5, transposase
28	 62.89	0	29878..30168	-	96	53802660	-	MCA0028	-	nucleotidyltransferase family protein
29	 55.81	-2	30165..30551	-	128	53802651	-	MCA0029	-	hypothetical protein
30	 64.44	0	32445..32984	+	179	53802799	-	MCA0031	-	ISMca6, transposase, OrfA
31	 62.46	0	32956..33549	+	197	53802798	-	MCA0032	-	ISMca6, transposase, OrfB
32	 63.18	0	33699..34586	-	295	53802797	dinD	MCA0033	-	DNA-damage-inducible protein D
33	 53.90	-2	34606..35553	-	315	53802796	-	MCA0034	-	hypothetical protein
34	 58.25	-1	35550..36155	-	201	53802795	-	MCA0035	-	hypothetical protein
35	 60.44	0	36152..37243	-	363	53802794	-	MCA0036	-	hypothetical protein
36	 67.98	+1	38085..39914	+	609	53802793	edd	MCA0037	-	phosphogluconate dehydratase
37	 67.72	+1	39904..40569	+	221	53802784	eda	MCA0038	-	4-hydroxy-2-oxoglutarate aldolase/2-deydro-3-deoxyphosphogluconate aldolase
38	 67.45	+1	40860..41498	+	212	53802783	-	MCA0039	-	dihydroxyacetone phosphatase family protein
39	 68.08	+1	41511..42500	-	329	53802782	-	MCA0040	-	dihydroxyacetone kinase family protein
40	 67.55	+1	42530..43546	-	338	53802781	-	MCA0041	-	Gfo/Idh/MocA family oxidoreductase
41	 64.50	0	43745..44251	+	168	53802780	-	MCA0042	-	anti-oxidant AhpCTSA family protein
42	 62.70	0	44293..44721	+	142	53802779	rpiB	MCA0043	-	ribose 5-phosphate isomerase B
43	 55.86	-2	44934..45155	+	73	53802778	-	MCA0044	-	hypothetical protein
44	 68.61	+1	45165..45833	-	222	53802777	-	MCA0045	-	endonuclease V
45	 64.51	0	45837..46625	-	262	53802767	-	MCA0046	-	MazG family protein
46	 63.02	0	46628..47560	-	310	53802766	-	MCA0047	-	carbohydrate kinase
47	 61.16	0	47616..47978	-	120	53802765	dgkA	MCA0048	-	diacylglycerol kinase
48	 65.36	0	48224..50446	+	740	53802764	-	MCA0049	-	cellulose-binding domain-containing protein
49	 64.12	0	50597..51697	-	366	53802763	-	MCA0050	-	ISMca1, transposase
50	 64.84	0	51863..52246	-	127	53802762	gcvH	MCA0051	-	glycine cleavage system H protein
51	 64.92	0	52436..53521	+	361	53802761	-	MCA0052	-	mrP protein
52	 58.38	-1	53532..54098	+	188	53802760	dcd	MCA0053	-	deoxycytidine triphosphate deaminase
53	 66.04	0	54127..55407	+	426	53802751	hemL	MCA0054	-	glutamate-1-semialdehyde-2,1-aminomutase
54	 68.07	+1	55404..57329	+	641	53802750	-	MCA0055	-	DedA family protein
55	 59.90	0	57326..58582	-	418	53802749	rho	MCA0056	-	transcription termination factor Rho
56	 60.61	0	58769..59098	-	109	53802748	trxA-1	MCA0057	-	thioredoxin
57	 67.84	+1	59262..60029	-	255	53802747	-	MCA0058	-	1-acyl-sn-glycerol-3-phosphate acyltransferase, putative
58	 66.54	0	60004..60780	-	258	53802746	-	MCA0059	-	hypothetical protein
59	 68.64	+1	60908..61717	-	269	53802745	-	MCA0060	-	general secretion pathway protein B, putative
60	 66.61	0	61739..63388	-	549	53802744	exeA	MCA0061	-	general secretion pathway protein A
61	 64.10	0	63501..64397	-	298	53802735	-	MCA0062	-	protoheme IX farnesyltransferase
62	 65.36	0	64477..65856	+	459	53802734	-	MCA0063	-	M16 family peptidase
63	 66.37	0	65846..67171	+	441	53802733	-	MCA0064	-	hypothetical protein
64	 65.78	0	67161..67727	+	188	53802732	-	MCA0065	-	methyltransferase, putative
65	 62.99	0	67724..68212	+	162	53802731	coaD	MCA0066	-	pantetheine-phosphate adenylyltransferase
66	 63.43	0	68235..70733	-	832	53802730	glgP-1	MCA0067	-	glycogen phosphorylase
67	 64.06	0	70801..71184	-	127	53802729	-	MCA0068	-	polyphosphate kinase-related protein
68	 66.48	0	71264..71794	+	176	53802728	-	MCA0069	-	hypothetical protein
69	 67.97	+1	71806..73416	+	536	53802719	-	MCA0070	-	Na/Pi-cotransporter family protein
70	 65.64	0	73668..74252	-	194	53802718	-	MCA0071	-	hypothetical protein
71	 65.80	0	74221..75024	-	267	53802717	-	MCA0072	-	hypothetical protein
72	 63.66	0	75126..76223	+	365	53802716	-	MCA0073	-	pyruvate formate lyase-activating enzyme, putative
73	 62.25	0	76264..76875	+	203	53802715	gst	MCA0074	-	glutathione S-transferase
74	 61.52	0	76932..77942	+	336	53802714	-	MCA0075	-	lipase family protein
75	 55.44	-2	78087..79778	+	563	53802713	-	MCA0076	-	patatin family protein
76	 61.21	0	79817..80146	+	109	53802712	-	MCA0077	-	hypothetical protein
77	 67.12	0	80931..84017	-	1028	53802703	-	MCA0079	-	AcrB/AcrD/AcrF family protein
78	 68.44	+1	84017..84919	-	300	53802702	-	MCA0080	-	hypothetical protein
79	 62.94	0	85182..85664	+	160	53802701	slyD	MCA0081	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
80	 65.60	0	85707..87020	-	437	53802700	-	MCA0082	-	MiaB-like tRNA modifying enzyme YliG
81	 62.96	0	87198..88115	+	305	53802699	-	MCA0083	-	UbiE/COQ5 family methlytransferase
82	 65.99	0	88186..89226	+	346	53802698	-	MCA0084	-	hypothetical protein
83	 66.95	0	89266..89619	+	117	53802697	-	MCA0085	-	hypothetical protein
84	 63.36	0	89664..90116	-	150	53802696	pilE	MCA0086	-	type 4 fimbrial biogenesis protein PilE
85	 64.11	0	90123..93521	-	1132	53802688	-	MCA0087	-	hypothetical protein
86	 67.94	+1	93547..94095	-	182	53802687	-	MCA0088	-	hypothetical protein
87	 59.50	-1	94123..95196	-	357	53802686	-	MCA0089	-	pilin-like protein
88	 65.82	0	95226..95816	-	196	53802685	-	MCA0090	-	type IV fimbrial biogenesis protein PilV, putative
89	 61.57	0	95813..96361	-	182	53802684	-	MCA0091	-	hypothetical protein
90	 66.86	0	96425..97483	-	352	53802683	-	MCA0092	-	putative RNA 2'-O-ribose methyltransferase
91	 65.52	0	97563..98783	+	406	53802682	-	MCA0093	-	ABC transporter, ATP-binding protein
92	 64.44	0	98827..99231	+	134	53802681	-	MCA0094	-	Mov34/MPN/PAD-1 family protein
93	 65.84	0	99236..101890	-	884	53802673	-	MCA0095	-	cation transporter E1-E2 family ATPase
94	 64.12	0	102004..103104	+	366	53802672	-	MCA0096	-	ISMca1, transposase
95	 63.38	0	103385..104815	-	476	53802671	gatB	MCA0097	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
96	 67.08	0	104842..106299	-	485	53802670	gatA	MCA0098	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
97	 65.28	0	106353..106640	-	95	53802669	gatC	MCA0099	-	glutamyl-tRNA(Gln) amidotransferase, C subunit
98	 65.52	0	106745..107788	+	347	53802668	mreB	MCA0100	-	rod shape-determining protein MreB
99	 66.11	0	107807..108709	+	300	53802667	mreC	MCA0101	-	rod shape-determining protein MreC
100	 65.45	0	108696..109187	+	163	53802659	mreD	MCA0102	-	rod shape-determining protein MreD
63.47	MEAN

3.81	STD DEV
