IslandPath Analysis: Listeria welshimeri serovar 6b str. SLCC5334

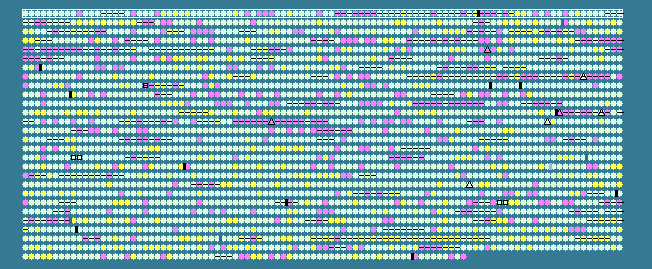

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 36.29   STD DEV: 3.56
Listeria welshimeri serovar 6b str. SLCC5334, complete genome - 1..2814130
2774 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 36.65	0	318..1673	+	451	116871423	dnaA	lwe0001	-	chromosomal replication initiation protein
2	 33.86	0	1867..3012	+	381	116871424	dnaN	lwe0002	-	DNA polymerase III subunit beta
3	 37.35	0	3120..4463	+	447	116871425	-	lwe0003	-	MATE efflux family protein
4	 37.19	0	4577..4861	+	94	116871426	-	lwe0004	-	hypothetical protein
5	 38.10	0	4868..5980	+	370	116871427	recF	lwe0005	-	recombination protein F
6	 39.05	0	6029..7969	+	646	116871428	gyrB	lwe0006	-	DNA gyrase subunit B
7	 38.28	0	8064..10592	+	842	116871429	gyrA	lwe0007	-	DNA gyrase subunit A
8	 36.50	0	10728..12242	+	504	116871430	-	lwe0008	-	cardiolipin synthetase
9	 33.91	0	12258..12776	+	172	116871431	speG	lwe0009	-	spermidine N1-acetyltransferase
10	 30.83	-1	12777..12896	+	39	116871432	-	lwe0010	-	hypothetical protein
11	 38.49	0	12918..13886	+	322	116871433	mvk	lwe0011	-	mevalonate kinase
12	 38.79	0	13843..14814	+	323	116871434	mvaD	lwe0012	-	mevalonate diphosphate decarboxylase
13	 37.77	0	14792..15874	+	360	116871435	-	lwe0013	-	phosphomevalonate kinase
14	 37.85	0	16218..17324	+	368	116871436	qoxA	lwe0014	-	cytochrome AA3 quinol oxidase, subunit II
15	 39.55	0	17342..19321	+	659	116871437	qoxB	lwe0015	-	cytochrome aa3 quinol oxidase, subunit I
16	 38.24	0	19309..19920	+	203	116871438	qoxC	lwe0016	-	cytochrome aa3 quinol oxidase, subunit III
17	 36.04	0	19922..20254	+	110	116871439	qoxD	lwe0017	-	quinol oxidase AA3, subunit IV
18	 39.47	0	20416..21849	+	477	116871440	-	lwe0018	-	glycosy hydrolase family protein
19	 27.13	-2	21901..22287	-	128	116871441	-	lwe0019	-	putative secreted protein
20	 33.24	0	22334..23437	+	367	116871442	-	lwe0020	-	hypothetical protein
21	 34.03	0	23441..23869	+	142	116871443	-	lwe0021	-	hypothetical protein
22	 37.82	0	23951..24775	-	274	116871444	-	lwe0022	-	SH3 domain-containing protein
23	 31.17	-1	25017..25757	+	246	116871445	-	lwe0023	-	GntR family transcriptional regulator
24	 40.30	+1	25773..26174	+	133	116871446	-	lwe0024	-	PTS system, fructose family, IIA component
25	 35.37	0	26174..26665	+	163	116871447	-	lwe0025	-	PTS system mannose/fructose/sorbose family IIB subunit
26	 40.80	+1	26684..27487	+	267	116871448	-	lwe0026	-	PTS system mannose/fructose/sorbose family IIC subunit
27	 38.20	0	27468..28289	+	273	116871449	-	lwe0027	-	PTS system mannose/fructose/sorbose family IID subunit
28	 40.85	+1	28317..29021	+	234	116871450	-	lwe0028	-	hypothetical protein
29	 37.07	0	29075..29716	+	213	116871451	-	lwe0029	-	CutC family protein
30	 38.64	0	29921..31825	+	634	116871452	-	lwe0030	-	PTS system, beta-glucoside-specific, IIABC component
31	 35.05	0	31905..32780	+	291	116871453	-	lwe0031	-	MccF family protein
32	 38.05	0	33021..33359	+	112	116871454	-	lwe0032	-	hypothetical protein
33	 34.70	0	33550..34209	+	219	116871455	-	lwe0033	-	DedA family protein
34	 36.68	0	34294..35517	+	407	116871456	arcA	lwe0034	-	arginine deiminase
35	 36.05	0	35800..36093	+	97	116871457	rpsF	lwe0035	-	30S ribosomal protein S6
36	 41.95	+1	36149..36682	+	177	116871458	ssb	lwe0036	-	single-strand binding protein
37	 39.17	0	36726..36965	+	79	116871459	rpsR	lwe0037	-	30S ribosomal protein S18
38	 31.54	-1	37119..37733	+	204	116871460	-	lwe0038	-	putative lipoprotein
39	 33.50	0	37990..38604	+	204	116871461	-	lwe0039	-	putative accessory gene regulator protein
40	 27.16	-2	38588..38749	+	53	116871462	-	lwe0040	-	accessory gene regulator protein D, putative
41	 31.49	-1	39002..40141	+	379	116871463	-	lwe0041	-	sensor histidine kinase, accessory gene regulator protein C, putative
42	 32.10	-1	40160..40888	+	242	116871464	-	lwe0042	-	2-components response regulator protein, AlgR/VirR/ComE type
43	 39.51	0	41055..43028	+	657	116871465	-	lwe0043	-	DHH subfamily 1 protein
44	 34.90	0	43031..43477	+	148	116871466	rplI	lwe0044	-	50S ribosomal protein L9
45	 41.83	+1	43502..44854	+	450	116871467	dnaC	lwe0045	-	replicative DNA helicase
46	 37.97	0	45115..46407	+	430	116871468	purA	lwe0046	-	adenylosuccinate synthetase
47	 39.46	0	46748..47041	+	97	116871469	-	lwe0047	-	WXG domain-containing protein
48	 35.03	0	47188..50430	+	1080	116871470	-	lwe0048	-	hypothetical protein
49	 35.71	0	50420..50923	+	167	116871471	-	lwe0049	-	putative secreted protein
50	 30.95	-1	50939..51190	+	83	116871472	-	lwe0050	-	hypothetical protein
51	 34.09	0	51212..52408	+	398	116871473	-	lwe0051	-	hypothetical protein
52	 38.07	0	52421..56872	+	1483	116871474	-	lwe0052	-	FtsK/SpoIIIE family protein
53	 29.81	-1	56894..57319	+	141	116871475	-	lwe0053	-	hypothetical protein
54	 30.72	-1	57312..57656	+	114	116871476	-	lwe0054	-	hypothetical protein
55	 33.33	0	57640..59016	+	458	116871477	-	lwe0055	-	hypothetical protein
56	 27.94	-2	59153..59875	+	240	116871478	-	lwe0056	-	hypothetical protein
57	 29.14	-2	60038..60490	+	150	116871479	-	lwe0057	-	hypothetical protein
58	 28.67	-2	60487..60936	+	149	116871480	-	lwe0058	-	hypothetical protein
59	 30.58	-1	61115..61405	+	96	116871481	-	lwe0059	-	hypothetical protein
60	 33.61	0	61413..62510	+	365	116871482	-	lwe0060	-	putative secreted protein
61	 33.55	0	62957..63415	+	152	116871483	-	lwe0061	-	hypothetical protein
62	 34.31	0	63845..64255	+	136	116871484	-	lwe0062	-	hypothetical protein
63	 35.78	0	64434..65210	+	258	116871485	-	lwe0063	-	putative secreted protein
64	 43.09	+1	65341..65463	+	40	116871486	-	lwe0064	-	hypothetical protein
65	 33.08	0	65538..66317	+	259	116871487	-	lwe0065	-	putative secreted protein
66	 32.97	0	66449..67546	+	365	116871488	-	lwe0066	-	putative secreted protein
67	 33.33	0	67712..68137	+	141	116871489	-	lwe0067	-	hypothetical protein
68	 34.05	0	68272..68829	+	185	116871490	-	lwe0068	-	putative secreted lipoprotein
69	 32.64	-1	68928..69071	+	47	116871491	-	lwe0069	-	hypothetical protein
70	 33.33	0	69085..69657	+	190	116871492	-	lwe0070	-	putative secreted protein
71	 36.67	0	69744..70613	+	289	116871493	-	lwe0071	-	putative lipoprotein
72	 34.83	0	70749..71618	+	289	116871494	-	lwe0072	-	putative lipoprotein
73	 35.06	0	71754..72623	+	289	116871495	-	lwe0073	-	putative lipoprotein
74	 32.44	-1	73104..74003	+	299	116871496	-	lwe0074	-	hypothetical protein
75	 35.84	0	74051..74689	-	212	116871497	-	lwe0075	-	pentapeptide repeat-containing protein
76	 41.69	+1	74820..75776	+	318	116871498	-	lwe0076	-	D-isomer specific 2-hydroxyacid dehydrogenase family protein
77	 21.59	-2	76861..77388	+	175	116871499	-	lwe0077	-	hypothetical protein
78	 29.50	-1	77604..78125	+	173	116871500	-	lwe0078	-	hypothetical protein
79	 22.94	-2	78373..79065	-	230	116871501	-	lwe0079	-	hypothetical protein
80	 35.75	0	80243..86281	+	2012	116871502	-	lwe0080	-	cell wall surface anchor family protein
81	 30.33	-1	86533..87165	+	210	116871503	-	lwe0081	-	hypothetical protein
82	 40.27	+1	87491..88456	+	321	116871504	-	lwe0082	-	PTS system, mannose-specific, IIAB component
83	 42.01	+1	88480..89286	+	268	116871505	-	lwe0083	-	PTS system mannose/fructose/sorbose family IIC subunit
84	 39.91	+1	89308..90219	+	303	116871506	-	lwe0084	-	PTS system, mannose-specific IID component
85	 35.90	0	90345..90734	+	129	116871507	-	lwe0085	-	hypothetical protein
86	 32.76	0	90867..91217	+	116	116871508	-	lwe0086	-	hypothetical protein
87	 34.32	0	91260..92777	-	505	116871509	-	lwe0087	-	pyruvyl-transferase domain-containing protein
88	 32.65	-1	92894..93184	-	96	116871510	-	lwe0088	-	ArsR family transcriptional regulator
89	 35.42	0	93300..93587	+	95	116871511	-	lwe0089	-	monooxygenase family protein
90	 39.65	0	93601..94233	+	210	116871512	-	lwe0090	-	nitroreductase family protein
91	 32.80	0	94328..94702	+	124	116871513	-	lwe0091	-	hypothetical protein
92	 33.33	0	94892..95260	+	122	116871514	-	lwe0092	-	hypothetical protein
93	 40.65	+1	95540..97822	+	760	116871515	-	lwe0093	-	chitinase B
94	 37.61	0	97966..98853	+	295	116871516	-	lwe0094	-	ROK family protein
95	 34.00	0	98867..99016	+	49	116871517	-	lwe0095	-	hypothetical protein
96	 37.15	0	100524..102305	-	593	116871518	-	lwe0098	-	ABC transporter, ATP-binding/permease protein
97	 36.83	0	102298..104040	-	580	116871519	-	lwe0099	-	ABC transporter, ATP-binding/permease protein
98	 34.05	0	104183..105016	+	277	116871520	-	lwe0100	-	AraC family transcriptional regulator
99	 38.34	0	105056..106174	+	372	116871521	-	lwe0101	-	lipase
100	 33.05	0	106287..106985	+	232	116871522	-	lwe0102	-	EAL domain-containing protein
36.29	MEAN

3.56	STD DEV
