IslandPath Analysis: Listeria innocua Clip11262

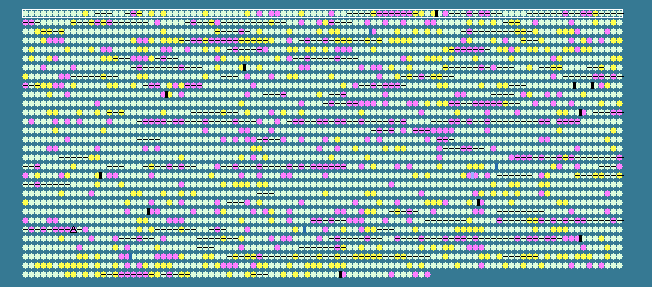

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 37.44   STD DEV: 3.31
Listeria innocua Clip11262, complete genome - 1..3011208
2968 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 37.54	0	319..1674	+	451	16799080	dnaA	lin0001	-	chromosomal replication initiation protein
2	 34.90	0	1868..3013	+	381	16799081	dnaN	lin0002	-	DNA polymerase III subunit beta
3	 39.36	0	3122..4465	+	447	16799082	-	lin0003	-	hypothetical protein
4	 38.81	0	4645..4863	+	72	16799083	-	lin0004	-	hypothetical protein
5	 39.08	0	4870..5982	+	370	16799084	recF	lin0005	-	recombination protein F
6	 39.72	0	6031..7971	+	646	16799085	gyrB	lin0006	-	DNA gyrase subunit B
7	 40.09	0	8066..10594	+	842	16799086	gyrA	lin0007	-	DNA gyrase subunit A
8	 38.02	0	10729..12243	+	504	16799087	-	lin0008	-	hypothetical protein
9	 34.49	0	12259..12777	+	172	16799088	-	lin0009	-	hypothetical protein
10	 38.18	0	12919..13887	+	322	16799089	-	lin0010	-	hypothetical protein
11	 40.98	+1	13796..14815	+	339	16799090	-	lin0011	-	hypothetical protein
12	 39.15	0	14793..15875	+	360	16799091	-	lin0012	-	hypothetical protein
13	 37.67	0	16219..17325	+	368	16799092	qoxA	lin0013	-	AA3-600 quinol oxidase subunit II
14	 40.51	0	17343..19322	+	659	16799093	qoxB	lin0014	-	AA3-600 quinol oxidase subunit I
15	 38.24	0	19310..19921	+	203	16799094	qoxC	lin0015	-	AA3-600 quinol oxidase subunit III
16	 37.24	0	19923..20255	+	110	16799095	-	lin0016	-	hypothetical protein
17	 40.17	0	20424..21857	+	477	16799096	-	lin0017	-	beta-glucosidase
18	 38.56	0	21904..22725	-	273	16799097	-	lin0018	-	hypothetical protein
19	 31.85	-1	22966..23706	+	246	16799098	-	lin0019	-	hypothetical protein
20	 42.04	+1	23722..24123	+	133	16799099	-	lin0020	-	hypothetical protein
21	 38.45	0	24123..24611	+	162	16799100	-	lin0021	-	hypothetical protein
22	 42.79	+1	24634..25437	+	267	16799101	-	lin0022	-	hypothetical protein
23	 38.77	0	25412..26239	+	275	16799102	-	lin0023	-	hypothetical protein
24	 42.27	+1	26267..26971	+	234	16799103	-	lin0024	-	hypothetical protein
25	 40.19	0	27026..27667	+	213	16799104	-	lin0025	-	hypothetical protein
26	 38.43	0	27872..29773	+	633	16799105	-	lin0026	-	hypothetical protein
27	 36.07	0	29855..30730	+	291	16799106	-	lin0027	-	hypothetical protein
28	 39.23	0	30963..31301	+	112	16799107	-	lin0028	-	hypothetical protein
29	 35.43	0	31338..32147	-	269	16799108	-	lin0029	-	hypothetical protein
30	 36.84	0	32164..33219	-	351	16799109	-	lin0030	-	LacI family transcription regulator
31	 42.34	+1	33421..34386	+	321	16799110	-	lin0031	-	hypothetical protein
32	 40.53	0	34383..36785	+	800	16799111	-	lin0032	-	hypothetical protein
33	 38.78	0	36798..38156	+	452	16799112	-	lin0033	-	hypothetical protein
34	 38.12	0	38157..39242	+	361	16799113	-	lin0034	-	hypothetical protein
35	 35.76	0	39445..40104	+	219	16799114	-	lin0035	-	hypothetical protein
36	 38.22	0	40183..41409	+	408	16799115	-	lin0036	-	arginine deiminase
37	 36.73	0	41689..41982	+	97	16799116	rpsF	lin0037	-	30S ribosomal protein S6
38	 41.48	+1	42038..42577	+	179	16799117	-	lin0038	-	hypothetical protein
39	 39.17	0	42621..42860	+	79	16799118	rpsR	lin0039	-	30S ribosomal protein S18
40	 31.70	-1	43016..43627	+	203	16799119	-	lin0040	-	hypothetical protein
41	 34.15	0	43883..44497	+	204	16799120	-	lin0041	-	putative accessory gene regulator protein
42	 29.01	-2	44481..44642	+	53	16799121	-	lin0042	-	hypothetical protein
43	 32.95	-1	44738..46033	+	431	16799122	-	lin0043	-	hypothetical protein
44	 34.71	0	46052..46780	+	242	16799123	-	lin0044	-	hypothetical protein
45	 40.02	0	46947..48920	+	657	16799124	-	lin0045	-	hypothetical protein
46	 35.35	0	48923..49369	+	148	16799125	rplI	lin0046	-	50S ribosomal protein L9
47	 41.98	+1	49394..50746	+	450	16799126	-	lin0047	-	replicative DNA helicase
48	 39.91	0	51005..52297	+	430	16799127	-	lin0048	-	adenylosuccinate synthetase
49	 38.44	0	52623..52916	+	97	16799128	-	lin0049	-	hypothetical protein
50	 36.14	0	53065..56268	+	1067	16799129	-	lin0050	-	hypothetical protein
51	 36.45	0	56258..56770	+	170	16799130	-	lin0051	-	hypothetical protein
52	 29.76	-2	56788..57039	+	83	16799131	-	lin0052	-	hypothetical protein
53	 34.59	0	57061..58257	+	398	16799132	-	lin0053	-	hypothetical protein
54	 39.78	0	58271..62767	+	1498	16799133	-	lin0054	-	hypothetical protein
55	 34.34	0	62787..63182	+	131	16799134	-	lin0055	-	hypothetical protein
56	 34.67	0	63175..63474	+	99	16799135	-	lin0056	-	hypothetical protein
57	 34.76	0	63471..64172	+	233	16799136	-	lin0057	-	hypothetical protein
58	 37.84	0	64173..64505	+	110	16799137	-	lin0058	-	hypothetical protein
59	 43.19	+1	64519..66252	+	577	16799138	-	lin0059	-	hypothetical protein
60	 28.46	-2	66267..66881	+	204	16799139	-	lin0060	-	hypothetical protein
61	 29.63	-2	67522..67845	+	107	16799140	-	lin0061	-	hypothetical protein
62	 29.23	-2	68014..68646	+	210	16799141	-	lin0062	-	hypothetical protein
63	 23.08	-2	70428..70817	+	129	16799142	-	lin0064	-	hypothetical protein
64	 24.33	-2	70955..71365	+	136	16799143	-	lin0065	-	hypothetical protein
65	 31.48	-1	71623..71946	+	107	16799144	-	lin0066	-	hypothetical protein
66	 45.35	+2	72374..73147	+	257	16799145	-	lin0067	-	hypothetical protein
67	 41.50	+1	73144..74196	+	350	16799146	-	lin0068	-	hypothetical protein
68	 37.56	0	74218..74856	-	212	16799147	-	lin0069	-	hypothetical protein
69	 41.80	+1	74988..75944	+	318	16799148	-	lin0070	-	hypothetical protein
70	 37.57	0	76209..77411	-	400	16799149	-	lin0071	-	hypothetical protein
71	 32.72	-1	77476..78126	-	216	16799150	-	lin0072	-	hypothetical protein
72	 34.80	0	78505..78981	-	158	16799151	-	lin0073	-	hypothetical protein
73	 36.70	0	79378..79644	+	88	16799152	-	lin0074	-	hypothetical protein
74	 36.80	0	79573..79803	-	76	16799153	-	lin0075	-	hypothetical protein
75	 29.74	-2	79869..80063	+	64	16799154	-	lin0076	-	hypothetical protein
76	 35.02	0	80075..80311	+	78	16799155	-	lin0077	-	identical to gp40
77	 29.43	-2	80308..80589	+	93	16799156	-	lin0078	-	hypothetical protein
78	 31.28	-1	80775..81017	-	80	16799157	-	lin0079	-	hypothetical protein
79	 36.82	0	81081..81854	+	257	16799158	-	lin0080	-	hypothetical protein
80	 37.90	0	81973..82497	+	174	16799159	-	lin0081	-	hypothetical protein
81	 40.86	+1	82504..82689	+	61	16799160	-	lin0082	-	hypothetical protein
82	 40.21	0	82705..82893	+	62	16799161	-	lin0083	-	hypothetical protein
83	 37.71	0	83126..84085	+	319	16799162	-	lin0084	-	hypothetical protein
84	 38.60	0	84085..84900	+	271	16799163	-	lin0085	-	putative recombinase
85	 38.16	0	84921..85832	+	303	16799164	-	lin0086	-	hypothetical protein
86	 40.48	0	85829..85996	+	55	16799165	-	lin0087	-	hypothetical protein
87	 37.39	0	86290..87102	+	270	16799166	-	lin0088	-	hypothetical protein
88	 37.14	0	87099..87728	+	209	16799167	-	lin0089	-	hypothetical protein
89	 37.16	0	87725..88246	+	173	16799168	-	lin0090	-	hypothetical protein
90	 37.66	0	88373..88765	+	130	16799169	-	lin0091	-	hypothetical protein
91	 33.87	-1	88762..88947	+	61	16799170	-	lin0092	-	hypothetical protein
92	 34.36	0	88944..89234	+	96	16799171	-	lin0093	-	hypothetical protein
93	 39.61	0	89231..89437	+	68	16799172	-	lin0094	-	hypothetical protein
94	 32.84	-1	89438..89839	+	133	16799173	-	lin0095	-	hypothetical protein
95	 31.74	-1	89836..90336	+	166	16799174	-	lin0096	-	hypothetical protein
96	 41.25	+1	90333..90812	+	159	16799175	-	lin0097	-	hypothetical protein
97	 39.89	0	90831..91013	+	60	16799176	-	lin0098	-	hypothetical protein
98	 36.79	0	90958..91362	+	134	16799177	-	lin0099	-	hypothetical protein
99	 34.90	0	91366..91749	+	127	16799178	-	lin0100	-	hypothetical protein
100	 35.40	0	91890..92324	+	144	16799179	-	lin0101	-	protein gp66
37.44	MEAN

3.31	STD DEV
