IslandPath Analysis: Leptospira biflexa serovar Patoc strain 'Patoc 1 (Ames)'

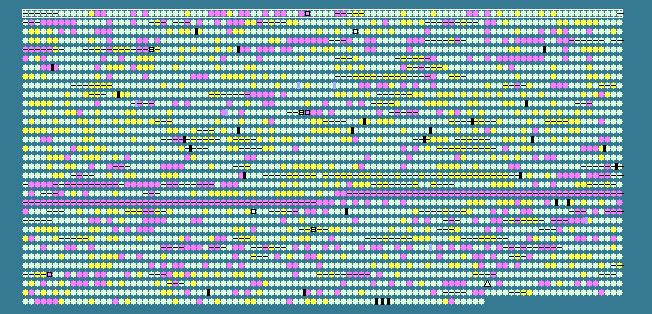

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 38.89   STD DEV: 4.02
Leptospira biflexa serovar Patoc strain 'Patoc 1 (Ames)' chromosome I, complete sequence - 1..3603977
3277 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 41.17	0	1..1875	-	624	189909571	gidA	LBF_0001	-	Glucose inhibited division protein A
2	 41.02	0	2045..2968	+	307	189909572	ilvE	LBF_0002	-	Branched-chain amino acid aminotransferase
3	 38.69	0	2975..3907	+	310	189909573	dnaX-1	LBF_0003	-	DNA polymerase III gamma and tau subunits
4	 39.44	0	4188..5513	+	441	189909574	dnaA	LBF_0004	-	Chromosomal replication initiator protein
5	 36.46	0	5760..6878	+	372	189909575	dnaN	LBF_0005	-	DNA-directed DNA polymerase, beta subunit
6	 35.69	0	6878..7981	+	367	189909576	recF	LBF_0006	-	Recombinational DNA repair ATPase
7	 36.11	0	7978..8301	+	107	189909577	-	LBF_0007	-	hypothetical protein
8	 40.57	0	8380..10299	+	639	189909578	gyrB	LBF_0008	-	DNA gyrase subunit B
9	 40.17	0	10319..12850	+	843	189909579	gyrA	LBF_0009	-	DNA gyrase subunit A
10	 37.48	0	12864..13877	+	337	189909580	-	LBF_0010	-	tRNA-dihydrouridine synthase
11	 39.58	0	13888..14271	+	127	189909581	-	LBF_0011	-	hypothetical protein
12	 42.78	0	14386..14967	-	193	189909582	lipL21	LBF_0012	-	LipL21 lipoprotein
13	 33.21	-1	15097..16674	+	525	189909583	-	LBF_0013	-	hypothetical protein
14	 30.97	-1	16655..17542	+	295	189909584	-	LBF_0014	-	Transcriptional regulator
15	 35.59	0	17521..18630	-	369	189909585	holA	LBF_0015	-	DNA-directed DNA polymerase, delta subunit
16	 36.46	0	18896..19471	-	191	189909586	-	LBF_0016	-	Nucleotide-binding protein
17	 37.98	0	19496..19753	+	85	189909587	-	LBF_0017	-	Hypothetical lipoprotein
18	 41.06	0	19750..20487	+	245	189909588	-	LBF_0018	-	Short chain dehydrogenase
19	 34.76	-1	20499..21131	+	210	189909589	-	LBF_0019	-	Translation factor, SUA5 family
20	 35.72	0	21123..22127	-	334	189909590	capA	LBF_0020	-	Poly-gamma-glutamate biosynthesis protein
21	 34.79	-1	22174..23886	+	570	189909591	-	LBF_0021	-	Hypothetical lipoprotein
22	 36.75	0	23907..26099	-	730	189909592	vacB	LBF_0022	-	Exoribonuclease R
23	 37.72	0	26104..26787	-	227	189909593	-	LBF_0023	-	Metal-dependent molecular chaperone
24	 37.91	0	26784..27242	-	152	189909594	-	LBF_0024	-	ATPase or kinase
25	 36.37	0	27239..28093	-	284	189909595	-	LBF_0025	-	HSP33-family chaperone
26	 41.35	0	28169..30151	+	660	189909596	lacA	LBF_0026	-	Beta-galactosidase
27	 37.47	0	30173..31066	+	297	189909597	-	LBF_0027	-	hypothetical protein
28	 42.94	+1	31077..31919	+	280	189909598	-	LBF_0028	-	Inositol monophosphatase family protein
29	 40.66	0	32026..32598	+	190	189909599	sodA	LBF_0029	-	Superoxide dismutase
30	 40.10	0	32687..34120	+	477	189909600	trpE	LBF_0030	-	Anthranilate synthase (component I)
31	 40.59	0	34132..34737	+	201	189909601	trpG	LBF_0031	-	Anthranilate synthase (component II)
32	 35.05	0	34783..36006	-	407	189909602	-	LBF_0032	-	Hypothetical lipoprotein
33	 33.53	-1	35981..36493	-	170	189909603	-	LBF_0033	-	hypothetical protein
34	 32.79	-1	36582..37316	+	244	189909604	-	LBF_0034	-	hypothetical protein
35	 42.54	0	37313..38029	-	238	189909605	cysE	LBF_0035	-	Serine O-acetyltransferase
36	 36.67	0	38309..39238	+	309	189909606	-	LBF_0036	-	Peptidase, M50 family
37	 34.62	-1	39235..40632	+	465	189909607	-	LBF_0037	-	hypothetical protein
38	 33.70	-1	40604..41422	+	272	189909608	-	LBF_0038	-	hypothetical protein
39	 40.87	0	41430..42623	-	397	189909609	wecE	LBF_0039	-	Pyridoxal-phosphate-dependent aminotransferase
40	 38.06	0	42780..44132	+	450	189909610	add	LBF_0040	-	Adenosine deaminase
41	 34.57	-1	44172..45224	+	350	189909611	-	LBF_0041	-	hypothetical protein
42	 35.84	0	45259..45777	-	172	189909612	-	LBF_0042	-	hypothetical protein
43	 32.58	-1	45858..46256	-	132	189909613	-	LBF_0043	-	hypothetical protein
44	 32.44	-1	46280..46729	-	149	189909614	-	LBF_0044	-	Acetyltransferase
45	 39.15	0	46932..47774	+	280	189909615	-	LBF_0045	-	Catalytic LigB subunit of aromatic ring-opening dioxygenase
46	 38.25	0	47818..48468	+	216	189909616	-	LBF_0046	-	Esterase
47	 34.15	-1	48481..49218	-	245	189909617	-	LBF_0047	-	hypothetical protein
48	 34.94	0	49890..50882	-	330	189909618	-	LBF_0048	-	Transposase
49	 41.07	0	51329..52633	-	434	189909619	purB	LBF_0049	-	Adenylosuccinate lyase
50	 41.41	0	52742..53509	+	255	189909620	-	LBF_0050	-	Short chain dehydrogenase
51	 38.32	0	53496..55460	-	654	189909621	-	LBF_0051	-	Peptidase family M23/M37
52	 38.31	0	55555..56337	-	260	189909622	caiD-3	LBF_0052	-	Enoyl-CoA hydratase
53	 34.05	-1	56454..57425	-	323	189909623	-	LBF_0053	-	Response regulator
54	 34.74	-1	57433..58782	-	449	189909624	-	LBF_0054	-	hypothetical protein
55	 41.46	0	58871..59116	+	81	189909625	-	LBF_0055	-	hypothetical protein
56	 45.03	+1	59231..59974	-	247	189909626	-	LBF_0056	-	hypothetical protein
57	 44.22	+1	60098..61264	+	388	189909627	-	LBF_0057	-	Acyl-CoA dehydrogenase
58	 38.25	0	61321..61890	+	189	189909628	trpG-1	LBF_0058	-	Anthranilate synthase (component II)
59	 39.08	0	61887..63782	+	631	189909629	-	LBF_0059	-	Permease and ATP-binding protein of an ABC transporter complex
60	 41.04	0	63779..64180	+	133	189909630	-	LBF_0060	-	Receiver component of a two-component response regulator
61	 39.15	0	64167..66041	-	624	189909631	-	LBF_0061	-	hypothetical protein
62	 41.23	0	66185..67741	+	518	189909632	-	LBF_0062	-	GTPase
63	 37.37	0	67728..68099	-	123	189909633	-	LBF_0063	-	Anti-Sigma factor antagonist
64	 45.33	+1	68104..69387	-	427	189909634	thrA	LBF_0064	-	Homoserine dehydrogenase
65	 40.76	0	69532..70191	+	219	189909635	-	LBF_0065	-	hypothetical protein
66	 39.54	0	70195..70806	-	203	189909636	-	LBF_0066	-	hypothetical protein
67	 40.19	0	70886..72169	+	427	189909637	-	LBF_0067	-	hypothetical protein
68	 40.26	0	72178..72639	-	153	189909638	-	LBF_0068	-	Transcriptional regulator
69	 42.53	0	72677..74263	-	528	189909639	-	LBF_0069	-	Phytoene dehydrogenase-related protein
70	 38.77	0	74266..75699	-	477	189909640	-	LBF_0070	-	hypothetical protein
71	 41.55	0	75792..76655	+	287	189909641	-	LBF_0071	-	Purine-nucleoside phosphorylase
72	 36.13	0	76652..77044	-	130	189909642	-	LBF_0072	-	Anti-sigma factor antagonist
73	 39.15	0	77041..78210	-	389	189909643	galK	LBF_0073	-	Galactokinase
74	 40.35	0	78255..79607	+	450	189909644	pgi	LBF_0074	-	Glucose-6-phosphate isomerase
75	 34.85	-1	79584..80306	-	240	189909645	-	LBF_0075	-	Nucleoside-diphosphate-sugar pyrophosphorylase
76	 34.14	-1	80303..81292	-	329	189909646	-	LBF_0076	-	Serine/Threonine protein kinase
77	 36.63	0	81301..82818	-	505	189909647	-	LBF_0077	-	Sensor histidine kinase and response regulator of a two component complex
78	 34.00	-1	82805..84598	-	597	189909648	-	LBF_0078	-	Sensor histidine kinase of a two component response regulator
79	 37.13	0	84600..85469	+	289	189909649	-	LBF_0079	-	Alpha/beta hydrolase
80	 43.59	+1	85470..85703	-	77	189909650	-	LBF_0080	-	hypothetical protein
81	 38.24	0	86115..86888	-	257	189909651	-	LBF_0082	-	rRNA methylase/Hemolysin-tylA
82	 40.15	0	86869..87792	-	307	189909652	ispA-1	LBF_0083	-	Geranyltranstransferase
83	 43.72	+1	87846..88259	-	137	189909653	ndk	LBF_0084	-	Nucleoside-diphosphate kinase
84	 41.16	0	88302..90410	-	702	189909654	-	LBF_0085	-	KefB related transport protein
85	 40.37	0	90428..90910	-	160	189909655	coaD	LBF_0086	-	Pantetheine-phosphate adenylyltransferase
86	 41.77	0	90912..92120	-	402	189909656	argG	LBF_0087	-	Argininosuccinate synthase
87	 42.47	0	92202..93350	+	382	189909657	-	LBF_0088	-	hypothetical protein
88	 40.91	0	93334..93861	+	175	189909658	-	LBF_0089	-	hypothetical protein
89	 43.48	+1	93863..95419	+	518	189909659	-	LBF_0090	-	Flavoprotein
90	 40.75	0	95412..96611	-	399	189909660	trmA-2	LBF_0091	-	tRNA (uracil-5-)-methyltransferase
91	 40.32	0	96608..97681	-	357	189909661	pyrD	LBF_0092	-	Dihydroorotate dehydrogenase
92	 36.92	0	97782..99398	+	538	189909662	-	LBF_0093	-	Two component response regulator
93	 37.63	0	99395..100324	+	309	189909663	-	LBF_0094	-	Response regulator
94	 35.67	0	100327..100968	-	213	189909664	-	LBF_0095	-	Phosphatase/phosphohexomutase
95	 36.83	0	100958..101671	-	237	189909665	-	LBF_0096	-	Pseudouridylate synthase
96	 37.51	0	101668..102840	-	390	189909666	-	LBF_0097	-	Ankyrin repeat protein
97	 38.68	0	102834..104162	-	442	189909667	-	LBF_0098	-	hypothetical protein
98	 36.73	0	104308..105513	+	401	189909668	-	LBF_0099	-	Signal transduction protein
99	 36.79	0	105534..106112	-	192	189909669	-	LBF_0100	-	Transcriptional regulator, AcrR-family
100	 37.42	0	106237..106848	+	203	189909670	-	LBF_0101	-	hypothetical protein
38.89	MEAN

4.02	STD DEV
