IslandPath Analysis: Lactobacillus plantarum WCFS1

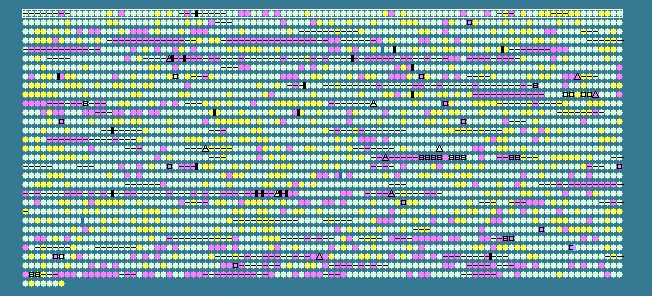

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 45.07   STD DEV: 4.00
Lactobacillus plantarum WCFS1, complete genome - 1..3308274
3007 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 44.52	0	1..1368	+	455	28376975	dnaA	lp_0001	-	chromosomal replication initiation protein DnaA
2	 42.54	0	1546..2685	+	379	28376976	dnaN	lp_0002	-	DNA-directed DNA polymerase III, beta chain
3	 42.74	0	3210..3443	+	77	28376977	-	lp_0004	-	hypothetical protein
4	 45.24	0	3444..4568	+	374	28376978	recF	lp_0005	-	recombination protein F
5	 45.92	0	4565..6511	+	648	28376979	gyrB	lp_0006	-	DNA gyrase, B subunit
6	 46.29	0	6676..9237	+	853	28376980	gyrA	lp_0007	-	DNA gyrase, A subunit
7	 39.67	-1	9860..10159	+	99	28376981	rpsF	lp_0009	-	30S ribosomal protein S6
8	 41.96	0	10196..10798	+	200	28376982	ssb	lp_0010	-	single-strand binding protein
9	 44.30	0	10837..11073	+	78	28376983	rpsR	lp_0011	-	30S ribosomal protein S18
10	 44.36	0	11254..13266	+	670	28376984	-	lp_0012	-	exopolyphosphatase-related protein (putative)
11	 44.59	0	13279..13731	+	150	28376985	rplI	lp_0013	-	50S ribosomal protein L9
12	 47.72	0	13747..15171	+	474	28376986	dnaC	lp_0014	-	replicative DNA helicase DnaC
13	 44.04	0	15393..16616	+	407	28376987	-	lp_0015	-	transport protein
14	 43.62	0	16629..17435	+	268	28376988	proB	lp_0016	-	gamma-glutamyl kinase
15	 48.91	0	17454..18692	+	412	28376989	proA	lp_0017	-	glutamate-5-semialdehyde dehydrogenase
16	 44.84	0	19153..20769	+	538	28376990	-	lp_0018	-	lipoprotein precursor, peptide binding protein OppA-like protein
17	 38.10	-1	20774..21025	-	83	28376991	-	lp_0019	-	hypothetical protein
18	 47.72	0	21099..23003	+	634	28376992	glgB	lp_0020	-	glycogen branching enzyme
19	 45.00	0	22993..24132	+	379	28376993	glgC	lp_0021	-	glucose-1-phosphate adenylyltransferase
20	 46.72	0	24129..25301	+	390	28376994	glgD	lp_0022	-	glucose-1-phosphate adenylyltransferase, subunit
21	 47.99	0	25294..26733	+	479	28376995	glgA	lp_0023	-	starch ( glycogen) synthase
22	 47.98	0	26753..29149	+	798	28376996	glgP	lp_0024	-	glycogen phosphorylase
23	 49.17	+1	29167..30984	+	605	28376997	amy1	lp_0025	-	alpha-amylase
24	 47.53	0	31317..32084	+	255	28376998	-	lp_0026	-	HAD superfamily hydrolase
25	 48.81	0	32236..32907	-	223	28376999	pgmB1	lp_0027	-	beta-phosphoglucomutase
26	 46.82	0	32925..35645	-	906	28377000	map1	lp_0028	-	maltose phosphorylase
27	 47.11	0	36033..36482	-	149	28377001	-	lp_0030	-	hypothetical protein
28	 40.80	-1	36680..36880	+	66	28377002	cspL	lp_0031	-	cold shock protein CspL
29	 45.30	0	36963..37196	+	77	28377003	-	lp_0032	-	hypothetical protein
30	 45.76	0	37770..38477	+	235	28377004	rrp1	lp_0036	-	response regulator
31	 43.20	0	38491..40365	+	624	28377005	hpk1	lp_0037	-	histidine protein kinase; sensor protein
32	 42.31	0	40346..41671	+	441	28377006	-	lp_0038	-	hypothetical protein
33	 45.03	0	41683..42537	+	284	28377007	-	lp_0039	-	hypothetical protein
34	 44.12	0	42895..43710	+	271	28377008	-	lp_0041	-	hydrolase
35	 45.05	0	43821..45083	+	420	28377009	htrA	lp_0043	-	serine protease HtrA
36	 43.33	0	45638..46117	+	159	28377010	-	lp_0045	-	SPOUT methyltransferase superfamily protein
37	 33.85	-2	46600..47175	+	191	28377011	-	lp_0046	-	transcription regulator
38	 41.23	0	47239..48669	+	476	28377012	aldH	lp_0047	-	aldehyde dehydrogenase
39	 45.50	0	48877..49509	+	210	28377013	-	lp_0048	-	hypothetical protein
40	 47.31	0	49758..50408	+	216	28377014	pnb	lp_0050	-	p-nitrobenzoate reductase
41	 41.46	0	50524..50892	+	122	28377015	-	lp_0052	-	hypothetical protein
42	 43.72	0	50960..51787	-	275	28377016	-	lp_0053	-	hypothetical protein
43	 40.29	-1	51804..52637	-	277	28377017	-	lp_0054	-	hypothetical protein
44	 45.91	0	52791..55160	-	789	28377018	-	lp_0055	-	fumarate reductase, flavoprotein subunit precursor
45	 42.87	0	55625..57040	+	471	28377019	-	lp_0056	-	cation transport protein
46	 47.35	0	57132..58037	+	301	28377020	-	lp_0057	-	transcription regulator
47	 45.31	0	58107..58532	-	141	28377021	-	lp_0058	-	hypothetical protein
48	 50.23	+1	58868..59293	+	141	28377022	arsC	lp_0059	-	arsenate reductase
49	 46.69	0	59613..60473	+	286	28377023	-	lp_0060	-	short-chain dehydrogenase/oxidoreductase
50	 46.34	0	60505..61350	+	281	28377024	-	lp_0061	-	acetoacetate decarboxylase (putative)
51	 46.02	0	61378..62031	+	217	28377025	-	lp_0062	-	nitroreductase
52	 45.96	0	62200..63735	+	511	28377026	-	lp_0063	-	hypothetical protein
53	 46.40	0	63662..63883	-	73	28377027	-	lp_0064	-	hypothetical protein
54	 44.94	0	64066..64737	+	223	28377028	pgmB2	lp_0066	-	beta-phosphoglucomutase
55	 47.10	0	64823..65839	-	338	28377029	bsh2	lp_0067	-	choloylglycine hydrolase
56	 45.68	0	66113..67456	+	447	28377030	-	lp_0068	-	integral membrane protein
57	 45.92	0	67605..68351	+	248	28377031	ptp1	lp_0069	-	protein-tyrosine phosphatase
58	 47.04	0	68424..69671	-	415	28377032	-	lp_0070	-	4-hydroxyphenylacetate-3-hydroxylase
59	 44.74	0	69747..69860	-	37	28377033	-	lp_0071	-	hypothetical protein
60	 45.51	0	69943..70443	-	166	28377034	-	lp_0072	-	hypothetical protein
61	 49.33	+1	70536..71204	+	222	28377035	-	lp_0073	-	hypothetical protein
62	 40.65	-1	71292..72248	-	318	28377036	-	lp_0074	-	hypothetical protein
63	 42.75	0	72330..72977	+	215	28377037	-	lp_0075	-	acyl carrier protein phosphodiesterase (putative)
64	 49.58	+1	73239..75257	+	672	28377038	fusA1	lp_0076	-	elongation factor G
65	 47.60	0	75275..75961	+	228	28377039	-	lp_0077	-	hypothetical protein
66	 46.89	0	75967..76851	+	294	28377040	-	lp_0078	-	transport protein
67	 46.34	0	77039..77530	+	163	28377041	-	lp_0080	-	acetyltransferase
68	 47.85	0	77561..78235	-	224	28377042	-	lp_0081	-	intracellular protease/amidase (putative)
69	 45.67	0	78281..79285	-	334	28377043	-	lp_0082	-	oxidoreductase
70	 44.66	0	79467..79775	+	102	28377044	-	lp_0083	-	transcription regulator
71	 45.39	0	79946..81280	-	444	28377045	-	lp_0085	-	cation efflux protein (putative)
72	 47.91	0	82631..83515	+	294	28377046	pepI	lp_0088	-	prolyl aminopeptidase
73	 45.78	0	83697..84443	-	248	28377047	-	lp_0089	-	hypothetical protein
74	 39.77	-1	84613..85047	+	144	28377048	-	lp_0091	-	hypothetical protein
75	 44.77	0	85149..86792	-	547	28377049	-	lp_0092	-	extracellular protein, peptide binding protein OppA-like protein
76	 46.67	0	87460..88209	+	249	28377050	-	lp_0096	-	hypothetical protein
77	 46.15	0	88467..89246	+	259	28377051	-	lp_0098	-	adenylyl transferase (putative)
78	 39.32	-1	89314..89547	-	77	28377052	-	lp_0099	-	hypothetical protein
79	 47.68	0	89568..90299	-	243	28377053	-	lp_0100	-	cobalt ABC transporter, ATP-binding protein (putative)
80	 46.59	0	90301..91122	-	273	28377054	-	lp_0101	-	cobalt transport protein
81	 50.86	+1	91097..92083	-	328	161501981	cbiM	lp_0102	-	cobalt transport protein CbiM
82	 40.69	-1	92098..92763	-	221	28377056	-	lp_0103	-	transcription regulator
83	 44.86	0	93016..94290	+	424	28377057	-	lp_0104	-	hypothetical protein
84	 52.90	+1	94292..95032	+	246	28377058	-	lp_0105	-	NCAIR mutase, PurE-related protein
85	 44.07	0	96329..97045	+	238	28377059	glpF1	lp_0108	-	glycerol uptake facilitator protein
86	 46.33	0	97070..97900	+	276	28377060	-	lp_0109	-	hypothetical protein
87	 52.25	+1	98100..99077	-	325	28377061	-	lp_0111	-	oxidoreductase
88	 49.12	+1	99433..100224	+	263	28377062	thiM	lp_0113	-	hydroxyethylthiazole kinase
89	 51.52	+1	100250..101074	+	274	28377063	thiD	lp_0114	-	phosphomethylpyrimidine kinase
90	 52.45	+1	101064..101717	+	217	28377064	thiE	lp_0115	-	thiamine-phosphate pyrophosphorylase
91	 49.08	+1	101717..102916	+	399	28377065	-	lp_0116	-	purine-cytosine transport protein
92	 51.28	+1	102998..103738	+	246	28377066	-	lp_0117	-	hypothetical protein
93	 49.22	+1	103981..105573	+	530	28377067	-	lp_0118	-	hypothetical protein
94	 45.01	0	105689..106159	-	156	28377068	-	lp_0119	-	NTP pyrophosphohydrolase
95	 44.32	0	106392..107756	+	454	28377069	-	lp_0120	-	amino acid transport protein
96	 46.54	0	107784..108563	+	259	28377070	-	lp_0121	-	hypothetical protein
97	 50.06	+1	108588..109370	+	260	28377071	hpo	lp_0122	-	halo peroxidase
98	 49.32	+1	109566..112304	-	912	28377072	pacL1	lp_0124	-	cation transporting P-type ATPase
99	 46.25	0	112589..113347	+	252	28377073	-	lp_0125	-	purine nucleoside phosphorylase (putative)
100	 43.08	0	113390..113584	-	64	28377074	-	lp_0126	-	stress-responsive transcription regulator (putative)
45.07	MEAN

4.00	STD DEV
