IslandPath Analysis: Lactobacillus johnsonii NCC 533

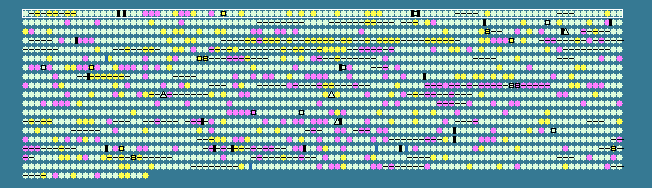

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 34.52   STD DEV: 3.16
Lactobacillus johnsonii NCC 533, complete genome - 1..1992676
1821 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 36.63	0	1..1365	+	454	42518085	-	LJ0001	-	chromosomal replication initiator protein DnaA
2	 34.04	0	1546..2676	+	376	42518086	-	LJ0002	-	DNA polymerase III, beta chain
3	 38.67	+1	2951..3100	+	49	42518087	-	LJ0002b	-	hypothetical protein
4	 32.98	0	3104..4228	+	374	42518088	recF	LJ0003	-	recombination protein F
5	 39.43	+1	4229..6196	+	655	42518089	-	LJ0004	-	DNA gyrase subunit B
6	 38.63	+1	6207..8696	+	829	42518090	-	LJ0005	-	DNA gyrase subunit A
7	 35.35	0	8883..9179	+	98	42518091	rpsF	LJ0006	-	30S ribosomal protein S6
8	 40.08	+1	9213..9731	+	172	42518092	-	LJ0007	-	single-strand binding protein
9	 43.46	+2	9756..9992	+	78	42518093	rpsR	LJ0008	-	30S ribosomal protein S18
10	 31.26	-1	10086..11003	+	305	42518094	-	LJ0009	-	hypothetical protein
11	 36.75	0	11110..13128	+	672	42518095	-	LJ0010	-	hypothetical protein
12	 33.55	0	13140..13595	+	151	42518096	rplI	LJ0011	-	50S ribosomal protein L9
13	 37.48	0	13598..14971	+	457	42518097	-	LJ0012	-	replicative DNA helicase
14	 37.97	+1	15069..15953	+	294	42518098	-	LJ0013	-	fructokinase
15	 36.75	0	16017..17159	-	380	42518099	-	LJ0014	-	hypothetical protein
16	 37.05	0	17277..19295	-	672	42518100	-	LJ0015	-	hypothetical protein
17	 34.89	0	19628..20980	-	450	42518101	-	LJ0016	-	hypothetical protein
18	 32.30	0	21517..22680	+	387	42518102	-	LJ0017	-	hypothetical protein
19	 33.33	0	22717..23577	-	286	42518103	-	LJ0018	-	hypothetical protein
20	 35.49	0	23719..24366	+	215	42518104	-	LJ0019	-	hypothetical protein
21	 25.84	-2	24563..25363	-	266	42518105	-	LJ0020	-	hypothetical protein
22	 26.67	-2	25638..26702	+	354	42518106	-	LJ0021	-	hypothetical protein
23	 26.37	-2	26708..27913	+	401	42518107	-	LJ0022	-	major facilitator superfamily permease
24	 36.09	0	28305..28994	-	229	42518108	-	LJ0023	-	hypothetical protein
25	 35.88	0	29130..29837	+	235	42518109	-	LJ0024	-	hypothetical protein
26	 38.45	+1	29872..30711	-	279	42518110	-	LJ0025	-	hypothetical protein
27	 30.47	-1	31207..32814	+	535	42518111	-	LJ0026	-	ABC transporter ATPase and permease components
28	 30.49	-1	32837..33646	-	269	42518112	-	LJ0027	-	hypothetical protein
29	 38.02	+1	33801..35720	+	639	42518113	-	LJ0028	-	hypothetical protein
30	 37.90	+1	35975..37309	-	444	42518114	-	LJ0029	-	hypothetical protein
31	 34.03	0	37838..39571	-	577	42518115	-	LJ0030	-	endopeptidase O
32	 27.57	-2	39672..40538	+	288	42518116	-	LJ0031	-	hypothetical protein
33	 34.04	0	40727..42001	+	424	42518117	-	LJ0032	-	major facilitator superfamily permease
34	 41.81	+2	42139..43164	-	341	42518118	-	LJ0033	-	transposase
35	 31.18	-1	43272..44198	-	308	42518119	-	LJ0034	-	hypothetical protein
36	 35.19	0	44502..44663	+	53	42518120	-	LJ0034b	-	hypothetical protein
37	 44.19	+2	44703..44969	+	88	42518121	-	LJ0035	-	hypothetical protein
38	 36.35	0	45106..45933	+	275	42518122	-	LJ0036	-	exodeoxyribonuclease
39	 34.57	0	46005..48845	+	946	42518123	-	LJ0037	-	hypothetical protein
40	 34.91	0	48935..49441	+	168	42518124	-	LJ0038	-	hypothetical protein
41	 35.21	0	49555..49821	+	88	42518125	-	LJ0039	-	hypothetical protein
42	 33.33	0	49857..50090	-	77	42518126	-	LJ0040	-	hypothetical protein
43	 33.05	0	50221..51270	+	349	42518127	-	LJ0041	-	hypothetical protein
44	 35.96	0	51471..52805	+	444	42518128	-	LJ0042	-	hypothetical protein
45	 40.52	+1	52848..54002	-	384	42518129	-	LJ0043	-	inosine-5-monophosphate dehydrogenase
46	 33.51	0	54076..54651	-	191	42518130	-	LJ0044	-	hypothetical protein
47	 40.83	+1	54728..55741	-	337	42518131	-	LJ0045	-	D-lactate dehydrogenase
48	 33.75	0	55999..58611	+	870	42518132	-	LJ0046	-	hypothetical protein
49	 38.72	+1	59228..65647	+	2139	42518133	-	LJ0047	-	hypothetical protein
50	 35.13	0	65803..68754	+	983	42518134	-	LJ0048	-	hypothetical protein
51	 35.84	0	68742..70337	+	531	42518135	-	LJ0049	-	hypothetical protein
52	 32.04	0	70490..71416	+	308	42518136	-	LJ0050	-	hypothetical protein
53	 38.63	+1	71548..73398	+	616	42518137	-	LJ0051	-	hypothetical protein
54	 36.63	0	73489..74853	+	454	42518138	-	LJ0052	-	branched-chain amino acid transporter
55	 33.74	0	74904..75638	+	244	42518139	ubiE	LJ0053	-	ubiquinone/menaquinone biosynthesis methyltransferase
56	 34.75	0	75671..76585	+	304	42518140	-	LJ0054	-	prolinase PepPN
57	 32.35	0	76704..77315	+	203	42518141	-	LJ0055	-	hypothetical protein
58	 38.59	+1	77465..78415	-	316	42518142	-	LJ0056	-	conjugated bile salt hydrolase
59	 38.20	+1	78431..79786	-	451	42518143	-	LJ0057	-	bile salt transporter
60	 38.04	+1	79810..81168	-	452	42518144	-	LJ0058	-	bile salt transporter
61	 36.24	0	81470..82330	-	286	42518145	-	LJ0059	-	hypothetical protein
62	 35.54	0	82327..83277	-	316	42518146	-	LJ0060	-	hypothetical protein
63	 33.02	0	83290..84240	-	316	42518147	-	LJ0061	-	hypothetical protein
64	 36.48	0	84266..85090	-	274	42518148	-	LJ0062	-	hypothetical protein
65	 35.39	0	85092..85868	-	258	42518149	-	LJ0063	-	hypothetical protein
66	 32.24	0	86234..87511	+	425	42518150	-	LJ0064	-	transposase
67	 36.72	0	87816..88523	+	235	42518151	-	LJ0065	-	two-component regulatory system response regulator
68	 36.90	0	88570..90420	+	616	42518152	-	LJ0066	-	two-component regulatory system histidine kinase
69	 32.43	0	90410..91738	+	442	42518153	-	LJ0067	-	hypothetical protein
70	 32.24	0	91728..92549	+	273	42518154	-	LJ0068	-	hypothetical protein
71	 36.47	0	92555..93352	+	265	42518155	-	LJ0069	-	hypothetical protein
72	 37.35	0	93436..94656	+	406	42518156	-	LJ0070	-	serine protease do-like HtrA
73	 34.79	0	95167..95646	+	159	42518157	-	LJ0071	-	SPOUT methyltransferase superfamily protein
74	 34.40	0	95647..96300	-	217	42518158	-	LJ0072	-	ABC transporter permease component
75	 33.56	0	96312..97658	-	448	42518159	-	LJ0073	-	ABC transporter ATPase component
76	 36.35	0	97633..98196	-	187	42518160	-	LJ0074	-	hypothetical protein
77	 33.01	0	98433..99359	+	308	42518161	-	LJ0075	-	hypothetical protein
78	 39.84	+1	99394..100284	-	296	42518162	-	LJ0076	-	heat shock protein HtpX
79	 33.15	0	100293..100850	-	185	42518163	-	LJ0077	-	LemA-like protein
80	 32.51	0	100966..102060	-	364	42518164	-	LJ0078	-	hypothetical protein
81	 33.09	0	102236..102646	+	136	42518165	-	LJ0079	-	hypothetical protein
82	 33.15	0	103041..103571	+	176	42518166	-	LJ0080	-	hypothetical protein
83	 33.64	0	104036..105343	+	435	42518167	-	LJ0081	-	hypothetical protein
84	 35.38	0	105353..106477	+	374	42518168	-	LJ0082	-	hypothetical protein
85	 32.56	0	106592..107236	+	214	42518169	-	LJ0083	-	hypothetical protein
86	 33.66	0	107238..108167	+	309	42518170	-	LJ0084	-	hypothetical protein
87	 33.71	0	108250..108516	-	88	42518171	-	LJ0085	-	hypothetical protein
88	 35.57	0	108770..109528	-	252	42518172	-	LJ0086	-	ABC transporter ATPase component
89	 35.94	0	109518..111131	-	537	42518173	-	LJ0087	-	ABC transporter permease component
90	 37.96	+1	111467..112093	-	208	42518174	-	LJ0088	-	3-methyladenine DNA glycosylase
91	 31.68	0	112170..112532	+	120	42518175	-	LJ0089	-	hypothetical protein
92	 33.72	0	112529..113311	-	260	42518176	-	LJ0090	-	hypothetical protein
93	 36.29	0	113298..113534	-	78	42518177	-	LJ0091	-	methylated DNA-protein cysteine methyltransferase DNA binding subunit
94	 32.14	0	113494..113829	-	111	42518178	-	LJ0092	-	methylated DNA-protein cysteine methyltransferase ribonuclease-like subunit
95	 32.63	0	113946..114659	-	237	42518179	-	LJ0093	-	NAD-dependent deacetylase
96	 33.33	0	114786..115262	+	158	42518180	-	LJ0094	-	hypothetical protein
97	 36.05	0	115330..116799	-	489	42518181	-	LJ0095	-	cardiolipinsynthetase
98	 38.70	+1	116804..117511	-	235	42518182	-	LJ0096	-	hypothetical protein
99	 36.14	0	117535..118461	-	308	42518183	-	LJ0097	-	hypothetical protein
100	 36.61	0	118550..119281	+	243	42518184	-	LJ0098	-	hypothetical protein
34.52	MEAN

3.16	STD DEV
