IslandPath Analysis: Lactobacillus helveticus DPC 4571

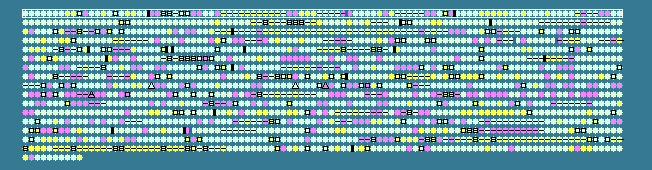

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 37.40   STD DEV: 3.87
Lactobacillus helveticus DPC 4571, complete genome - 1..2080931
1610 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 35.60	0	187..1554	+	455	161506635	-	lhv_0001	-	chromosomal replication initiation protein
2	 34.66	0	1719..2849	+	376	161506636	-	lhv_0002	-	DNA polymerase III Beta chain
3	 36.36	0	3070..3300	+	76	161506637	-	lhv_0003	-	hypothetical protein
4	 37.23	0	3300..4427	+	375	161506638	-	lhv_0004	-	recombination protein F
5	 40.56	0	4428..6392	+	654	161506639	-	lhv_0005	-	DNA gyrase
6	 39.49	0	6403..8886	+	827	161506640	-	lhv_0006	-	DNA gyrase
7	 39.73	0	9105..9401	+	98	161506641	-	lhv_0007	-	30S ribosomal protein S6
8	 41.23	0	9447..9965	+	172	161506642	-	lhv_0008	-	single-stranded DNA-binding protein
9	 42.31	+1	9994..10227	+	77	161506643	-	lhv_0009	-	30S ribosomal protein S18
10	 39.31	0	10424..11677	+	417	161506644	-	lhv_0010	-	transposase
11	 33.66	0	16224..16832	+	202	161506645	-	lhv_0015	-	hypothetical protein
12	 40.80	0	16940..18961	+	673	161506646	-	lhv_0016	-	putative signalling protein
13	 39.69	0	18973..19428	+	151	161506647	-	lhv_0017	-	50S ribosomal protein L9
14	 41.72	+1	19459..20853	+	464	161506648	-	lhv_0018	-	replicative DNA helicase
15	 39.14	0	21090..22019	+	309	161506649	-	lhv_0019	-	putative alkylphosphonate ABC transporter
16	 38.97	0	22136..23413	-	425	161506650	-	lhv_0020	-	transposase
17	 38.71	0	23580..24509	+	309	161506651	-	lhv_0021	-	hypothetical protein
18	 41.60	+1	24741..25490	+	249	161506652	-	lhv_0022	-	fructokinase
19	 41.21	0	25778..26107	-	109	161506653	-	lhv_0024	-	hypothetical protein
20	 40.41	0	26184..27413	-	409	161506654	-	lhv_0025	-	hypothetical protein
21	 40.00	0	27497..28201	-	234	161506655	-	lhv_0026	-	hypothetical protein
22	 30.60	-1	28690..30516	+	608	161506656	-	lhv_0027	-	DNA methylase
23	 31.37	-1	30519..33530	+	1003	161506657	-	lhv_0028	-	Type III restriction-modification system restriction subunit
24	 36.34	0	33823..35052	-	409	161506658	-	lhv_0029	-	transposase
25	 38.57	0	35290..36549	-	419	161506659	-	lhv_0030	-	transposase
26	 34.25	0	36788..38089	+	433	161506660	-	lhv_0031	-	hypothetical protein
27	 35.94	0	38668..39318	+	216	161508224	-	lhv_2922	-	transposase ORF_A
28	 35.04	0	39251..40834	+	527	161508223	-	lhv_2921	-	transposase ORF_B
29	 33.55	0	42354..43754	+	466	161506661	-	lhv_0037	-	hypothetical protein
30	 33.59	0	43851..44624	+	257	161506662	-	lhv_0038	-	hypothetical protein
31	 38.15	0	44663..45223	-	186	161506663	-	lhv_0039	-	putative cobalamin adenosyltransferase
32	 39.81	0	45224..45748	-	174	161506664	-	lhv_0040	-	hypothetical protein
33	 33.82	0	45750..46160	-	136	161506665	-	lhv_0041	-	hypothetical protein
34	 41.66	+1	46181..48415	-	744	161506666	-	lhv_0042	-	ribonucleoside triphosphate reductase
35	 36.04	0	48670..49704	+	344	161506667	-	lhv_0043	-	putative permease
36	 37.87	0	49701..50273	+	190	161506668	-	lhv_0044	-	putative esterase
37	 43.02	+1	51693..52322	-	209	161506669	-	lhv_0047	-	phosphoglycerate mutase
38	 44.74	+1	52725..53846	+	373	161506670	-	lhv_0048	-	phosphoserine aminotransferase
39	 46.44	+2	53824..54990	+	388	161506671	-	lhv_0049	-	phosphoglycerate dehydrogenase
40	 41.59	+1	55158..55472	+	104	161506672	-	lhv_0050	-	small multidrug efflux protein
41	 41.60	+1	58040..58801	-	253	161506673	-	lhv_0054	-	ABC transporter ATP binding protein
42	 45.60	+2	58798..59694	-	298	161506674	-	lhv_0055	-	ABC transporter membrane spanning permease
43	 45.62	+2	59691..60683	-	330	161506675	-	lhv_0056	-	ABC transporter substrate binding protein
44	 38.98	0	61032..61739	+	235	161506676	-	lhv_0057	-	putative hydrolase
45	 33.52	-1	61717..62256	+	179	161506677	-	lhv_0058	-	S-layer protein
46	 32.28	-1	62271..62648	+	125	161506678	-	lhv_0059	-	hypothetical protein
47	 44.17	+1	62815..63672	+	285	161506679	-	lhv_0060	-	oxidoreductase
48	 42.99	+1	64011..65936	+	641	161506680	-	lhv_0061	-	translation elongation factor
49	 42.10	+1	66949..67998	-	349	161506681	-	lhv_0064	-	D-lactate dehydrogenase
50	 37.72	0	68089..68931	+	280	161506682	-	lhv_0065	-	aminoglycoside phosphotransferase:fructosamine kinase
51	 37.80	0	69386..70213	+	275	161506683	-	lhv_0066	-	exodeoxyribonuclease A
52	 36.69	0	71230..74061	+	943	161506684	-	lhv_0069	-	phage DEAD box family helicase
53	 36.70	0	74101..75111	-	336	161506685	-	lhv_0070	-	penicillin binding protein
54	 33.82	0	75401..75814	+	137	161506686	-	lhv_0071	-	peptide deformylase
55	 31.14	-1	82856..83494	-	212	161506687	-	lhv_0073	-	transcriptional regulator
56	 35.62	0	83646..83864	-	72	161506688	-	lhv_2203	-	putative steroid binding protein
57	 38.74	0	83952..84821	-	289	161506689	-	lhv_0074	-	phospho-beta-glycosidase
58	 37.08	0	84818..85645	-	275	161506690	-	lhv_0075	-	putative glycosyl transferase
59	 39.29	0	85779..86735	-	318	161506691	-	lhv_0076	-	putative glucosyl transferase
60	 41.94	+1	86754..87590	-	278	161506692	-	lhv_0077	-	putative glycosyl transferase
61	 27.59	-2	87686..88504	+	272	161506693	-	lhv_0078	-	transcriptional regulator
62	 44.27	+1	89363..90121	-	252	161506694	-	lhv_0080	-	hypothetical protein
63	 36.43	0	90244..90921	+	225	161506695	-	lhv_0081	-	hypothetical protein
64	 35.99	0	91127..92329	+	400	161506696	-	lhv_0082	-	surface layer protein
65	 38.30	0	92402..92824	-	140	161506697	-	lhv_0083	-	putative prophage repressor
66	 38.14	0	92821..93174	-	117	161506698	-	lhv_0084	-	putative transcriptional regulator
67	 37.04	0	93479..93802	+	107	161506699	-	lhv_0085	-	helveticin ORF 2
68	 31.50	-1	93822..94859	+	345	161506700	-	lhv_0086	-	helveticin
69	 32.71	-1	94938..95894	+	318	161506701	-	lhv_0087	-	putative surface layer protein
70	 36.40	0	96007..97149	+	380	161506702	-	lhv_0088	-	hypothetical protein
71	 42.83	+1	97728..98906	+	392	161506703	-	lhv_0091	-	transposase IS1201
72	 33.66	0	99421..100332	+	303	161506704	-	lhv_0092	-	hypothetical protein
73	 40.73	0	101415..102131	+	238	161506705	-	lhv_0095	-	putative response regulator
74	 40.39	0	102198..104054	+	618	161506706	-	lhv_0096	-	putative histidine kinase
75	 36.72	0	104035..105393	+	452	161506707	-	lhv_0097	-	hypothetical protein
76	 39.39	0	105396..106220	+	274	161506708	-	lhv_0098	-	hypothetical protein
77	 42.86	+1	106236..107033	+	265	161506709	-	lhv_0099	-	hypothetical protein
78	 41.71	+1	107120..108361	+	413	161506710	-	lhv_0100	-	HtrA-like serine protease
79	 43.54	+1	108826..109305	+	159	161506711	-	lhv_0101	-	SPOUT methyltransferase superfamily protein
80	 44.86	+1	109814..110698	-	294	161506712	-	lhv_0102	-	proline iminopeptidase
81	 41.90	+1	110707..111360	-	217	161506713	-	lhv_0103	-	putative ABC transporter permease component
82	 35.41	0	111364..112713	-	449	161506714	-	lhv_0104	-	putative ABC transporter ATPase component
83	 34.71	0	112871..113812	+	313	161506715	-	lhv_0105	-	putative regulatory protein
84	 41.81	+1	115481..116377	-	298	161506716	-	lhv_0108	-	heat shock protein HtpX
85	 36.01	0	116392..116952	-	186	161506717	-	lhv_0109	-	hypothetical protein
86	 37.85	0	117019..118125	-	368	161506718	-	lhv_0110	-	cation transporter
87	 34.79	0	118297..118707	+	136	161506719	-	lhv_0111	-	hypothetical protein
88	 41.84	+1	120509..120649	+	46	161506720	-	lhv_0115	-	hypothetical protein
89	 35.80	0	122912..123559	+	215	161506721	-	lhv_0120	-	putative hydrolase
90	 36.96	0	123569..124477	+	302	161506722	-	lhv_0121	-	hypothetical protein
91	 37.96	0	124530..125285	-	251	161506723	-	lhv_0122	-	amino acid ABC transporter ATP binding protein
92	 38.29	0	125285..126898	-	537	161506724	-	lhv_0123	-	amino acid ABC transporter permease protein
93	 41.07	0	127226..127858	-	210	161506725	-	lhv_0124	-	putative 3-methyladenine DNA glycosylase
94	 30.85	-1	127928..128290	+	120	161506726	-	lhv_0125	-	hypothetical protein
95	 38.40	0	128327..129115	-	262	161506727	-	lhv_0126	-	hypothetical protein
96	 36.43	0	129102..129617	-	171	161506728	-	lhv_0127	-	methylated-DNA-protein-cysteineS-methyltransferase
97	 32.20	-1	129669..130373	-	234	161506729	-	lhv_0128	-	NAD-dependent deacetylase
98	 33.33	-1	130465..130944	+	159	161506730	-	lhv_0129	-	hypothetical protein
99	 39.57	0	130939..132396	-	485	161506731	-	lhv_0130	-	cardiolipin synthase
100	 37.65	0	132416..133342	-	308	161506732	-	lhv_0131	-	hypothetical protein
37.40	MEAN

3.87	STD DEV
