IslandPathversion 1.0

IslandPath Analysis: Lactobacillus casei BL23

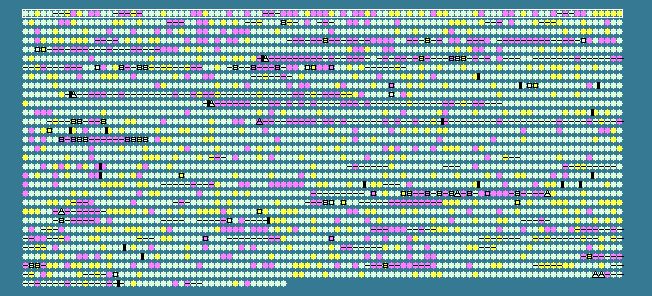

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No rRNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.51 STD DEV: 3.59
Lactobacillus casei, complete genome - 1..3079196
3044 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 44.30	0	81..1430	+	449	191636825	dnaA	LCABL_00010	-	Chromosomal replication initiator protein dnaA
2	 44.74	0	1603..2742	+	379	191636826	dnaN	LCABL_00020	-	DNA-directed DNA polymerase III, beta subunit
3	 53.99	+2	3595..3807	+	70	191636827	yyaA	LCABL_00030	-	YyaA protein (BH0003 protein)
4	 46.24	0	3804..4919	+	371	191636828	recF	LCABL_00040	-	DNA replication and repair protein recF
5	 49.64	0	5048..7009	+	653	191636829	gyrB	LCABL_00050	-	DNA gyrase, B subunit
6	 48.59	0	7071..9692	+	873	191636830	gyrA	LCABL_00060	-	DNA gyrase, A subunit
7	 45.53	0	9797..10501	-	234	191636831	deoC	LCABL_00070	-	Deoxyribose-phosphate aldolase (Phosphodeoxyriboaldolase) (Deoxyriboaldolase) (DERA)
8	 50.46	+1	10684..11115	+	143	191636832	ssb	LCABL_00080	-	Single-stranded DNA-binding protein
9	 40.40	-1	11243..11539	+	98	191636833	rpsF	LCABL_00090	-	30S ribosomal protein S6
10	 50.75	+1	11570..12166	+	198	191636834	ssb	LCABL_00100	-	Single-stranded DNA-binding protein
11	 49.37	0	12253..12489	+	78	191636835	rpsR	LCABL_00110	-	30S ribosomal protein S18
12	 35.84	-2	12918..14510	+	530	191636836	PST transporter	LCABL_00120	-	Polysaccharide transporter
13	 36.92	-2	14766..14960	+	64	191636837	-	LCABL_00130	-	hypothetical protein
14	 49.97	0	15372..16850	+	492	191636838	cydA	LCABL_00140	-	Cytochrome bd-I ubiquinol oxidase subunit I
15	 49.40	0	16867..17862	+	331	191636839	cydB	LCABL_00150	-	Cytochrome d ubiquinol oxidase, subunit II
16	 49.33	0	17859..18083	+	74	191636840	-	LCABL_00160	-	hypothetical protein
17	 38.64	-2	18156..18833	-	225	191636841	yiiE	LCABL_00170	-	Putative uncharacterized protein yiiE
18	 35.35	-2	19146..19541	-	131	191636842	-	LCABL_00180	-	hypothetical protein
19	 52.15	+1	19754..20056	-	100	191636843	-	LCABL_00190	-	hypothetical protein
20	 40.17	-1	20329..21147	-	272	191636844	FNV1622	LCABL_00200	-	CAAX amino terminal protease family
21	 45.36	0	21266..21448	-	60	191636845	-	LCABL_00210	-	hypothetical protein
22	 48.33	0	21499..21678	-	59	191636846	-	LCABL_00220	-	hypothetical protein
23	 47.98	0	22176..23411	-	411	191636847	-	LCABL_00230	-	Surface antigen
24	 51.09	+1	23615..26188	-	857	191636848	ylbB	LCABL_00240	-	ABC transporter permease protein
25	 47.44	0	26201..26902	-	233	191636849	-	LCABL_00250	-	ABC-type antimicrobial peptide transport system, ATPase component
26	 45.29	0	27182..27733	+	183	191636850	-	LCABL_00260	-	Regulatory protein, TetR
27	 46.84	0	27777..28583	+	268	191636851	cof	LCABL_00270	-	Hydrolase Cof
28	 47.35	0	28588..28908	+	106	191636852	-	LCABL_00280	-	hypothetical protein
29	 37.10	-2	29747..30250	-	167	191636853	-	LCABL_00290	-	hypothetical protein
30	 42.35	-1	30270..32420	-	716	191636854	ybfG	LCABL_00300	-	YbfG
31	 50.23	+1	32489..33376	-	295	191636855	-	LCABL_00310	-	hypothetical protein
32	 43.83	0	33564..34163	+	199	191636856	-	LCABL_00320	-	hypothetical protein
33	 48.66	0	34287..35180	-	297	191636857	corA	LCABL_00330	-	CorA-magnesium and cobalt transporter
34	 47.10	0	35229..35867	-	212	191636858	-	LCABL_00340	-	Transcriptional regulator
35	 42.86	-1	36024..36044	+	6	191636859	-	LCABL_00350	-	hypothetical protein
36	 48.51	0	36096..37472	+	458	191636860	mntH	LCABL_00360	-	Probable manganese transport protein mntH
37	 46.09	0	37695..38039	-	114	191636861	-	LCABL_00370	-	hypothetical protein
38	 38.06	-2	38115..38474	-	119	191636862	-	LCABL_00380	-	hypothetical protein
39	 49.20	0	38715..40157	+	480	191636863	pepD	LCABL_00390	-	Dipeptidase, peptidase U 34 family
40	 48.58	0	40352..40987	+	211	191636864	-	LCABL_00400	-	Predicted membrane protein
41	 37.18	-2	41037..41348	-	103	191636865	orf2	LCABL_00410	-	Orf2
42	 35.98	-2	41517..41705	+	62	191636866	-	LCABL_00420	-	hypothetical protein
43	 44.77	0	41837..42448	-	203	191636867	-	LCABL_00430	-	hypothetical protein
44	 33.54	-2	42806..43279	+	157	191636868	-	LCABL_00440	-	hypothetical protein
45	 37.46	-2	43431..43769	+	112	191636869	-	LCABL_00450	-	hypothetical protein
46	 41.41	-1	43766..43963	+	65	191636870	-	LCABL_00460	-	hypothetical protein
47	 49.65	0	44103..44813	+	236	191636871	yqfD	LCABL_00470	-	Amino acid permease
48	 54.24	+2	44800..45129	+	109	191636872	yqfC	LCABL_00480	-	Putative uncharacterized protein yqfC
49	 41.24	-1	45367..45657	-	96	191636873	-	LCABL_00490	-	hypothetical protein
50	 39.35	-1	46010..46225	-	71	191636874	-	LCABL_00500	-	hypothetical protein
51	 42.12	-1	46572..47447	-	291	191636875	FNV1622	LCABL_00510	-	CAAX amino terminal protease family
52	 51.15	+1	47793..48443	-	216	191636876	eda-1	LCABL_00520	-	2-dehydro-3-deoxyphosphogluconate aldolase/4-hydroxy-2-oxoglutarate aldolase
53	 48.59	0	48612..50027	-	471	191636877	-	LCABL_00530	-	hypothetical protein
54	 40.55	-1	50409..51101	+	230	191636878	kdgR	LCABL_00540	-	GntR family transcription regulator
55	 44.24	0	51800..52120	+	106	191636879	orf25	LCABL_00550	-	Putative uncharacterized protein orf25
56	 40.07	-1	52309..53184	-	291	191636880	rgg	LCABL_00560	-	HTH-type transcriptional regulator rgg
57	 39.80	-1	53277..54869	+	530	191636881	ABC-NP	LCABL_00570	-	ABC transporter ATP-binding/membrane spanning permease-possible multidrug resistance
58	 50.51	+1	55207..56580	-	457	191636882	ypiB	LCABL_00580	-	Transporter
59	 41.05	-1	56758..57081	-	107	191636883	-	LCABL_00590	-	hypothetical protein
60	 49.91	0	57262..60573	-	1103	191636884	-	LCABL_00600	-	MMPL precursor
61	 46.60	0	60570..61172	-	200	191636885	bm3R1	LCABL_00610	-	HTH-type transcriptional repressor Bm3R1
62	 55.56	+2	61423..61683	-	86	191636886	-	LCABL_00620	-	hypothetical protein
63	 52.19	+1	61896..62558	-	220	191636887	opuD	LCABL_00630	-	Glycine betaine/carnitine/choline ABC transporter, ATP-binding protein
64	 48.14	0	62558..63469	-	303	191636888	opuCc	LCABL_00640	-	Putative ABC transporter; osmoprotectant-binding protein, glycine betaine/carnitine/choline ABC transporter
65	 53.46	+1	63499..64134	-	211	191636889	opuCb	LCABL_00650	-	Putative osmoprotectant ABC transporter; permease protein
66	 47.53	0	64131..65384	-	417	191636890	opuA	LCABL_00660	-	Glycine betaine/carnitine/choline ABC transporter, ATP-binding protein
67	 52.72	+1	67303..69159	+	618	191636891	cadA	LCABL_00670	-	Cadmium transporting P-type ATPase
68	 44.30	0	69179..69406	+	75	191636892	-	LCABL_00680	-	Heavy metal transport/detoxification protein
69	 33.33	-2	69502..69510	+	2	191636893	-	LCABL_00690	-	hypothetical protein
70	 50.26	+1	69554..70138	+	194	191636894	dpsB	LCABL_00700	-	DNA binding protein
71	 51.21	+1	70287..70946	+	219	191636895	flp	LCABL_00710	-	Probable transcriptional regulator flp
72	 46.79	0	71561..72355	-	264	191636896	trpA	LCABL_00720	-	Tryptophan synthase alpha chain
73	 47.58	0	72348..73568	-	406	191636897	trpB	LCABL_00730	-	Tryptophan synthase beta chain
74	 47.17	0	73552..74151	-	199	191636898	trpF	LCABL_00740	-	N-(5-phosphoribosyl)anthranilate isomerase (PRAI)
75	 46.62	0	74179..74961	-	260	191636899	trpC	LCABL_00750	-	Indole-3-glycerol phosphate synthase (IGPS)
76	 50.19	+1	74958..75983	-	341	191636900	trpD	LCABL_00760	-	Anthranilate phosphoribosyltransferase
77	 33.33	-2	76044..76088	-	14	191636901	-	LCABL_00770	-	hypothetical protein
78	 45.95	0	76662..77945	-	427	191636902	sgaT	LCABL_00780	-	SgaT protein
79	 44.11	0	77950..78246	-	98	191636903	SgaB	LCABL_00790	-	Phosphotransferase system, lactose/cellobiose-specific IIB subunit
80	 45.83	0	78239..78694	-	151	191636904	SgaA	LCABL_00800	-	Phosphotransferase system mannitol/fructose-specific IIA domain (Ntr-type)
81	 37.50	-2	78737..78784	-	15	191636905	-	LCABL_00810	-	hypothetical protein
82	 38.10	-2	79266..79979	-	237	191636906	-	LCABL_00820	-	Lin2946 protein
83	 45.35	0	80316..81455	+	379	191636907	-	LCABL_00830	-	hypothetical protein
84	 50.30	+1	81587..83413	-	608	191636908	-	LCABL_00840	-	Drug resistance transporter EmrB/QacA subfamily precursor
85	 48.36	0	83572..84150	+	192	191636909	-	LCABL_00850	-	Transcriptional regulator
86	 40.94	-1	84630..85352	-	240	191636910	-	LCABL_00860	-	hypothetical protein
87	 44.36	0	85552..86784	-	410	191636911	-	LCABL_00870	-	hypothetical protein
88	 44.59	0	86789..87703	-	304	191636912	-	LCABL_00880	-	hypothetical protein
89	 42.65	-1	87700..88386	-	228	191636913	stpC	LCABL_00890	-	Potential ABC transporter
90	 44.54	0	89211..89576	-	121	191636914	chpA	LCABL_00900	-	Cell growth regulatory protein
91	 41.11	-1	89573..89842	-	89	191636915	-	LCABL_00910	-	hypothetical protein
92	 44.07	0	91367..91636	+	89	191636916	ybfG	LCABL_00920	-	YbfG
93	 42.31	-1	91746..93461	+	571	191636917	ybfG	LCABL_00930	-	YbfG
94	 38.65	-2	93648..93929	-	93	191636918	-	LCABL_00940	-	hypothetical protein
95	 46.67	0	93971..93985	+	4	191636919	-	LCABL_00950	-	hypothetical protein
96	 53.26	+1	94519..95286	-	255	191636920	dapB	LCABL_00960	-	Dihydrodipicolinate reductase (DHPR)
97	 52.98	+1	95283..96188	-	301	191636921	dapA	LCABL_00970	-	Dihydrodipicolinate synthase
98	 51.30	+1	96332..97483	-	383	191636922	dapE	LCABL_00980	-	Succinyl-diaminopimelate desuccinylase
99	 51.77	+1	97491..98195	-	234	191636923	dapD	LCABL_00990	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
100	 52.34	+1	98206..99552	-	448	191636924	lysA	LCABL_01000	-	Diaminopimelate decarboxylase
46.51	MEAN

3.59	STD DEV
