IslandPath Analysis: Helicobacter pylori G27

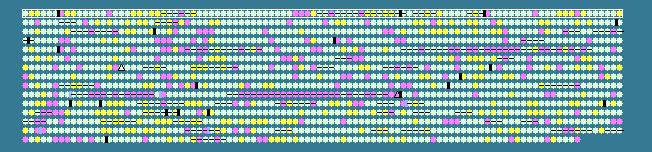

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 39.14   STD DEV: 3.74
Helicobacter pylori G27, complete genome - 1..1652982
1493 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 41.01	0	1..417	-	138	208433977	nusB	HPG27_1	-	N utilization substance protein B
2	 45.65	+1	419..889	-	156	208433978	-	HPG27_2	-	riboflavin synthase beta chain
3	 44.63	+1	899..1633	-	244	208433979	-	HPG27_3	-	3-deoxy-D-manno-octulosonicacid 8-phosphate synthetase
4	 39.49	0	1716..2381	-	221	208433980	icfA	HPG27_4	-	beta-carbonicanhydrase
5	 39.91	0	2503..3186	+	227	208433981	-	HPG27_5	-	orotidine5'-phosphate decarboxylase
6	 42.36	0	3187..4017	+	276	208433982	-	HPG27_6	-	pantoate-beta-alanine ligase
7	 32.67	-1	4584..4733	-	49	208433983	-	HPG27_7	-	hypothetical protein
8	 43.68	+1	5040..7040	-	666	208433984	hopZ	HPG27_8	-	outer membrane protein
9	 45.83	+1	7374..9014	-	546	208433985	groEL	HPG27_9	-	chaperone and heatshock protein
10	 40.62	0	9042..9398	-	118	208433986	groES	HPG27_10	-	cochaperone protein
11	 39.58	0	9684..11363	+	559	208433987	-	HPG27_11	-	DNA primase
12	 41.31	0	11360..12412	+	350	208433988	-	HPG27_12	-	arginino succinate synthase
13	 38.77	0	12502..13329	+	275	208433989	-	HPG27_13	-	hypothetical protein
14	 39.01	0	13476..13757	+	93	208433990	-	HPG27_14	-	hypothetical protein
15	 33.71	-1	13757..14020	+	87	208433991	-	HPG27_15	-	hypothetical protein
16	 37.86	0	14022..16385	+	787	208433992	-	HPG27_16	-	ATPase / DNA transfer protein, virB4-like protein
17	 39.45	0	16687..18027	+	446	208433993	-	HPG27_17	-	hypothetical protein
18	 40.68	0	18135..19100	+	321	208433994	cheV	HPG27_18	-	chemotaxis protein
19	 42.86	0	19097..20314	+	405	208433995	nspC	HPG27_19	-	carboxynorspermidine decarboxylase
20	 44.44	+1	20347..20922	-	191	208433996	-	HPG27_20	-	hypothetical protein
21	 40.04	0	20932..22497	-	521	208433997	-	HPG27_21	-	integral membrane protein
22	 44.44	+1	23157..25289	-	710	208433998	hopD	HPG27_22	-	outer membrane protein
23	 44.34	+1	25944..27224	-	426	208433999	gltA	HPG27_23	-	citrate synthase
24	 42.88	+1	27425..28702	+	425	208434000	icd	HPG27_24	-	isocitrate dehydrogenase
25	 37.08	0	28764..29297	+	177	208434001	-	HPG27_25	-	hypothetical protein
26	 39.27	0	29274..29930	-	218	208434002	bioD	HPG27_26	-	dethiobiotin synthetase
27	 35.28	-1	29934..31625	-	563	208434003	-	HPG27_27	-	hypothetical protein
28	 39.13	0	31734..32147	+	137	208434004	-	HPG27_28	-	hypothetical protein
29	 43.48	+1	32178..32453	+	91	208434005	-	HPG27_29	-	hypothetical protein
30	 39.67	0	32453..34678	+	741	208434006	clpA	HPG27_30	-	ATP-dependent protease
31	 42.11	0	34680..35021	+	113	208434007	-	HPG27_31	-	aspartate alpha-decarboxylase
32	 41.25	0	35024..35326	+	100	208434008	-	HPG27_32	-	hypothetical protein
33	 38.96	0	35326..36321	+	331	208434009	-	HPG27_33	-	hypothetical protein
34	 38.35	0	36329..37384	+	351	208434010	-	HPG27_34	-	NADH-ubiquinone oxidoreductase subunit
35	 41.40	0	37510..38253	+	247	208434011	comB8-1	HPG27_35	-	competence protein
36	 36.59	0	38253..39236	+	327	208434012	comB9	HPG27_36	-	competence protein
37	 41.60	0	39253..40365	+	370	208434013	comB10-1	HPG27_37	-	competence protein
38	 38.41	0	40437..41855	+	472	208434014	algA	HPG27_38	-	mannose-6-phosphate isomerase
39	 40.84	0	41865..43010	+	381	208434015	-	HPG27_39	-	GDP-D-mannosedehydratase
40	 40.91	0	43039..43935	+	298	208434016	nolK	HPG27_40	-	GDP-fucosesynthetase
41	 41.44	0	46226..47224	-	332	208434017	hypE	HPG27_41	-	hydrogenase expression/formation protein
42	 41.46	0	47227..49479	-	750	208434018	hypF	HPG27_42	-	transcriptional regulator
43	 41.09	0	49476..50468	-	330	208434019	-	HPG27_43	-	hypothetical protein
44	 39.77	0	50520..51218	-	232	208434020	-	HPG27_44	-	adenine specific DNA methyltransferase (putative type II)
45	 40.54	0	51215..52060	-	281	208434021	-	HPG27_45	-	cytosine specific DNA methyltransferase (putative type II)
46	 34.86	-1	52457..53503	-	348	208434022	-	HPG27_46	-	hypothetical protein
47	 28.46	-2	53652..53918	-	88	208434023	-	HPG27_47	-	hypothetical protein
48	 28.69	-2	53984..54910	-	308	208434024	-	HPG27_48	-	hypothetical protein
49	 42.92	+1	57419..58909	-	496	208434025	putP	HPG27_50	-	sodium/proline symporter
50	 40.53	0	58936..62493	-	1185	208434026	-	HPG27_51	-	proline/delta1-pyrroline-5-carboxylate dehydrogenase
51	 38.10	0	62823..63032	+	69	208434027	-	HPG27_52	-	hypothetical protein
52	 35.19	-1	63605..64306	+	233	208434028	-	HPG27_53	-	hypothetical protein
53	 37.01	0	64308..65042	+	244	208434029	-	HPG27_54	-	hypothetical protein
54	 39.01	0	67486..68049	+	187	208434030	-	HPG27_56	-	hypothetical protein
55	 40.61	0	68065..68325	+	86	208434031	-	HPG27_57	-	hypothetical protein
56	 38.33	0	69772..70131	+	119	208434032	-	HPG27_59	-	hypothetical protein
57	 32.77	-1	70133..70486	+	117	208434033	-	HPG27_60	-	hypothetical protein
58	 43.23	+1	72959..73756	-	265	208434034	ureH	HPG27_62	-	urease accessory protein
59	 44.67	+1	73756..74355	-	199	208434035	ureG	HPG27_63	-	urease accessory protein
60	 40.16	0	75171..75683	-	170	208434036	ureE	HPG27_65	-	urease accessory protein
61	 43.71	+1	75685..76272	-	195	208434037	ureI	HPG27_66	-	urease accessory protein / pH-dependent urea-transporter
62	 43.98	+1	76464..78173	-	569	208434038	ureB	HPG27_67	-	urease B
63	 41.39	0	78184..78903	-	239	208434039	ureA	HPG27_68	-	urease A
64	 37.58	0	79249..79695	-	148	208434040	-	HPG27_69	-	lipoprotein signal peptidase
65	 42.15	0	79716..81053	-	445	208434041	ureC	HPG27_70	-	phosphoglucosamine mutase
66	 38.15	0	81143..81412	+	89	208434042	rpsT	HPG27_71	-	ribosomal protein S20
67	 42.49	0	81536..82594	+	352	208434043	-	HPG27_72	-	peptide chain release factor RF-1
68	 42.66	0	82993..83775	+	260	208434044	horA	HPG27_73	-	outer membrane protein
69	 41.70	0	84023..85756	+	577	208434045	-	HPG27_74	-	hypothetical protein
70	 42.82	0	88206..88595	-	129	208434046	rpsI	HPG27_76	-	ribosomal protein S9
71	 41.78	0	88592..89017	-	141	208434047	rplM	HPG27_77	-	ribosomal protein L13
72	 36.51	0	89331..89519	-	62	208434048	-	HPG27_78	-	hypothetical protein
73	 40.98	0	89526..90872	-	448	208434049	-	HPG27_79	-	malate:quinone oxidoreductase
74	 39.74	0	90932..92305	-	457	208434050	-	HPG27_80	-	hypothetical protein
75	 38.90	0	92325..94373	-	682	208434051	rpoD	HPG27_81	-	RNA polymerase sigma-80 factor
76	 43.10	+1	94567..95262	-	231	208434052	-	HPG27_82	-	5'-methylthioadenosine nucleosidase
77	 42.58	0	95273..96202	-	309	208434053	-	HPG27_83	-	malonylcoenzymeA-acyl carrier protein transacylase
78	 28.85	-2	96629..97342	+	237	208434054	-	HPG27_84	-	type II restriction enzyme protein
79	 40.53	0	97456..98289	+	277	208434055	-	HPG27_85	-	typeII adenine methyltransferase
80	 36.91	0	99308..99838	-	176	208434056	-	HPG27_87	-	hypothetical protein
81	 40.32	0	99911..100855	+	314	208434057	-	HPG27_88	-	putative D-2-hydroxyacidde hydrogenase
82	 41.56	0	101070..101798	-	242	208434058	-	HPG27_89	-	hypothetical protein
83	 40.48	0	101890..103344	-	484	208434059	thrC	HPG27_90	-	threonine synthase
84	 39.05	0	103546..105573	+	675	208434060	tlpB	HPG27_91	-	methyl-accepting chemotaxis transmembrane sensory protein
85	 37.85	0	105573..106679	+	368	208434061	-	HPG27_92	-	hypothetical protein
86	 34.51	-1	106895..107656	+	253	208434062	-	HPG27_93	-	hypothetical protein
87	 37.93	0	107639..108421	-	260	208434063	-	HPG27_94	-	glycosyltransferase
88	 41.64	0	108452..110149	-	565	208434064	mcpB	HPG27_95	-	methyl-accepting chemotaxis protein
89	 39.69	0	110357..112102	-	581	208434065	cpdB	HPG27_96	-	2',3'-cyclic-nucleotide 2'-phosphodiesterase
90	 44.23	+1	112243..112710	-	155	208434066	luxS	HPG27_97	-	autoinducer-2 synthase
91	 47.33	+2	112740..113882	-	380	208434067	-	HPG27_98	-	cystathionine gamma-synthase
92	 46.19	+1	113903..114820	-	305	208434068	cysK	HPG27_99	-	cysteine synthetase
93	 34.39	-1	115061..115345	-	94	208434069	-	HPG27_100	-	hypothetical protein
94	 42.73	0	115576..117438	-	620	208434070	dnaK	HPG27_101	-	chaperone and heatshock protein 70
95	 40.10	0	117469..118044	-	191	208434071	grpE	HPG27_102	-	co-chaperone and heat shock protein 24
96	 38.15	0	118044..118874	-	276	208434072	-	HPG27_103	-	heat-inducible transcription repressor
97	 40.43	0	119330..119893	+	187	208434073	-	HPG27_104	-	L-fuculose-1-phosphate aldolase
98	 39.39	0	119914..120210	+	98	208434074	-	HPG27_105	-	hypothetical protein
99	 37.53	0	120220..122103	-	627	208434075	-	HPG27_106	-	hypothetical protein
100	 46.60	+1	122164..123708	-	514	208434076	flaB	HPG27_107	-	flagellin B
39.14	MEAN

3.74	STD DEV
