IslandPath Analysis: Helicobacter pylori J99

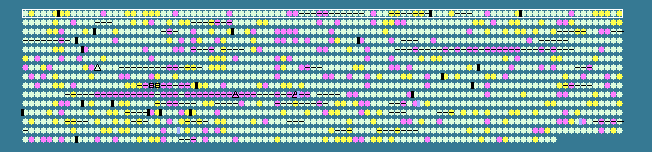

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 39.55   STD DEV: 3.47
Helicobacter pylori J99, complete genome - 1..1643831
1489 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 41.01	0	51..467	-	138	15611072	nusB	jhp0001	-	transcription antitermination protein NusB
2	 44.80	+1	469..939	-	156	15611073	ribH	jhp0002	-	riboflavin synthase subunit beta
3	 42.72	0	949..1779	-	276	15611074	kdsA	jhp0003	-	2-dehydro-3-deoxyphosphooctonate aldolase
4	 39.19	0	1766..2431	-	221	15611075	icfA	jhp0004	-	carbonic anhydrase
5	 39.91	0	2552..3235	+	227	15611076	pyrF	jhp0005	-	orotidine 5'-phosphate decarboxylase
6	 43.44	+1	3235..4065	+	276	15611077	panC	jhp0006	-	pantoate--beta-alanine ligase
7	 43.23	+1	5436..7443	-	668	15611078	-	jhp0007	-	putative Outer membrane protein
8	 45.83	+1	7758..9398	-	546	15611079	groEL	jhp0008	-	chaperonin GroEL
9	 40.90	0	9423..9779	-	118	15611080	groES	jhp0009	-	co-chaperonin GroES
10	 39.29	0	10067..11746	+	559	15611081	dnaG	jhp0010	-	DNA primase
11	 40.93	0	11743..12795	+	350	15611082	-	jhp0011	-	hypothetical protein
12	 38.53	0	12885..13712	+	275	15611083	-	jhp0012	-	hypothetical protein
13	 39.36	0	13859..14140	+	93	15611084	-	jhp0013	-	hypothetical protein
14	 32.95	-1	14140..14403	+	87	15611085	-	jhp0014	-	hypothetical protein
15	 37.35	0	14405..16768	+	787	15611086	virB4_1	jhp0015	-	DNA transfer protein
16	 40.00	0	17008..18417	+	469	15611087	-	jhp0016	-	hypothetical protein
17	 41.20	0	18524..19489	+	321	15611088	cheV_1	jhp0017	-	putative chemotaxis protein
18	 43.84	+1	19486..20703	+	405	15611089	nspC	jhp0018	-	putative carboxynorspermidine decarboxylase
19	 44.10	+1	20764..21339	-	191	15611090	-	jhp0019	-	lipid A 1-phosphatase
20	 40.46	0	21350..22921	-	523	15611091	-	jhp0020	-	lipid A phosphoethanolamine transferase
21	 45.01	+1	23538..25610	-	690	15611092	-	jhp0021	-	putative Outer membrane protein
22	 44.57	+1	26315..27595	-	426	15611093	gltA	jhp0022	-	type II citrate synthase
23	 43.74	+1	27796..29073	+	425	15611094	icd	jhp0023	-	isocitrate dehydrogenase
24	 38.26	0	29138..29665	+	175	15611095	-	jhp0024	-	hypothetical protein
25	 38.81	0	29642..30298	-	218	15611096	bioD	jhp0025	-	dethiobiotin synthetase
26	 35.57	-1	30302..31999	-	565	15611097	-	jhp0026	-	hypothetical protein
27	 38.65	0	32111..32524	+	137	15611098	-	jhp0027	-	hypothetical protein
28	 41.39	0	32526..32798	+	90	15611099	-	jhp0028	-	hypothetical protein
29	 39.66	0	32798..35026	+	742	15611100	clpA	jhp0029	-	ATP-dependent protease,ATP-binding subunit
30	 41.81	0	35016..35369	+	117	15611101	panD	jhp0030	-	aspartate alpha-decarboxylase
31	 41.91	0	35372..35674	+	100	15611102	-	jhp0031	-	hypothetical protein
32	 40.38	0	35671..36678	+	335	15611103	-	jhp0032	-	hypothetical protein
33	 39.49	0	36686..37741	+	351	15611104	-	jhp0033	-	hypothetical protein
34	 41.94	0	37867..38610	+	247	15611105	comB1	jhp0034	-	DNA transformation competancy
35	 35.87	-1	38610..39596	+	328	15611106	comB2	jhp0035	-	DNA transformation compentancy
36	 42.44	0	39589..40719	+	376	15611107	comB3	jhp0036	-	DNA transformation compentancy
37	 38.92	0	40789..42201	+	470	15611108	manC	jhp0037	-	phosphomannose isomerase/GDP-mannose pyrophosphorylase
38	 42.15	0	42242..43387	+	381	15611109	gmd	jhp0038	-	GDP-D-mannose dehydratase
39	 40.73	0	43380..44312	+	310	15611110	-	jhp0039	-	putative sugar nucleotide biosynthesis
40	 42.94	0	45190..46188	-	332	15611111	hypE	jhp0040	-	hydrogenase expression/formation protein
41	 41.82	0	46191..48464	-	757	15611112	-	jhp0041	-	putative transcriptional regulator
42	 40.48	0	48440..49432	-	330	15611113	-	jhp0042	-	hypothetical protein
43	 39.68	0	49491..50183	-	230	15611114	-	jhp0043	-	putative type II DNA modification enzyme (methyltransferase)
44	 38.17	0	50161..50718	-	185	15611115	-	jhp0044	-	putative type II DNA modification enzyme (methyltransferase)
45	 32.56	-2	51152..52183	-	343	15611116	-	jhp0045	-	putative type II DNA modification enzyme (methyltransferase)
46	 31.67	-2	52193..52975	-	260	15611117	-	jhp0046	-	putative type II restriction enzyme
47	 42.32	0	53403..54893	-	496	15611118	putP	jhp0047	-	sodium/proline symporter
48	 40.56	0	54920..58477	-	1185	15611119	putA	jhp0048	-	proline/pyrroline-5-carboxylate dehydrogenase
49	 39.05	0	58798..59007	+	69	15611120	-	jhp0049	-	hypothetical protein
50	 33.48	-1	59335..59997	+	220	15611121	-	jhp0050	-	hypothetical protein
51	 35.81	-1	60127..60489	+	120	15611122	-	jhp0051	-	hypothetical protein
52	 40.24	0	60490..61473	+	327	15611123	-	jhp0052	-	hypothetical protein
53	 37.73	0	61484..61915	+	143	15611124	-	jhp0053	-	hypothetical protein
54	 39.90	0	62096..63664	+	522	15611125	-	jhp0054	-	hypothetical protein
55	 41.77	0	63665..63901	+	78	15611126	-	jhp0055	-	hypothetical protein
56	 40.00	0	63898..64467	+	189	15611127	-	jhp0056	-	hypothetical protein
57	 40.23	0	64483..64743	+	86	15611128	-	jhp0057	-	hypothetical protein
58	 39.25	0	64754..66256	+	500	15611129	-	jhp0058	-	hypothetical protein
59	 35.95	-1	66226..66645	+	139	15611130	-	jhp0059	-	hypothetical protein
60	 40.68	0	66647..67000	+	117	15611131	-	jhp0060	-	hypothetical protein
61	 40.07	0	66993..69413	+	806	15611132	-	jhp0061	-	hypothetical protein
62	 43.73	+1	69487..70284	-	265	15611133	ureH	jhp0062	-	urease accessory protein
63	 44.33	+1	70284..70883	-	199	15611134	ureG	jhp0063	-	urease accessory protein
64	 41.37	0	70912..71682	-	256	15611135	ureF	jhp0064	-	urease accessory protein
65	 40.74	0	71706..72218	-	170	15611136	ureE	jhp0065	-	urease accessory protein UreE
66	 44.05	+1	72220..72807	-	195	15611137	ureI	jhp0066	-	urea transporter
67	 44.91	+1	73031..74740	-	569	15611138	ureC	jhp0067	-	urease subunit alpha
68	 42.26	0	74744..75460	-	238	15611139	ureA	jhp0068	-	bifunctional urease subunit gamma/beta
69	 36.38	0	75814..76305	-	163	15611140	lspA	jhp0069	-	lipoprotein signal peptidase
70	 42.38	0	76299..77636	-	445	15611141	glmM	jhp0070	-	phosphoglucosamine mutase
71	 39.63	0	77726..77995	+	89	15611142	rpsT	jhp0071	-	30S ribosomal protein S20
72	 43.06	+1	78114..79172	+	352	15611143	prfA	jhp0072	-	peptide chain release factor 1
73	 42.71	0	79586..80353	+	255	15611144	-	jhp0073	-	putative Outer membrane protein
74	 42.75	0	80604..82376	+	590	15611145	-	jhp0074	-	hypothetical protein
75	 38.72	0	82800..84821	-	673	15611146	-	jhp0075	-	methyl-accepting chemotaxis protein (MCP)
76	 42.31	0	84971..85360	-	129	15611147	rpsI	jhp0076	-	30S ribosomal protein S9
77	 41.55	0	85357..85782	-	141	15611148	rplM	jhp0077	-	50S ribosomal protein L13
78	 35.45	-1	86134..86322	-	62	15611149	-	jhp0078	-	hypothetical protein
79	 41.02	0	86329..87681	-	450	15611150	-	jhp0079	-	hypothetical protein
80	 40.90	0	87735..89108	-	457	15611151	-	jhp0080	-	hypothetical protein
81	 39.98	0	89128..91173	-	681	15611152	rpoD	jhp0081	-	RNA polymerase sigma factor RpoD
82	 42.42	0	91396..92088	-	230	15611153	-	jhp0082	-	5'-methylthioadenosine/S-adenosylhomocysteine nucleosidase
83	 43.12	+1	92102..93031	-	309	15611154	fabD	jhp0083	-	acyl-carrier-protein S-malonyltransferase
84	 39.45	0	94286..95119	+	277	15611155	-	jhp0085	-	type II DNA modification (methyltransferase
85	 40.95	0	95139..96039	-	299	15611156	-	jhp0086	-	putative alpha(1,2)fucosyltransferase
86	 37.48	0	96135..96665	-	176	15611157	-	jhp0087	-	hypothetical protein
87	 39.47	0	96738..97682	+	314	15611158	-	jhp0088	-	2-hydroxyacid dehydrogenase
88	 40.76	0	97806..98519	-	237	15611159	-	jhp0089	-	hypothetical protein
89	 41.20	0	98623..100083	-	486	15611160	thrC	jhp0090	-	threonine synthase
90	 40.24	0	100277..102304	+	675	15611161	-	jhp0091	-	methyl-accepting chemotaxis protein (MCP)
91	 38.93	0	102304..103410	+	368	15611162	-	jhp0092	-	hypothetical protein
92	 35.96	-1	103627..104388	+	253	15611163	-	jhp0093	-	hypothetical protein
93	 37.93	0	104371..105153	-	260	15611164	-	jhp0094	-	hypothetical protein
94	 41.65	0	105185..106879	-	564	15611165	-	jhp0095	-	methyl-accepting chemotaxis protein (MCP)
95	 40.84	0	107095..108840	-	581	15611166	cpdB	jhp0096	-	2',3'-cyclic-nucleotide 2'-phosphodiesterase
96	 44.88	+1	108981..109439	-	152	15611167	-	jhp0097	-	S-ribosylhomocysteinase
97	 47.86	+2	109477..110619	-	380	15611168	metB	jhp0098	-	cystathionine gamma-synthase/cystathionine beta-lyase
98	 46.19	+1	110644..111561	-	305	15611169	cysK	jhp0099	-	cysteine synthase
99	 40.74	0	111680..112138	+	152	15611170	-	jhp0100	-	hypothetical protein
100	 43.26	+1	112512..114374	-	620	15611171	dnaK	jhp0101	-	molecular chaperone DnaK
39.55	MEAN

3.47	STD DEV
