IslandPath Analysis: Halobacterium sp. NRC-1

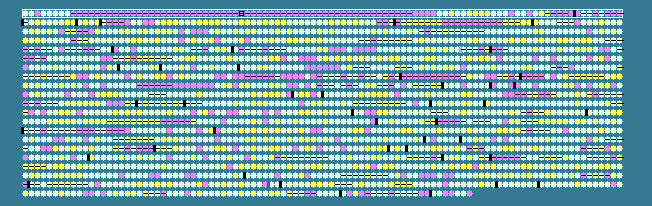

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 67.88   STD DEV: 5.16
Halobacterium sp. NRC-1, complete genome - 1..2014239
2075 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 65.34	0	248..1453	+	401	15789341	-	VNG0001H	-	hypothetical protein
2	 64.86	0	1450..2115	+	221	15789342	yvrO	VNG0002G	-	YvrO
3	 62.79	0	2145..3254	+	369	15789343	-	VNG0003C	-	hypothetical protein
4	 69.98	0	3322..5643	+	773	15789344	-	VNG0005H	-	hypothetical protein
5	 69.10	0	5646..7451	-	601	15789345	glmS	VNG0006G	-	hypothetical protein
6	 69.19	0	7454..8641	-	395	15789346	graD5	VNG0008G	-	GraD5
7	 69.24	0	8655..9860	-	401	15789347	graD2	VNG0009G	-	GraD2
8	 66.32	0	9980..11413	+	477	15789348	-	VNG0011C	-	hypothetical protein
9	 60.69	-1	11478..12614	-	378	15789349	-	VNG0013C	-	hypothetical protein
10	 59.05	-1	12978..13187	+	69	15789350	-	VNG0014C	-	hypothetical protein
11	 62.30	-1	13462..13644	-	60	15789351	-	VNG0015H	-	hypothetical protein
12	 61.29	-1	13809..14180	-	123	15789352	-	VNG0016H	-	hypothetical protein
13	 57.58	-1	14484..14780	+	98	15789353	-	VNG0017H	-	hypothetical protein
14	 56.44	-2	14868..15131	+	87	15789354	-	VNG0018H	-	hypothetical protein
15	 49.49	-2	15310..15408	+	32	15789355	-	VNG0019H	-	hypothetical protein
16	 46.29	-2	15419..16051	-	210	15789356	-	VNG0020H	-	hypothetical protein
17	 59.41	-1	16342..17706	+	454	15789357	-	VNG0021H	-	hypothetical protein
18	 58.06	-1	18357..18902	+	181	15789358	-	VNG0022H	-	hypothetical protein
19	 58.65	-1	18895..19530	+	211	15789359	-	VNG0023H	-	hypothetical protein
20	 59.19	-1	19703..20023	-	106	15789360	-	VNG0024H	-	hypothetical protein
21	 55.30	-2	20219..20482	-	87	15789361	-	VNG0025H	-	hypothetical protein
22	 59.85	-1	20533..21456	-	307	15789362	-	VNG0026C	-	hypothetical protein
23	 59.57	-1	22103..22750	-	215	15789363	-	VNG0027H	-	hypothetical protein
24	 57.66	-1	23336..23890	+	184	15789364	-	VNG0028C	-	hypothetical protein
25	 55.92	-2	24109..24564	-	151	15789365	-	VNG0029H	-	hypothetical protein
26	 54.55	-2	26201..26596	+	131	15789366	-	VNG0030H	-	hypothetical protein
27	 55.65	-2	26648..29008	+	786	15789367	-	VNG0031H	-	hypothetical protein
28	 50.78	-2	29046..29429	+	127	15789368	-	VNG0032H	-	hypothetical protein
29	 59.82	-1	29476..29913	-	145	15789369	-	VNG0033H	-	hypothetical protein
30	 61.76	-1	29913..30014	-	33	15789370	-	VNG0034H	-	hypothetical protein
31	 60.39	-1	30356..31168	-	270	15789371	-	VNG0035H	-	hypothetical protein
32	 56.63	-2	31838..32086	+	82	15789372	-	VNG0037H	-	hypothetical protein
33	 56.47	-2	32101..32355	+	84	15789373	-	VNG0038H	-	hypothetical protein
34	 57.44	-2	32555..32890	-	111	15789374	-	VNG0039H	-	hypothetical protein
35	 57.72	-1	33182..33628	-	148	15789375	-	VNG0040C	-	hypothetical protein
36	 59.80	-1	33610..33915	-	101	15789376	-	VNG0041C	-	hypothetical protein
37	 56.28	-2	34651..35931	-	426	15789377	ntp	VNG0042G	-	transposase
38	 54.96	-2	36321..36713	+	130	15789378	-	VNG0043H	-	hypothetical protein
39	 61.89	-1	36715..37971	+	418	15789379	-	VNG0044H	-	hypothetical protein
40	 56.71	-2	38017..39432	+	471	15789380	-	VNG0045C	-	hypothetical protein
41	 60.63	-1	39611..40903	-	430	15789381	ugd	VNG0046G	-	UDP-glucose dehydrogenase
42	 62.00	-1	40991..41719	+	242	16554457	graD6	VNG0047Gm	-	dTDP-glucose pyrophosphorylase
43	 40.00	-2	41880..42659	+	259	15789383	-	VNG0049H	-	hypothetical protein
44	 43.45	-2	42707..44149	+	480	15789384	-	VNG0050C	-	hypothetical protein
45	 50.58	-2	44245..45456	-	403	15789385	rfbU1	VNG0051G	-	LPS biosynthesis
46	 55.14	-2	47199..48473	-	424	15789386	-	VNG0052H	-	hypothetical protein
47	 51.97	-2	48767..49222	+	151	15789387	-	VNG0053H	-	hypothetical protein
48	 52.98	-2	49352..49972	-	206	15789388	-	VNG0054H	-	hypothetical protein
49	 54.31	-2	49985..50251	+	88	15789389	-	VNG0055H	-	hypothetical protein
50	 59.84	-1	50564..51970	-	468	15789390	-	VNG0056H	-	hypothetical protein
51	 52.64	-2	53192..54367	+	391	15789391	-	VNG0057H	-	hypothetical protein
52	 46.86	-2	54696..55745	-	349	15789392	-	VNG0058H	-	hypothetical protein
53	 59.06	-1	56287..57561	+	424	15789393	-	VNG0059H	-	hypothetical protein
54	 50.70	-2	57660..58661	-	333	15789394	lpg	VNG0060G	-	LPS glycosyltransferase
55	 53.83	-2	58827..60182	+	451	15789395	-	VNG0061C	-	hypothetical protein
56	 59.00	-1	60609..61625	-	338	15789396	lpb	VNG0062G	-	LPS biosynthesis protein
57	 60.59	-1	61700..62686	-	328	15789397	galE2	VNG0063G	-	GalE2
58	 57.88	-1	62927..63643	+	238	15789398	graD3	VNG0064G	-	GraD3
59	 61.94	-1	63881..64810	+	309	15789399	gmd	VNG0065G	-	GDP-D-mannose dehydratase
60	 58.87	-1	64976..65206	+	76	15789400	-	VNG0066H	-	hypothetical protein
61	 55.56	-2	65203..65472	+	89	15789401	-	VNG0067H	-	hypothetical protein
62	 57.41	-2	65671..65832	+	53	15789402	-	VNG0068H	-	hypothetical protein
63	 53.03	-2	66054..66251	+	65	15789403	-	VNG0069H	-	hypothetical protein
64	 57.82	-1	66241..66534	+	97	15789404	-	VNG0070H	-	hypothetical protein
65	 64.14	0	67057..67491	-	144	15789405	-	VNG0072H	-	hypothetical protein
66	 63.97	0	67908..68204	+	98	15789406	-	VNG0073C	-	hypothetical protein
67	 60.89	-1	68290..68514	+	74	15789407	-	VNG0075H	-	hypothetical protein
68	 54.17	-2	69300..69419	-	39	15789408	-	VNG0076H	-	hypothetical protein
69	 63.09	0	69967..70749	+	260	15789409	-	VNG0077H	-	hypothetical protein
70	 66.20	0	71127..71342	-	71	15789410	-	VNG0079H	-	hypothetical protein
71	 68.06	0	71317..71748	+	143	15789411	-	VNG0080H	-	hypothetical protein
72	 71.48	0	71811..72704	+	297	15789412	moaE	VNG0081G	-	hypothetical protein
73	 69.18	0	72708..73544	-	278	15789413	moeB	VNG0084G	-	MoeB
74	 69.38	0	73639..74742	+	367	15789414	moaA	VNG0085G	-	hypothetical protein
75	 75.74	+1	74752..76647	-	631	16554458	moeA2	VNG0086Gm	-	molybdopterin biosynthesis protein
76	 74.92	+1	76644..77867	-	407	15789416	moeA1	VNG0090G	-	MoeA1
77	 75.20	+1	77923..78660	-	245	15789417	pimT1	VNG0089G	-	L-isoaspartyl protein carboxyl methyltransferase
78	 76.07	+1	78683..79597	-	304	15789418	-	VNG0091C	-	hypothetical protein
79	 67.42	0	79662..80327	-	221	15789419	-	VNG0094C	-	hypothetical protein
80	 71.13	0	80387..81328	-	313	15789420	-	VNG0096C	-	hypothetical protein
81	 69.84	0	81452..82459	+	335	15789421	gapB	VNG0095G	-	glyceraldehyde-3-phosphate dehydrogenase
82	 64.34	0	82540..82926	+	128	15789422	hsp2	VNG0097G	-	Hsp2
83	 71.21	0	82932..83789	-	285	15789423	rimK	VNG0098G	-	RimK
84	 65.54	0	83885..84415	-	176	15789424	rpl10e	VNG0099G	-	50S ribosomal protein L10e
85	 58.22	-1	84617..84841	-	74	15789425	cspD1	VNG0101G	-	CspD1
86	 65.30	0	84927..85583	-	218	15789426	-	VNG0102C	-	hypothetical protein
87	 74.18	+1	85640..86611	-	323	15789427	serA3	VNG0104G	-	SerA3
88	 71.81	0	86734..87219	-	161	15789428	-	VNG0105H	-	hypothetical protein
89	 62.80	0	87668..89167	+	499	15789429	rmeM	VNG0106G	-	RmeM
90	 49.58	-2	89160..90587	+	475	15789430	rmeS	VNG0107G	-	RmeS
91	 63.04	0	90639..93641	+	1000	15789431	rmeR	VNG0108G	-	RmeR
92	 61.85	-1	93634..94359	+	241	15789432	-	VNG0110C	-	hypothetical protein
93	 58.99	-1	96010..96543	-	177	15789433	-	VNG0112H	-	hypothetical protein
94	 68.29	0	97444..98121	+	225	15789434	-	VNG0113H	-	hypothetical protein
95	 67.82	0	98226..99008	+	260	15789435	yusZ1	VNG0115G	-	YusZ1
96	 51.52	-2	100891..101715	-	274	15789436	-	VNG0116H	-	hypothetical protein
97	 65.22	0	102034..102309	-	91	15789437	-	VNG0117H	-	hypothetical protein
98	 64.32	0	102309..102692	-	127	15789438	-	VNG0118H	-	hypothetical protein
99	 60.38	-1	102863..103021	-	52	15789439	-	VNG0119H	-	hypothetical protein
100	 57.14	-2	103021..103146	-	41	15789440	-	VNG0120H	-	hypothetical protein
67.88	MEAN

5.16	STD DEV
