IslandPath Analysis: Haemophilus influenzae PittGG

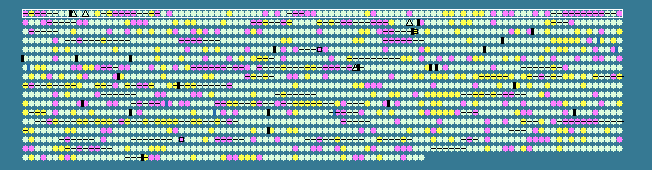

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 38.07   STD DEV: 3.85
Haemophilus influenzae PittGG, complete genome - 1..1887192
1667 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 34.52	0	370..621	+	83	148826758	-	CGSHiGG_00010	-	lipoprotein
2	 41.72	0	647..1111	+	154	148826759	-	CGSHiGG_00015	-	15 kDa peptidoglycan-associated lipoprotein
3	 29.02	-2	1569..2264	-	231	148826760	-	CGSHiGG_00020	-	hypothetical protein
4	 28.38	-2	2360..2581	-	73	148826761	-	CGSHiGG_00025	-	hypothetical protein
5	 38.38	0	2583..2681	-	32	148826762	-	CGSHiGG_00030	-	hypothetical protein
6	 37.21	0	2916..4565	-	549	148826763	pgi	CGSHiGG_00035	-	glucose-6-phosphate isomerase
7	 40.07	0	4662..5744	-	360	148826764	alr	CGSHiGG_00040	-	alanine racemase
8	 40.08	0	7302..8738	-	478	148826765	-	CGSHiGG_00060	-	pyruvate kinase
9	 41.12	0	9247..9567	+	106	148826766	-	CGSHiGG_00065	-	putative integrase
10	 39.25	0	9557..9928	-	123	148826767	-	CGSHiGG_00070	-	hypothetical protein
11	 40.94	0	10056..10226	+	56	148826768	-	CGSHiGG_00075	-	integrase
12	 40.00	0	10165..10689	-	174	148826769	-	CGSHiGG_00080	-	hypothetical protein
13	 41.88	0	10689..10922	+	77	148826770	-	CGSHiGG_00085	-	hypothetical protein
14	 40.03	0	10934..11635	+	233	148826771	-	CGSHiGG_00090	-	hypothetical protein
15	 42.69	+1	11771..12187	+	138	148826772	-	CGSHiGG_00095	-	G protein
16	 34.21	-1	12561..13358	-	265	148826773	-	CGSHiGG_00100	-	lic-1 operon protein
17	 33.48	-1	13358..14059	-	233	148826774	-	CGSHiGG_00105	-	lic-1 operon protein
18	 34.02	-1	14056..14934	-	292	148826775	-	CGSHiGG_00110	-	lic-1 operon protein
19	 32.72	-1	14934..15914	-	326	148826776	-	CGSHiGG_00115	-	LicA
20	 36.43	0	16231..16359	+	42	148826777	-	CGSHiGG_00120	-	hypothetical protein
21	 40.97	0	16426..16962	+	178	148826778	-	CGSHiGG_00125	-	hypothetical protein
22	 43.61	+1	17164..18360	+	398	148826779	-	CGSHiGG_00130	-	Sel1 domain-containing protein
23	 26.67	-2	18363..19262	+	299	148826780	-	CGSHiGG_00135	-	hypothetical protein
24	 35.69	0	19275..20039	+	254	148826781	-	CGSHiGG_00140	-	Sel1 repeat-containing protein
25	 33.72	-1	20039..21061	+	340	148826782	-	CGSHiGG_00145	-	pyruvate kinase
26	 41.07	0	21168..22253	+	361	148826783	prfA	CGSHiGG_00150	-	peptide chain release factor 1
27	 39.91	0	22306..22746	+	146	148826784	-	CGSHiGG_00155	-	hypothetical protein
28	 41.07	0	22746..23624	+	292	148826785	-	CGSHiGG_00160	-	hypothetical protein
29	 38.93	0	23624..24427	+	267	148826786	prfA	CGSHiGG_00165	-	hypothetical protein
30	 39.06	0	24442..25296	+	284	148826787	-	CGSHiGG_00170	-	2-dehydro-3-deoxyphosphooctonate aldolase
31	 39.35	0	25356..26303	+	315	148826788	-	CGSHiGG_00175	-	glycerate dehydrogenase
32	 39.55	0	26303..27379	+	358	148826789	-	CGSHiGG_00180	-	glycerate dehydrogenase
33	 40.16	0	27498..28787	+	429	148826790	-	CGSHiGG_00185	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
34	 39.56	0	28796..29935	+	379	148826791	-	CGSHiGG_00190	-	8-amino-7-oxononanoate synthase
35	 41.67	0	29945..30592	+	215	148826792	-	CGSHiGG_00195	-	hypothetical protein
36	 39.59	0	30580..31362	+	260	148826793	-	CGSHiGG_00200	-	8-amino-7-oxononanoate synthase
37	 34.74	0	31372..32013	+	213	148826794	bioD	CGSHiGG_00205	-	dithiobiotin synthetase
38	 39.91	0	32095..32778	+	227	148826795	bioD	CGSHiGG_00210	-	dithiobiotin synthetase
39	 37.49	0	32778..34028	+	416	148826796	-	CGSHiGG_00215	-	outer membrane-specific lipoprotein transporter subunit LolE
40	 39.12	0	34246..35334	+	362	148826797	-	CGSHiGG_00220	-	phospho-2-dehydro-3-deoxyheptonate aldolase
41	 33.11	-1	35404..35844	-	146	148826798	-	CGSHiGG_00225	-	ImpA
42	 37.99	0	36127..37371	+	414	148826799	-	CGSHiGG_00230	-	serine/threonine transporter SstT
43	 33.82	-1	37492..38106	+	204	148826800	-	CGSHiGG_00235	-	putative NAD(P)H oxidoreductase
44	 36.94	0	38099..38653	+	184	148826801	-	CGSHiGG_00240	-	putative component of anaerobic dehydrogenase
45	 41.37	0	38700..39209	-	169	148826802	-	CGSHiGG_00245	-	nitroreductase
46	 34.21	-1	41240..42037	-	265	148826803	-	CGSHiGG_00265	-	lic-1 operon protein
47	 33.48	-1	42037..42738	-	233	148826804	-	CGSHiGG_00270	-	lic-1 operon protein
48	 34.02	-1	42735..43613	-	292	148826805	-	CGSHiGG_00275	-	lic-1 operon protein
49	 31.79	-1	43613..44716	-	367	148826806	-	CGSHiGG_00280	-	phospho-2-dehydro-3-heoxyheptonate aldolase
50	 40.64	0	44804..46816	-	670	148826807	mnmC	CGSHiGG_00285	-	5-methylaminomethyl-2-thiouridine methyltransferase
51	 40.95	0	46965..48185	+	406	148826808	-	CGSHiGG_00290	-	3-oxoacyl-(acyl carrier protein) synthase I
52	 36.36	0	48252..48515	-	87	148826809	grxA	CGSHiGG_00295	-	glutaredoxin 1
53	 38.39	0	48630..49538	+	302	148826810	-	CGSHiGG_00300	-	ribosomal protein S6 modification protein
54	 38.11	0	49577..50791	-	404	148826811	grxA	CGSHiGG_00305	-	glutaredoxin 1
55	 40.46	0	50833..53076	-	747	148826812	-	CGSHiGG_00310	-	DNA topoisomerase IV subunit A
56	 40.92	0	55113..56048	-	311	148826813	-	CGSHiGG_00325	-	lipid A biosynthesis lauroyl acyltransferase
57	 39.97	0	56145..57575	+	476	148826814	-	CGSHiGG_00330	-	bifunctional heptose 7-phosphate kinase/heptose 1-phosphate adenyltransferase
58	 46.88	+2	57940..58035	-	31	148826815	-	CGSHiGG_00335	-	putative type I restriction enzyme HindVIIP R protein
59	 28.89	-2	58384..58608	-	74	148826816	-	CGSHiGG_00340	-	bifunctional heptose 7-phosphate kinase/heptose 1-phosphate adenyltransferase
60	 40.88	0	58603..58920	+	105	148826817	-	CGSHiGG_00345	-	ABC transporter ATP-binding protein
61	 37.98	0	59766..60905	-	379	148826818	-	CGSHiGG_00360	-	ABC transporter ATPase component
62	 36.58	0	60978..61748	-	256	148826819	potC	CGSHiGG_00365	-	spermidine/putrescine ABC transporter membrane protein
63	 38.16	0	62591..63709	-	372	148826820	potA	CGSHiGG_00380	-	putrescine/spermidine ABC transporter ATPase protein
64	 36.97	0	64004..65242	+	412	148826821	-	CGSHiGG_00385	-	peptidase T
65	 33.75	-1	65719..66201	-	160	148826822	-	CGSHiGG_00390	-	peptidase T
66	 37.66	0	66474..67352	+	292	148826823	-	CGSHiGG_00395	-	cytidine deaminase
67	 39.54	0	67395..68360	-	321	148826824	-	CGSHiGG_00400	-	hypothetical protein
68	 39.14	0	68357..69871	-	504	148826825	-	CGSHiGG_00405	-	cytidine deaminase
69	 39.28	0	72008..73672	+	554	148826826	-	CGSHiGG_00420	-	glutaminyl-tRNA synthetase
70	 38.19	0	73750..74202	+	150	148826827	-	CGSHiGG_00425	-	hypothetical protein
71	 42.54	+1	76372..78564	+	730	148826828	-	CGSHiGG_00440	-	glycogen branching enzyme
72	 41.57	0	78663..80642	+	659	148826829	-	CGSHiGG_00445	-	glycogen branching enzyme
73	 40.86	0	80665..81966	+	433	148826830	glgC	CGSHiGG_00450	-	glucose-1-phosphate adenylyltransferase
74	 46.12	+2	82074..83504	+	476	148826831	glgA	CGSHiGG_00455	-	glycogen synthase
75	 41.24	0	83751..86216	+	821	148826832	glgA	CGSHiGG_00460	-	glycogen synthase
76	 42.76	+1	86477..88015	+	512	148826833	pntA	CGSHiGG_00465	-	NAD(P) transhydrogenase subunit alpha
77	 41.75	0	88026..89450	+	474	148826834	pntB	CGSHiGG_00470	-	pyridine nucleotide transhydrogenase
78	 39.09	0	90528..93134	+	868	148826835	-	CGSHiGG_00485	-	DNA topoisomerase I
79	 34.53	0	93210..93794	-	194	148826836	-	CGSHiGG_00490	-	DNA topoisomerase I
80	 41.10	0	94079..96010	+	643	148826837	-	CGSHiGG_00495	-	threonyl-tRNA synthetase
81	 32.79	-1	96122..98701	-	859	148826838	-	CGSHiGG_00500	-	putative zinc protease
82	 33.74	-1	98670..98915	-	81	148826839	-	CGSHiGG_00505	-	zinc protease
83	 36.19	0	101601..101810	-	69	148826840	-	CGSHiGG_00520	-	putative molybdenum-pterin binding protein
84	 40.00	0	101928..102257	-	109	148826841	-	CGSHiGG_00525	-	putative dissimilatory sulfite reductase, desulfoviridin, gamma subunit
85	 38.58	0	103348..104682	+	444	148826842	-	CGSHiGG_00540	-	condesin subunit F
86	 30.93	-1	104695..105651	+	318	148826843	-	CGSHiGG_00545	-	modification methylase HaeII
87	 39.71	0	107452..111984	+	1510	148826844	mukB	CGSHiGG_00570	-	cell division protein MukB
88	 27.94	-2	112054..112962	+	302	148826845	-	CGSHiGG_00575	-	hypothetical protein
89	 35.40	0	113211..113840	+	209	148826846	mukB	CGSHiGG_00580	-	cell division protein MukB
90	 35.37	0	113853..115274	+	473	148826847	sbcB	CGSHiGG_00585	-	exonuclease I
91	 31.60	-1	115682..115969	+	95	148826848	-	CGSHiGG_00590	-	hypothetical protein
92	 32.82	-1	115956..116150	-	64	148826849	-	CGSHiGG_00595	-	hypothetical protein
93	 29.87	-2	116339..116800	-	153	148826850	-	CGSHiGG_00600	-	hypothetical protein
94	 29.57	-2	116797..116982	-	61	148826851	-	CGSHiGG_00605	-	RstR-like phage repressor protein
95	 34.29	0	117135..118283	+	382	148826852	-	CGSHiGG_00610	-	hypothetical protein
96	 34.25	0	118323..118649	+	108	148826853	-	CGSHiGG_00615	-	hypothetical protein
97	 30.00	-2	118649..118738	+	29	148826854	-	CGSHiGG_00620	-	hypothetical protein
98	 34.80	0	118735..119007	+	90	148826855	-	CGSHiGG_00625	-	hypothetical protein
99	 38.96	0	119026..119256	+	76	148826856	-	CGSHiGG_00630	-	hypothetical protein
100	 33.48	-1	119307..120707	+	466	148826857	-	CGSHiGG_00635	-	hypothetical protein
38.07	MEAN

3.85	STD DEV
