IslandPath Analysis: Haemophilus influenzae Rd KW20

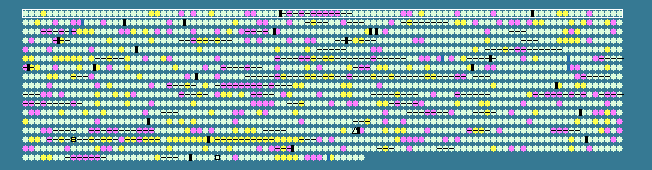

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 38.46   STD DEV: 3.50
Haemophilus influenzae Rd KW20, complete genome - 1..1830138
1657 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 40.78	0	2..1021	+	339	16271977	gapdH	HI0001	-	glyceraldehyde-3-phosphate dehydrogenase
2	 37.28	0	1190..3013	+	607	16271978	-	HI0002	-	long chain fatty acid CoA ligase
3	 36.63	0	3050..3838	-	262	16271979	-	HI0003	-	haloacid dehalogenase-like protein
4	 43.23	+1	3854..4318	-	154	16271980	-	HI0004	-	putative metalloprotease
5	 36.41	0	4579..5391	-	270	16271981	fdhD	HI0005	-	formate dehydrogenase accessory protein
6	 41.43	0	8750..9688	+	312	16271982	fdxH	HI0007	-	formate dehydrogenase beta subunit
7	 38.49	0	9681..10397	+	238	16271983	fdxI	HI0008	-	formate dehydrogenase gamma subunit
8	 36.63	0	10467..11375	+	302	16271984	fdhE	HI0009	-	formate dehydrogenase accessory protein FdhE
9	 35.15	0	11414..11854	-	146	16271985	rimI	HI0010	-	ribosomal-protein-alanine N-acetyltransferase
10	 40.99	0	11857..12261	-	134	16271986	holD	HI0011	-	DNA polymerase III subunit psi
11	 36.56	0	12367..13359	+	330	16271987	rsmC	HI0012	-	16S ribosomal RNA m2G1207 methyltransferase
12	 38.61	0	13423..14331	-	302	16271988	era	HI0013	-	GTP-binding protein Era
13	 41.67	0	14328..15011	-	227	16271989	rnc	HI0014	-	ribonuclease III
14	 38.95	0	15013..16062	-	349	16271990	lepB	HI0015	-	signal peptidase I
15	 39.96	0	16071..17867	-	598	16271991	lepA	HI0016	-	GTP-binding protein LepA
16	 38.54	0	18035..18418	-	127	16271992	-	HI0017	-	autonomous glycyl radical cofactor GrcA
17	 40.61	0	18676..19335	+	219	16271993	ung	HI0018	-	uracil-DNA glycosylase
18	 41.47	0	19405..20829	-	474	16271994	-	HI0019	-	hypothetical protein
19	 40.76	0	21248..22687	-	479	16271995	-	HI0020	-	hypothetical protein
20	 37.65	0	22689..23939	-	416	16271996	citG	HI0021	-	CitG protein
21	 41.25	0	24267..25769	-	500	16271997	citF	HI0022	-	citrate lyase alpha chain
22	 42.42	+1	25784..26641	-	285	30995348	citE	HI0023	-	citrate lyase beta chain
23	 42.36	+1	26656..26943	-	95	16271999	citD	HI0024	-	citrate lyase subunit gamma
24	 35.02	0	26981..27988	-	335	16272000	citC	HI0025	-	citrate lyase ligase
25	 39.98	0	28239..29201	-	320	16272001	lipA	HI0026	-	lipoyl synthase
26	 37.40	0	29255..29893	-	212	16272002	lipB	HI0027	-	lipoyltransferase
27	 32.26	-1	29895..30173	-	92	16272003	-	HI0028	-	hypothetical protein
28	 35.36	0	30229..31410	-	393	16272004	dacA	HI0029	-	penicillin-binding protein 5
29	 34.61	-1	31426..32289	-	287	16272005	-	HI0030	-	lipoprotein
30	 38.62	0	32341..33456	-	371	16272006	rodA	HI0031	-	rod shape-determining protein
31	 38.55	0	33446..35401	-	651	16272007	pbp2	HI0032	-	penicillin-binding protein 2
32	 45.73	+2	35422..35889	-	155	16272008	-	HI0033	-	SPOUT methyltransferase superfamily protein
33	 38.83	0	35943..36251	-	102	16272009	-	HI0034	-	hypothetical protein
34	 41.67	0	36376..38031	-	551	16272010	-	HI0035	-	hypothetical protein
35	 37.32	0	38237..40015	+	592	16272011	-	HI0036	-	ABC transporter ATP-binding protein
36	 41.10	0	40145..41200	+	351	30995349	mreB	HI0037	-	rod shape-determining protein MreB
37	 37.50	0	41280..42335	+	351	16272013	mreC	HI0038	-	rod shape-determining protein
38	 34.97	0	42335..42823	+	162	16272014	mreD	HI0039	-	rod shape-determining protein MreD
39	 31.79	-1	42874..43650	-	258	16272015	-	HI0040	-	hypothetical protein
40	 37.94	0	43660..44463	-	267	16272016	xthA	HI0041	-	exonuclease III
41	 35.26	0	44511..45185	-	224	16272017	-	HI0042	-	pseudouridine synthase-like protein
42	 35.68	0	45185..46249	-	354	16272018	-	HI0043	-	hypothetical protein
43	 36.05	0	46309..46971	-	220	16272019	-	HI0044	-	hypothetical protein
44	 36.22	0	47298..47852	-	184	16272020	-	HI0045	-	hypothetical protein
45	 33.03	-1	47955..48281	+	108	30995350	phnA	HI0046	-	alkylphosphonate uptake protein
46	 38.18	0	48334..48972	-	212	16272022	eda	HI0047	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
47	 34.38	-1	48991..49848	-	285	16272023	-	HI0048	-	D-mannonate oxidoreductase
48	 35.34	0	49848..50792	-	314	16272024	kdgK	HI0049	-	2-dehydro-3-deoxygluconokinase
49	 34.29	-1	50812..52068	-	418	16273630	-	HI0050m	-	integral membrane protein transporter
50	 31.33	-2	52092..52589	-	165	16272025	-	HI0051	-	hypothetical protein
51	 28.88	-2	52628..53614	-	328	16272026	-	HI0052	-	hypothetical protein
52	 34.60	-1	53641..54669	-	342	16272027	-	HI0053	-	zinc-type alcohol dehydrogenase
53	 31.33	-2	54830..55579	+	249	30995351	uxuR	HI0054	-	uxu operon regulator
54	 37.97	0	55607..56791	+	394	16272029	uxuA	HI0055	-	mannonate dehydratase
55	 37.68	0	56844..57557	-	237	16272030	-	HI0056	-	hypothetical protein
56	 39.07	0	57655..59484	-	609	16272031	uvrC	HI0057	-	excinuclease ABC subunit C
57	 40.52	0	59486..60250	-	254	16272032	kdsB	HI0058	-	3-deoxy-manno-octulosonate cytidylyltransferase
58	 39.74	0	60321..61319	-	332	16272033	lpxK	HI0059	-	tetraacyldisaccharide 4'-kinase
59	 37.64	0	61392..63155	-	587	16272034	msbA	HI0060	-	lipid transporter ATP-binding/permease protein
60	 38.23	0	63196..65562	-	788	16272035	rec2	HI0061	-	recombination protein
61	 40.41	0	65821..66258	+	145	16272036	dksA	HI0062	-	dnaK suppressor protein
62	 41.35	0	66506..67864	+	452	16272037	pcnB	HI0063	-	polyA polymerase
63	 39.13	0	67873..68355	+	160	16272038	folK	HI0064	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
64	 34.17	-1	68431..68907	+	158	16272039	yjeE	HI0065	-	hypothetical protein
65	 32.56	-1	68915..70213	+	432	16272040	-	HI0066	-	N-acetylmuramoyl-L-alanine amidase
66	 39.52	0	70214..72103	+	629	16272041	mutL	HI0067	-	DNA mismatch repair protein
67	 43.06	+1	72111..73046	+	311	16272042	miaA	HI0068	-	tRNA delta(2)-isopentenylpyrophosphate transferase
68	 38.02	0	73052..75997	+	981	16272043	glnE	HI0069	-	glutamate-ammonia-ligase adenylyltransferase
69	 37.69	0	76082..77758	-	558	16272044	recN	HI0070	-	DNA repair protein
70	 38.17	0	77902..78687	-	261	16272045	ppnK	HI0072	-	inorganic polyphosphate/ATP-NAD kinase
71	 38.96	0	78763..79455	+	230	30995352	grpE	HI0071	-	heat shock protein
72	 37.39	0	79468..79812	-	114	16272047	-	HI0073	-	nucleotidyltransferase
73	 32.43	-1	79805..80245	-	146	16272048	-	HI0074	-	nucleotidyltransferase
74	 41.71	0	80526..82649	+	707	16272049	nrdD	HI0075	-	anaerobic ribonucleoside triphosphate reductase
75	 38.91	0	82767..83627	+	286	16272050	tesB	HI0076	-	acyl-CoA thioesterase II
76	 40.14	0	83638..84504	+	288	16272051	-	HI0077	-	hypothetical protein
77	 40.29	0	84580..85959	-	459	16272052	cysS	HI0078	-	cysteinyl-tRNA synthetase
78	 37.25	0	86062..86571	+	169	16272053	ppiB	HI0079	-	peptidyl-prolyl cis-trans isomerase B
79	 31.94	-1	86575..87006	+	143	16272054	-	HI0080	-	hypothetical protein
80	 38.78	0	87148..87936	+	262	16272055	-	HI0081	-	hypothetical protein
81	 38.58	0	88193..88459	+	88	16272056	-	HI0082	-	hypothetical protein
82	 38.43	0	88474..88689	+	71	16272057	-	HI0083	-	hypothetical protein
83	 35.80	0	88739..89062	-	107	16272058	trxM	HI0084	-	thioredoxin
84	 39.16	0	89182..90177	-	331	16272059	ldhA	HI0085	-	D-lactate dehydrogenase
85	 38.31	0	90190..91335	-	381	16272060	metB	HI0086	-	cystathionine gamma-synthase
86	 39.67	0	92148..93425	-	425	16272061	thrC	HI0087	-	threonine synthase
87	 38.62	0	93468..94412	-	314	16272062	thrB	HI0088	-	homoserine kinase
88	 40.52	0	94425..96872	-	815	16272063	thrA	HI0089	-	bifunctional aspartokinase I/homeserine dehydrogenase I
89	 38.38	0	97196..97909	+	237	16272064	-	HI0090	-	hypothetical protein
90	 44.50	+1	97949..99085	-	378	16272065	-	HI0091	-	hypothetical protein
91	 43.41	+1	99094..100353	-	419	16272066	-	HI0092	-	hypothetical protein
92	 37.49	0	100475..101581	-	368	16272067	-	HI0093	-	hypothetical protein
93	 36.76	0	101783..102103	-	106	30995353	-	HI0094	-	hypothetical protein
94	 37.83	0	102453..103208	-	251	16272069	-	HI0095	-	hypothetical protein
95	 30.56	-2	103542..104117	+	191	16272070	-	HI0096	-	hypothetical protein
96	 39.68	0	104277..105274	+	332	30995354	hitA	HI0097	-	iron-utilization periplasmic protein hFbpA
97	 39.18	0	105476..106912	+	478	30995355	hitB	HI0098	-	iron(III) ABC transporter permease protein
98	 38.26	0	106914..107969	+	351	16272073	hitC	HI0099	-	iron(III) ABC transporter ATP-binding protein
99	 41.09	0	108685..109818	-	377	16272076	dapE	HI0102	-	succinyl-diaminopimelate desuccinylase
100	 36.81	0	109846..110190	-	114	16272077	-	HI0103	-	hypothetical protein
38.46	MEAN

3.50	STD DEV
